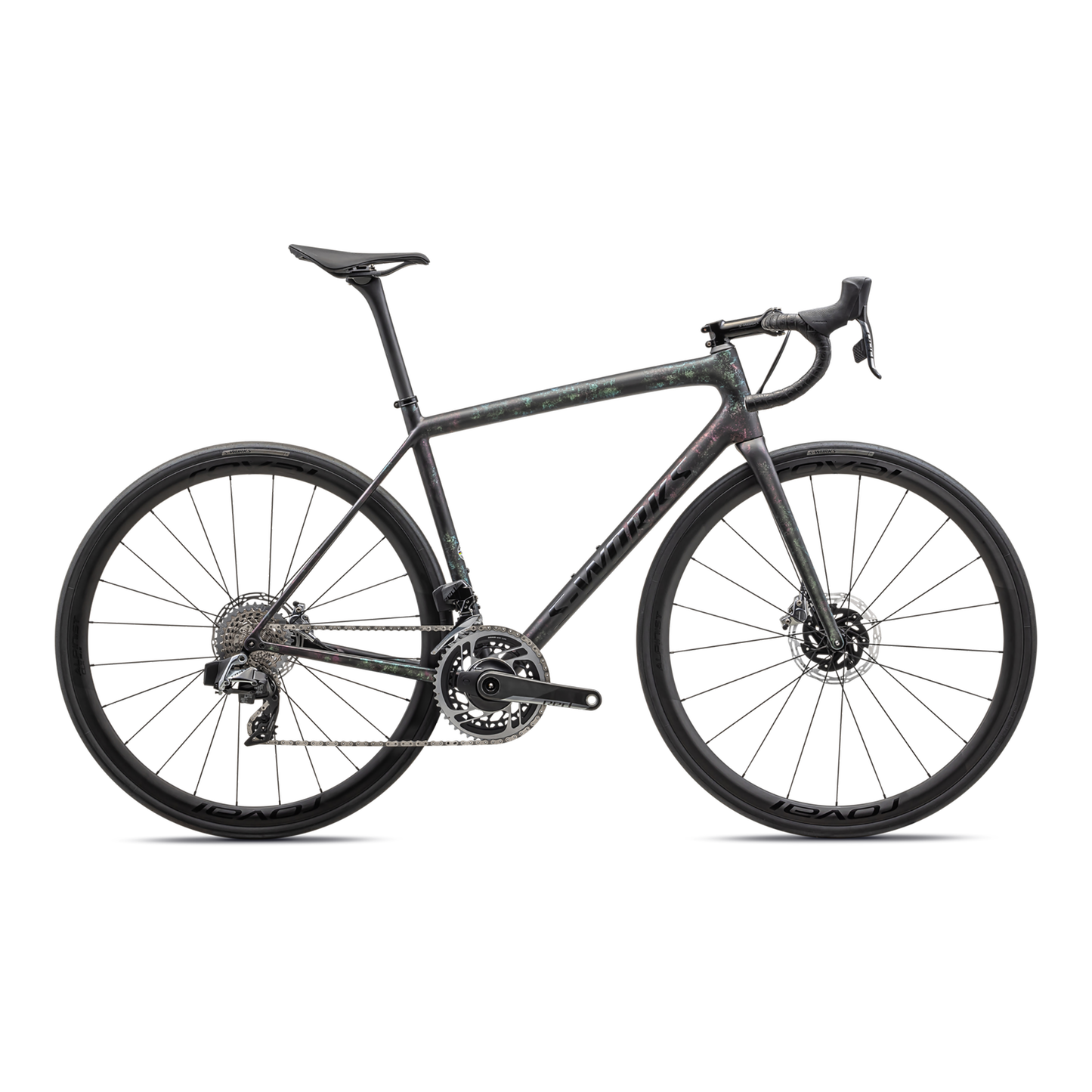

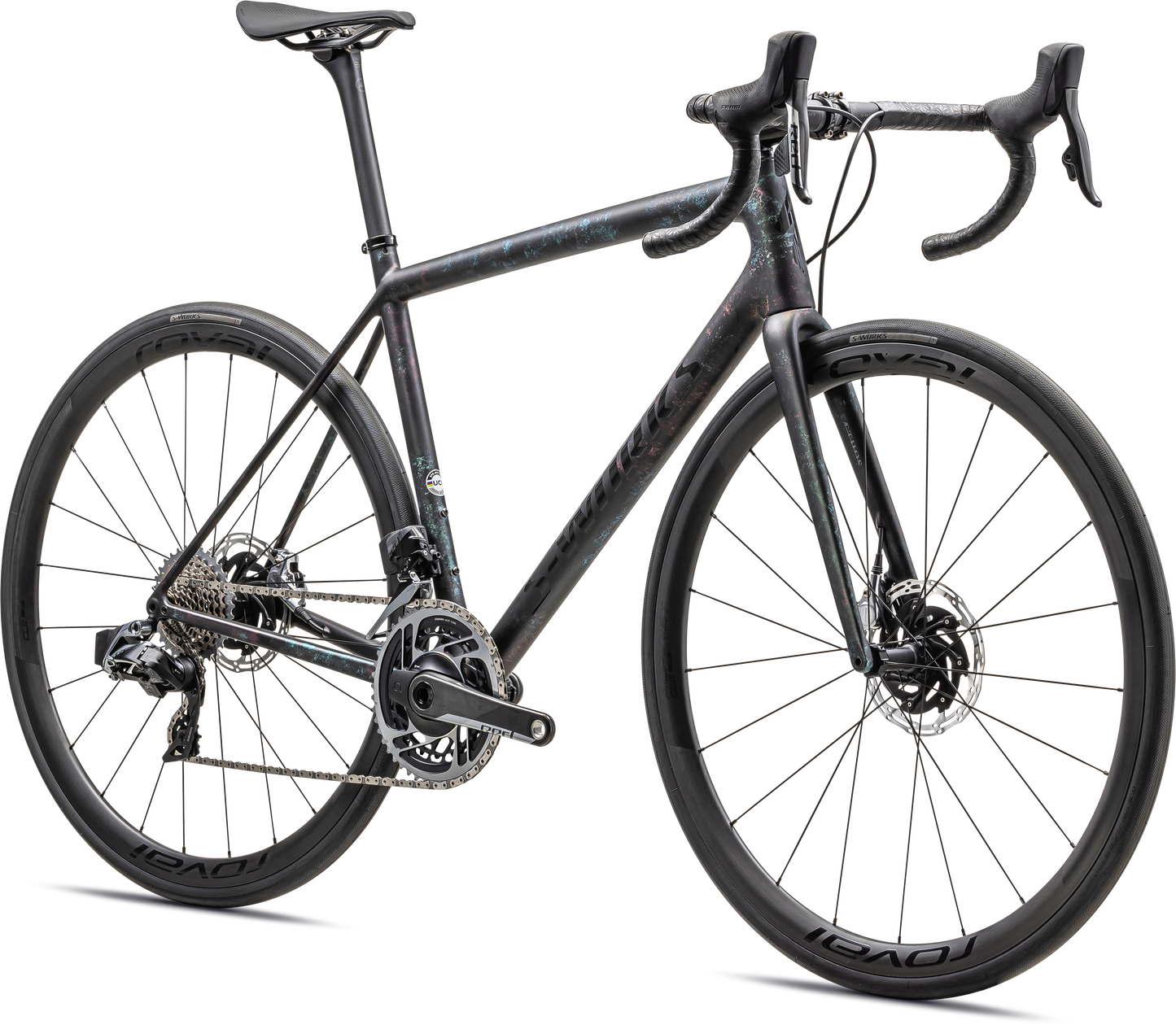

S-Works Aethos - SRAM Red eTap AXS
S-Works Aethos - SRAM Red eTap AXS
A featherweight frame is useless without confidence-inspiring ride characteristics, which is why we’ve developed the Aethos to have the perfect balance of front and rear stiffness combined with exceptional ride quality. By studying the flexing and breathing of carbon fiber, we were able to discover groundbreaking findings about how forces flow through frames. Just a few pedal strokes and you’ll realize this sublime ride sets a new standard.
Every detail, from the derailleur hangers to the fork expander plug have been designed with style, weight, and durability in mind. We’ve also spec’d it with Roval’s all-new Alpinist carbon seatpost and wheels, further saving weight and improving ride characteristics. Everything in pursuit for the perfect ride.
Share
Aethos Size Guide
Technical Specifications
Frameset
Frame
S-Works Aethos FACT 12r Carbon, Rider First Engineered™, Threaded BB, Electronic cable routing only, 12x142mm thru-axle, flat-mount disc

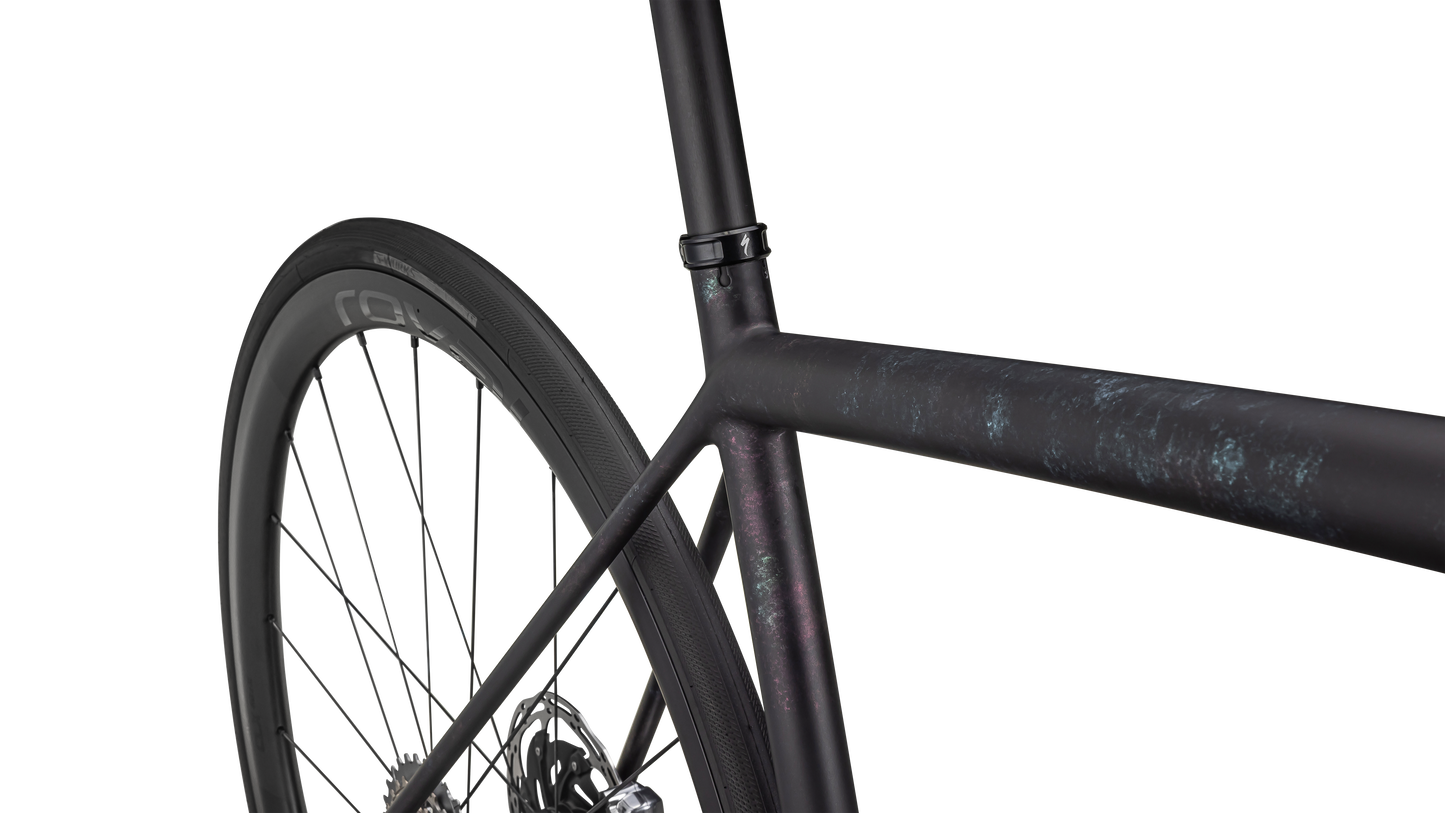

Seat Binder
Specialized Alloy, 30.0mm, titanium bolt
Suspension
Fork
S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc
Cockpit
Seat Post
Roval Alpinist Carbon Seatpost
Saddle
Body Geometry S-Works Power, carbon fiber rails, carbon fiber base

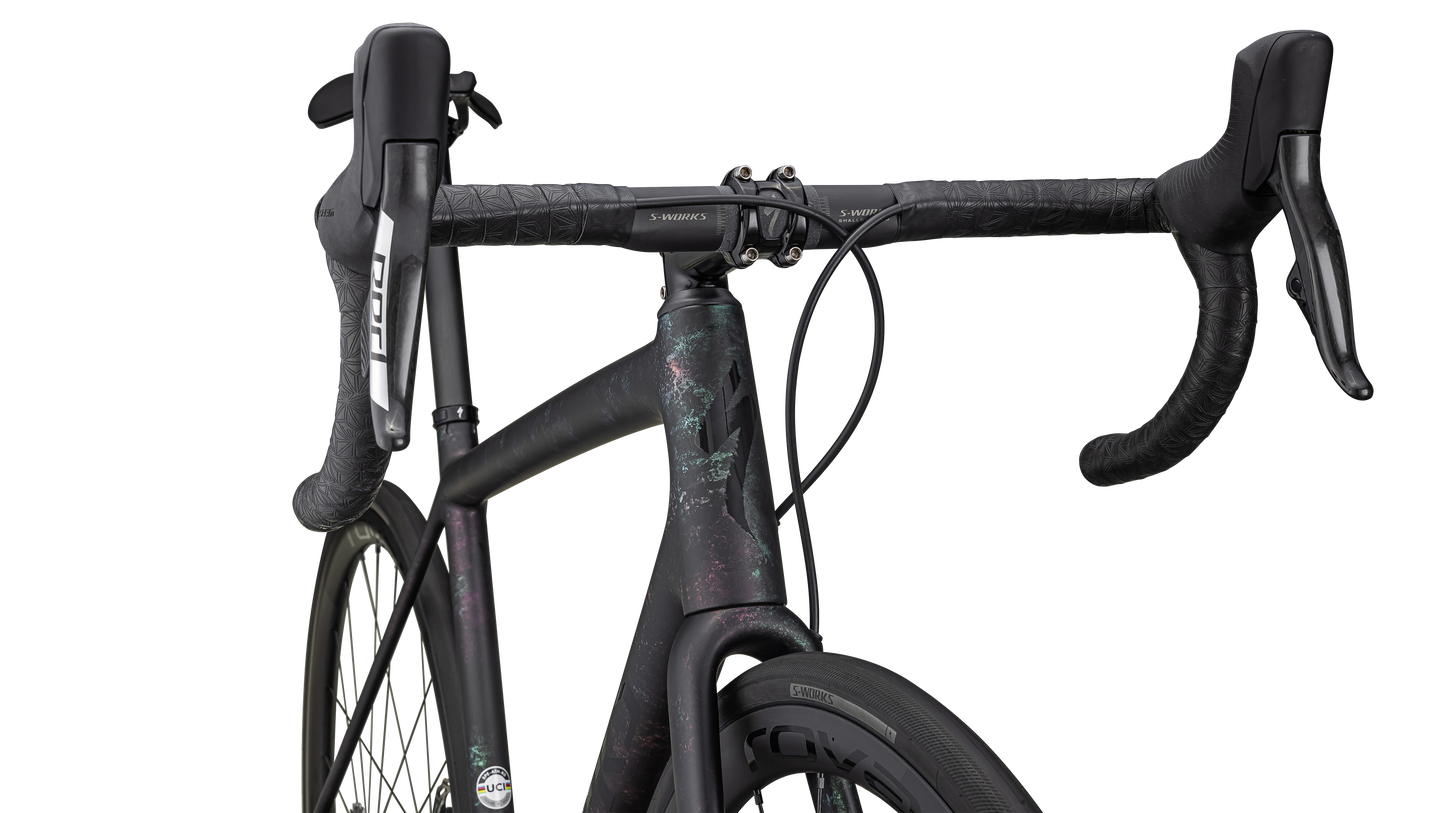

Stem
S-Works SL, alloy, titanium bolts, 6-degree rise
Bar Tape
Supacaz Super Sticky Kush
S-Works Short & Shallow, 125mm Drop, 75mm Reach w/Di2 Hole
S-Works Short & Shallow, 125mm Drop, 75mm Reach w/Di2 Hole
Brakes
Front Brake
SRAM Red eTAP AXS, hydraulic disc
Rear Brake
SRAM Red eTAP AXS, hydraulic disc
Drivetrain
Shift Levers
SRAM Red eTap AXS
Front Derailleur
SRAM RED eTAP AXS, braze-on
Rear Derailleur
SRAM RED eTAP AXS, 12-speed
Cassette
SRAM RED XG-1290, 12-speed, 10-33t
Shift Levers
SRAM Red eTap AXS
Crankset
SRAM RED AXS Power Meter
Chain
SRAM RED 12-speed
Bottom Bracket
SRAM DUB BSA 68
Chain Ring
48/35T
Wheels & Tyres
Front Wheel
Roval Alpinist CLX, Tubeless, 21mm internal width carbon rim, 33mm depth, Win Tunnel Engineered, Roval AFD hub, 21h, DT Swiss Aerolite spokes
Rear Wheel
Roval Alpinist CLX, Tubeless, 21mm internal width carbon rim, 33mm depth, Win Tunnel Engineered, Roval AFD hub, 24h, DT Swiss Aerolite spokes
Front Tire
S-works Turbo 2BR, 700x28mm
Rear Tire
S-works Turbo 2BR, 700x28mm
Tubes
700x20-28, 48mm Presta Valve
