Vado Size Guide
E-Bike System - Specialized SL 1.2 / 320 watts / Up to 5 Hours Range
Weight - Ultralight Carbon E-Bike: 17.9kg / 39.7lbs
Suspension - Future Shock 3.2
Equipped - MIK Racks and DryTech Fenders Standard
Personalization and Security - Fitness Metrics, Apple Find My, Turbo System Lock, Lights
Frame

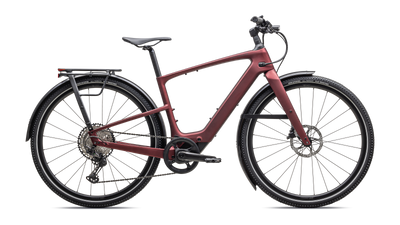

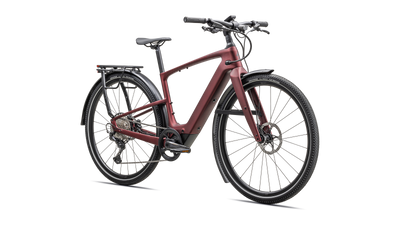

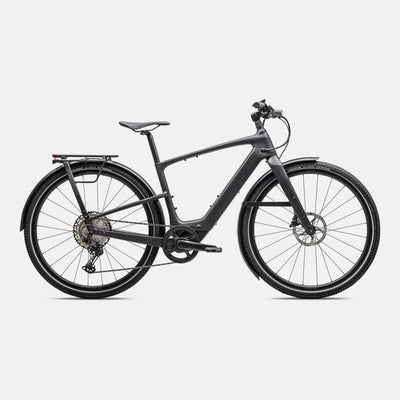

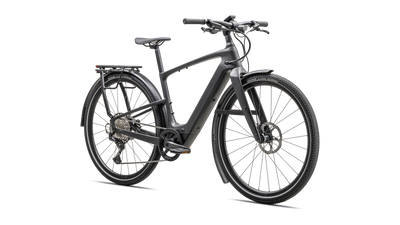

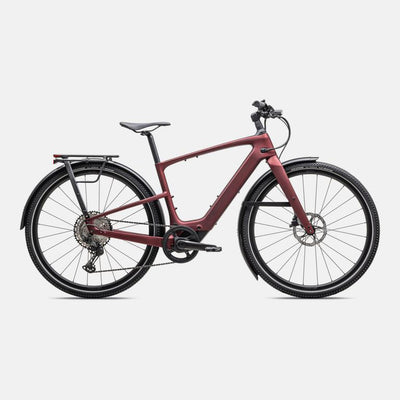

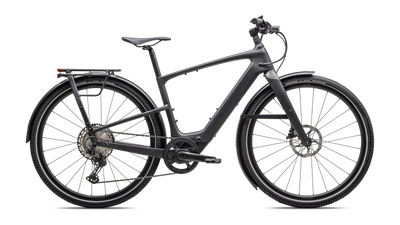

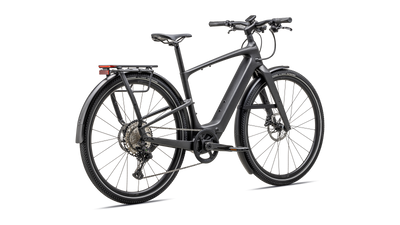

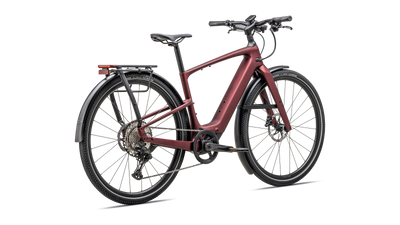

2024 Vado SL
Specialized integrated
Specialized integrated
Specialized Vado SL2 Carbon, Tubus front rack mounts up to 14kg
Specialized Vado SL2 Carbon, Tubus front rack mounts up to 14kg
Seat Post
Carbon Fiber, 30.9 mm, Offset 21mm

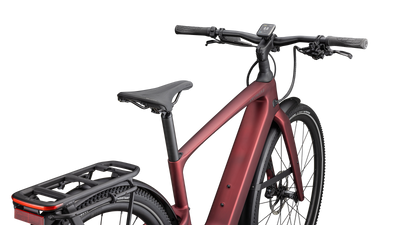

Saddle
Bridge Sport, hollow cr-mo rails, 155mm

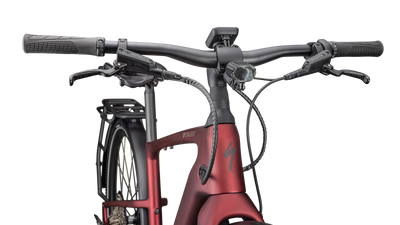

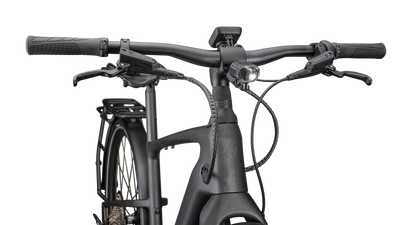

Stem
Specialized Stealth Stem, Alloy, 31.8mm, Integrated Display And Light Mount, Size S/M : 60mm 17 Deg, L/XL : 75mm 15.5 Deg
Grips
ERGON, GA30-S Custom, 134.8mm Length
Specialized alloy, rise, 31.8mm, B-SWP 9-degree, rise 15mm, U-SWP 5-degree, 680mm.
Specialized alloy, rise, 31.8mm, B-SWP 9-degree, rise 15mm, U-SWP 5-degree, 680mm.
Front Brake
TRP HD-R803, hydraulic disc
Rear Brake
TRP HD-R803, hydraulic disc
Shift Levers
Shimano Deore XT, SL-M8100-IR, Right, 12-Speed Rapidfire, W/O Optical Gear Display, I-Spec
Rear Derailleur
Shimano Deore XT 8100, 12-speed
Cassette
Shimano SLX, CS-M7100, 12-speed, 10-51t
Shift Levers
Shimano Deore XT, SL-M8100-IR, Right, 12-Speed Rapidfire, W/O Optical Gear Display, I-Spec
Crankset
SRAM FC S996 Carbon, S-165mm / M-L-170mm / XL-175mm
Chain
Shimano SLX, M7100, 12-speed
Chain Ring
Praxis, Cl 49.8mm, NW, 44T, Bcd 104mm
Front Wheel
DT SWISS G540 Disc 24h - 700c X 24mm
Rear Wheel
DT SWISS G540 Disc 24h - 700c X 24mm
Front Tire
Specialized Hemisphere flat protection, Reflective side walls, Wirebead, All terrain tire, 700x47c
Rear Tire
Specialized Hemisphere flat protection, Reflective side walls, Wirebead, All terrain tire, 700x47c
Tubes
Specialized Turbo Tube

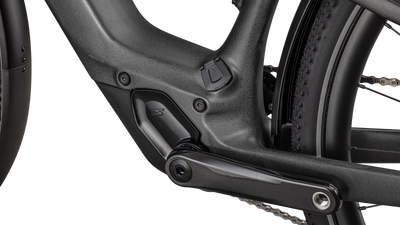

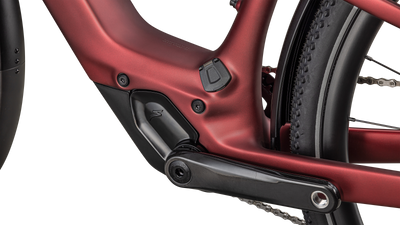

Motor
Specialized 1.2 SL System
Mastermind H3, W/Handlebar Remote, Ant+/Bluetooth®, Built-In System Lock Feature, Integrated Apple Find My, Coloured Customizable Display Pages, 2.1"
Mastermind H3, W/Handlebar Remote, Ant+/Bluetooth®, Built-In System Lock Feature, Integrated Apple Find My, Coloured Customizable Display Pages, 2.1"
Battery
Specialized SL2-520, Fully Integrated, 520Wh
Charger
Custom charger, 48V System w/ SL system charger plug
Wiring Harness
Custom Specialized wiring harness w/ chargeport
Pedals
Specialized Commuter w/ grip tape & reflectors
Headlight
Lezyne, Ebike Fusion Stvzo E500+, 500 Lumen, 50Cm Wire, With Reflector
Tail Light
Spanninga, Stvzo, Commuter Glow With Brake XEr

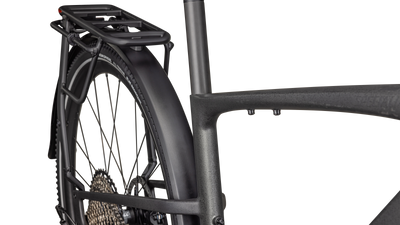

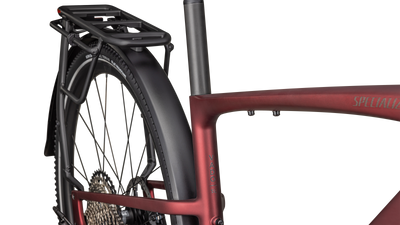

Rack
Turbo SL Rack, MIK HD-Compatible, 27kg
Fender(s)
Specialized custom alloy Fender, Sandblast anodized black finish, 700c, integrated alloy stay
Bell
Specialized brass bell
