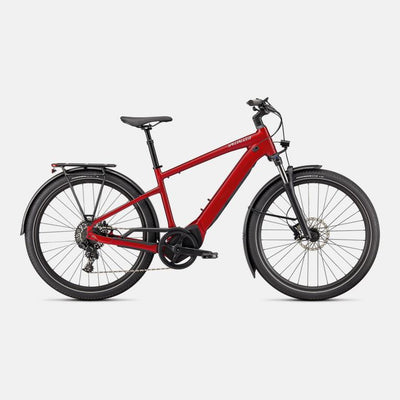

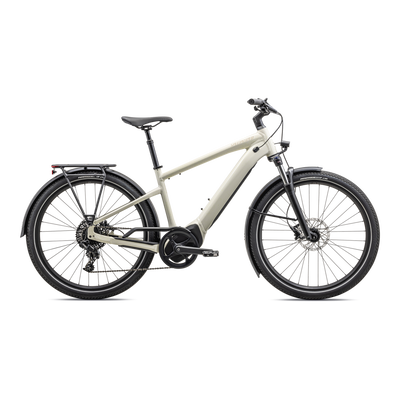

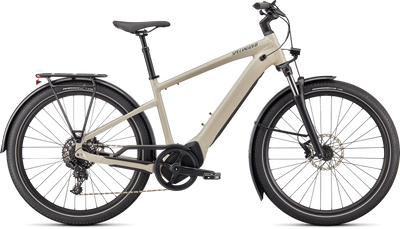

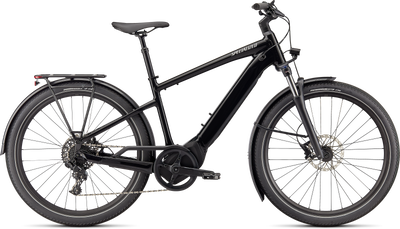

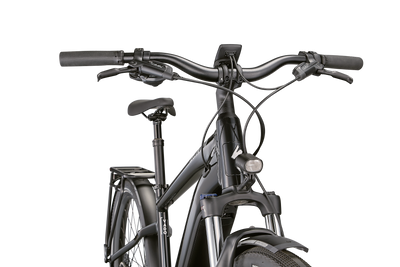

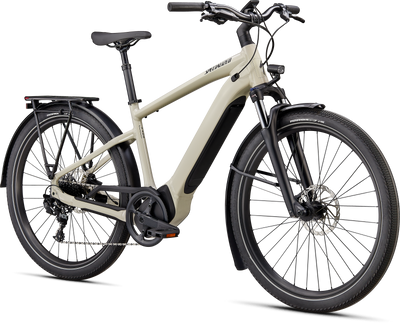

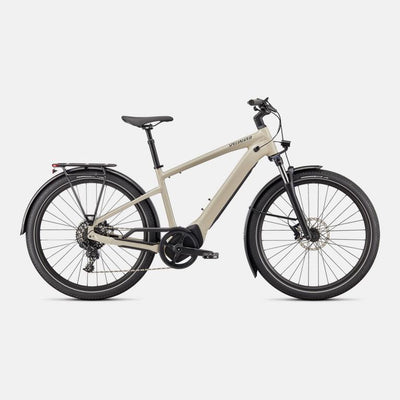

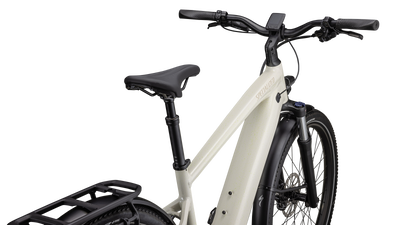

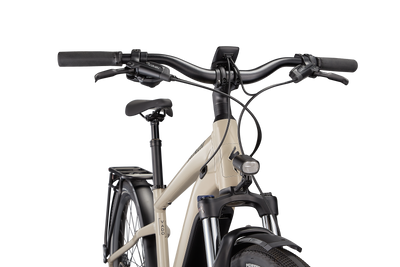

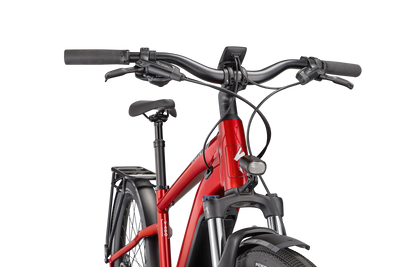

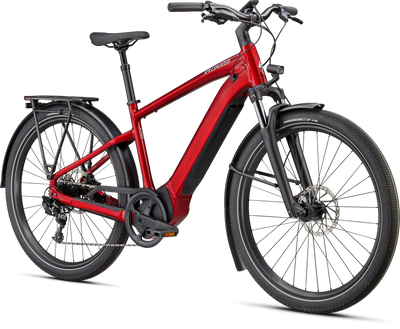

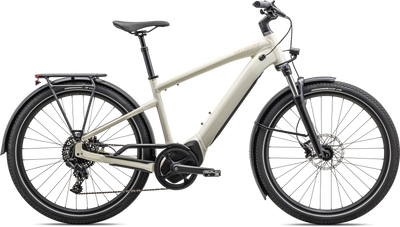

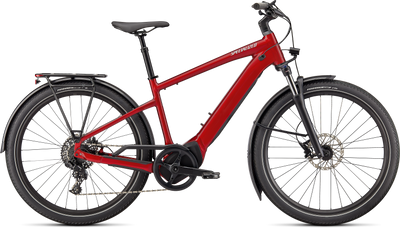

Turbo Vado 4.0
Turbo Vado 4.0

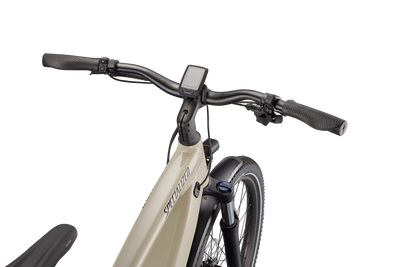

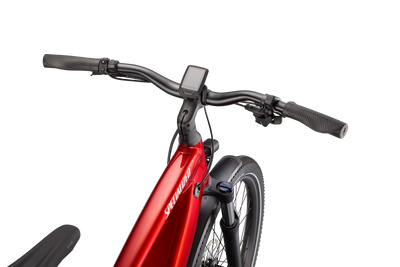

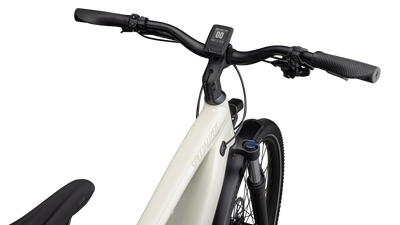

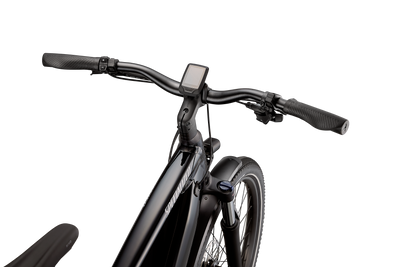

MasterMind and Specialized app - The MasterMind display reveals all relevant info about your ride and allows real-time tuning of support levels. MasterMind seamlessly integrates with the Specialized app for range optimization tools, advanced tuning, on-ride diagnostics, and more.

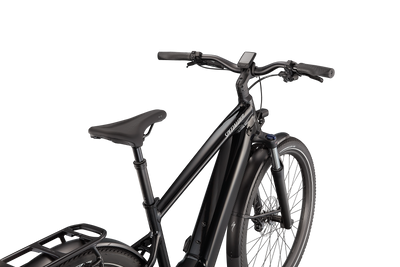

Proven Smooth Efficiency - We designed a custom testing mechanism to analyze bumps at even the smallest frequency to increase comfort and vision. That precision, paired with a suspended seatpost, higher volume tires, and an 80 mm suspension fork, will flatten roads before your eyes.
Turbo System Lock - Use the Specialized app to disable your bike’s motor and activate the motion sensor alarm. Once locked, the motor cannot be enabled again except by the owner.
Fully Integrated Removable and Lockable Downtube Battery - Easy to charge, easy to secure.

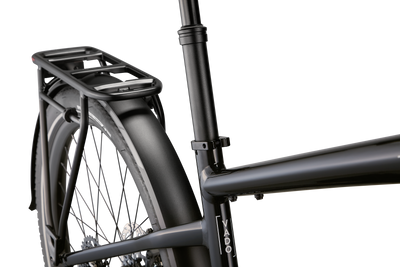

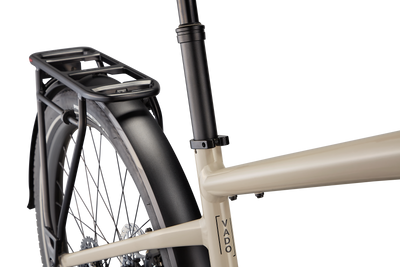

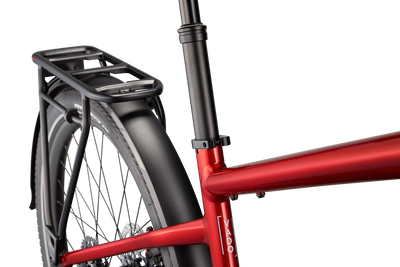

Equipped with DRYTECH Fenders, LED front and rear lights, and 27kg capacity rear HD Rack. The rear rack is compatible with child bike seats, and the bike is also rated to pull a thru-axle trailer.
Long-Range - With a ride-anywhere range, go up to 90 miles (145 km) or 6.5 hours on a single charge (eco mode).
Share
Vado Size Guide
Technical Specifications
Frameset
Frame
E5 Aluminum, bottom bracket motor mount, fully integrated & lockable downtube battery, internal cable routing, lock and front rack mount, sliding dropout
Seat Binder
Alloy, bolt-type, 34.9mm
Suspension
Fork
SR Suntour MobieA32, 80mm travel, lockout, fender-mounts, integrated light mount
Cockpit
Seat Post
Spring suspension, alloy, 40mm travel, 30.9mm, 2-bolt clamp, 34.9mm sleeve

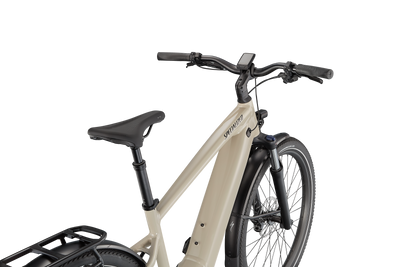

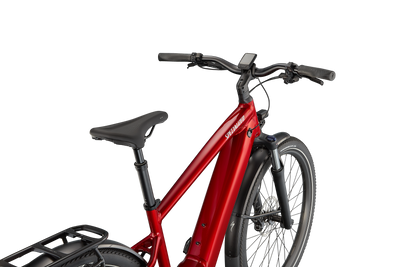

Saddle
Rivo Sport, steel rails, 155mm
Stem
Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp
Grips
Specialized Body Geometry Contour, lock-on

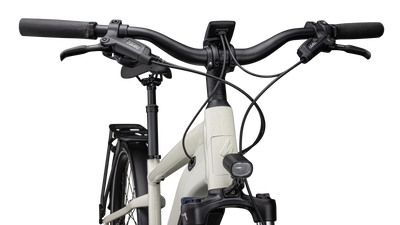

Handlebars
Specialized, alloy, 15-degree backsweep, 46mm rise, 31.8mm
Brakes
Front Brake
SRAM Level, 2-piston caliper, hydraulic disc, 180mm 6-bolt
Rear Brake
SRAM Level, 2-piston caliper, hydraulic disc, 180mm 6-bolt
Drivetrain
Shift Levers
SRAM NX, 11-speed
Rear Derailleur
SRAM NX, 11-speed
Cassette
SRAM PG-1130, 11-speed, 11-42t
Shift Levers
SRAM NX, 11-speed
Crankset
Custom alloy forged crankarms
KMC e11S, 11-speed w/ Missing Link™
KMC e11S, 11-speed w/ Missing Link™
Praxis, 48T, 104BCD
Praxis, 48T, 104BCD
Wheels & Tyres
Front Hub
Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x100mm thru-axle, 32h
Rear hub
Specialized alloy rear hub disc, sealed cardridge bearings, 6-bolt, 12x148mm thru-axle, 32h
Rims
650b disc, double-wall alloy, pinned, 32h
Front Tire
Pathfinder Sport Reflect, 650Bx2.3
Rear Tire
Pathfinder Sport Reflect, 650Bx2.3
Spokes
DT Swiss Industry
Tubes
Standard 40mm SV 650Bx1.75-2.4
E-Bike
Motor
Specialized 2.0, 70Nm torque, custom tuned motor, 250W nominal
UI Remote
MasterMind TCD, w/handlebar remote, built-in anti-theft feature, Bluetooth® connectivity, customizable display pages
Battery
Specialized U2-710, alloy casing, state of charge display, 710Wh
Charger
Custom charger, 42V4A w/ Rosenberger plug, 100-240V
Wiring Harness
Custom wire harness
Accessories
Pedals
Specialized Commuter w/ grip tape & reflectors
Headlight
Lezyne Ebike Hecto E65, 210 Lumen, 12V
Tail Light
Spanninga Commuter Glow XE, 12V

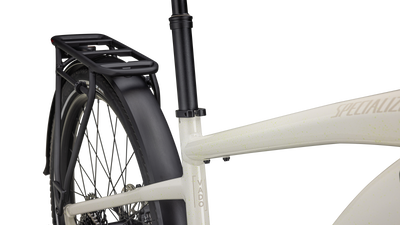

Rack
Specialized rack, MIK HD interface, built-in pannier mounts, 27kg max load
Fender(s)
Specialized DRYTECH fenders, 65mm width, aluminum fenderstay
Bike Lock
Turbo System Lock
Bell
Simple bell
