New, more durable alloy rims

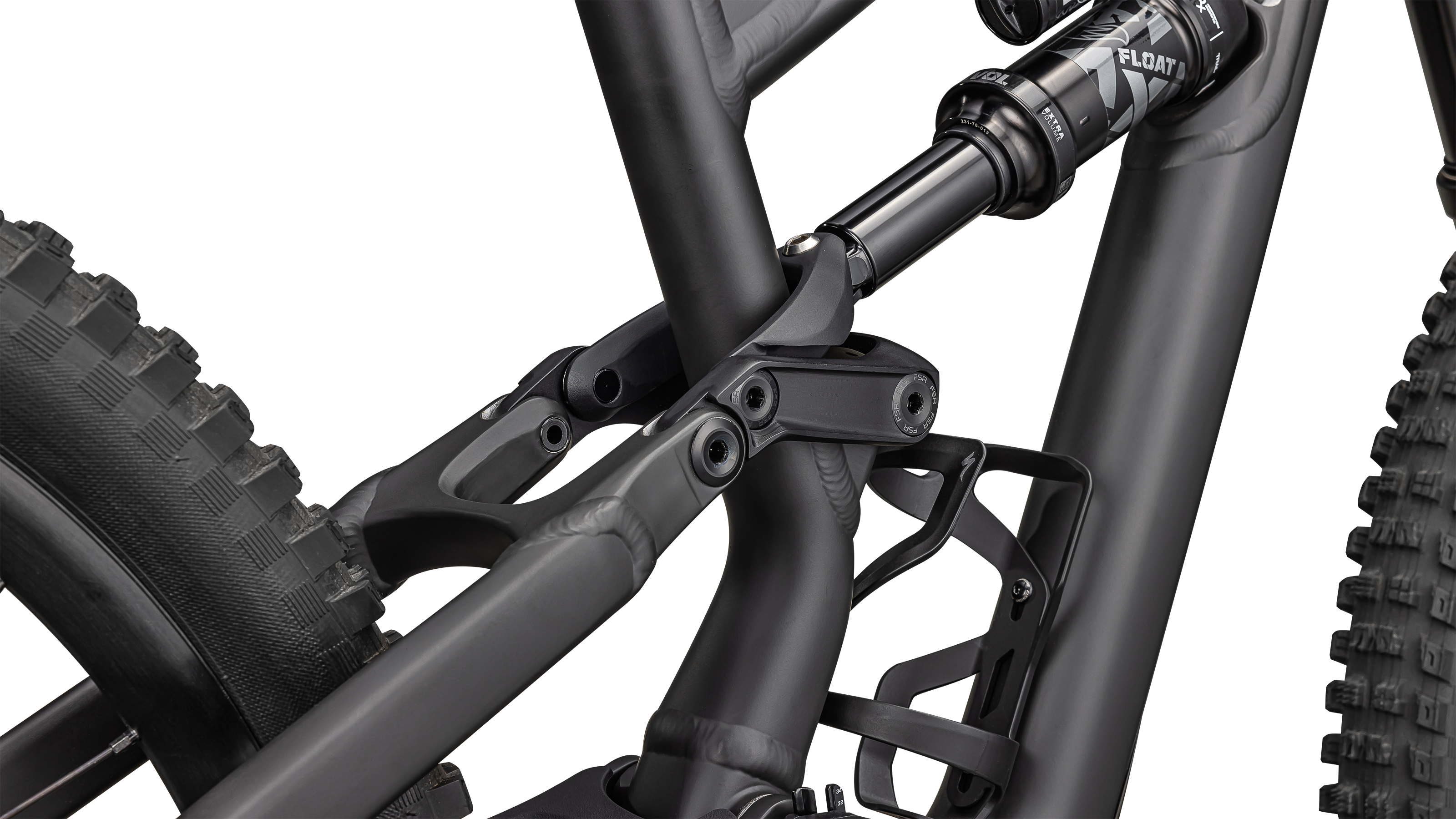

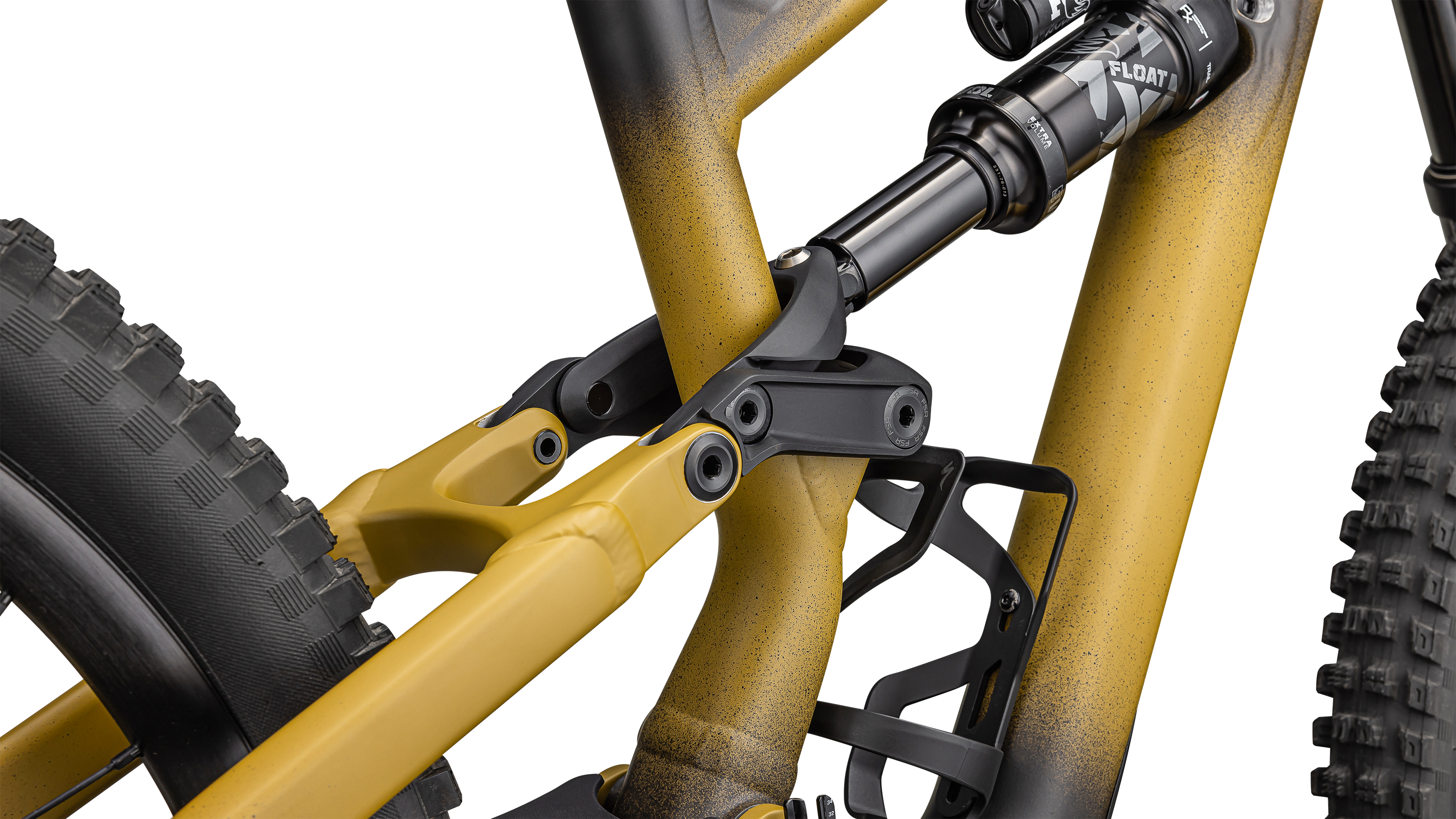

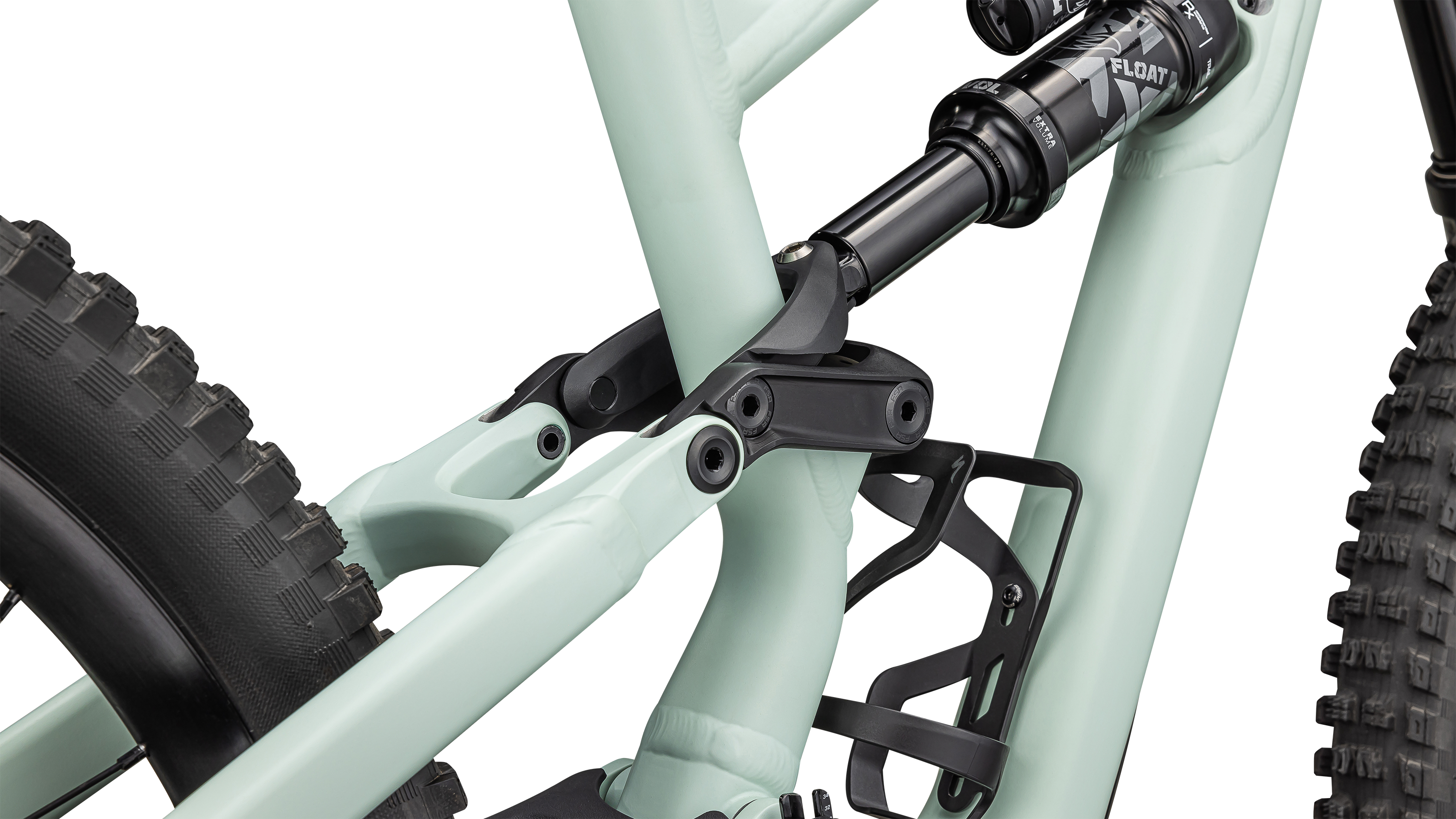

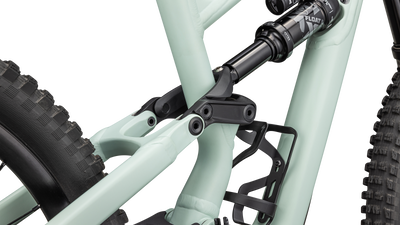

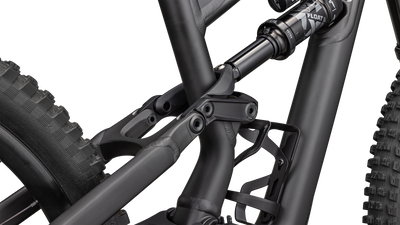

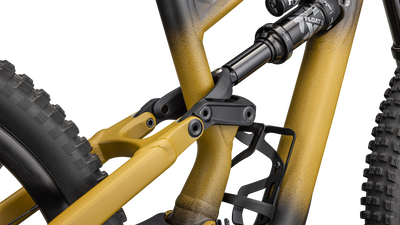

Horst Link geometry adjust flip chip
Updated geometry for more usability
Curated parts spec for your desired ride experience

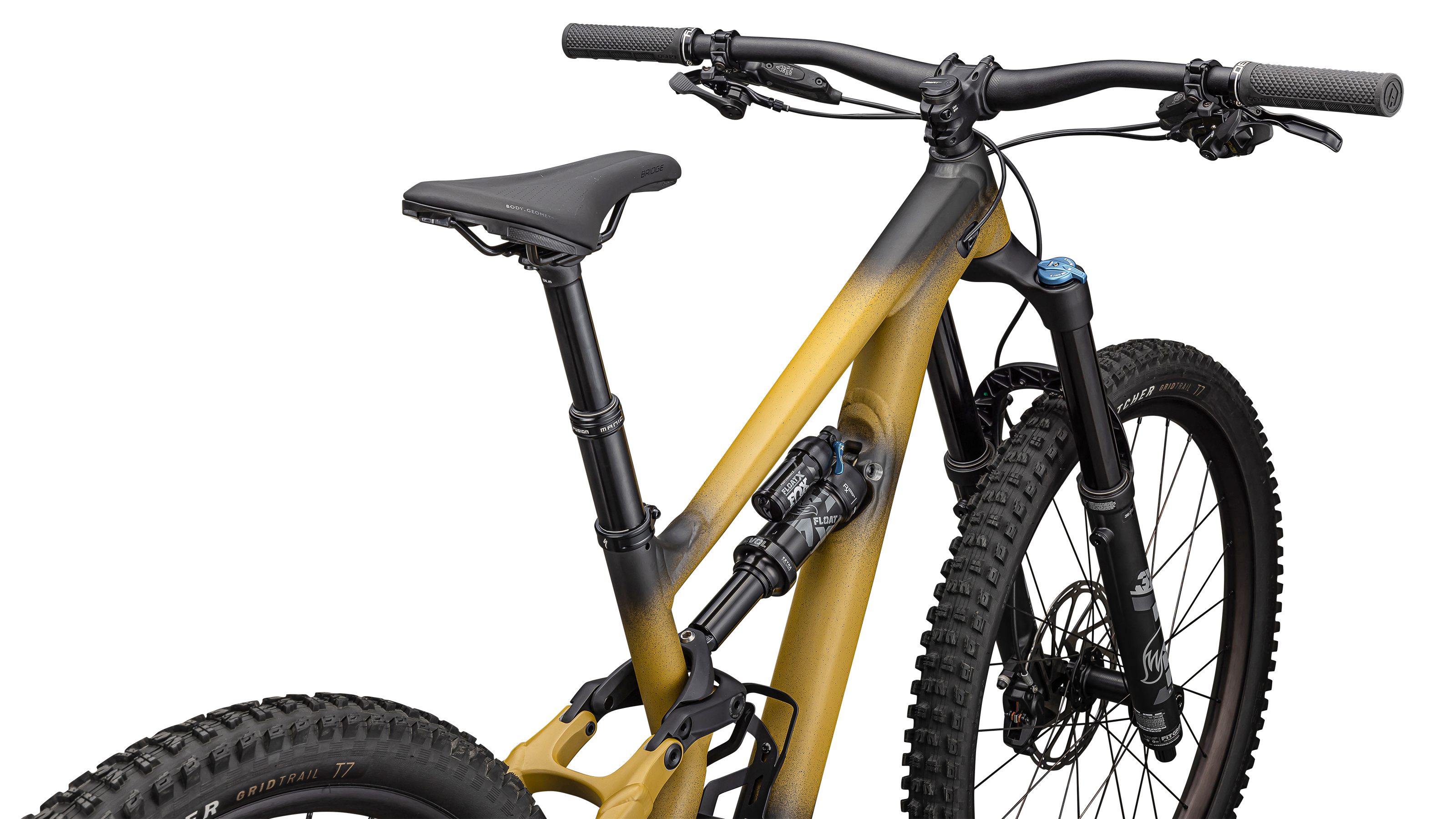

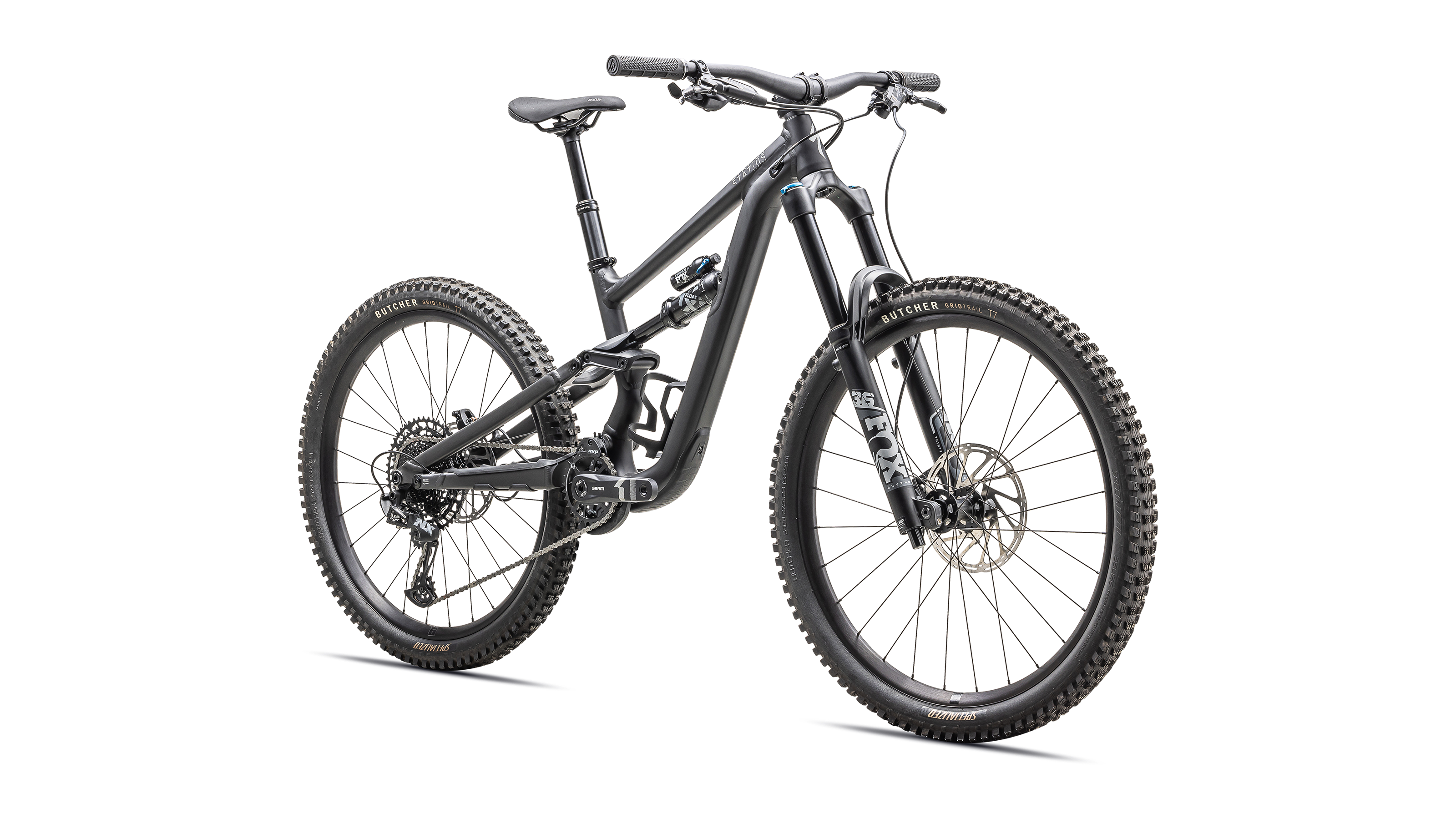

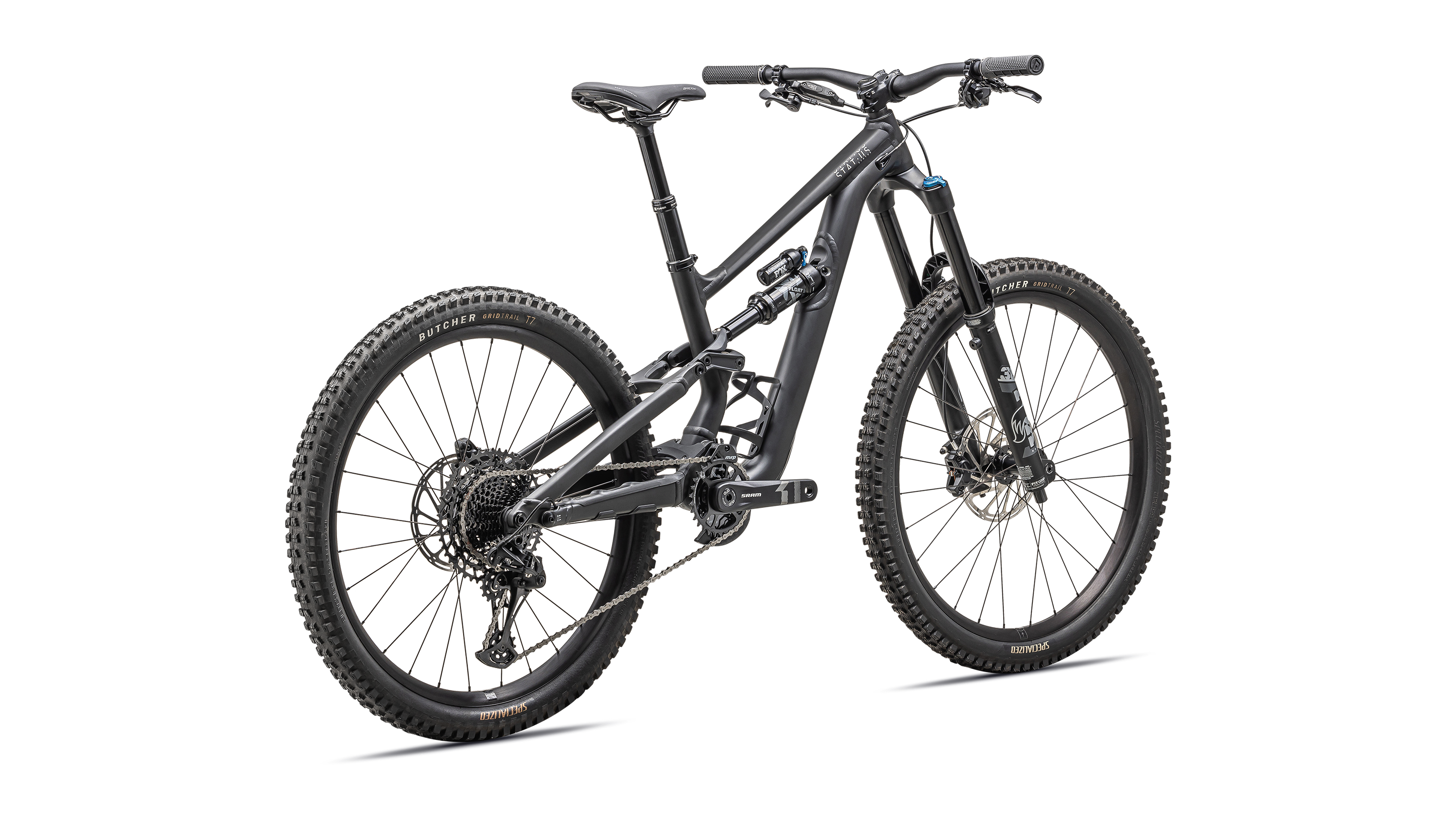

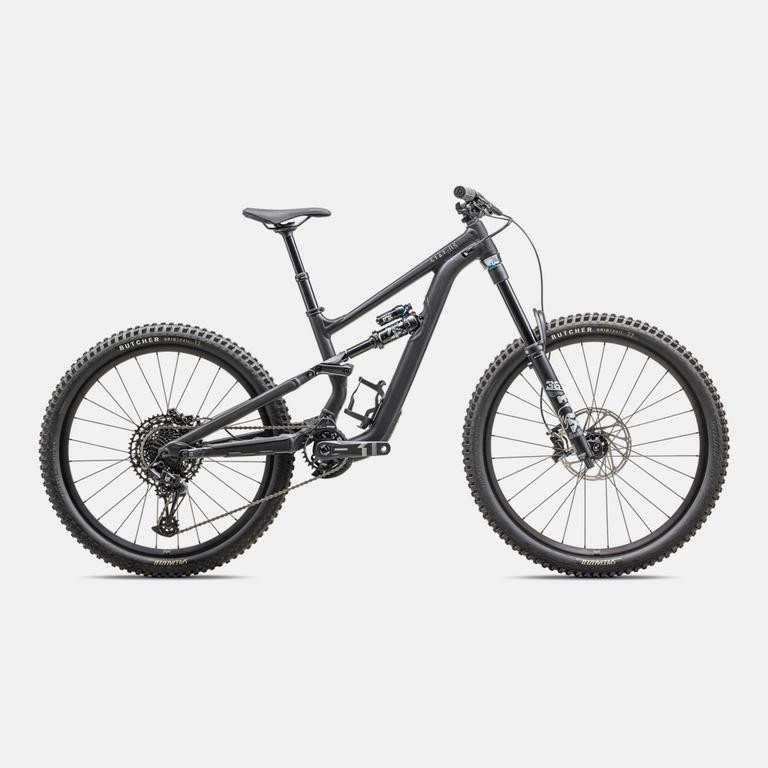

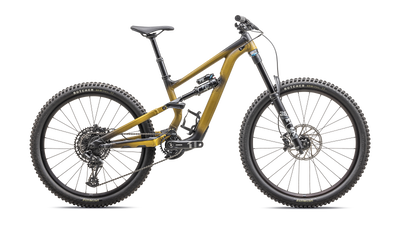

Frame
M5 Alloy chassis and rear-end, Trail Geometry for 27.5 Front" and 26" rear wheels , horst pivot geo adjustment, threaded BB, internal cable routing with external rear brake option, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm of travel
Seat Binder
Alloy, 38.6mm

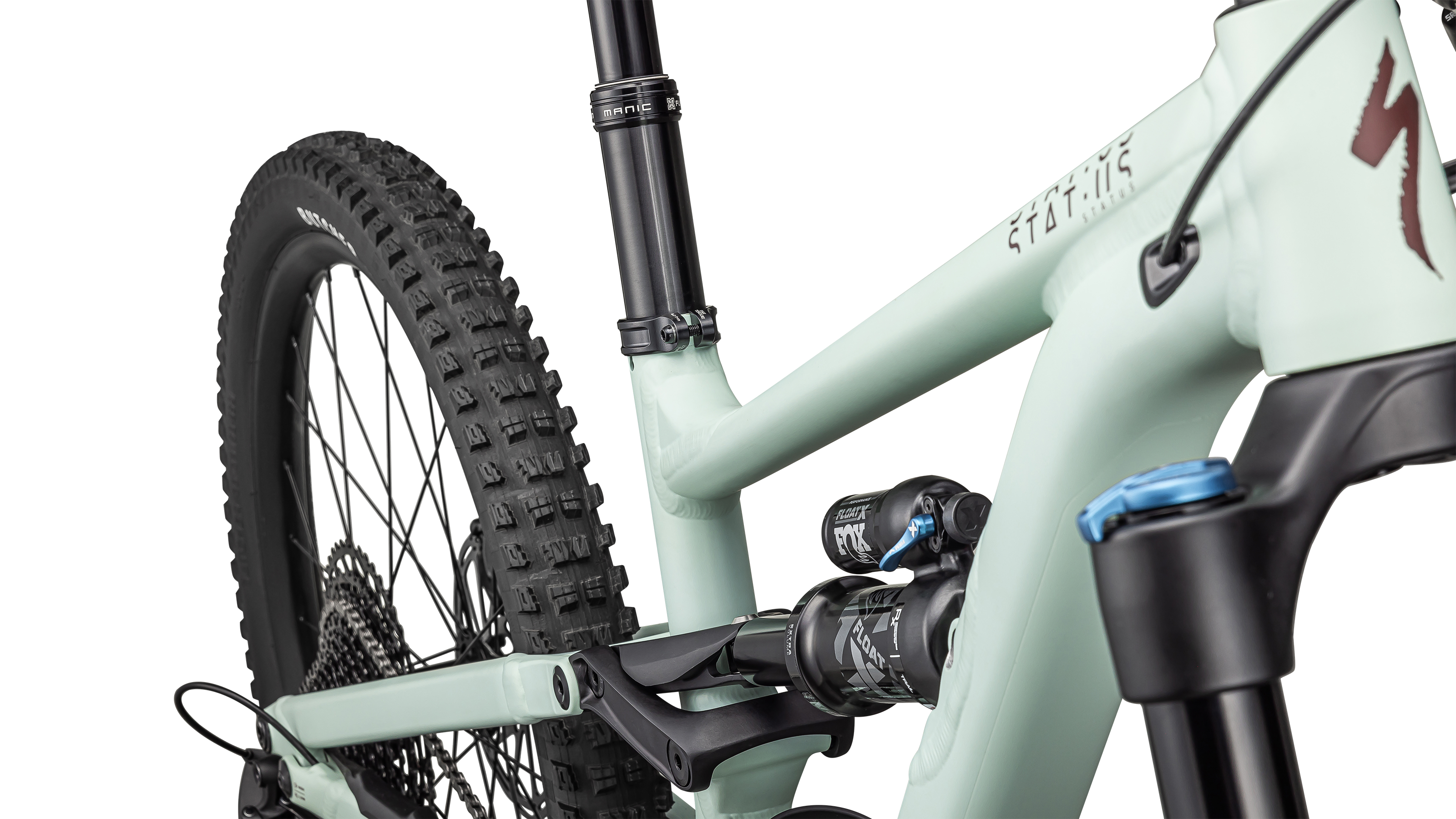

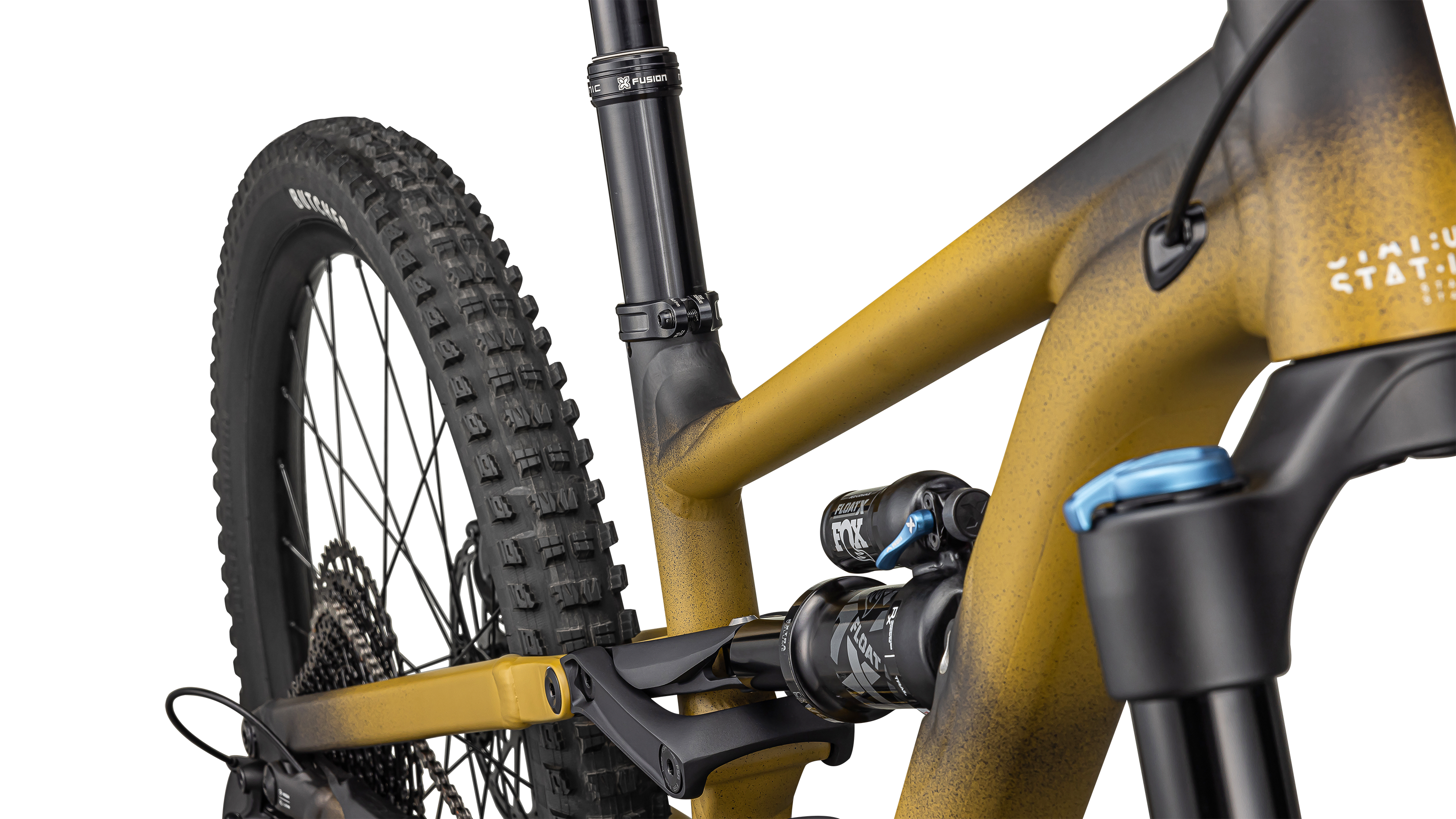

Rear Shock
FOX FLOAT X Performance, Ride Dynamics Tune, EVOL Air sleeve, 2-position lever w/ LSR adjustment, 230x60mm
Fork
FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm Kabolt axle, 37mm offset, 170mm of travel
X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9mm, 100mm
X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9mm, 100mm
Saddle
Bridge Saddle, steel rails, 130mm
Stem
Alloy Trail Stem, 35mm bar bore
Grips
Deity Lockjaw

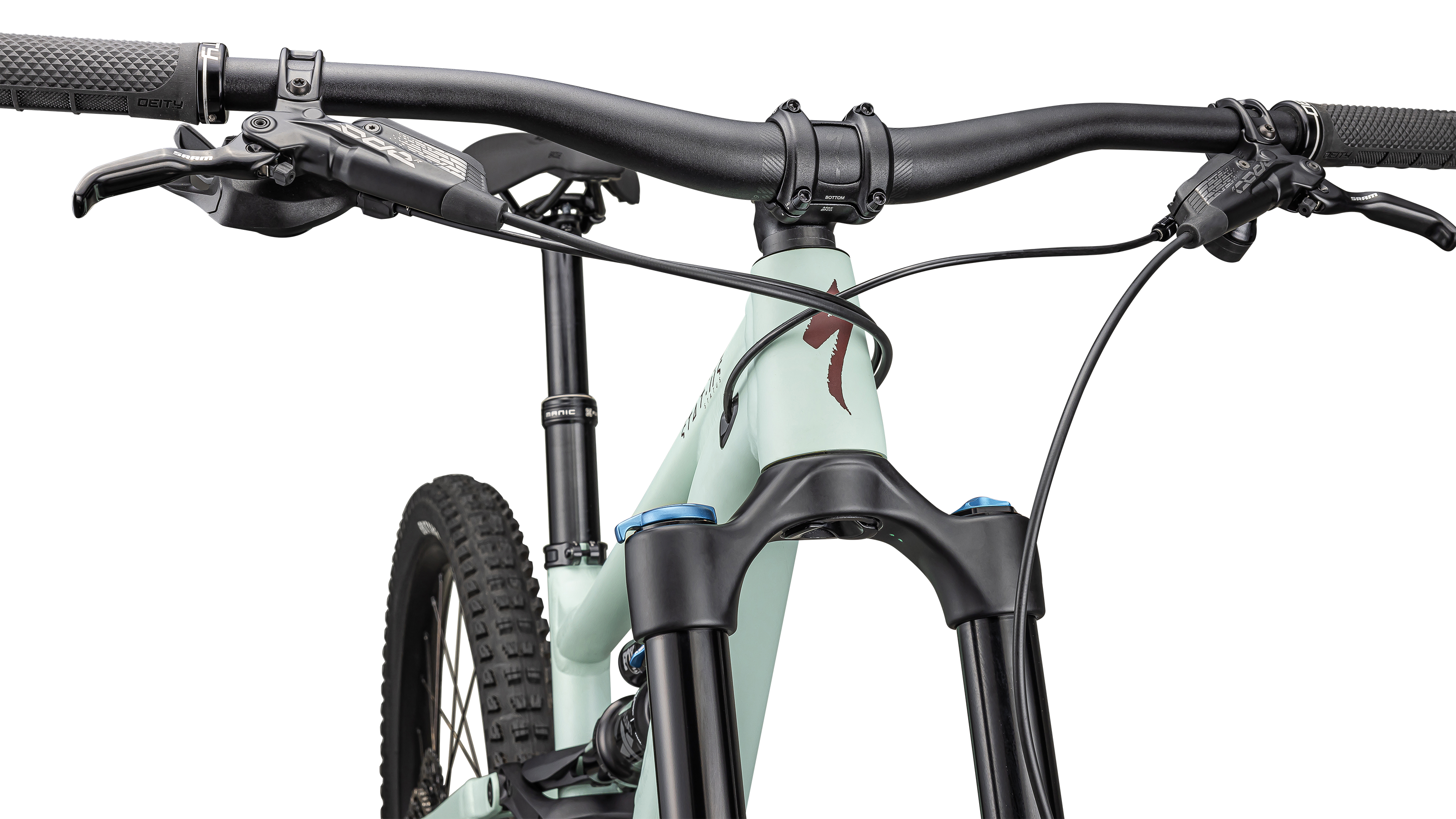

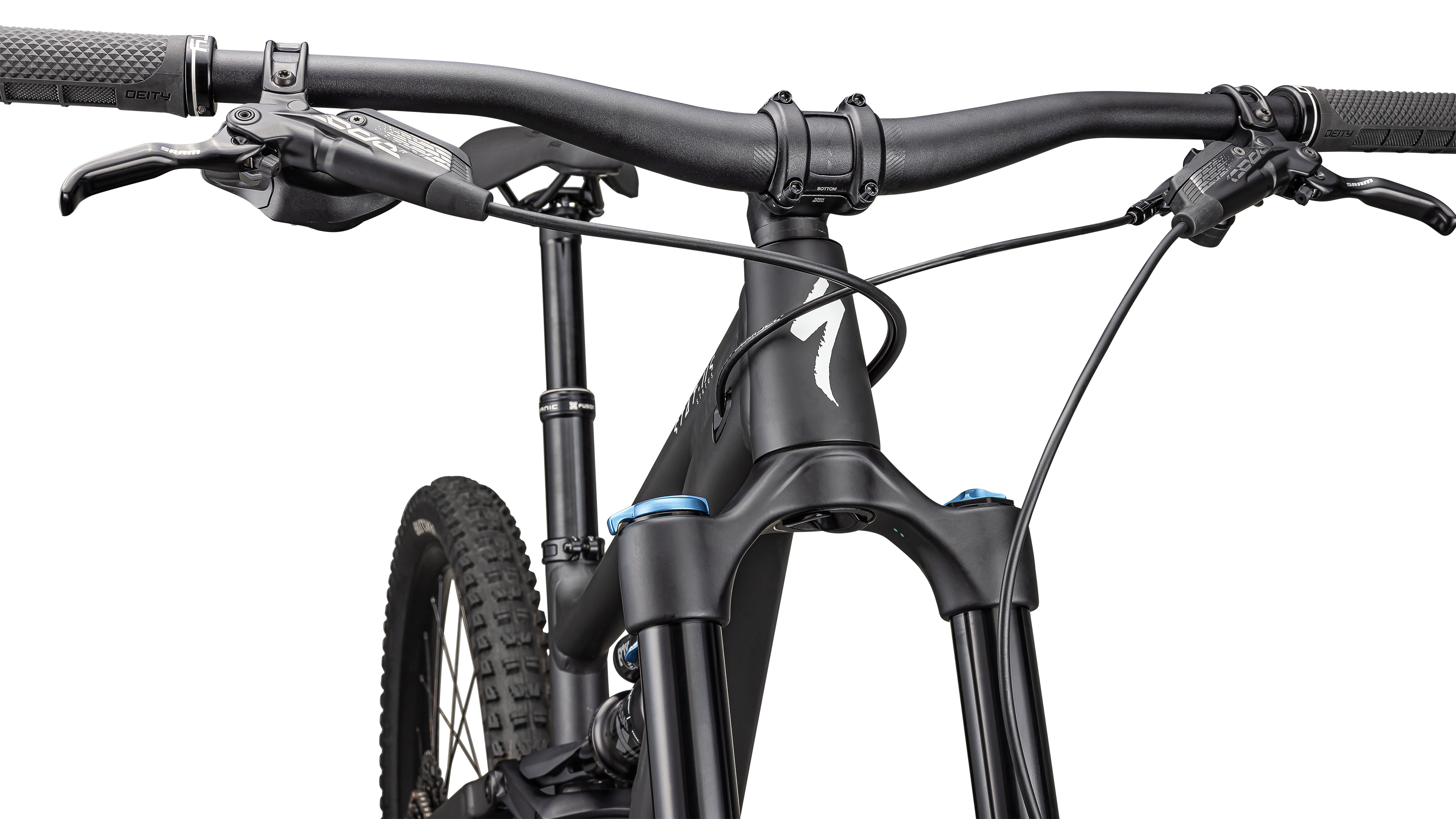

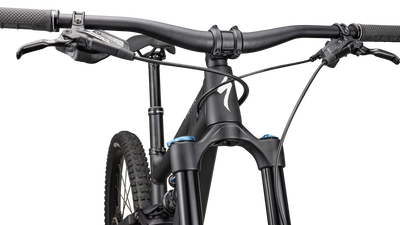

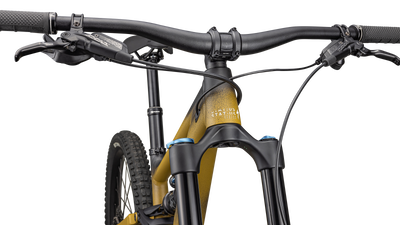

Handlebars
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 760mm width
Front Brake
SRAM Code R, 4-piston caliper, hydraulic disc, 200mm
Rear Brake
SRAM Code R, 4-piston caliper, hydraulic disc, 180mm
Shift Levers
SRAM NX Eagle, trigger, 12-speed
Rear Derailleur
SRAM NX Eagle, 12-speed
Cassette
SRAM NX Eagle, 12-speed, 11-50t
Shift Levers
SRAM NX Eagle, trigger, 12-speed
SRAM X1 Eagle, DUB,155mm, 55mm chainline, 30T
SRAM X1 Eagle, DUB,155mm, 55mm chainline, 30T
Chain
SRAM NX Eagle, 12-speed
Bottom Bracket
SRAM DUB Threaded Wide
Chain Ring
Steel, 30T
Front Hub
Specialized alloy front hub disc, sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 32h
Rear hub
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h
Roval Traverse, hookless alloy, 30mm inner width, tubeless ready. Front: 27.5", Rear: 26"
Roval Traverse, hookless alloy, 30mm inner width, tubeless ready. Front: 27.5", Rear: 26"
Butcher, GRID TRAIL casing, GRIPTONĀ® T7 compound, 2Bliss Ready, 27.5x2.3"
Butcher, GRID TRAIL casing, GRIPTONĀ® T7 compound, 2Bliss Ready, 27.5x2.3"
Butcher, GRID TRAIL casing, GRIPTONĀ® T7 compound, 2Bliss Ready, 26x2.3"
Butcher, GRID TRAIL casing, GRIPTONĀ® T7 compound, 2Bliss Ready, 26x2.3"
Spokes
DT Swiss Industry
Tubes
Standard, Presta valve
