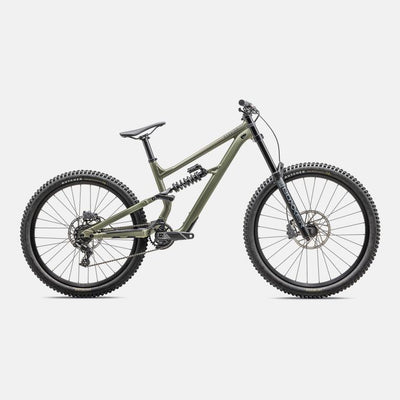

STATUS 2 170 DH
93724-7002
Couldn't load pickup availability
Pickup currently unavailable at Will Ride
Size Guide
Expertly built and shipped within 3-4 business days.
Free shipping on orders over $250, excludes bikes.

STATUS 2 170 DH
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours from Tuesday to Saturday.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Product Details
Product Description
New, more durable alloy rims

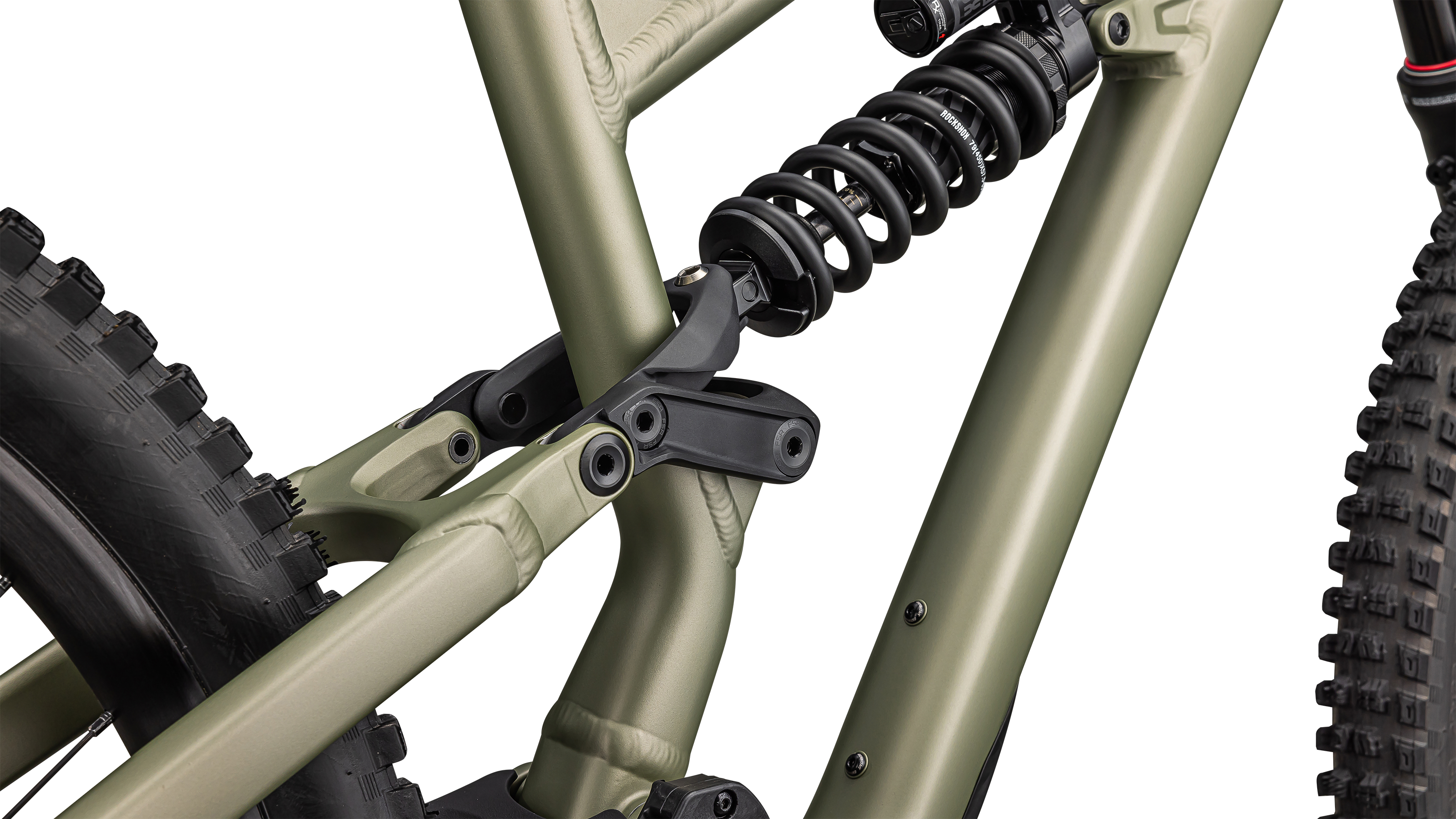

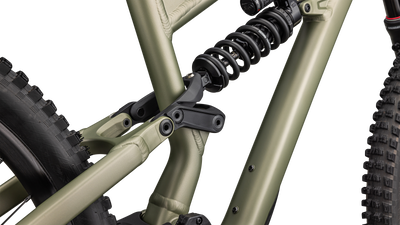

Horst Link geometry adjust flip chip
Updated geometry for more usability
Curated parts spec for your desired ride experience
Frameset
Frame
M5 Alloy chassis and rear-end, Trail Geometry, horst pivot geo adjustment, threaded BB, internal cable routing with external rear brake option, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm of travel
Seat Binder
Alloy, 38.6mm
Suspension

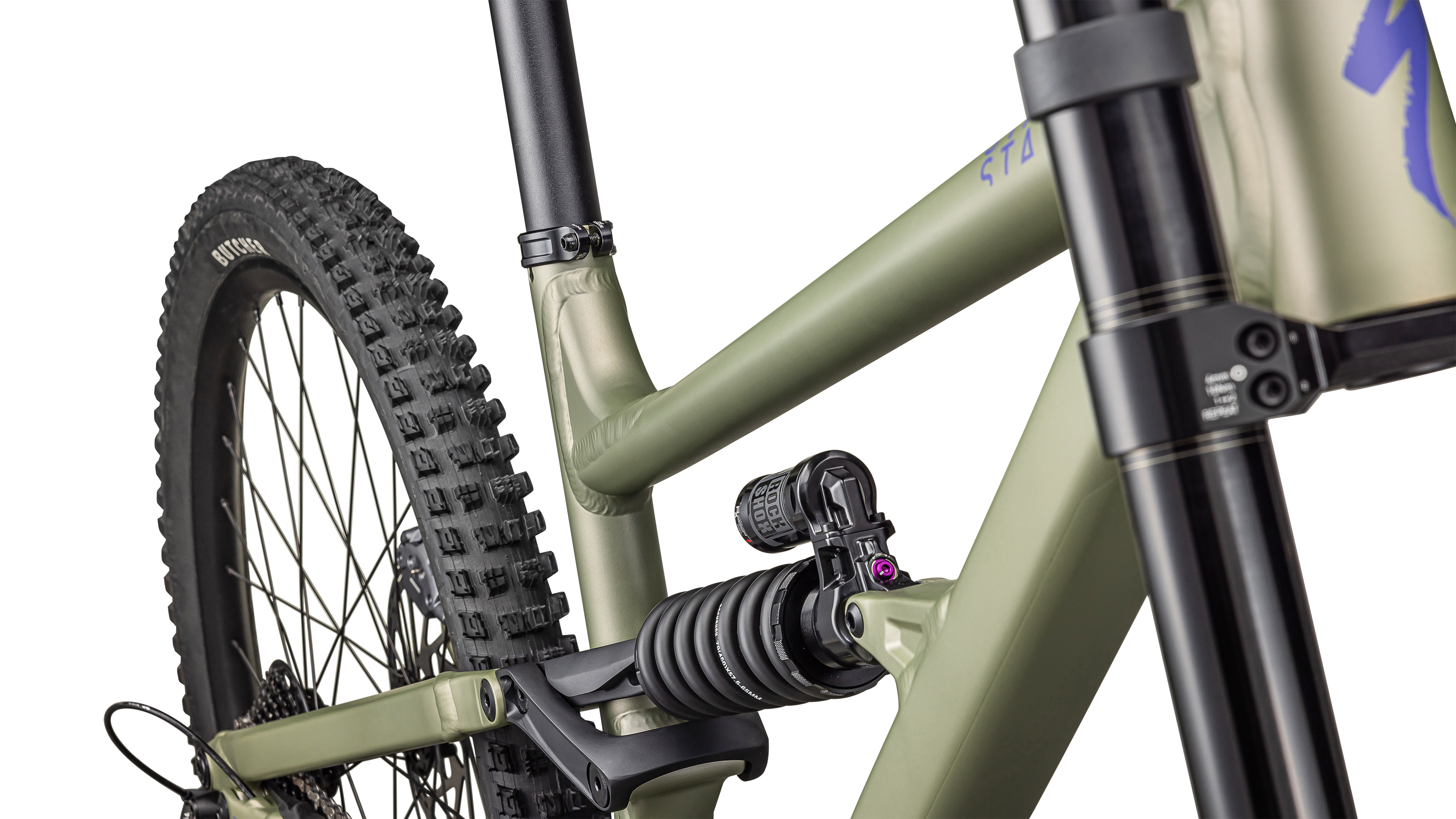

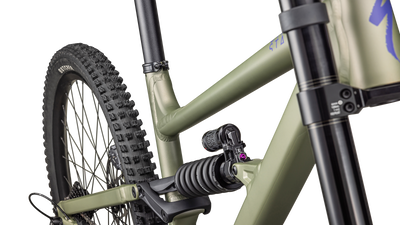

Rear Shock
RockShox Super Deluxe Select Coil, external rebound adjust, hydraulic bottom out, 230x62.5mm, S2: 400lbs, S3: 450lbs, S4: 500lbs, S5: 550lbs
Fork
RockShox BoXXer 29, Charger 3 RC damper, adjustable low-speed compression, adjustable rebound, 20x110mm thru-axle, 44mm offset, 180mm of travel
Cockpit
Seat Post
Specialized 2-bolt head, forged alloy, 5mm offset, micro-adjust, 34.9mm
Saddle
Body Geometry Henge DH, hollow Cro-Mo rails, 130mm
Stem
Descendant 35mm Direct Mount Stem, 50mm length
Grips
Deity Lockjaw

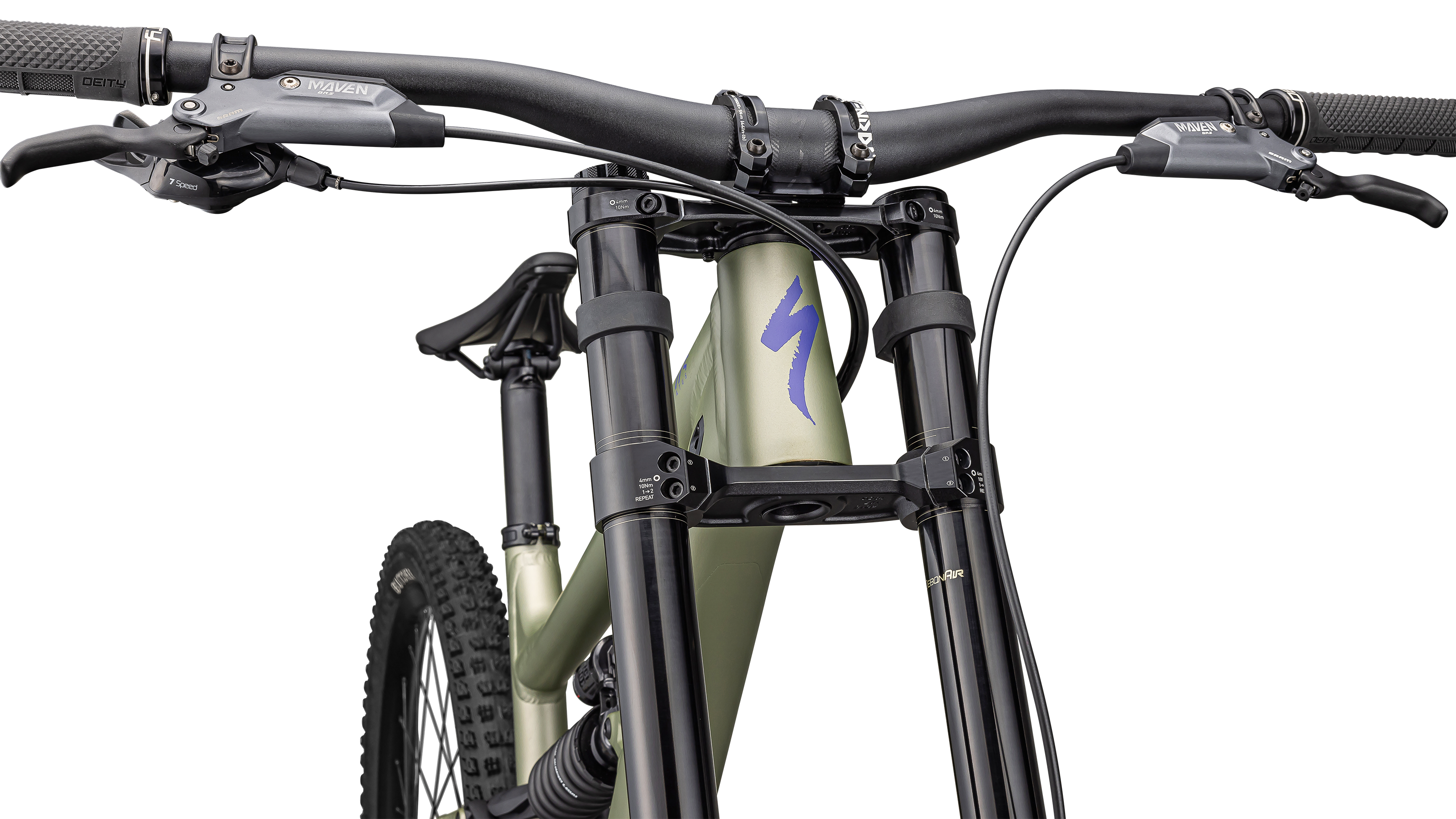

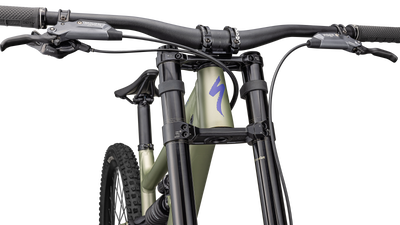

Handlebars
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S2: 780mm, S3-S5: 800mm
Brakes
Front Brake
SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm
Rear Brake
SRAM Maven Bronze, 4-piston caliper, hydraulic disc
Drivetrain
Shift Levers
SRAM GX DH, trigger, 7-speed
Rear Derailleur
SRAM GX DH, 7-speed, trigger
Cassette
SRAM GX DH, 7-speed, 11-25t
Shift Levers
SRAM GX DH, trigger, 7-speed
Crankset
SRAM DESCENDANT DH, DUB, alloy, Direct, 34T ring, 55mm chainline, 165mm
SRAM PC1110 w/ Powerlink™
SRAM PC1110 w/ Powerlink™
Bottom Bracket
SRAM DUB Threaded Wide
Wheels & Tyres
Front Hub
Alloy, sealed cartridge bearings, 20x110mm, 28h
Rear hub
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Rims
Roval Alloy DH, 28mm internal width, tubeless ready. Front: 29", 28H, Rear: 27.5", 32H
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"
Spokes
DT Swiss Industry
Tubes
Standard, Presta valve
