Status Size Guide
New, more durable alloy rims
Horst Link geometry adjust flip chip
Updated geometry for more usability
Curated parts spec for your desired ride experience
Frame
M5 Alloy chassis and rear-end, Trail Geometry, horst pivot geo adjustment, threaded BB, internal cable routing with external rear brake option, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm of travel
Seat Binder
Alloy, 38.6mm
Rear Shock
RockShox Vivid, Ride Dynamics Trail Tune, S1:230x60mm, S2-S5:230x62.5mm
Fork
RockShox Domain Gold RC, Isolater RC damper, three position compression adjustment, 15x110mm axle, 44mm offset, 170mm of travel
Seat Post
X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 125mm, S2: 150mm, S3-S4: 170mm, S5: 190mm
Saddle
Body Geometry Bridge Comp, hollow Cr-Mo rails, 143mm
Stem
Alloy Trail Stem, 35mm bar bore
Grips
Deity Lockjaw Grips

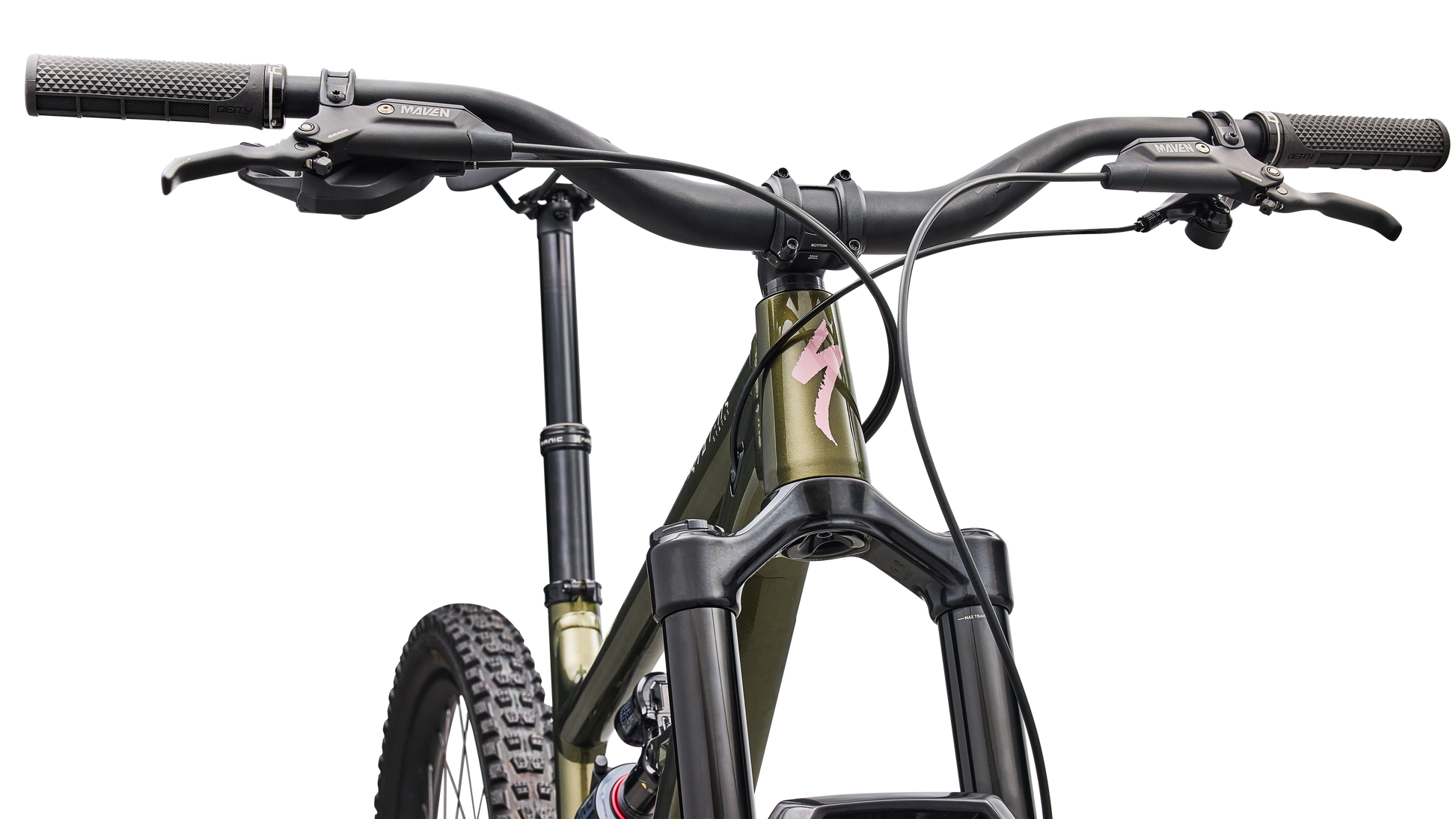

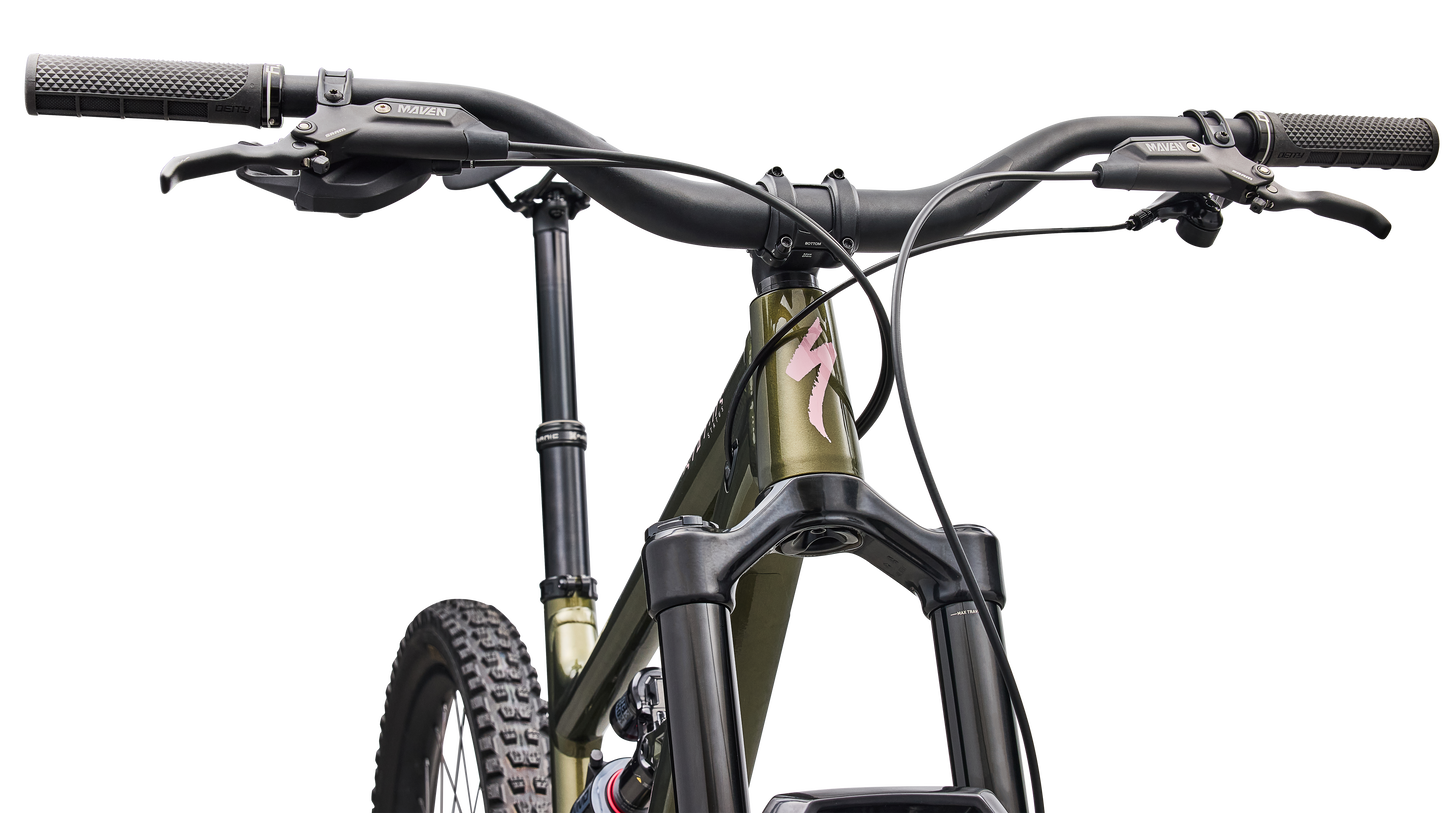

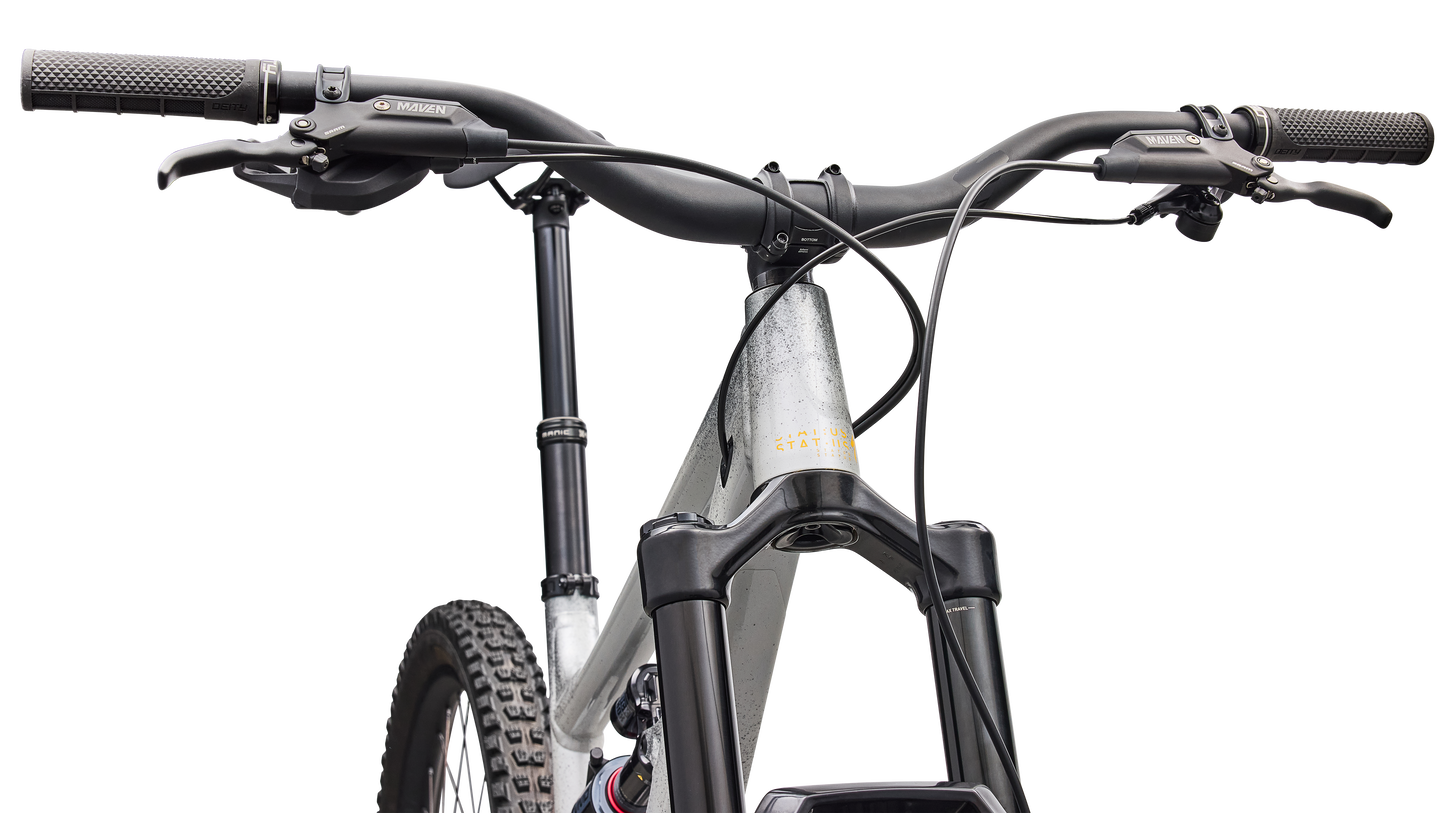

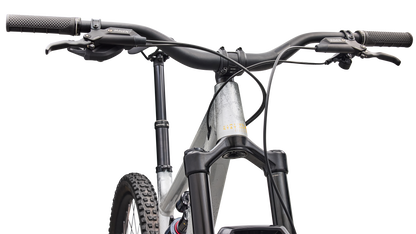

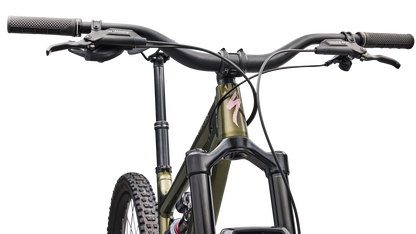

Handlebars
Specialized, 6000 series alloy, 6-degree upsweep, 8-degree backsweep. S1-S2: 780 width, 20mm rise: S3-S5: 800 width, 50mm rise
Front Brake
SRAM Maven, 4-piston caliper, hydraulic disc
Rear Brake
SRAM Maven, 4-piston caliper, hydraulic disc
Shift Levers
SRAM EAGLE 70
Rear Derailleur
SRAM Eagle 70 T-Type
Cassette
SRAM 1270 Transmission Cassette, 12 Spd,10-52t
Shift Levers
SRAM EAGLE 70
Crankset
SRAM Eagle 70, 55mm chainline, 32T
Chain
SRAM 70 Transmission Chain
Bottom Bracket
SRAM DUB Threaded Wide
Front Hub
Specialized alloy front hub disc, sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 28h
Rear hub
Specialized alloy rear hub disc, sealed cartridge bearings, 6-Bolt, 12X148mm thru-axle, 28h, HD Steel Fhb
Rims
Specialized, hookless alloy, 30mm inner width, tubeless ready
Front Tire
Butcher, GRID TRAIL casing, Gripton T9 compound, 29X2.4
Rear Tire
Butcher, GRID GRAVITY Casing, Gripton T9 compound, TLR, 27.5x2.4
Spokes
DT Swiss Elemental
Tubes
Standard, Presta Valve
