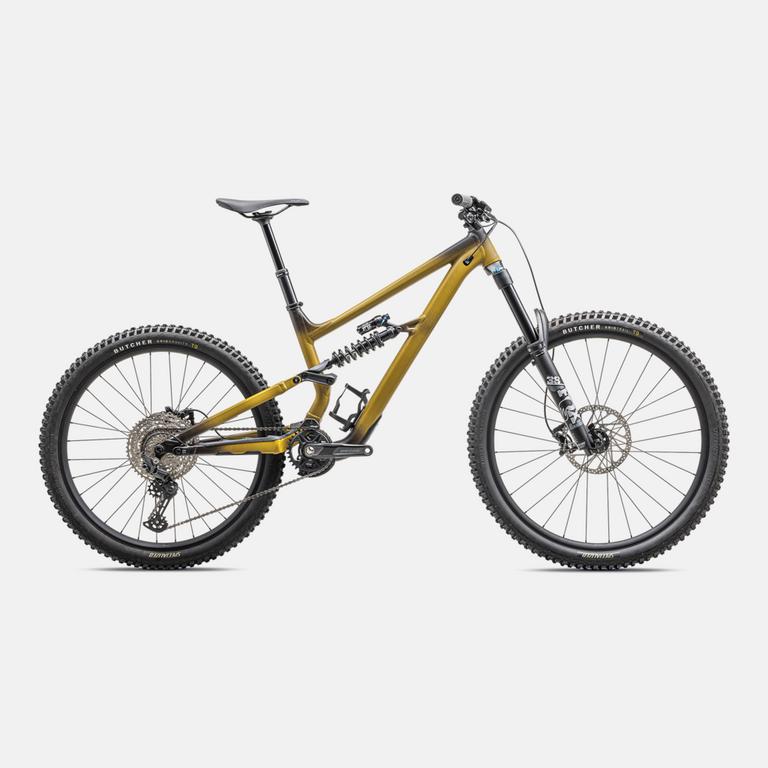

Specialized

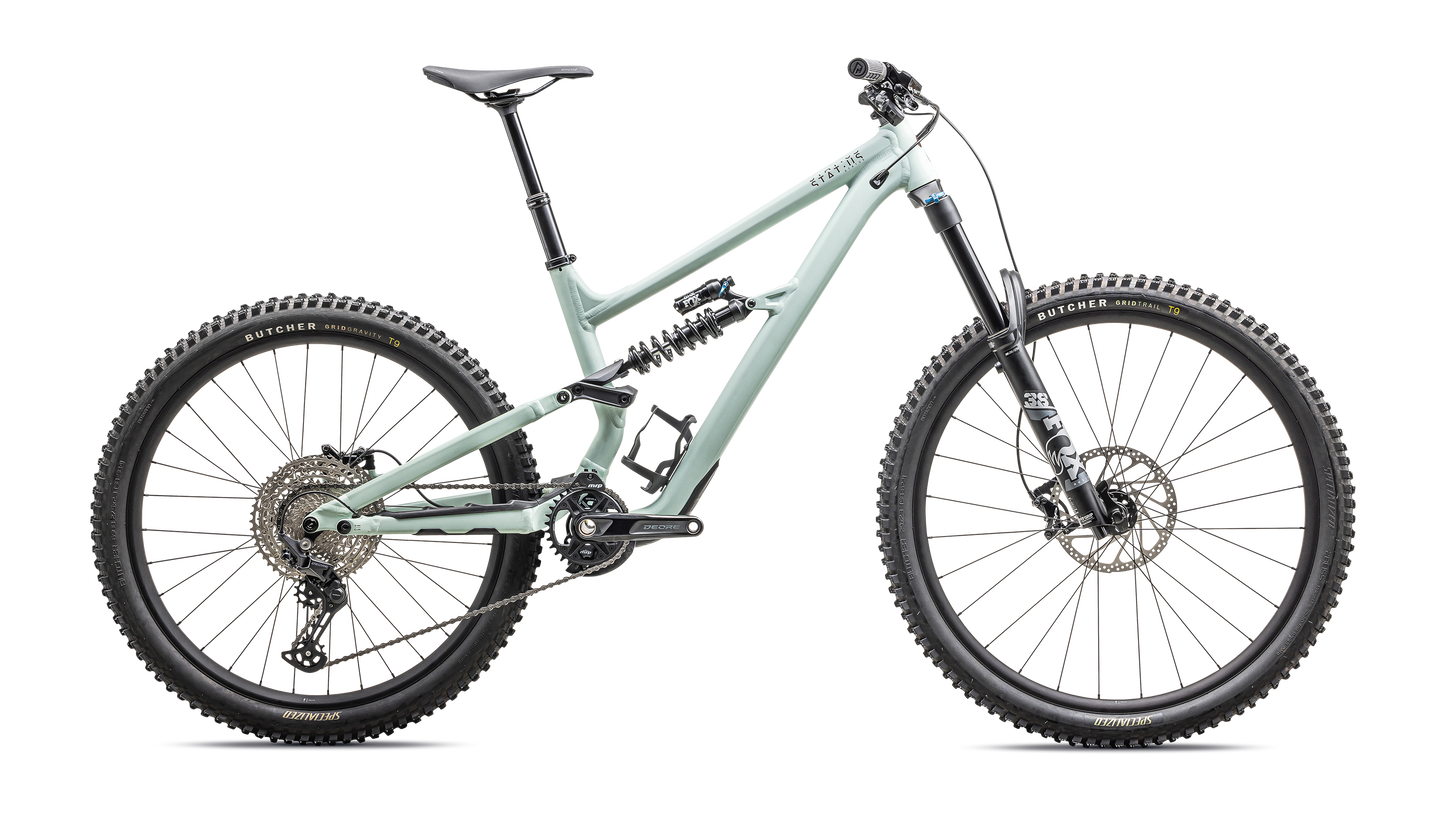

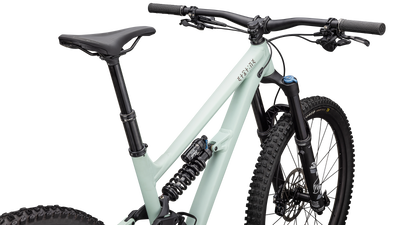

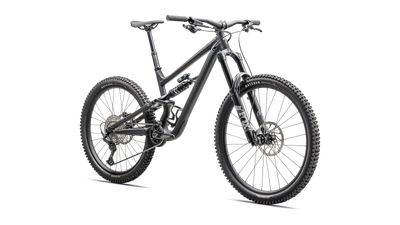

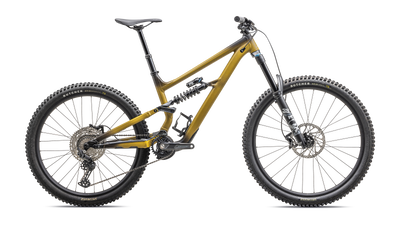

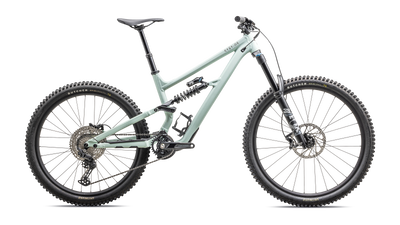

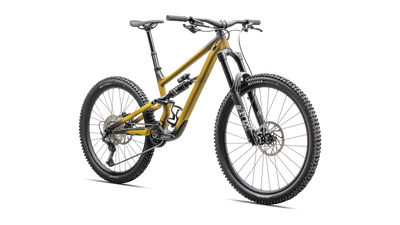

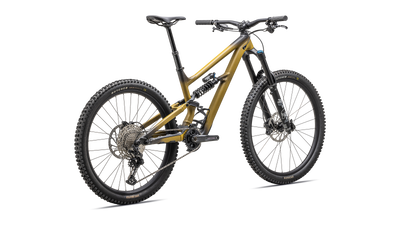

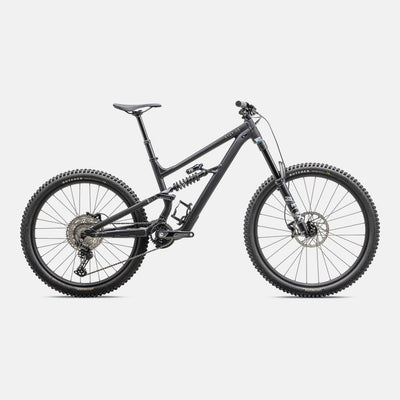

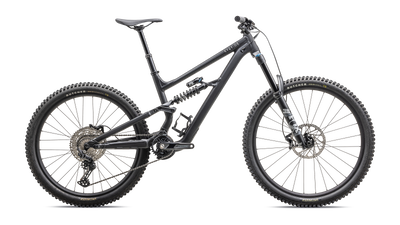

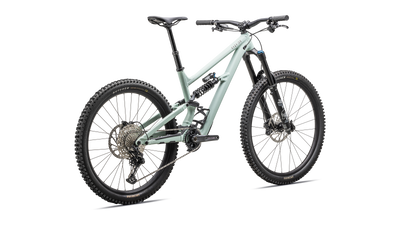

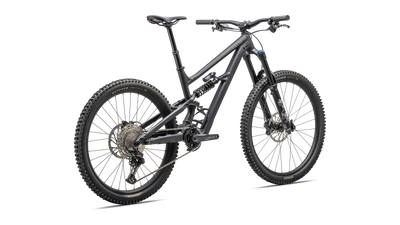

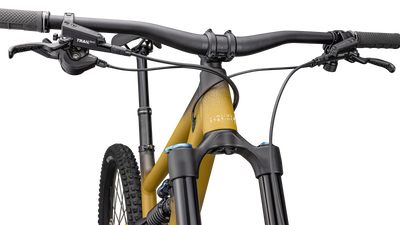

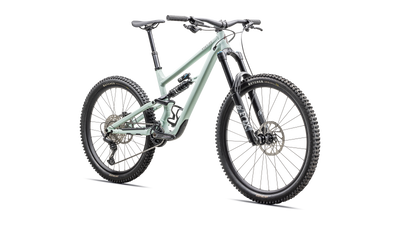

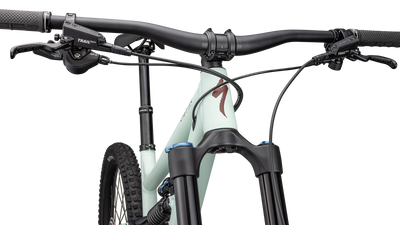

STATUS 2 170

STATUS 2 170

93723-7503

$5,200.00
$0.00 $5,200.00
Sale Contact Us for Availability
Tax included.
Colour
Size
View Size Guide
View full details

Product Details

STATUS 2 finds the boundaries of mountain bikes and pushes past them. Is it a trail bike? Yes. Park bike? Yep. Cruise to the convenience store and stop for a stealth session on a concrete wall ride? Oh yeah. STATUS 2 is a bike meant to be ridden, however or wherever you ride. Whether you are on the trails, at the bike park, in the streets, or just cutting turns with your friends on a local hill, the STATUS 2 will allow you to ride your way. BUILT BY RIDERS: Each build starts with a super strong M5 alloy chassis and tough alloy wheels. Stout suspension, powerful brakes, and popular drivetrain options round out these builds to catch big hits, pedal smooth, and provide a ton of stoppage. It’s not for the gram counter—it’s for those riders who push the boundaries of progression and come back for more. RIDE DYNAMICS TUNED: Before showing up at your doorstep or local bike shop, each STATUS 2 gets a special shock tune from our Specialized Ride Dynamics team—a group that eats, sleeps, and breathes mountain bike suspension. The characteristics of the shock are designed to complement the kinematics of the new STATUS 2 perfectly. LET’S GET PERSONAL: Each model of STATUS 2 features neatly packaged flip chips (located on the Horst pivot link, close to the rear axle) that allow the rider to finely tune the frame’s geometry to their desired ride or terrain. Bikes ship in the high position but can be ‘flipped’ to lower and slacker—8 mm lower bottom bracket and half a degree slacker head tube angle. 100% Redesigned durable alloy chassis

New, more durable alloy rims

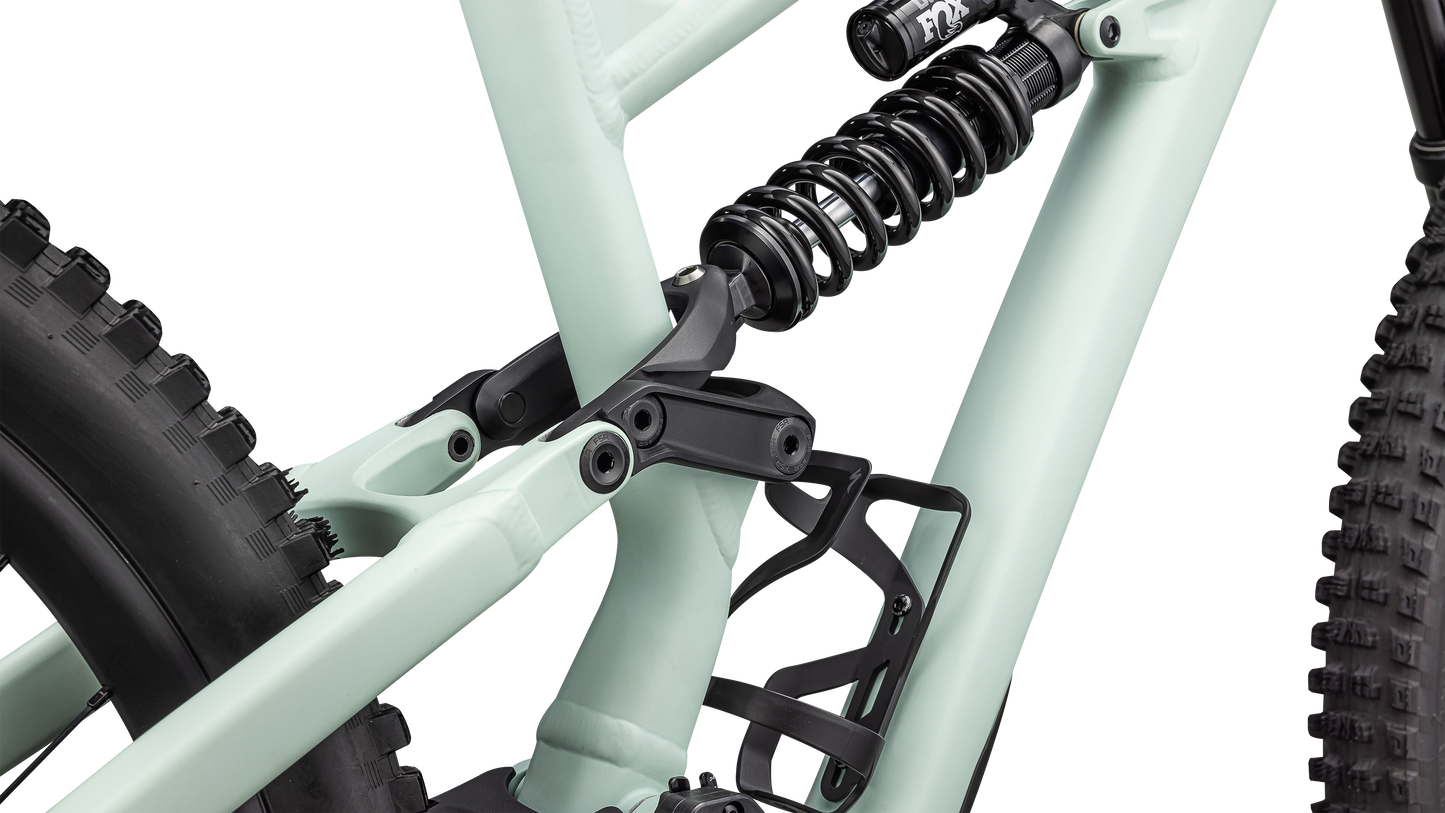

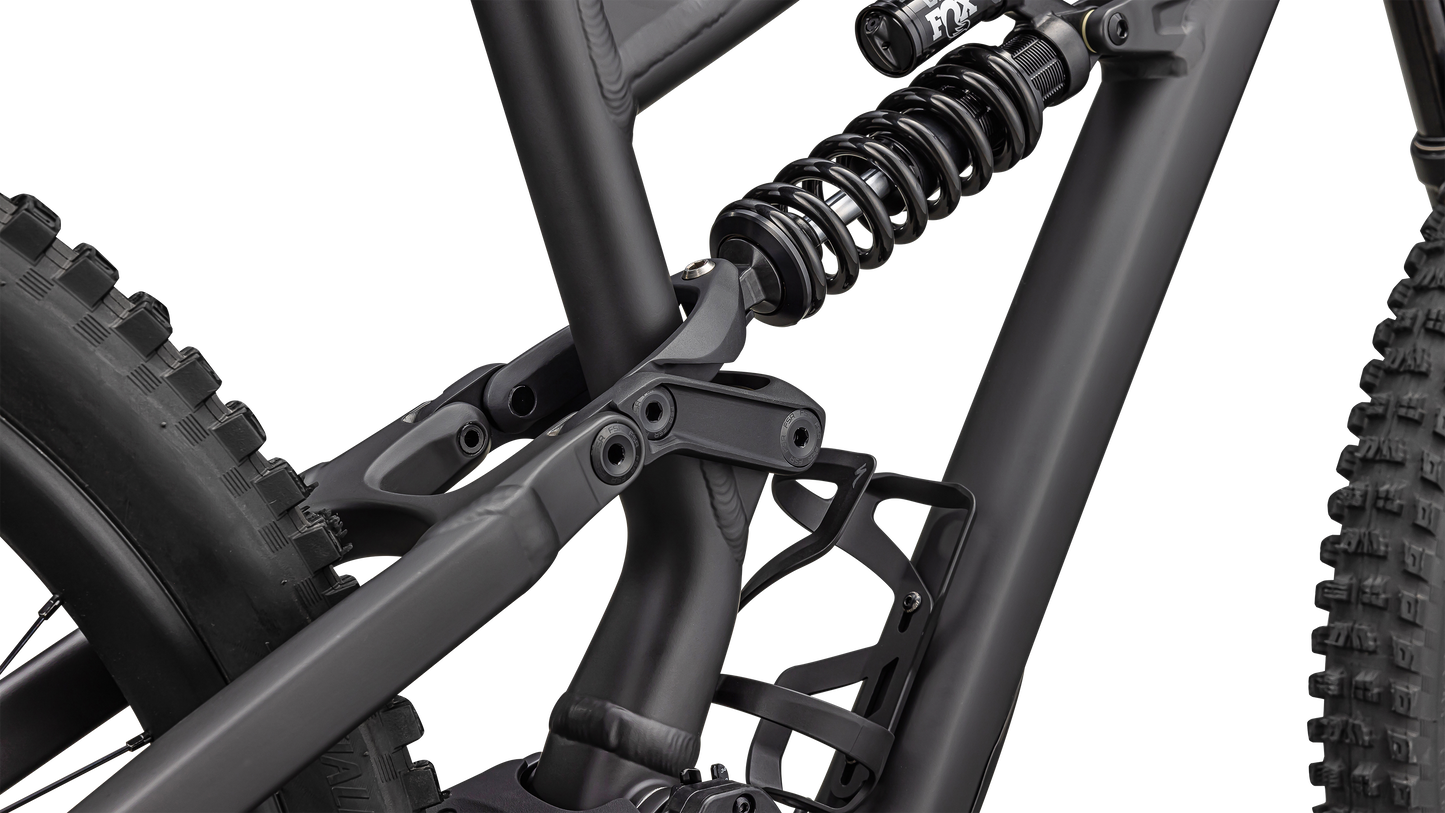

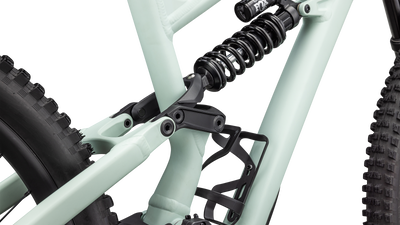

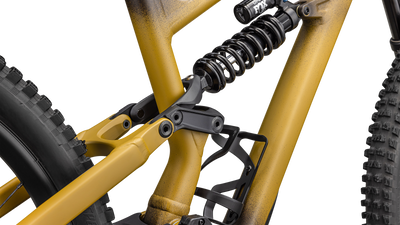

Horst Link geometry adjust flip chip

Updated geometry for more usability

Curated parts spec for your desired ride experience









Technical Specifications

Frameset

Frame

M5 Alloy chassis and rear-end, Trail Geometry, horst pivot geo adjustment, threaded BB, internal cable routing with external rear brake option, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm of travel

Seat Binder

Alloy, 38.6mm

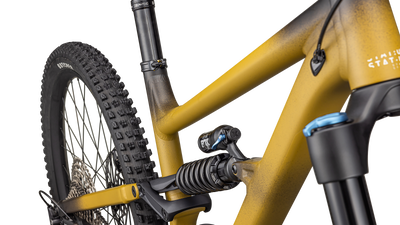

Suspension

Rear Shock

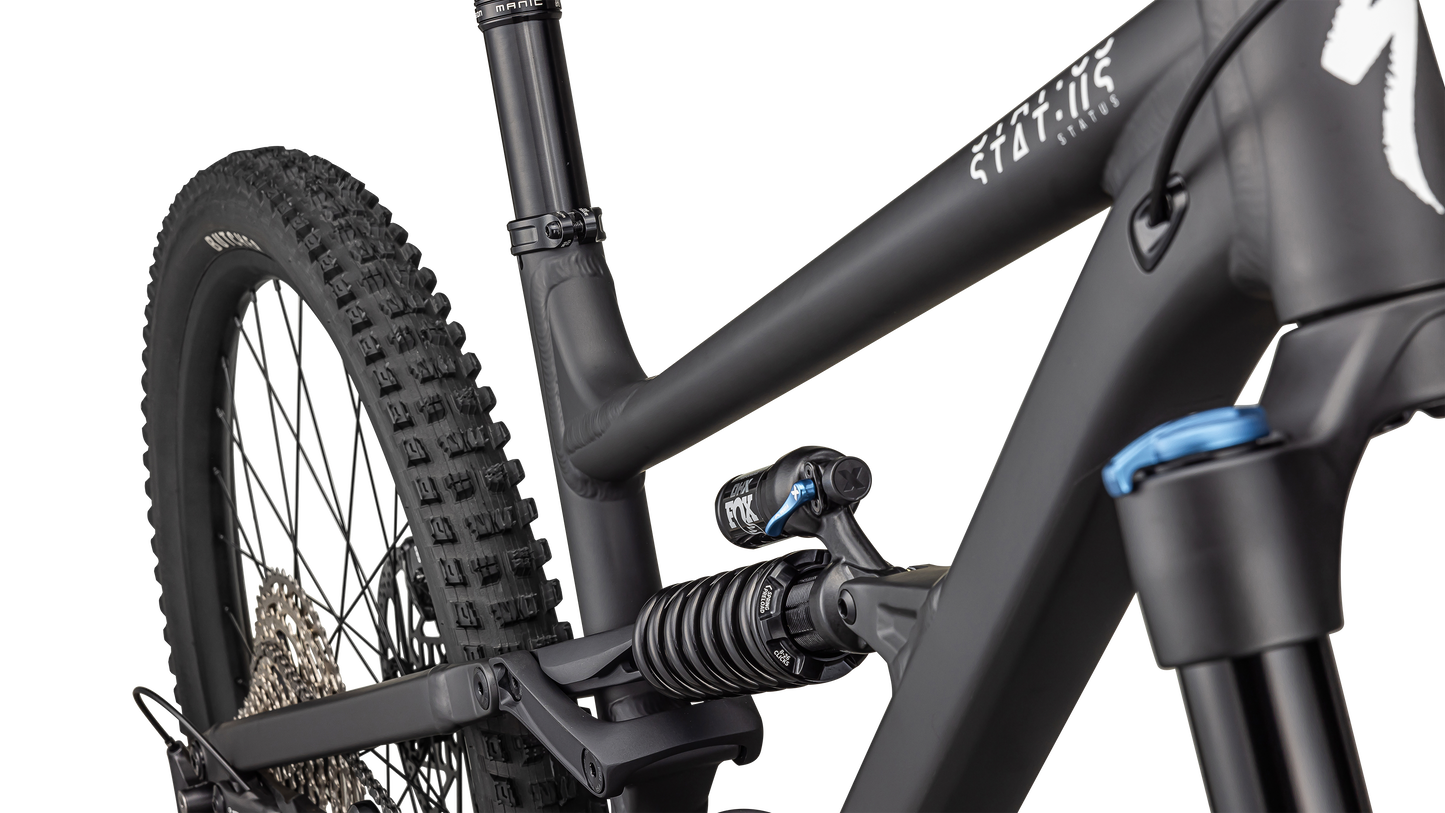

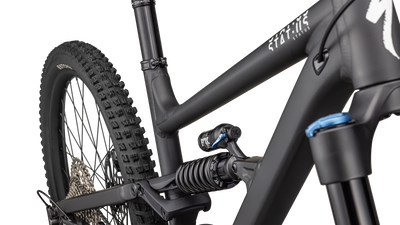

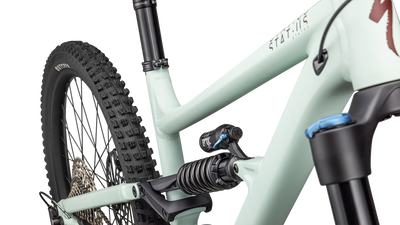

FOX DHX Performance, Ride Dynamics Trail Tune, S1:230x60mm, S2-S5:230x62.5mm

Fork

FOX FLOAT 38 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm QR axle, 44mm offset, 170mm of travel

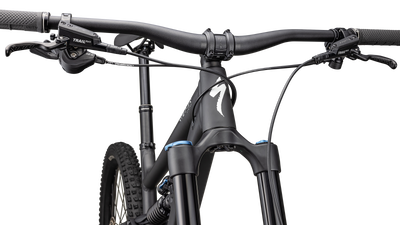

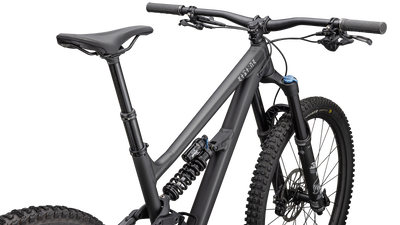

Cockpit

Seat Post

X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 125mm, S2: 150mm, S3-S4: 170mm, S5: 190mm

Saddle

Bridge Comp, Hollow Cr-mo rails, 143mm

Stem

Alloy Trail Stem, 35mm bar bore

Grips

Deity Knuckleduster

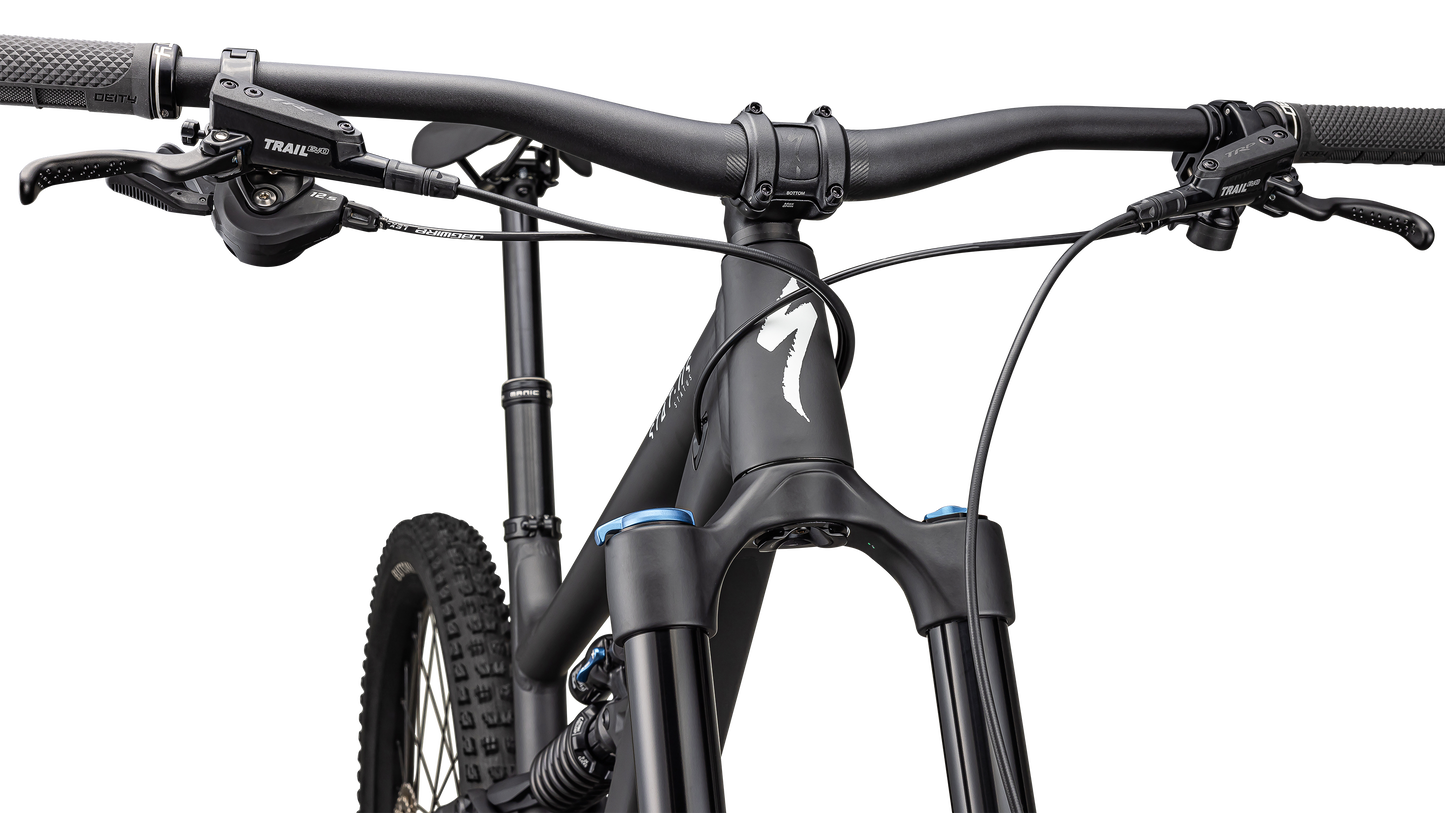

Handlebars

Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1: 780mm width, S2-S5: 800mm width

Brakes

Front Brake

TRP Trail EVO, 4-piston caliper, hydraulic disc, 203mm

Rear Brake

TRP Trail EVO, 4-piston caliper, hydraulic disc, 203mm

Drivetrain

Shift Levers

Shimano Deore, M6100, I-Spec EV, 12 speed

Rear Derailleur

Shimano Deore, M6100, 12pd, Shadow Plus

Cassette

Shimano Deore M6100, 12spd w/Hyperglide+, 10-51t

Shift Levers

Shimano Deore, M6100, I-Spec EV, 12 speed

Crankset

Shimano Deore, M6120, 32T ring, 55mm chainline, S1-4:165mm, S5: 170mm

Chain

Shimano Deore M6100, 12spd

Wheels & Tyres

Front Hub

Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h

Rear hub

Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h

Rims

Specialized, hookless alloy, 30mm inner width, tubeless ready

Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"

Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"

Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"

Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"

Spokes

DT Swiss Industry

Tubes

Standard, Presta valve
