New, more durable alloy rims
Horst Link geometry adjust flip chip
Updated geometry for more usability
Curated parts spec for your desired ride experience
Frame
M5 Alloy chassis and rear-end, Trail Geometry for 27.5 Front" and 26" rear wheels , horst pivot geo adjustment, threaded BB, internal cable routing with external rear brake option, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 140mm of travel
Seat Binder
Alloy, 38.6mm
Rear Shock
Marzocchi Bomber Air, Ride Dynamics Trail Tune, 2-position non-indexed compression sweep, w/ LSR adjustment, 210x50mm
Fork
Marzocchi Z1, Rail Damper, damper, two position Sweep adjustment, 15x110mm Kabolt axle, 37mm offset, 140mm of travel
Seat Post
X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9mm, 100mm
Saddle
Bridge Saddle, 130mm
Stem
Alloy Trail Stem, 35mm bar bore
Grips
Deity Lockjaw Grips

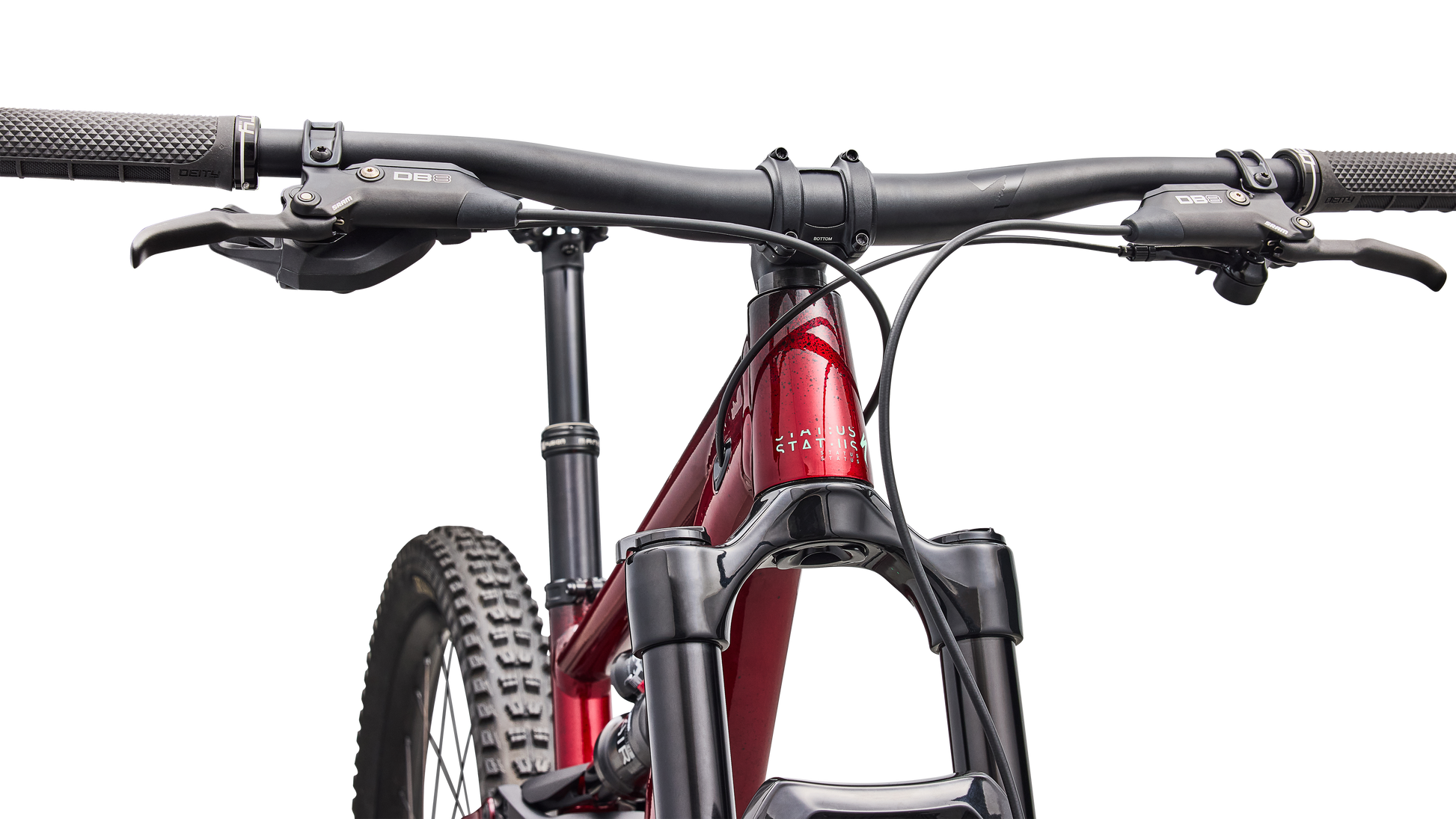

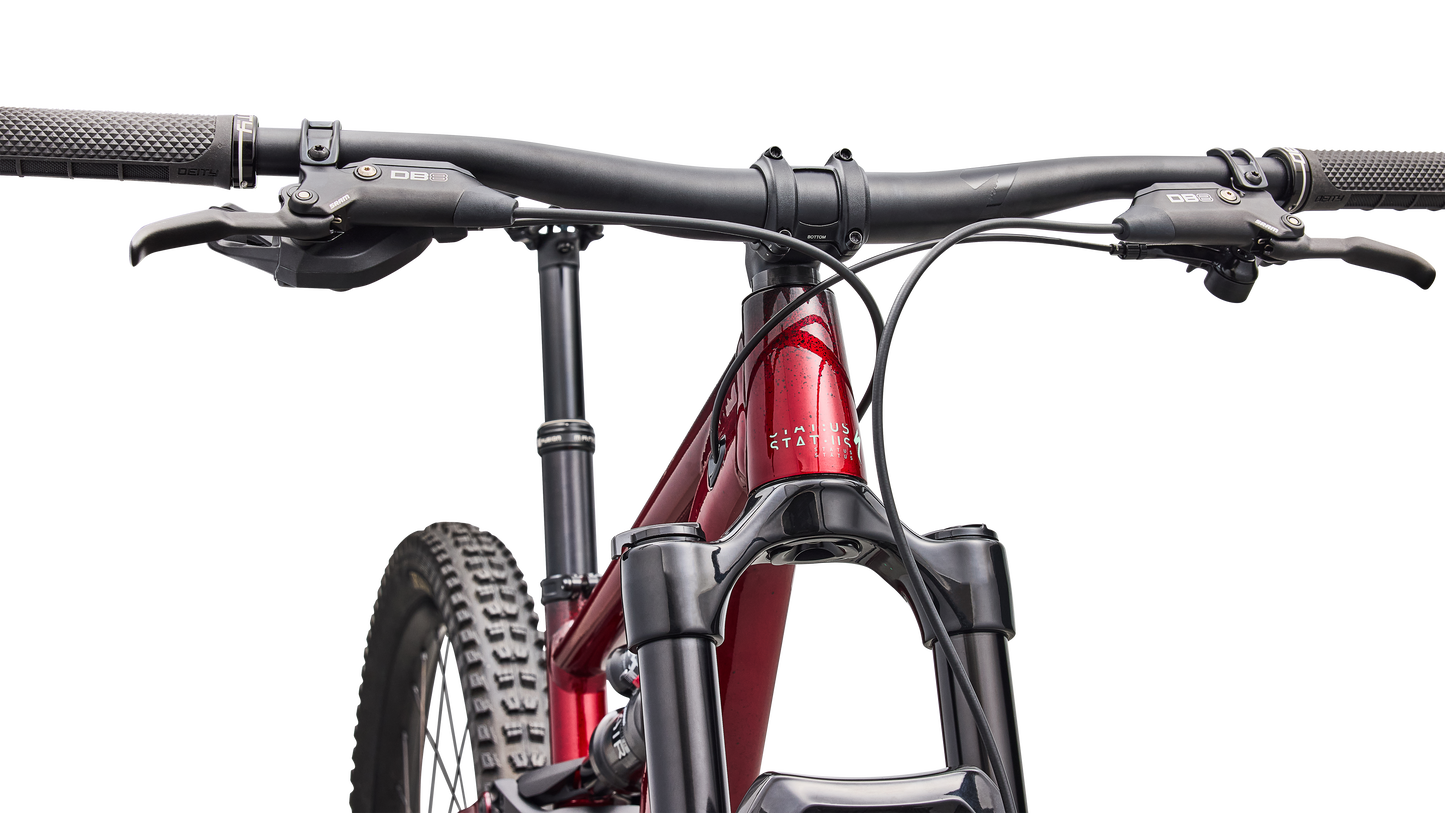

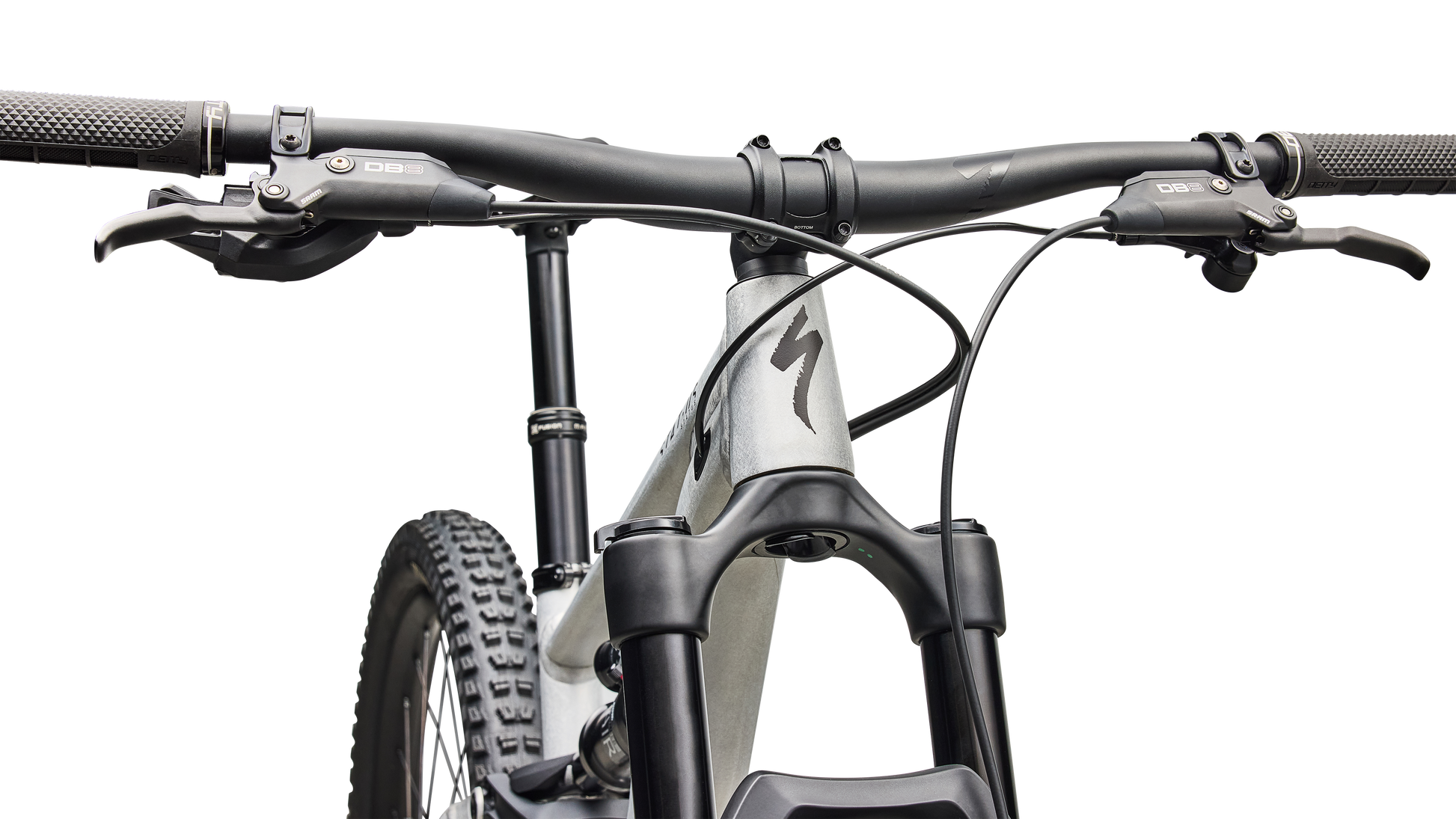

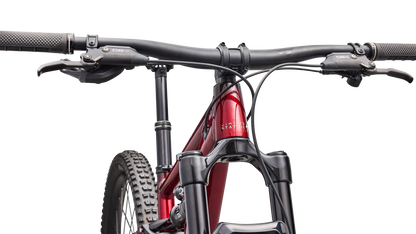

Handlebars
Specialized Alloy, 20mm rise, 35mm
Front Brake
SRAM DD8 Stealth
Rear Brake
SRAM DD8 Stealth
Shift Levers
SRAM EAGLE 70
Rear Derailleur
SRAM Eagle 70 T-Type
Cassette
SRAM 1270 Transmission Cassette, 12 Spd,10-52t
Shift Levers
SRAM EAGLE 70
Crankset
SRAM Eagle 70, 155mm, 55mm chainline, 30T
Chain
SRAM 70 Transmission Chain
Bottom Bracket
SRAM DUB Threaded Wide
Chain Ring
34t
Front Hub
Specialized alloy front hub disc, sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 28h
Rear hub
Specialized alloy rear hub disc, sealed cartridge bearings, 6-Bolt, 12X148mm thru-axle, 28h, HD Steel Fhb
Rims
Roval Traverse 27.5, hookless alloy, 30mm inner width, tubeless ready
Butcher, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.3"
Butcher, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.3"
Butcher, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 26x2.3"
Butcher, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 26x2.3"
Spokes
DT Swiss Elemental
Tubes
Standard, Presta valve
