THE SWEETEST 130MM OF TRAVEL YOUâLL EVER RIDEâWe massaged the kinematics of the Stumpjumper suspension to bring out the very best all-round performance possible in a 130mm package. Countless hours of suspension lab development and field testing created a refined mid-travel ripper that eats big terrain like a gravity fed beast, handles like a dream everywhere, and climbs like it has a motor.
PROGRESSIVE GEOMETRYâThe S-Sizing geometry of the new Stumpjumper hits the progressive sweet spot. Itâs long, low and slack, with a short offset fork and a steeper seat tube angle. These numbers combine to make your ride more stable, more carvealicious, more comfortable climbing, more better everywhere. With FlipChip adjustability youâre able to further fine-tune your fit, ensuring that your new Stumpjumper performs flawlessly on whatever terrain you choose.
RIDER-FIRST ENGINEEREDâ˘âRider-First Engineered⢠frames use a size-specific approach to ride characteristics that ensures benchmark handling and flawless performance, regardless of frame or rider size. Whether youâre a jump-happy grom riding an S1, or a DH-fiend giant in need of the lengthy S6, youâll experience the same ride traits â rail-sharp cornering and balanced front and rear stiffness â at the lightest-possible weight, And by light, we mean real light: 2,250 grams (S-Works, S-3 size, with rear shock).
SWATâ˘âWe introduced the SWAT⢠door on the Stumpjumper in 2016, adding room IN your frame for those âoh sh**tâ necessities like pumps and spare tubes, and immediately rendering jersey pockets redundant.
Frame
FACT 11m carbon chassis and rear-end, asymmetrical design, 29 Trail Geometry, SWAT⢠Door integration, flip chip Head Tube/Bottom Bracket adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 130mm of travel
Seat Binder
Alloy, 38.6mm

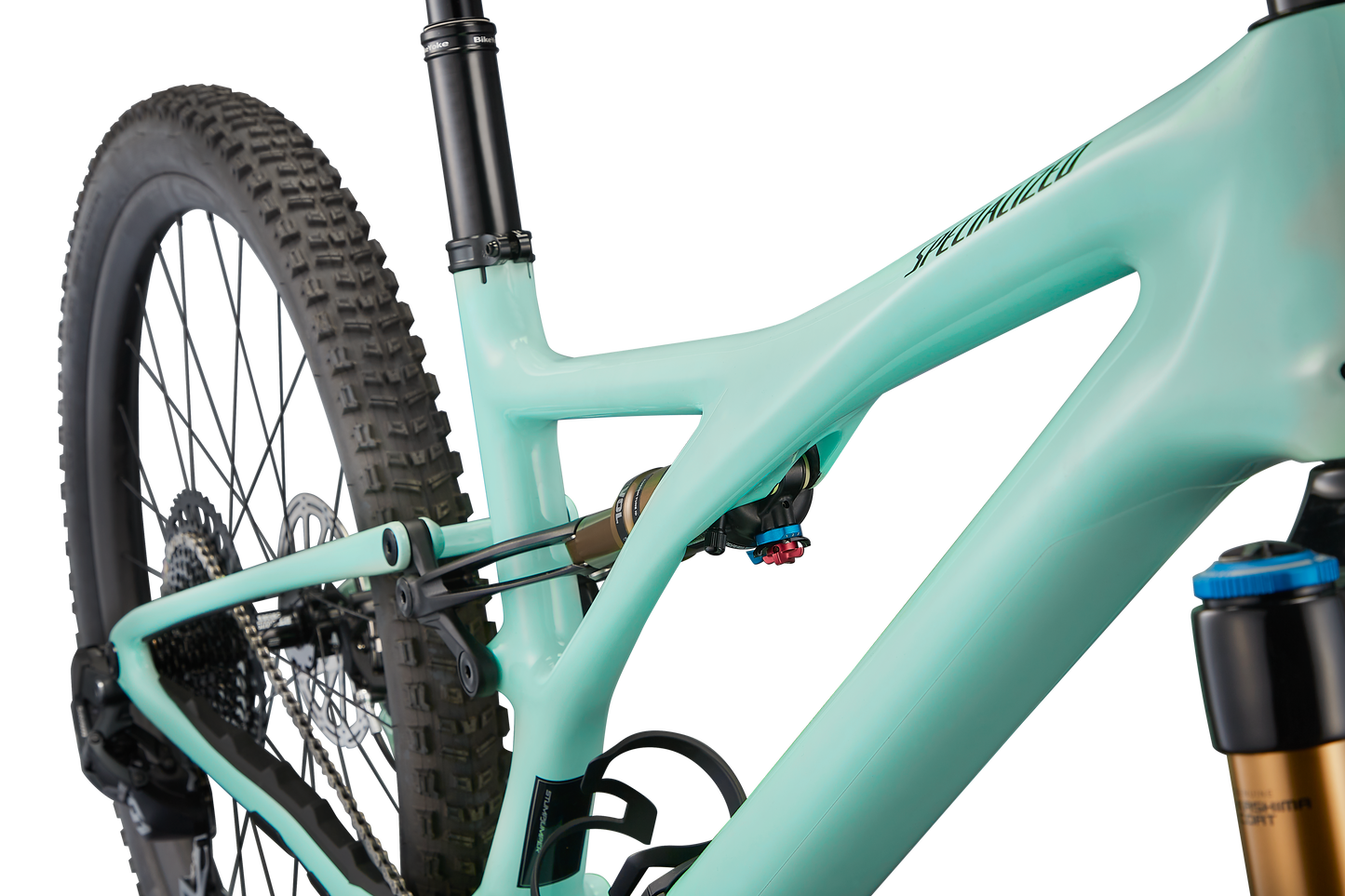

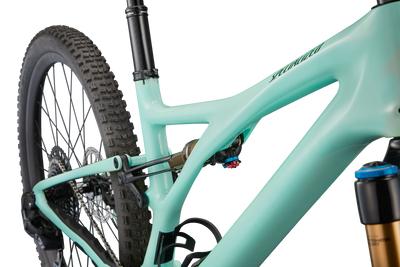

Rear Shock
FOX FLOAT DPS Factory, Rx Trail Tune, EVOL Air sleeve, Kashima Coat, 3-position adjustment w/ Open Mode Adjustment, 190x45mm
Fork
FOX FLOAT 34 Factory, GRIP2 damper, Kashima Coating, 15x110mm, 44mm offset, 140mm of travel
Bike Yoke, Revive Max, 34.9 (S1:120mm, S2/S3:150mm, S4-S6: 185mm)
Bike Yoke, Revive Max, 34.9 (S1:120mm, S2/S3:150mm, S4-S6: 185mm)
Saddle
Bridge, 155/143mm, Hollow Ti-rails

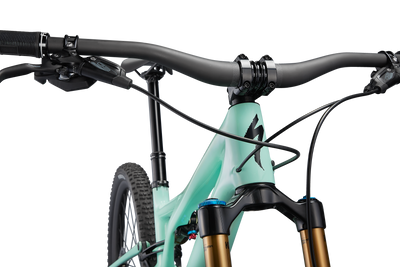

Stem
Deity, 35.0mm
Grips
Deity, Knuckleduster, Black

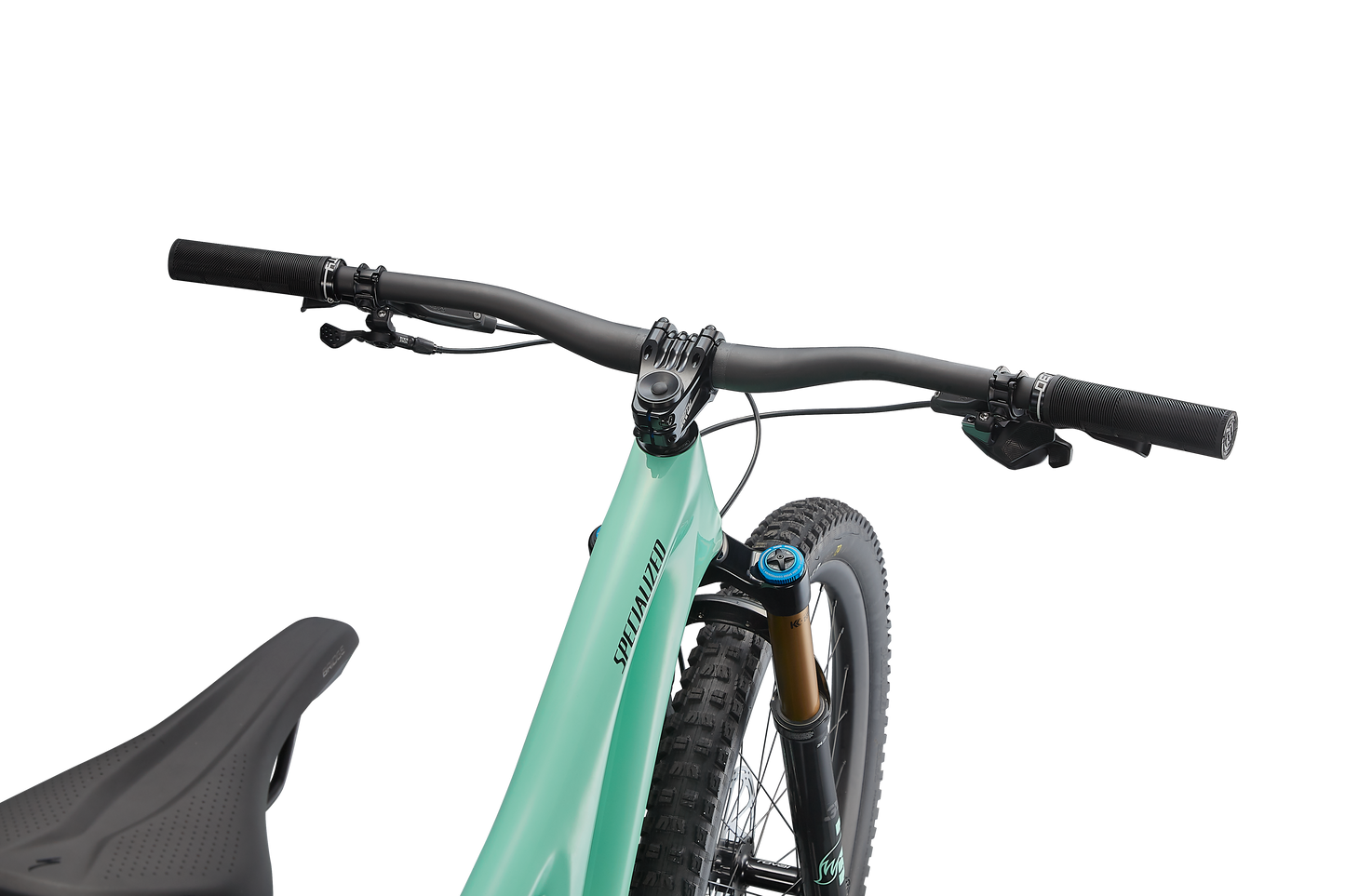

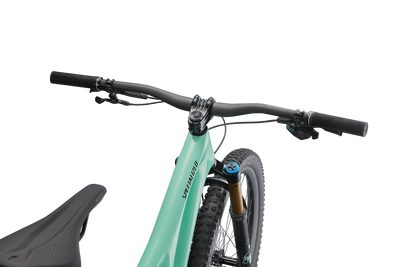

Handlebars
Roval Traverse SL Carbon, riser bar, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm, 35.0mm
Front Brake
SRAM G2 RSC, 4-piston caliper, hydraulic disc, 200mm
Rear Brake
SRAM G2 RSC, 4-piston caliper, hydraulic disc, 180mm
Shift Levers
SRAM Eagle AXS Rocker Paddle
Rear Derailleur
SRAM X01 Eagle AXS
Cassette
SRAM XG-1295 Eagle, 10-52t
Shift Levers
SRAM Eagle AXS Rocker Paddle
Crankset
SRAM X1 Carbon, DUB, S1:165mm, S2-S5: 170mm, S6: 175mm
Chain
SRAX X01 Eagle, 12-speed
Bottom Bracket
SRAM DUB, BSA 73mm, Threaded
Chain Ring
Alloy, 30T
Front Hub
DT Swiss 350, sealed cartridge bearings, 15x110mm spacing, 28h
Rear hub
DT Swiss 350, Star Ratchet, 36t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h
Rims
Roval Traverse Carbon 29, hookless carbon, 30mm inner width, hand-built, 2Bliss Ready
Butcher, GRID casing, GRIPTONÂŽ T9 compound, 29x2.3"
Butcher, GRID casing, GRIPTONÂŽ T9 compound, 29x2.3"
Purgatory, GRID casing, GRIPTONÂŽ T7 compound, 29x2.3"
Purgatory, GRID casing, GRIPTONÂŽ T7 compound, 29x2.3"
Spokes
DT Competition Race
Tubes
Standard, Presta Valve
