Stumpjumper Size Guide
THE SWEETEST 130MM OF TRAVEL YOU’LL EVER RIDE — We massaged the kinematics of the Stumpjumper suspension to bring out the very best all-round performance possible in a 130mm package. Countless hours of suspension lab development and field testing created a refined mid-travel ripper that eats big terrain like a gravity fed beast, handles like a dream everywhere, and climbs like it has a motor.
PROGRESSIVE GEOMETRY — The S-Sizing geometry of the new Stumpjumper hits the progressive sweet spot. It’s long, low and slack, with a short offset fork and a steeper seat tube angle. These numbers combine to make your ride more stable, more carvealicious, more comfortable climbing, more better everywhere. With FlipChip adjustability you’re able to further fine-tune your fit, ensuring that your new Stumpjumper performs flawlessly on whatever terrain you choose.
RIDER-FIRST ENGINEERED™ — Rider-First Engineered™ frames use a size-specific approach to ride characteristics that ensures benchmark handling and flawless performance, regardless of frame or rider size. Whether you’re a jump-happy grom riding an S1, or a DH-fiend giant in need of the lengthy S6, you’ll experience the same ride traits – rail-sharp cornering and balanced front and rear stiffness – at the lightest-possible weight, And by light, we mean real light: 2,250 grams (S-Works, S-3 size, with rear shock).
SWAT™ — When we introduced the SWAT™ door on the Stumpjumper in 2016, we increased pocket space, and added room for those “oh s**t” pumps and flat accessories. With the new Stumpjumper, we’ve kept those same design hallmarks that you know and love.
Frame
FACT 11m carbon chassis and rear-end, asymmetrical design, 29 Trail Geometry, SWAT™ Door integration, flip chip Head Tube/Bottom Bracket adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 130mm of travel
Seat Binder
Alloy, 38.6
SWAT™ Door integration
SWAT™ Door integration
Rear Shock
FOX FLOAT DPS Performance, Rx Trail Tune, rebound and 3-position compression adjust, 190x45mm
Fork
FOX FLOAT 34 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm axle, 44mm offset, 140mm of travel
X-Fusion Manic, infinite adjustable, remote SRL LE lever, 34.9 (S1:100mm, S2: 125mm, S3: 150mm, S4/S5: 170mm, S6: 190mm)
X-Fusion Manic, infinite adjustable, remote SRL LE lever, 34.9 (S1:100mm, S2: 125mm, S3: 150mm, S4/S5: 170mm, S6: 190mm)
Saddle
Bridge Comp, Hollow Cr-mo rails 155/143
Stem
Alloy Trail Stem, 35mm bar bore
Grips
Specialized Trail Grips

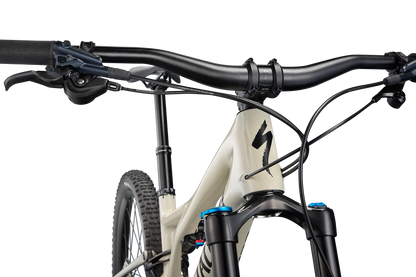

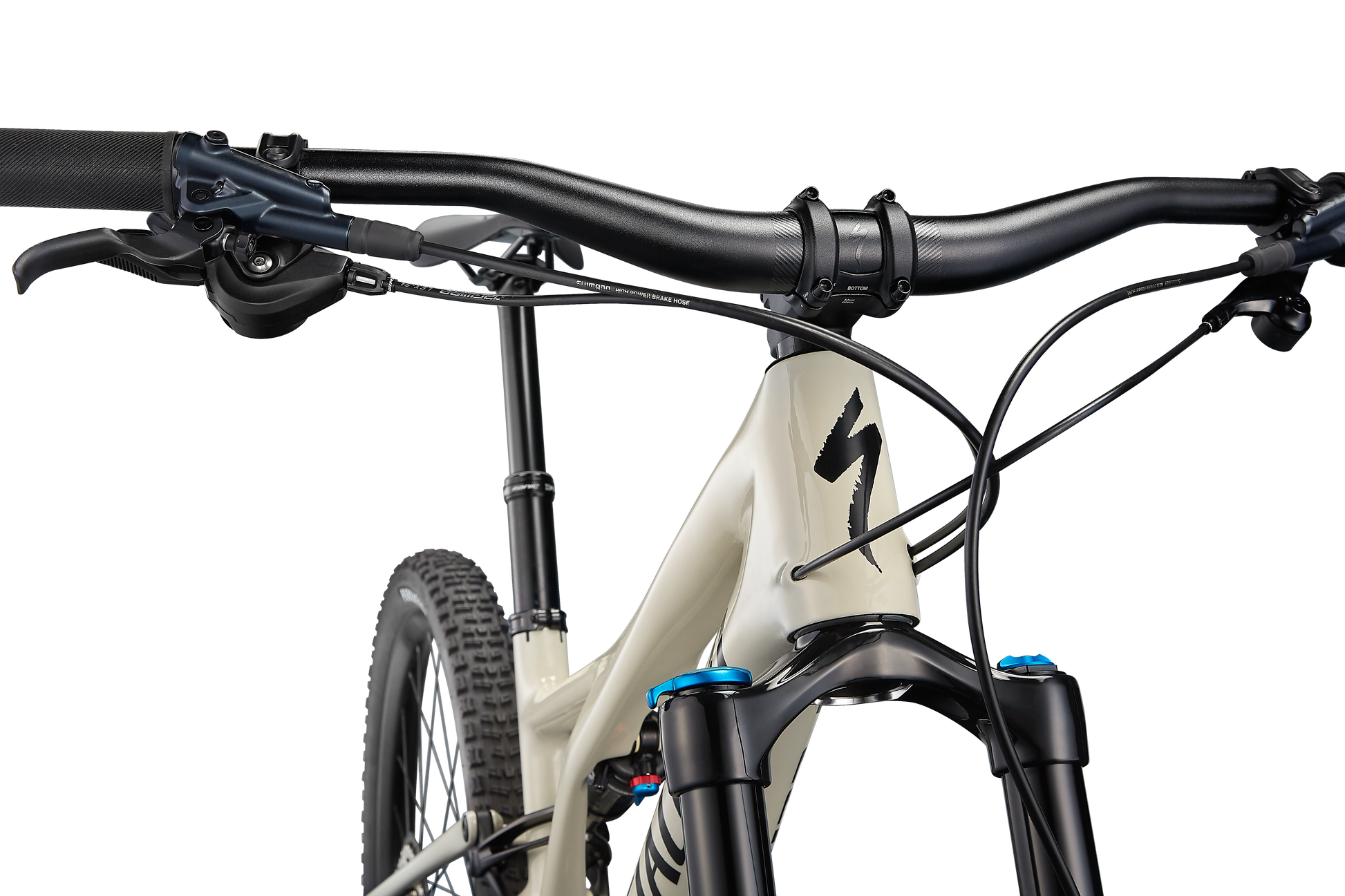

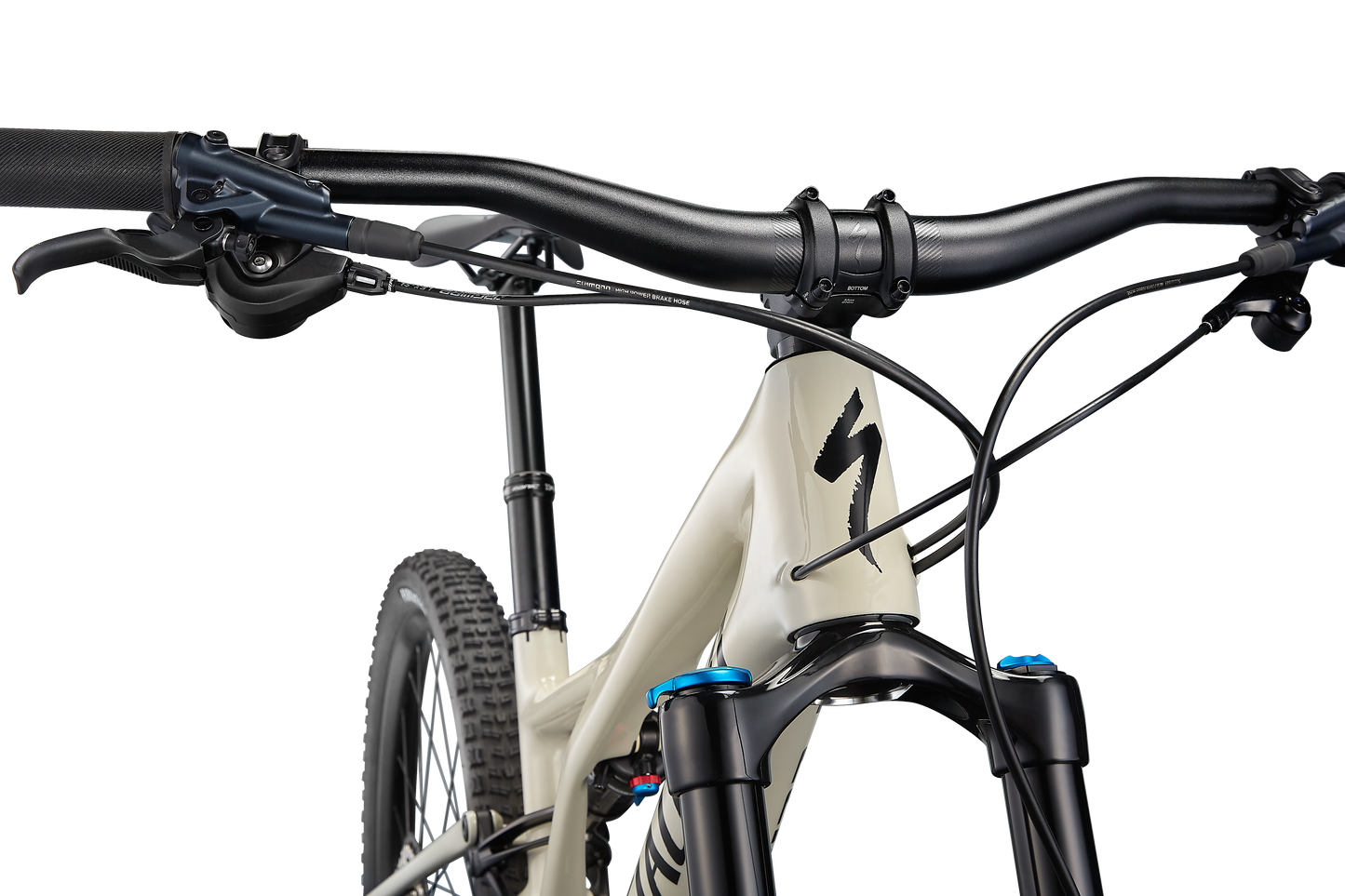

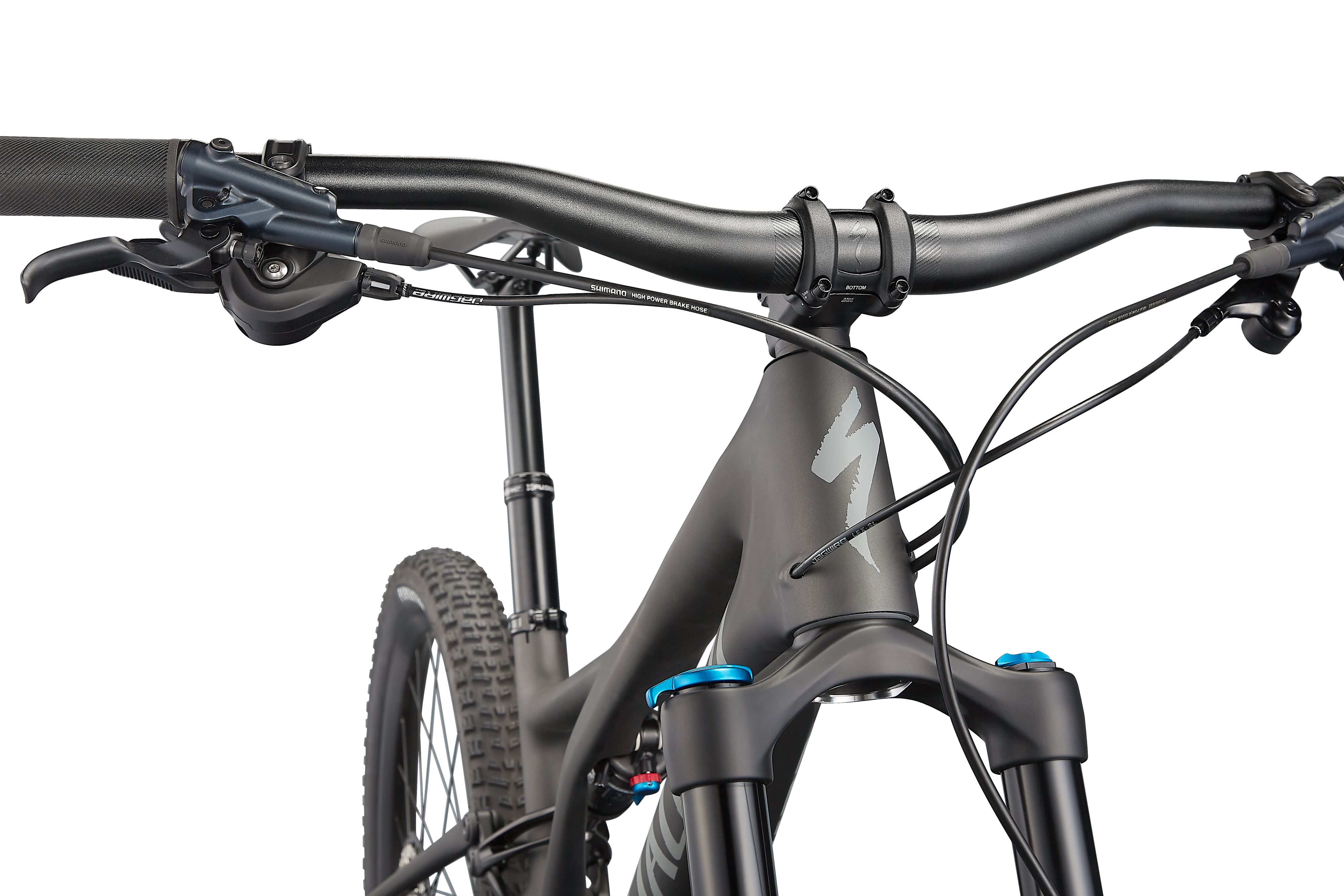

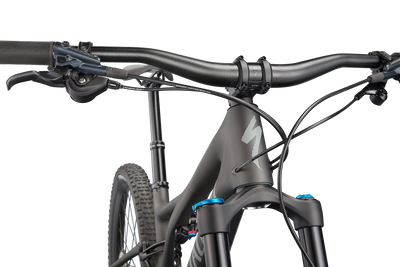

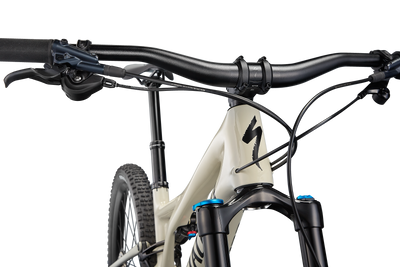

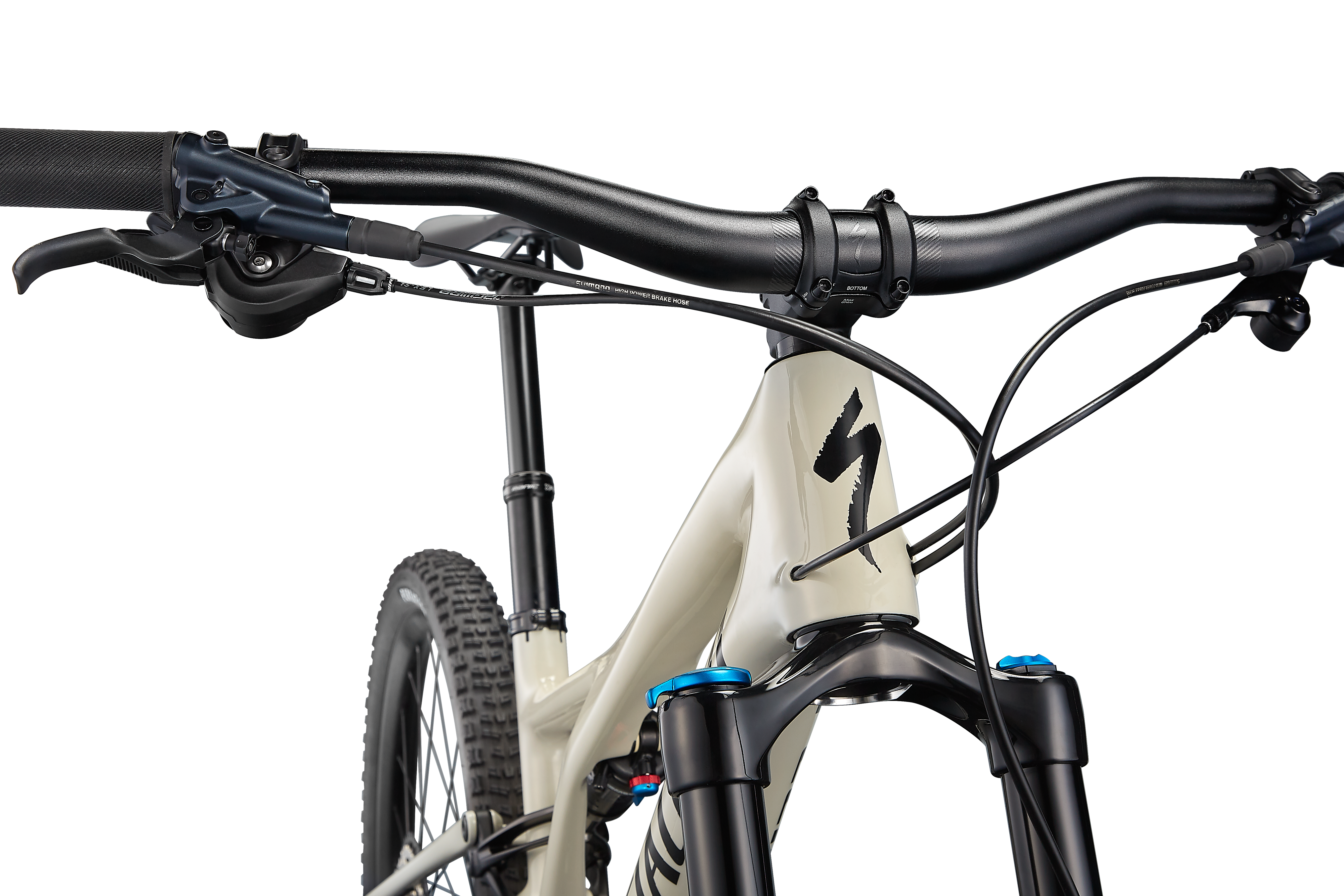

Handlebars
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width
Front Brake
Shimano SLX M7120, 4-piston caliper, hydraulic disc, 200mm
Rear Brake
Shimano SLX M7120, 4-piston caliper, hydraulic disc, 180mm
Shift Levers
Shimano SLX, M7100, 12spd
Rear Derailleur
Shimano SLX M7100, SGS, 12-speed
Cassette
Shimano SLX, CS-M7100, 12-speed, 10-51t
Shift Levers
Shimano SLX, M7100, 12spd
Crankset
Shimano SLX, S1:165mm, S2-S5: 170mm, S6: 175mm
Chain
Shimano SLX, M7100, 12-speed
Bottom Bracket
Shimano, BB-MT800, Threaded
30T
30T
Front Hub
Shimano MT400-B, Centerlock 28h, 15x110 Boost
Rear hub
Shimano MT510-B, Centerlock 28h, 12x148 Boost, Microspline
Rims
Specialized 29, hookless alloy, 30mm inner width, tubeless ready
Butcher, GRID casing, GRIPTON® compound, 29x2.3"
Butcher, GRID casing, GRIPTON® compound, 29x2.3"
Purgatory, GRID Casing, GRIPTON® compound, 29x2.3"
Purgatory, GRID Casing, GRIPTON® compound, 29x2.3"
Spokes
DT Swiss Industry
Tubes
Standard, Presta valve
