Stumpjumper 15 Pro
Stumpjumper 15 Pro
Stumpjumper Size Guide
Product Details
Stumpjumper 15 is here to obliterate every trade-off in the trail game. Devour bumps like a big bike? Check. Short-travel control, playfulness, and efficiency? Double check. How about a heaping helping of personalization to make it perfect for the only rider who really matters—you? Check, check, check. BREAKTHROUGH CAPABILITY: GENIE Shock Technology combines a poppy, playful ride with a bottomless DH feel. ULTIMATE CONTROL: Measurably better traction than “Bike of the Year” Stumpjumper EVO. UNMATCHED PERSONALIZATION: Six-way geometry adjustment, mixed wheel or 29”; tunable spring curve, and more. GENIE—The Magic Carpet Ride: The biggest innovation on the Stumpjumper 15 is GENIE. This patent-pending air spring technology that we invented grants every trail rider’s three wishes: the feel and control of a coil spring, better bottom-out prevention than a standard air spring, and a tunable “platform” for a playful feel. ILLUMINATING GENIE: GENIE combines the control-enhancing linear spring rate of a coil spring through the “bump zone” with the progressive spring rate of an air spring at the end of the stroke to avoid bottom-outs. Truly, it's the best of both worlds – coil and air – with extra tunability. Say goodbye to compromises and hello to the future of riding. WHAT BUMP?: With 16.3% better bump force management than a traditional air-sprung shock, GENIE makes the Stumpy 15 ride like a bike with more travel. For example, the Stumpjumper 15 (with 145 mm rear wheel travel) and our Enduro (170 mm travel) both use 101 mm of travel to absorb a 1080 N bump force. TRACTION GALORE: Extensive field testing proves that Stumpjumper 15 with GENIE delivers 57% better traction than a standard air-sprung shock because GENIE technology gives you supple, coil-like performance, which keeps the wheel in contact with the ground a greater percent of the time than a typical air spring would. BYE; BYE, BOTTOM-OUTS: 39% fewer bottom-outs than a standard air spring. During big hit events, you benefit from the rising rate in the last 30% of the GENIE stroke. Because of this two-stage, pronounced rising rate, GENIE reduces the frequency and severity of bottom-outs. HONED GEOMETRY: This bike’s geometry delivers big bike capability when you need it, a nimble feel in tight sections, and lively, efficient climbing manners. The generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack head tube angle, and optimized fork offset keep things stable in the rough. RIDE YOUR WAY: The Stumpjumper 15 seamlessly integrates benchmark geo adjustability, making it the most personalizable trail bike ever. Six distinct geometry settings allow you to hone performance for any style, any terrain. Head angle and bottom bracket height can be fine-tuned for stability or clearance. WHEEL CHOICE: With our aftermarket shock links, you can choose between big wheels front and rear or mix things up with a 27.5” rear for a more responsive and playful ride. No matter what you choose, geometry is unaffected. CARRY IT ALL: SWAT 4.0 on Stumpjumper 15 elevates downtube storage, an innovation we pioneered. It’s the smoothest operating, most weather-resistant, flush-mounted system ever. MORE RELENTLESS THAN YOU: Our full suspension bikes are built to be relentless, designed to endure years of hard riding and backed by the best support and policies to keep you on the trail. Our unbeatable lifetime, no-questions-asked replacement of suspension pivot bearings to the original owner is just one way we've got you covered. Lightweight FACT 11m carbon chassis and rear-end
Super-light and durable Roval Traverse SL II wheels, Industry Nine 1/1 hub
Ride Dynamics tuned FOX FLOAT Factory with Specialized GENIE Shock Tech. Highly adjustable 2-position open and firm mode with the 3-position open mode compression adjuster
Supportive and tuneable FOX FLOAT 36 Factory fork with GRIP X2 damper
Smooth and precise SRAM XO Eagle T-Type AXS drivetrain
Big stopping power from SRAM Maven Silver, 4-piston brakes
Slam your saddle with Bike Yoke Revive Max’s ultra-low stack dropper post
Lifetime replacement of suspension pivot bearings to the original owner
Compatible with electronic drivetrains only
Technical Specifications
Frameset
Frame
FACT 11m carbon chassis and rear-end, Trail Geometry, SWAT™ Door integration, head tube angle adjustment, threaded BB, internal brake and dropper cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm of travel
Seat Binder
Alloy, 38.6mm
SWAT
SWAT 4.0 internal downtube storage
Suspension

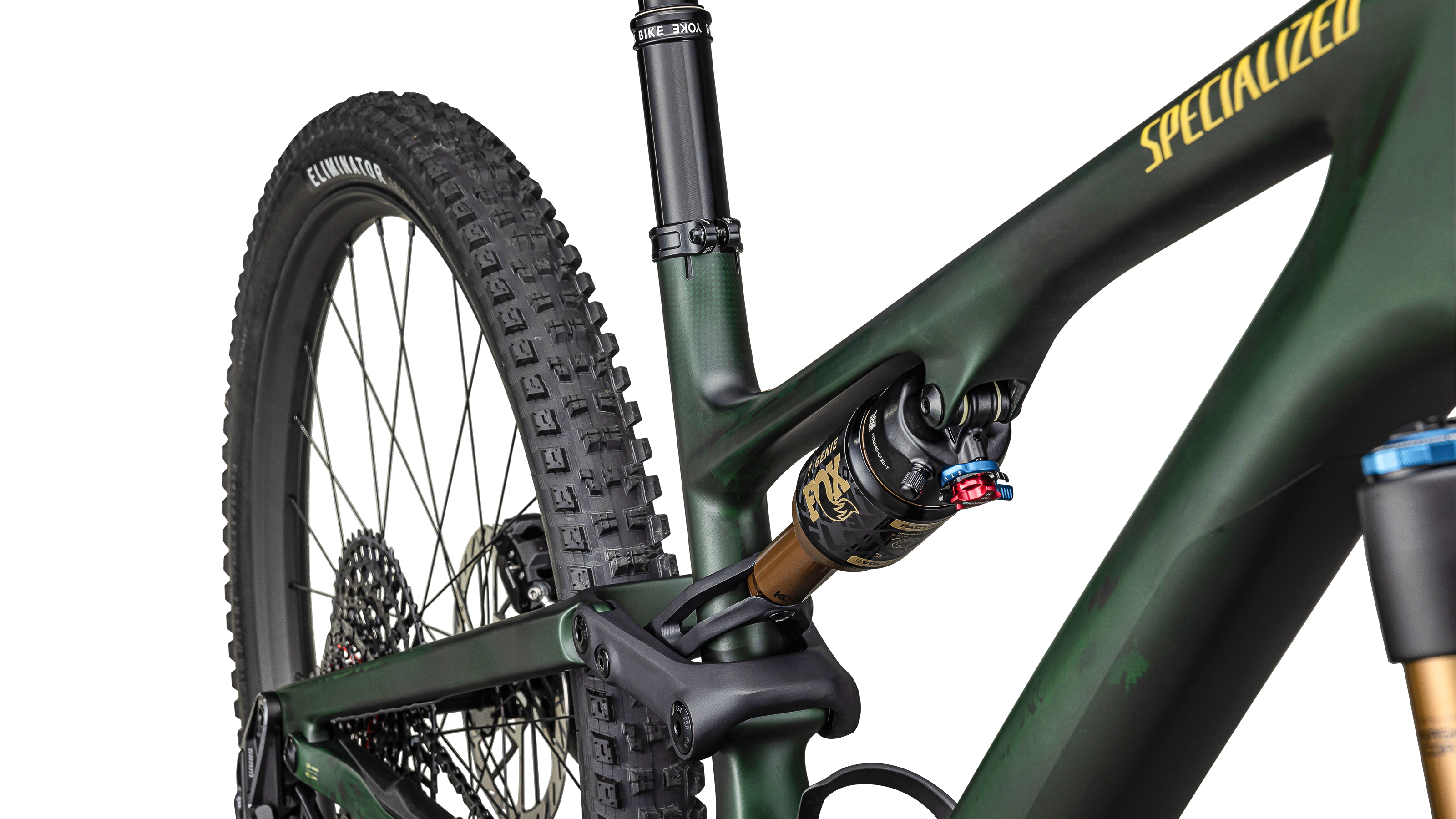

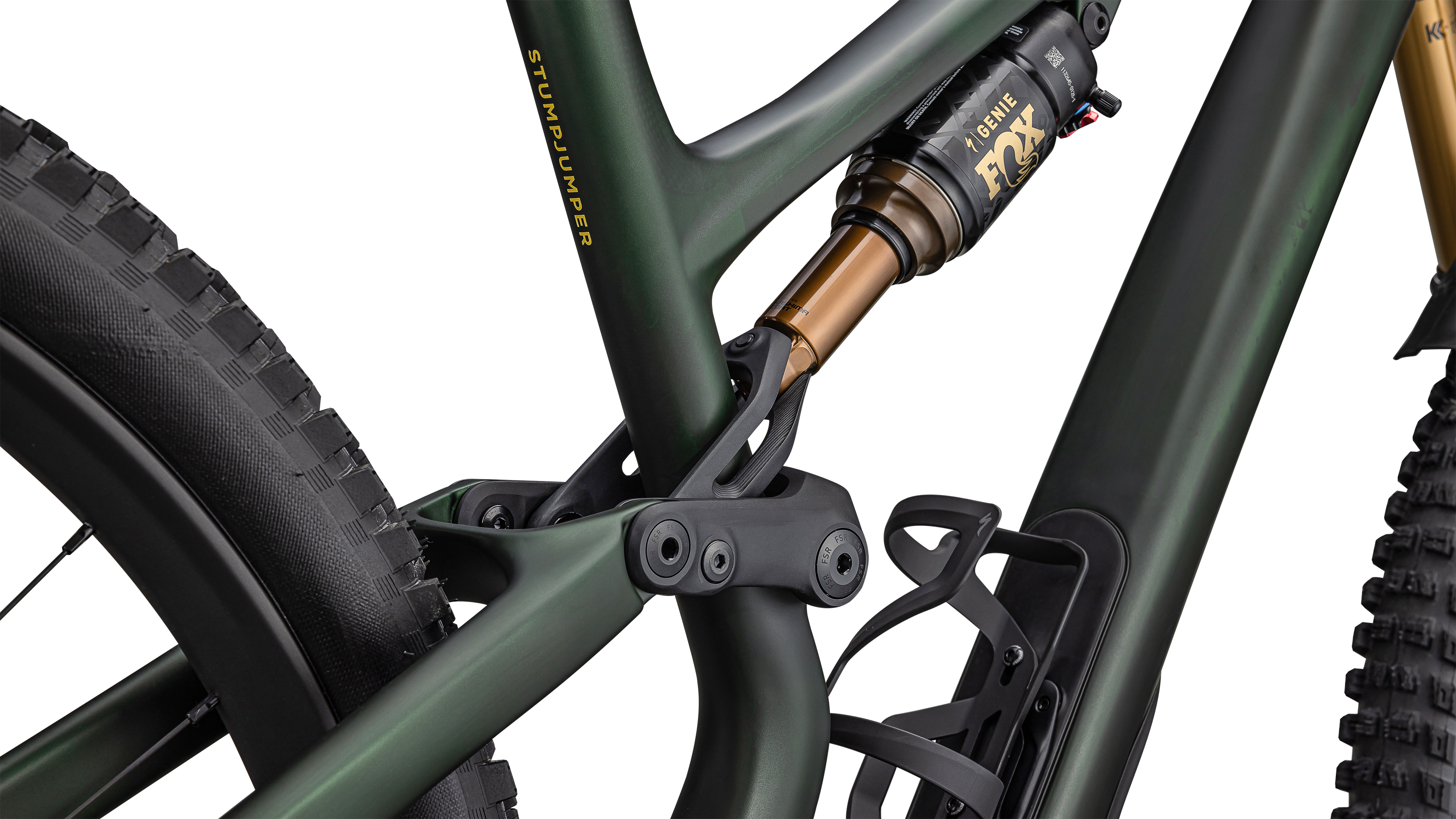

Rear Shock
FOX FLOAT Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment, S1:210x52.5mm, S2-S6:210x55mm
Fork
FOX FLOAT 36 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm QR axle, 44mm offset, S1:140mm of travel, S2-S6:150mm of travel
Cockpit
Seat Post
Bike Yoke, Revive Max, 34.9, S1: 125mm, S2: 160mm, S3-S4: 185mm, S5-S6: 213mm
Saddle
Bridge Expert with MIMIC, Hollow Ti rails, S1-S2: 155mm, S3-S6: 143mm
Stem
Industry 9 Moutain stem, 35mm clamp, 40mm length
Grips
Deity Lockjaw

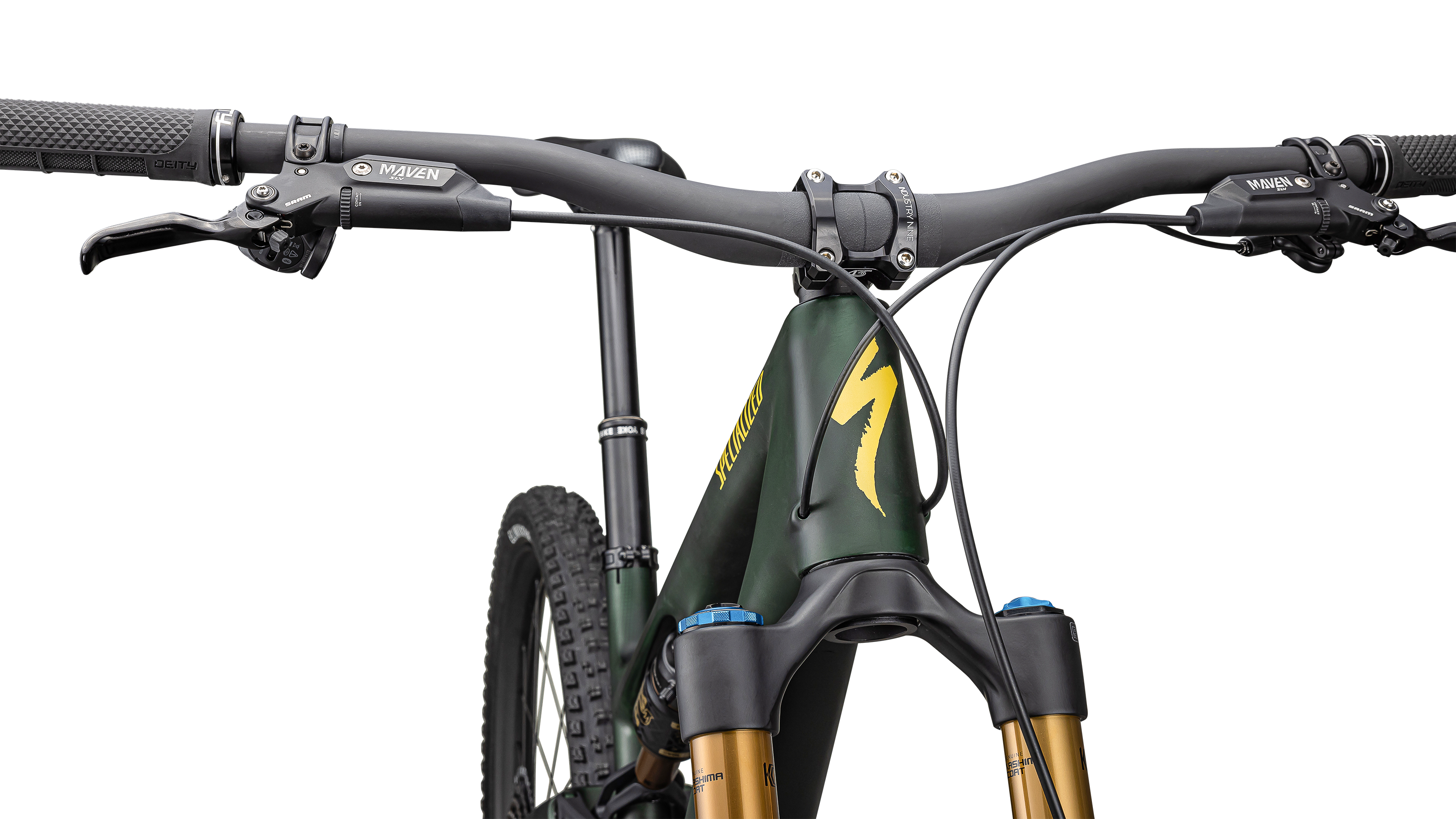

Handlebars
Roval Traverse SL Carbon, riser bar, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1-S2: 780mm: S3-S6: 800mm
Brakes
Front Brake
SRAM Maven Silver, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor
Rear Brake
SRAM Maven Silver, 4-piston caliper, hydraulic disc, S1-S2: 180mm, S3-S6: 200mm HS2 Rotor
Drivetrain
Shift Levers
SRAM AXS POD Controller
Rear Derailleur
SRAM X0 Eagle Transmission Derailleur
Cassette
SRAM X0 Eagle Transmission Cassette, 12spd, 10-52t
Shift Levers
SRAM AXS POD Controller
Crankset
SRAM X0 Eagle Crankset, 32T ring, Integrated Guard, 55mm Chainline, S1-S3:165mm, S4-S6: 170mm
Chain
SRAM X0 Eagle Transmission Flattop Chain
Bottom Bracket
SRAM DUB, BSA 73mm Wide, Threaded
Wheels & Tyres
Front Hub
Industry 9 1/1, 15x110mm, 28h
Rear hub
Industry 9 1/1, 12x148mm, 28h
Rims
Roval Traverse SL II, hookless carbon, 30mm inner width, tubeless ready, Front: 29, Rear: S1-S2: 27.5, S3- S6: 29
Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, S1-S2: 27.5x2.3, S3- S6: 29x2.3"
Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, S1-S2: 27.5x2.3, S3- S6: 29x2.3"
Spokes
Sapim D-Light
Tubes
Standard, Presta valve
