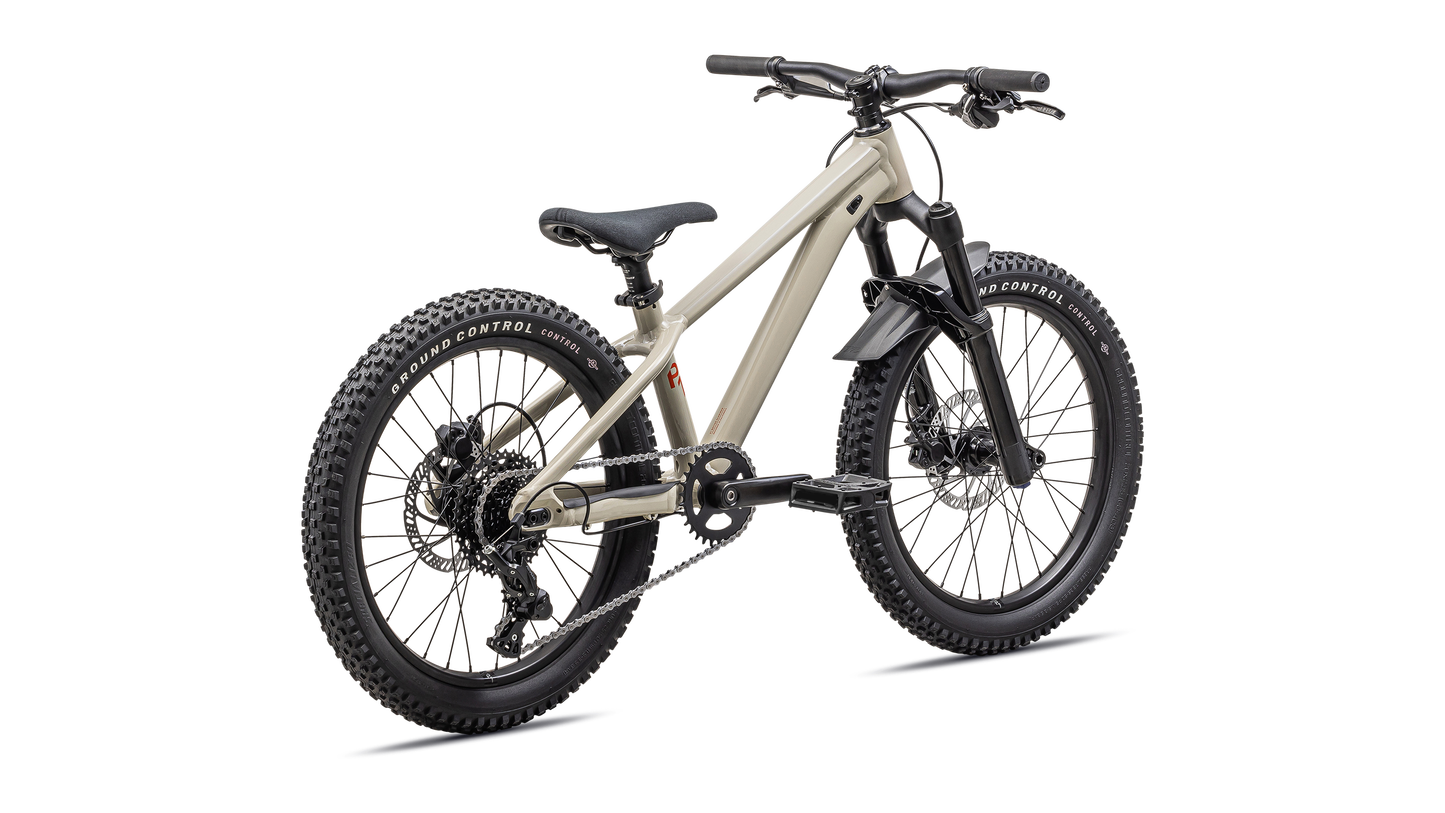

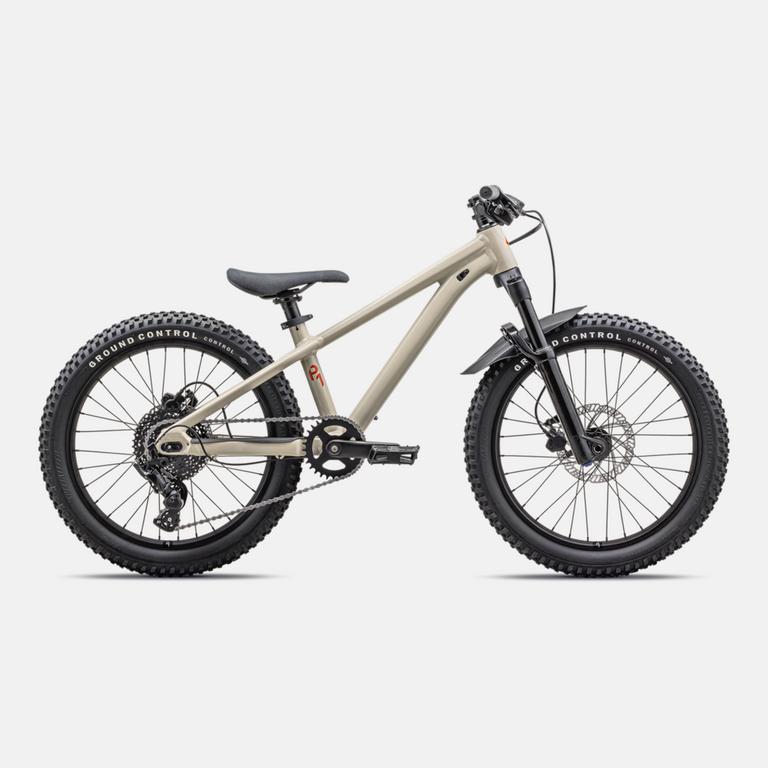

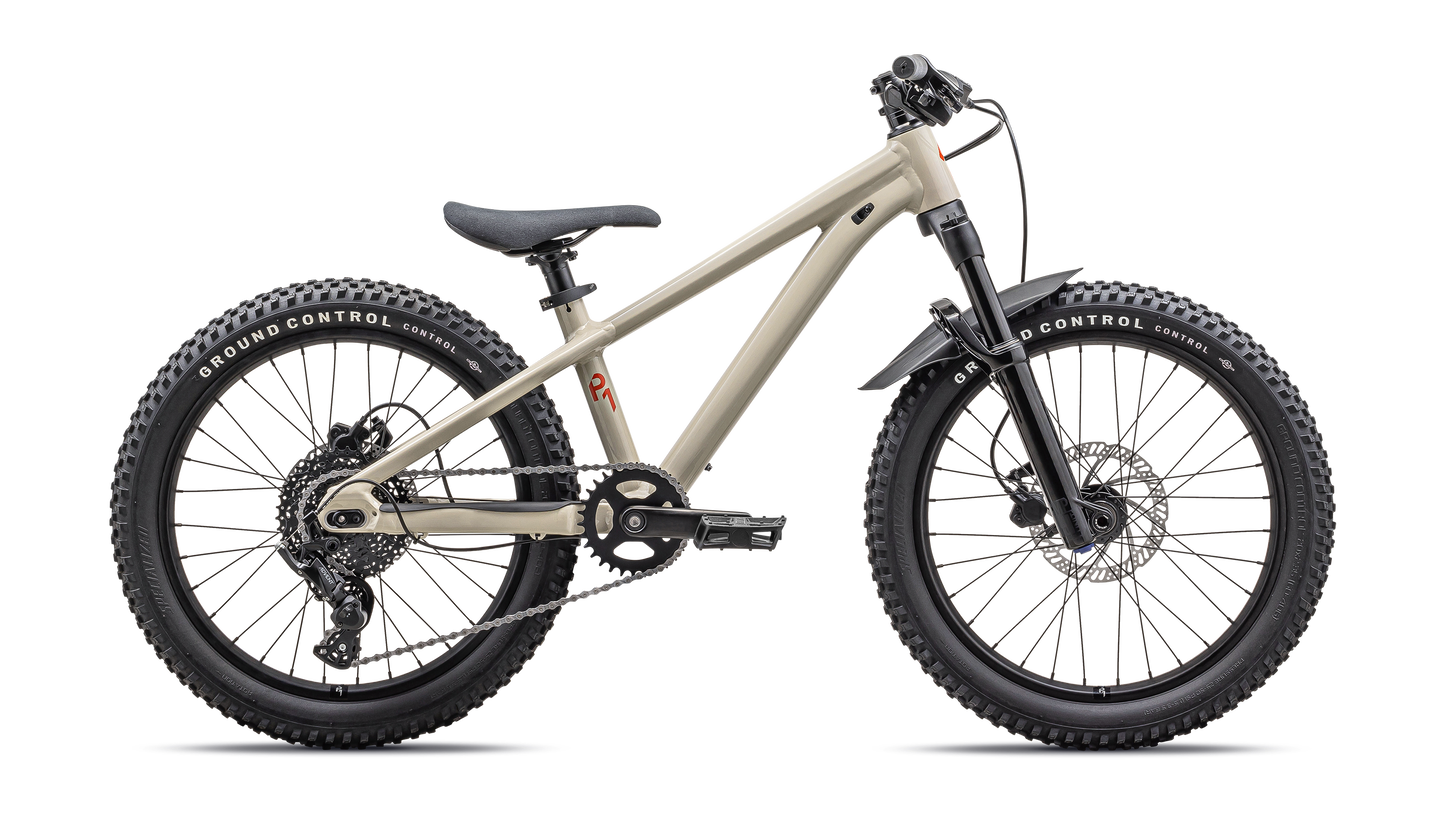

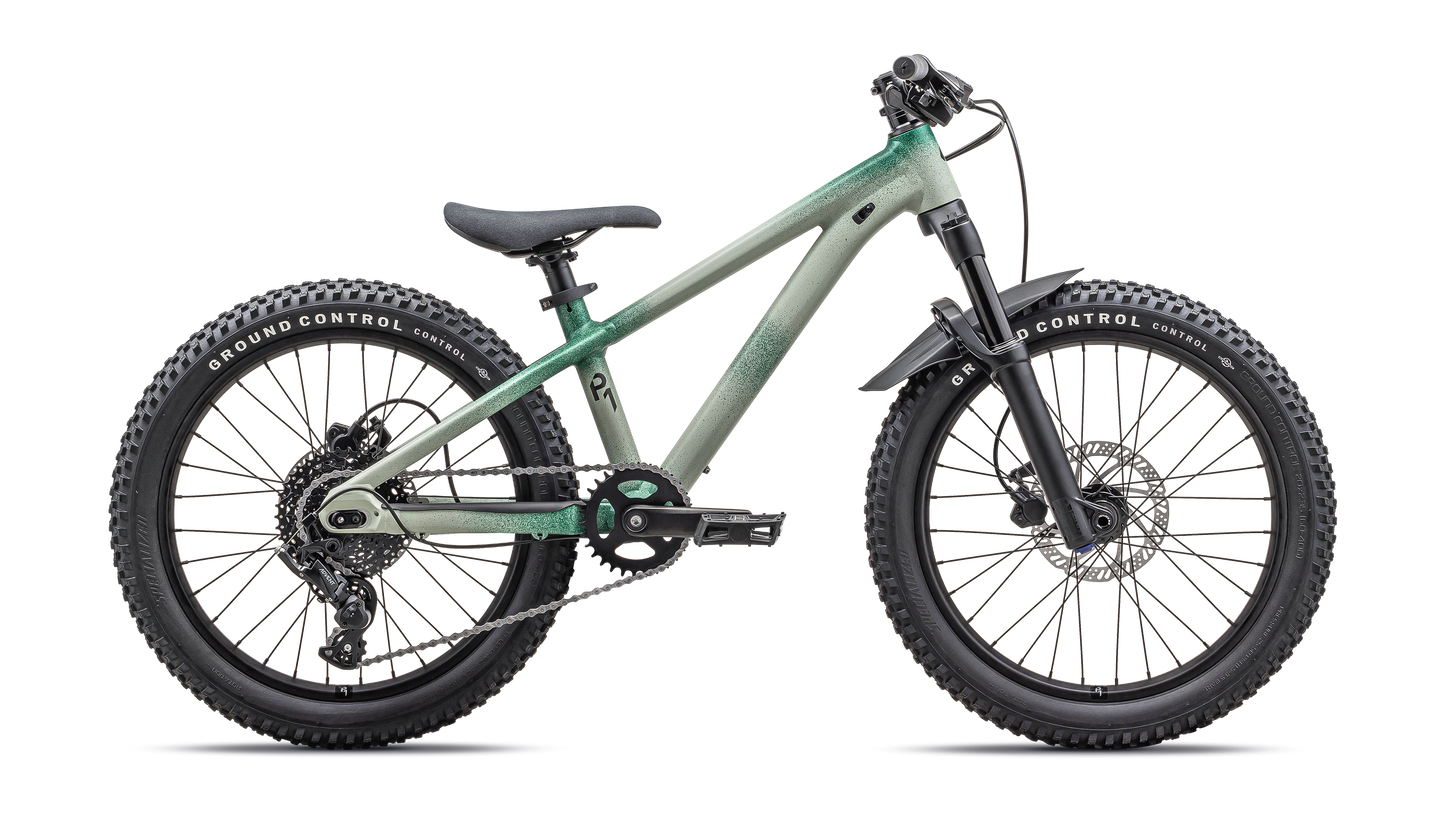

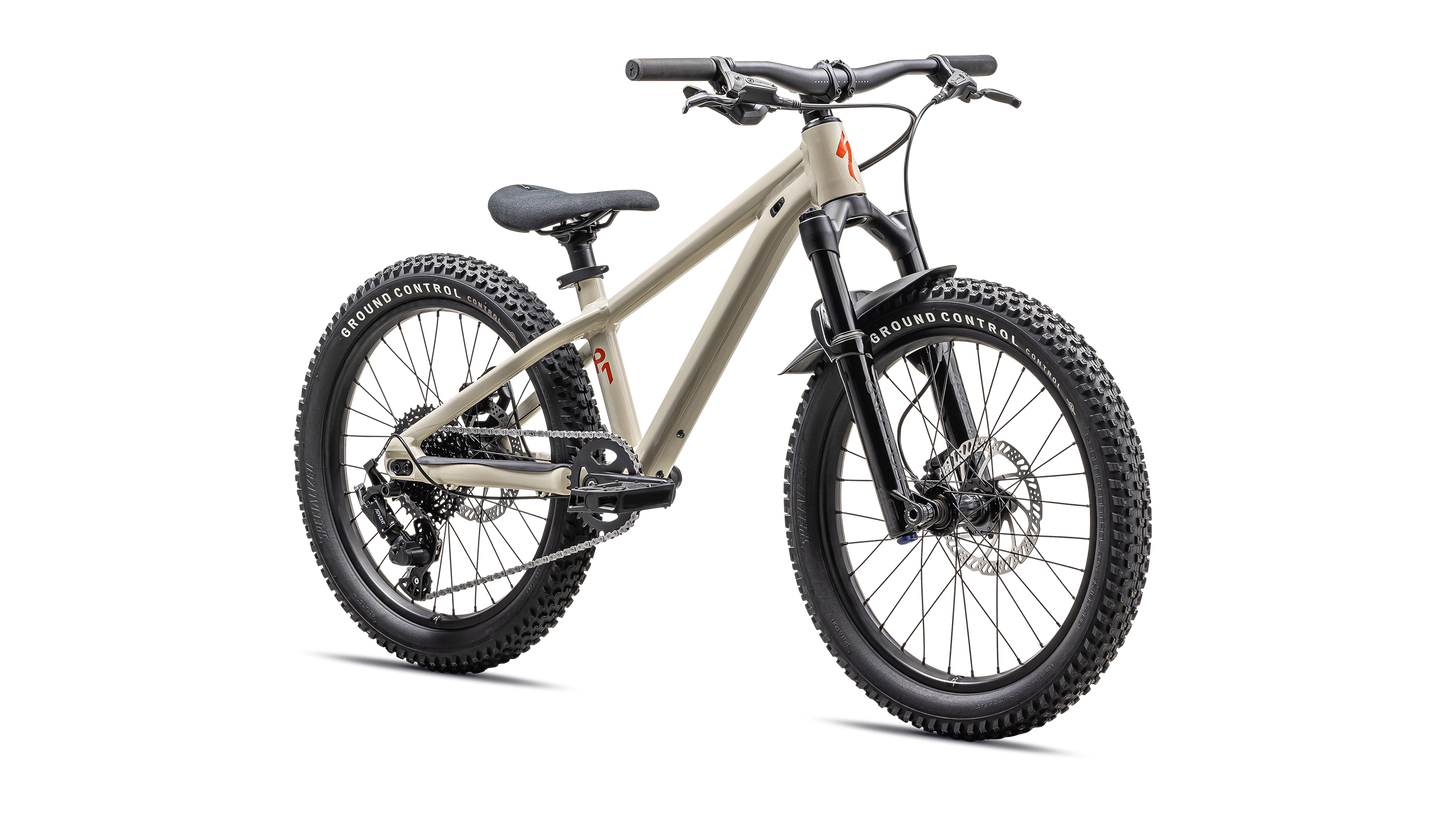

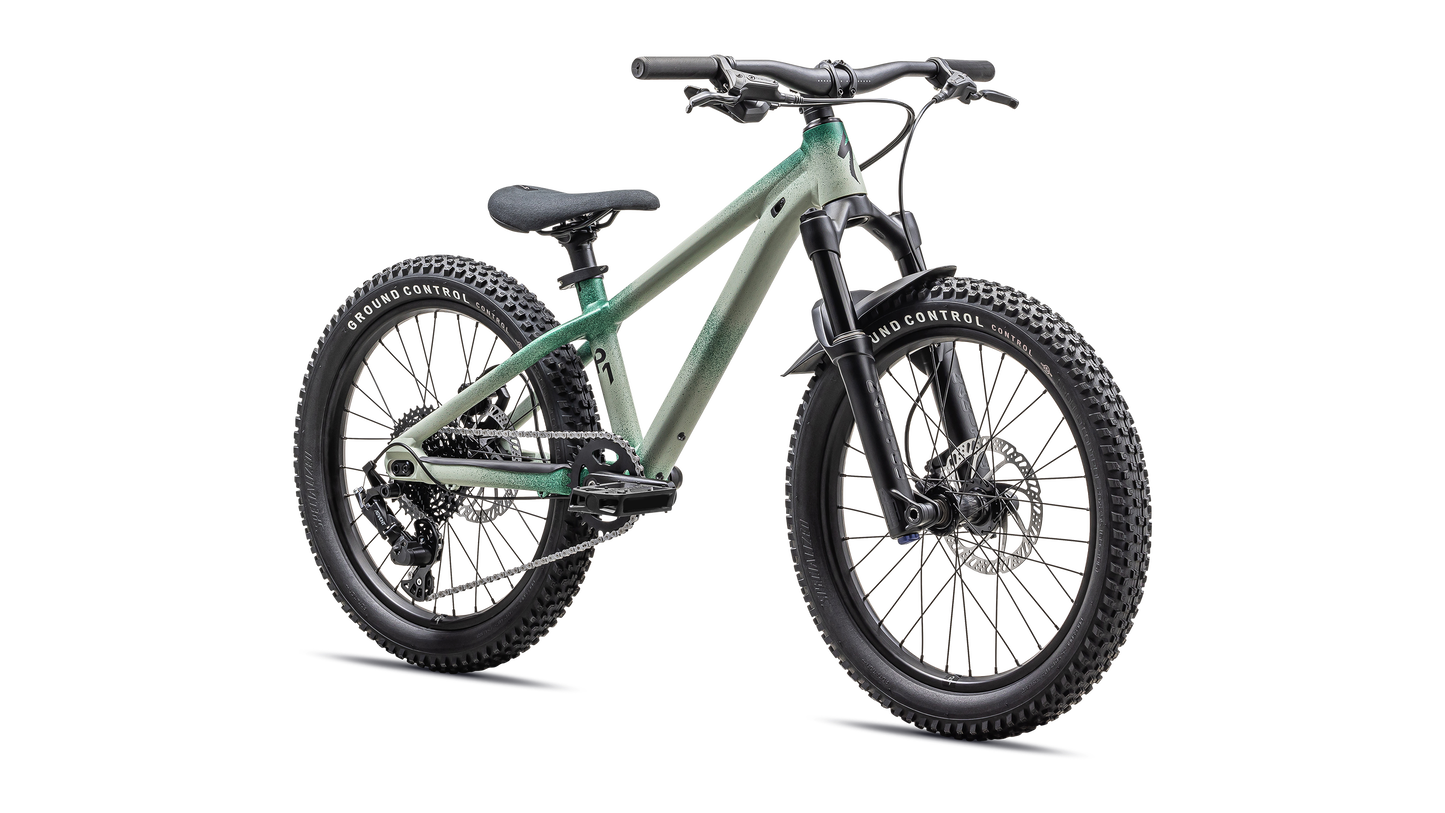

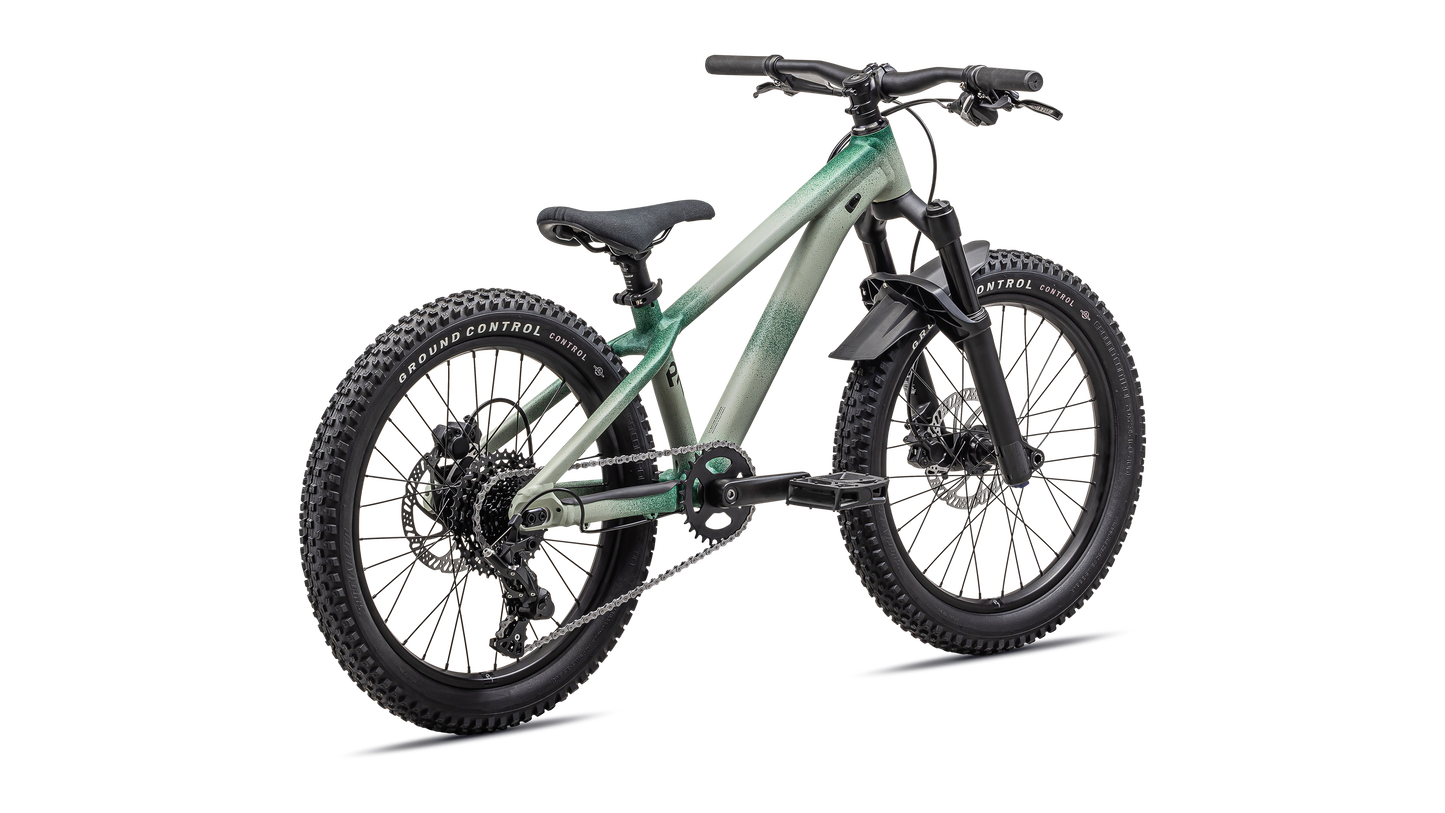

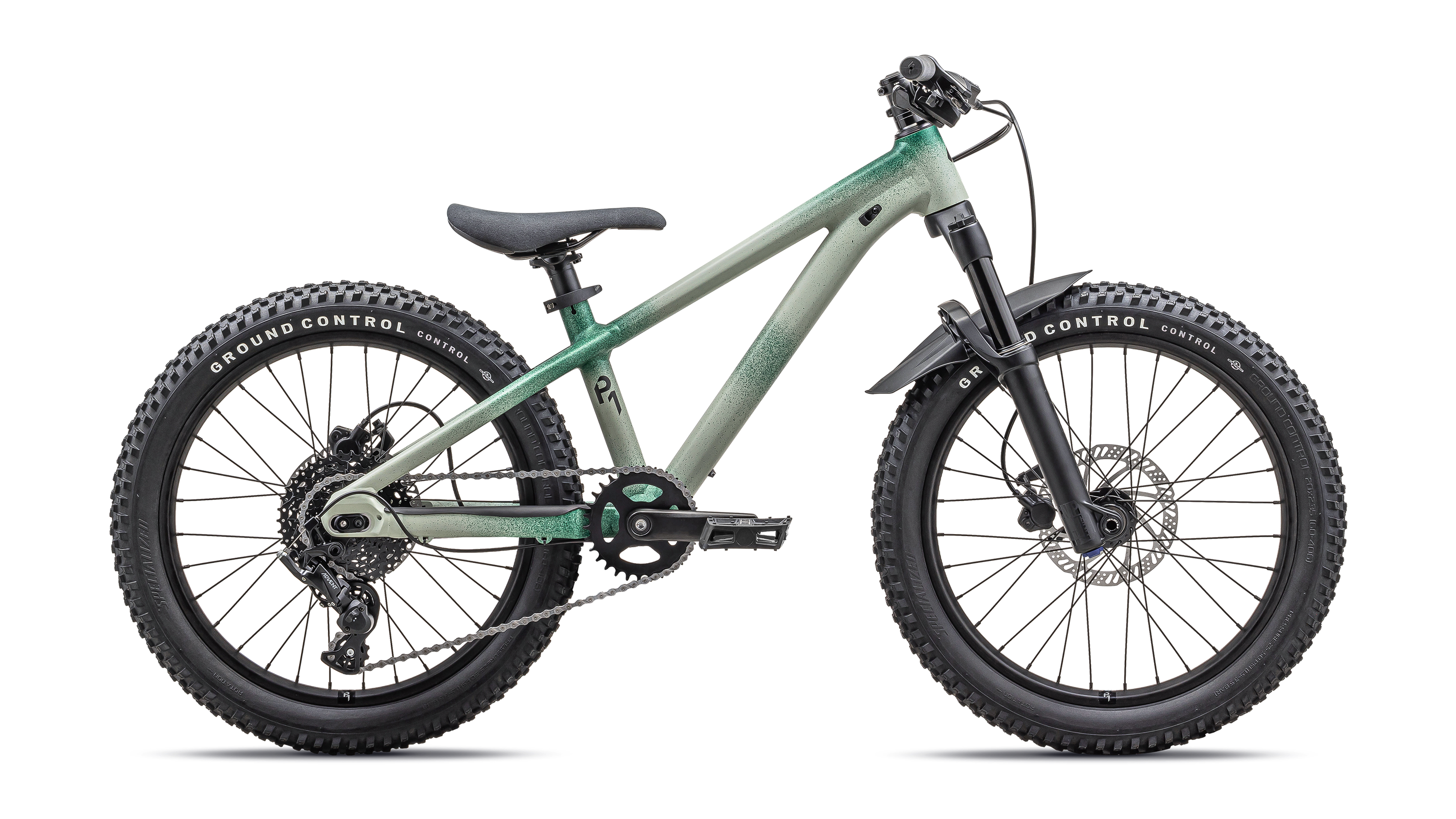

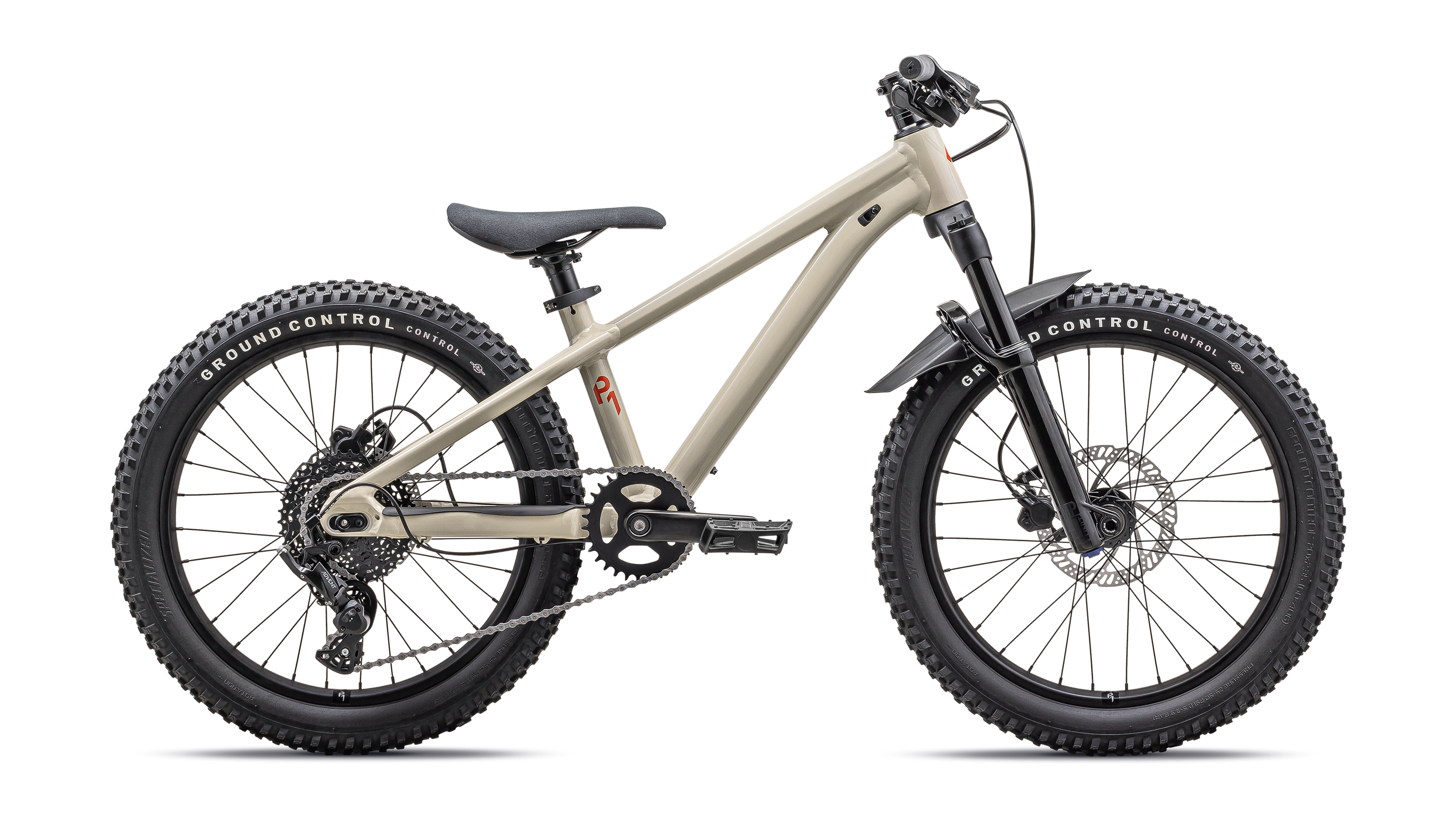

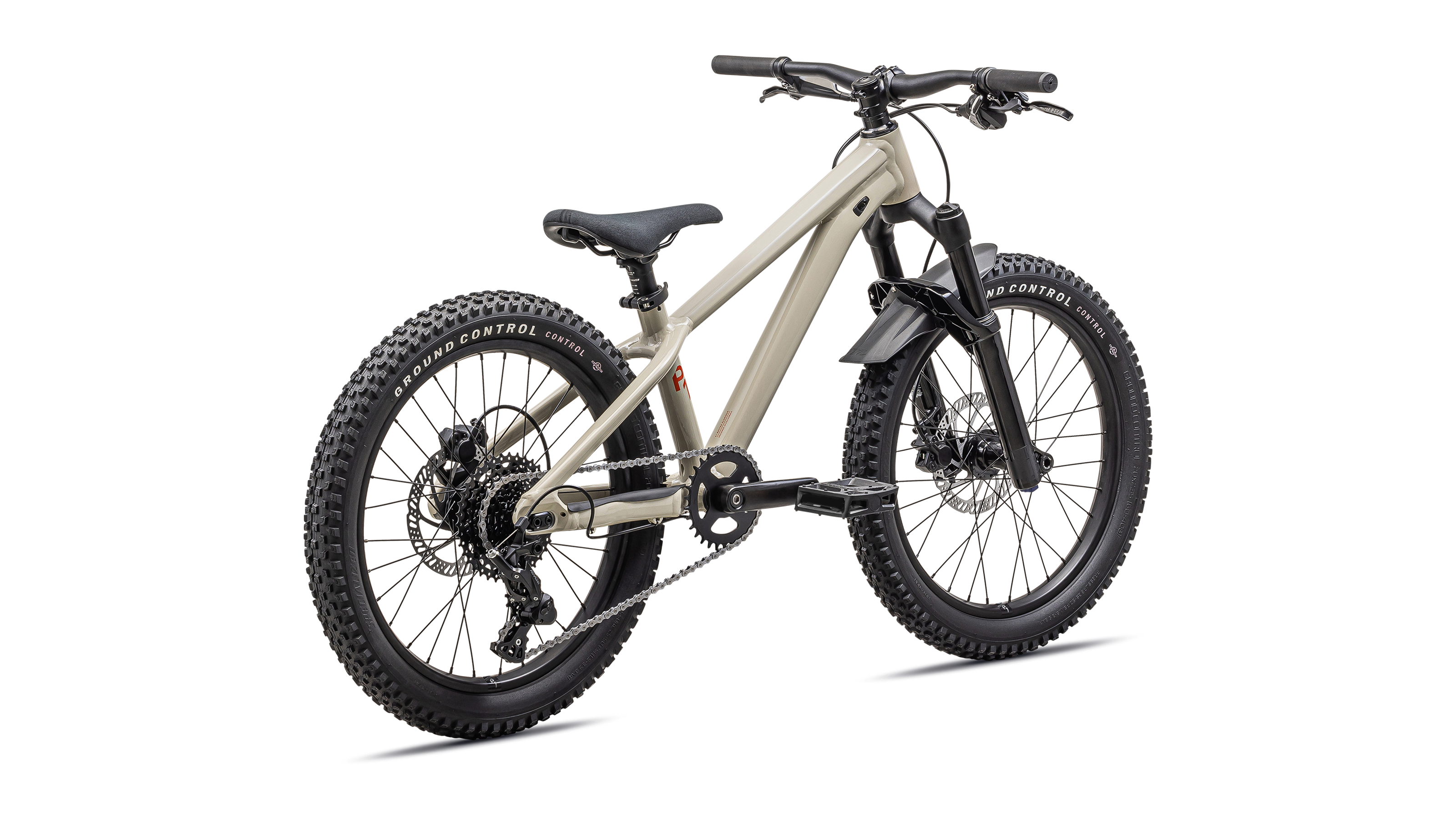

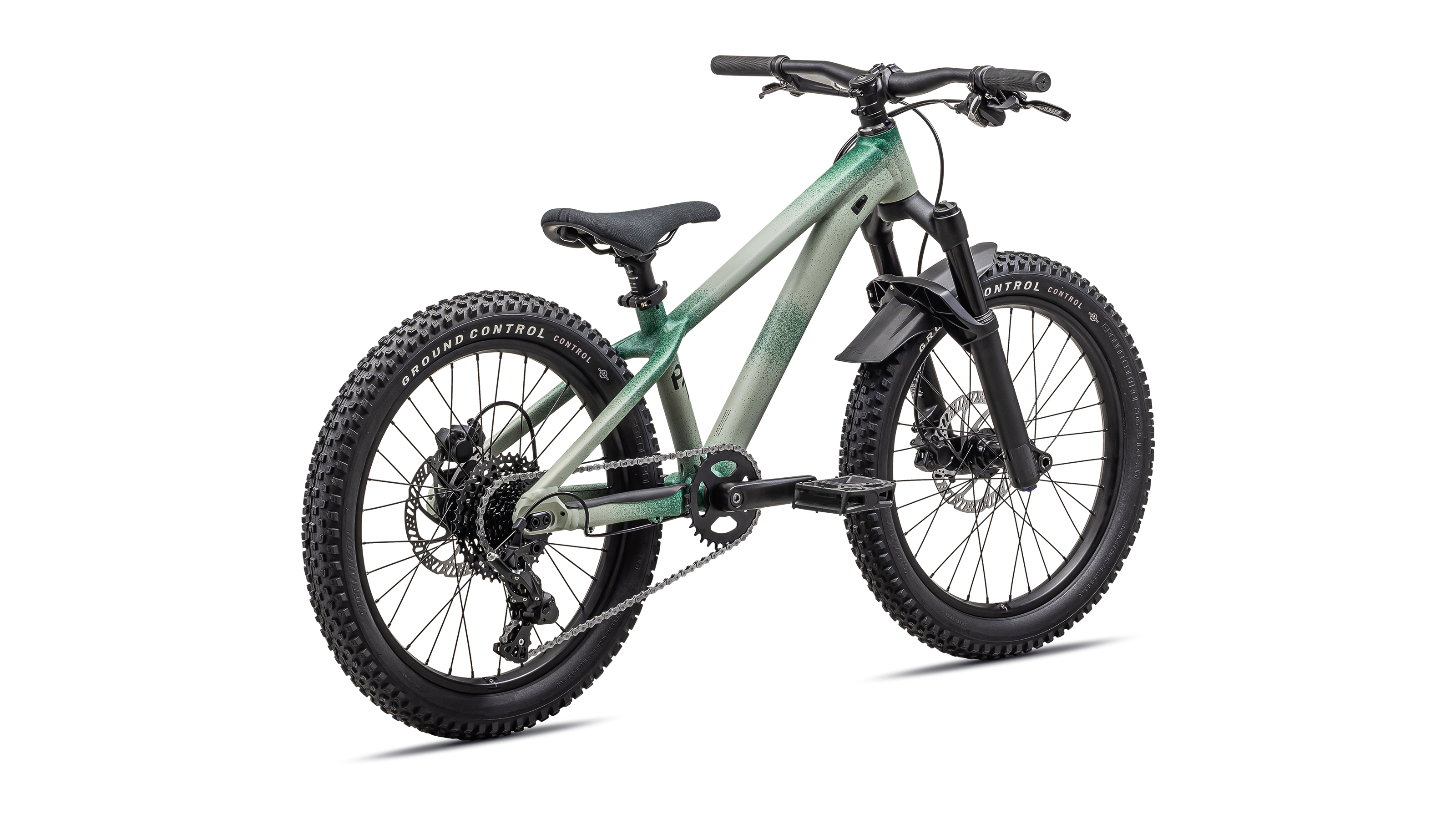

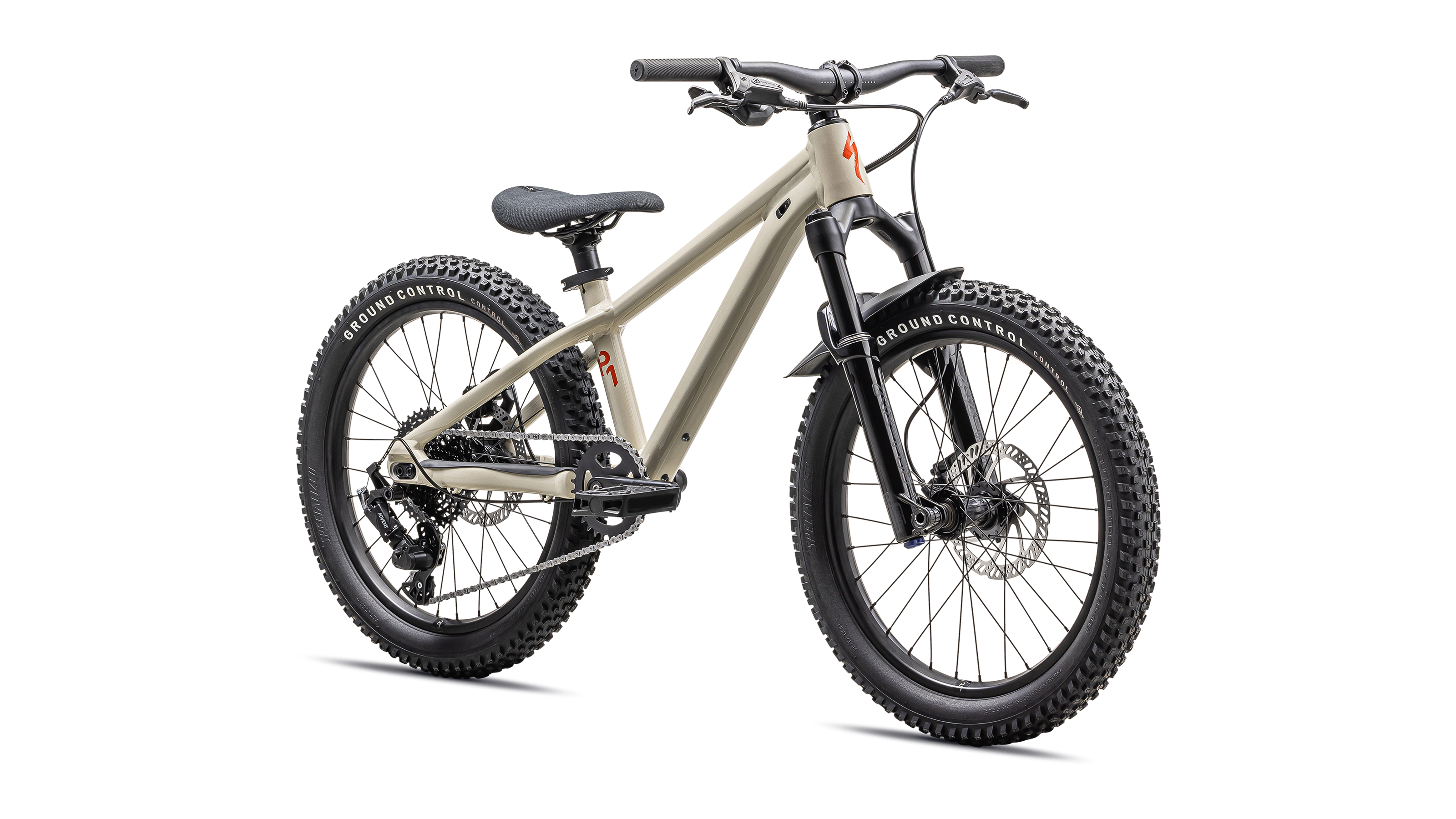

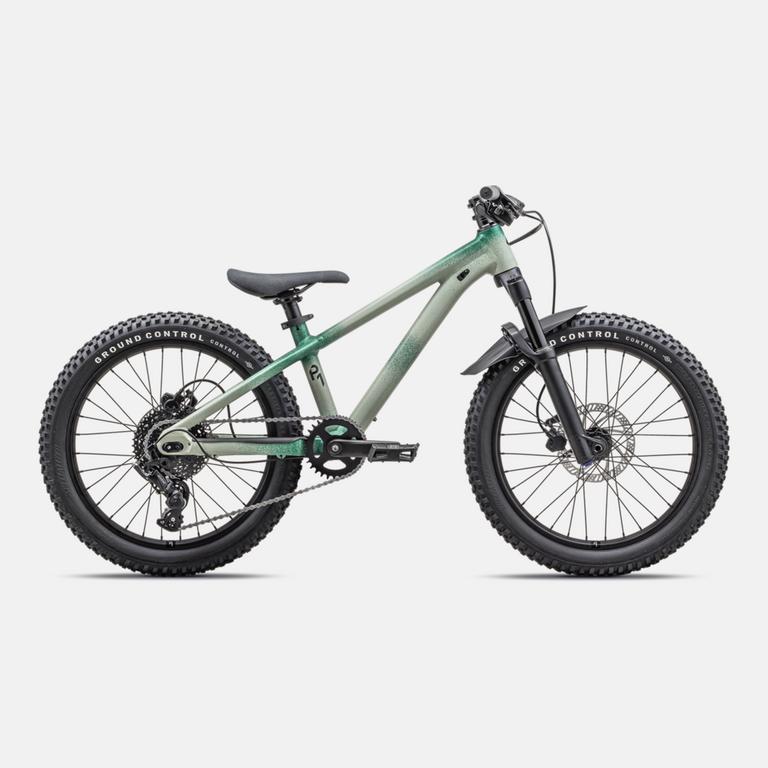

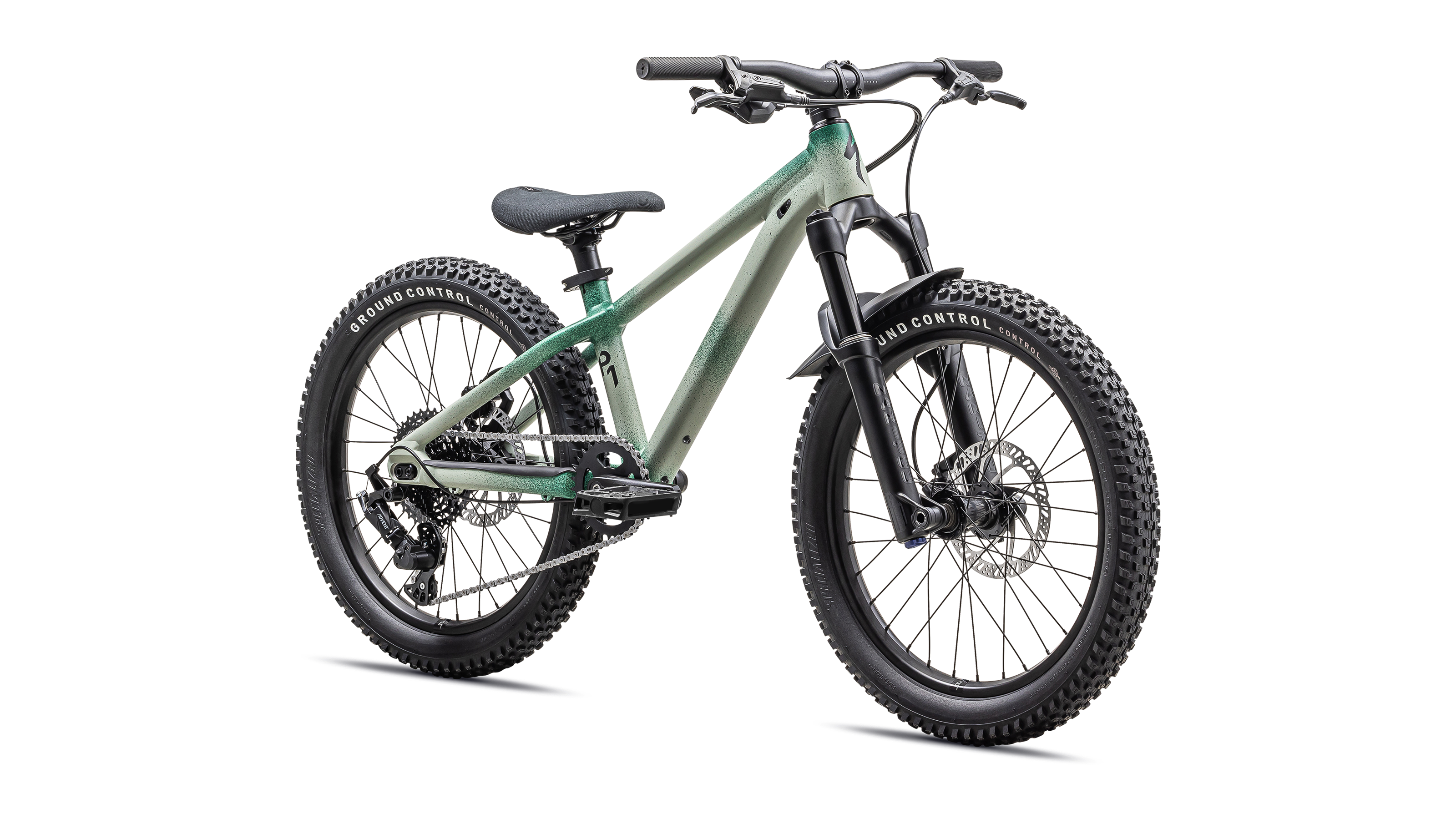

P.1 Trail
P.1 Trail
SKU:91924-8020
P Series Size Guide
Product Details
The all-new P.1 Trail gives young riders a jumping-off point to life on bikes. The lightweight but tough A1 Premium Aluminum frame is designed to take all the hits and keep rolling. The P.1 Trail delivers a simple, high-quality platform that's versatile and packs in category-first features to set them up for limitless progression. DURABLE CONSTRUCTION: Like the rest of our P.Series line, P.1 Trail starts with our durable, lightweight A1 Premium Aluminum frame that stands up to the use that new and progressing riders put their bikes through. EXPLORE MORE TERRAIN: The P.1 Trail is built to handle more than just the streets and parks. Complete with a 1x9 drivetrain, an 80mm travel fork, and trail-capable Specialized 2.35” Ground Control tires, the P.1 Trail can adapt to more trails and boost your young one’s ability to explore. PINT-SIZED PUNCH: Sized and spec’d for smaller riders, P.1 Trail comes with mini riser bars with an outside diameter of only 19mm, providing a comfortable grip for smaller hands, and a host of other scaled specs to tailor the experience for riders. Fully-butted A1 Premium Aluminum frame with internal routing and sliding dropouts
Dropper post compatible
1x9 microSHIFT Advent drivetrain with clutch
20”x2.35” Specialized Ground Control tires
80mm tapered Manitou JUNIT Comp suspension fork
TEKTRO Jr. short reach hydraulic brakes with 160mm rotors
Smaller diameter bars for smaller hands
Technical Specifications
Frameset
Frame
Specialized A1 Premium Aluminum, 20" Compatible, fully butted tubing, tapered head tube, BSA threaded 73mm BB shell, 12x148 thru-axle sliding dropouts, Single speed or geared compatibile, internal cable routing, 30.9mm seat tube, dropper post compatible
Seat Binder
Quick Release, 34.9mm ID Clamp
Suspension
Fork
Hayes Manitou Junit Comp 20", 80Mm Travel, Tapered Alloy Steer Tube, 15Mm Thru Axle, 40Mm Offset, Post Disc Mount, W/ Fender
Cockpit
Seat Post
Specialized, 6061 alloy, 2-bolt clamp, 0mm setback, 30.9mm
Saddle
Specialized P.series, Steel Rails
Stem
3D-forged alloy, 31.8mm, 6-degree rise
Grips
Specialized Trail Grips, 19mm bar end diameter, lock-on
Handlebars
Mini Rise, Alloy Double Butted, 6-degree Backsweep, 600mm Width, 31.8mm , 19mm Bar End Diameter
Brakes
Front Brake
Tektro HD-J285, Short Reach Lever, 160Mm Rotor
Rear Brake
Tektro HD-J285, Short Reach Lever, 160Mm Rotor
Drivetrain
Shift Levers
microSHIFT Advent SL-M6190, short reach light action trigger+D48 9 speed
Rear Derailleur
microSHIFT Advent RD-M6195S, Super Short Cage With Clutch 1X9 Speed
Cassette
microSHIFT, CS-H094, 11T-38T, 9 speed HG freehub
Shift Levers
microSHIFT Advent SL-M6190, short reach light action trigger+D48 9 speed
Specialized P.Series, Forged single speed, 51.5mm CL, 115mm length
Specialized P.Series, Forged single speed, 51.5mm CL, 115mm length
KMC X9EPT, 9-speed, anti-corrosion coating w/ reusable Missing Link™
KMC X9EPT, 9-speed, anti-corrosion coating w/ reusable Missing Link™
Bottom Bracket
Square Taper, 73mm Shell Width, 124.5mm Spindle Width
Chain Ring
30T
Wheels & Tyres
Front Hub
Alloy, 6-Bolt, 28H, 15x110 Boost
Alloy, 6-Bolt, 28H, 12x148 Boost, 11-speed compatiable
Alloy, 6-Bolt, 28H, 12x148 Boost, 11-speed compatiable
Rims
Specialized P.Series, 20", 28h, 26mm internal width, Disc Brake Only
Front Tire
Specialized Ground Control Control, 20 x 2.35
Rear Tire
Specialized Ground Control Control, 20 x 2.35
Spokes
Stainless, 14g
Tubes
20" Inner Tube, SV
Accessories
Pedals
Specialized Platform
