Specialized

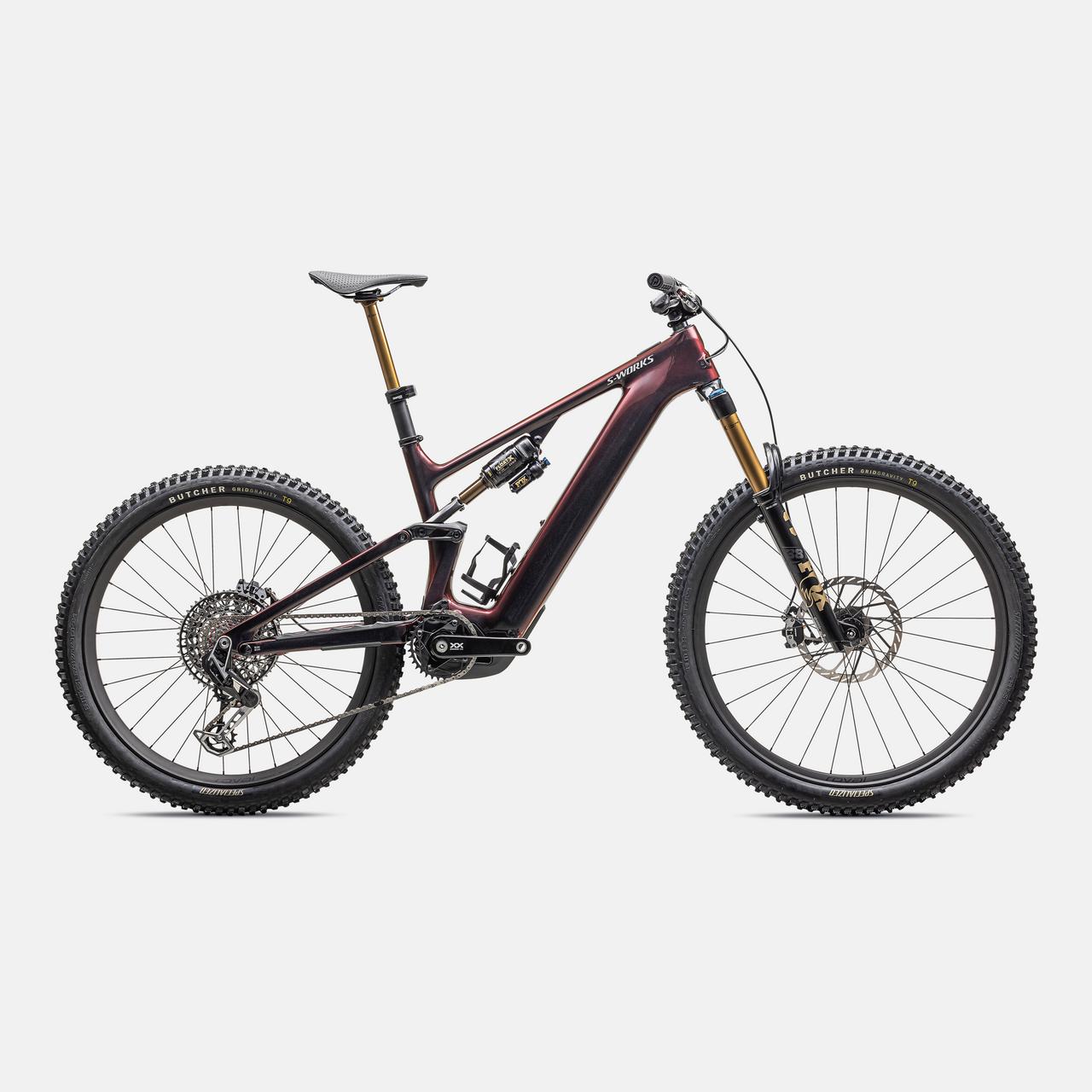

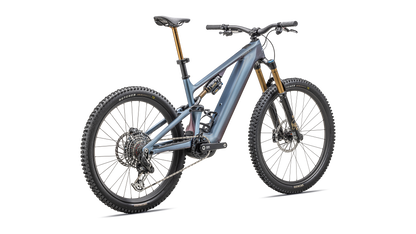

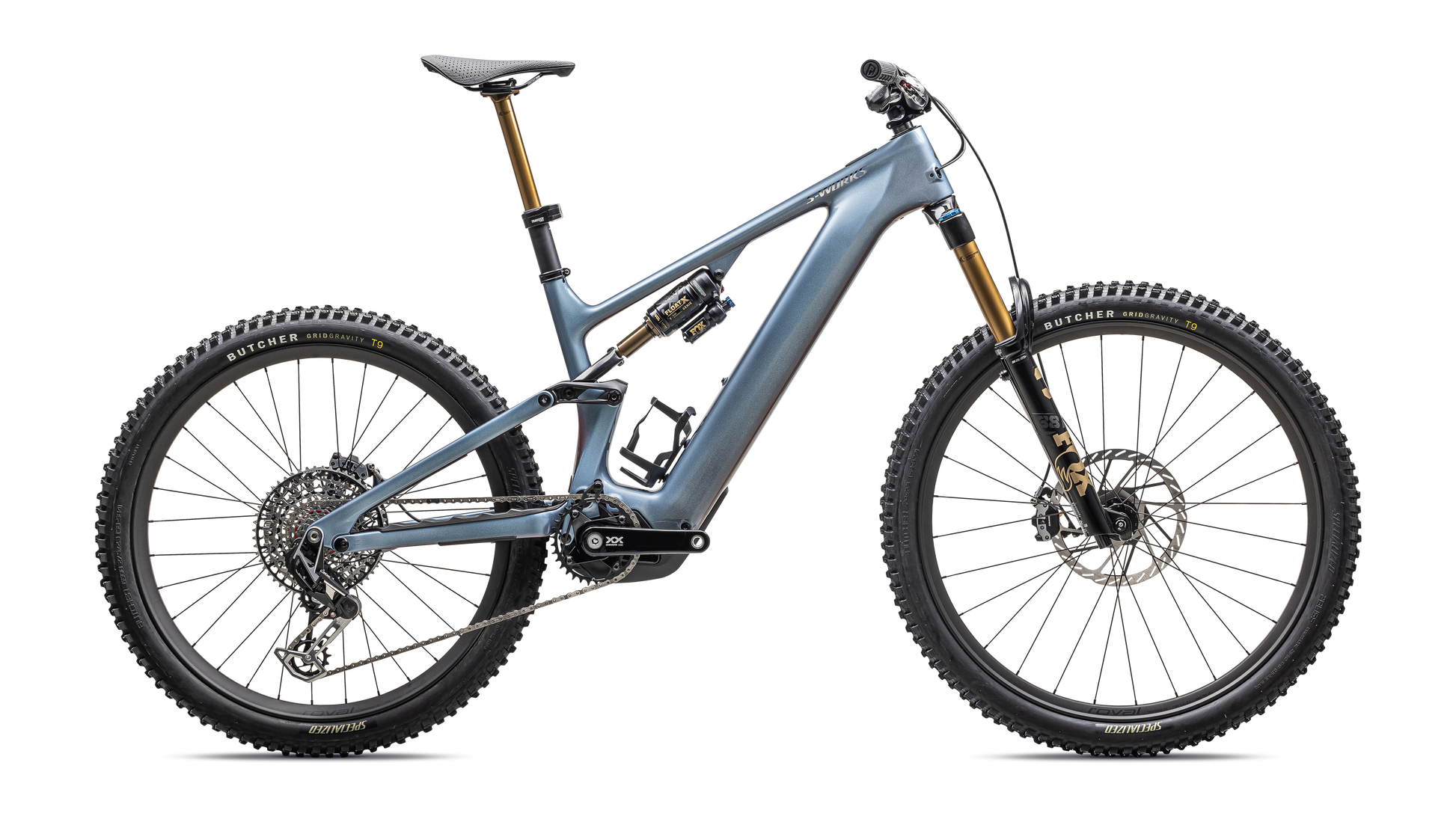

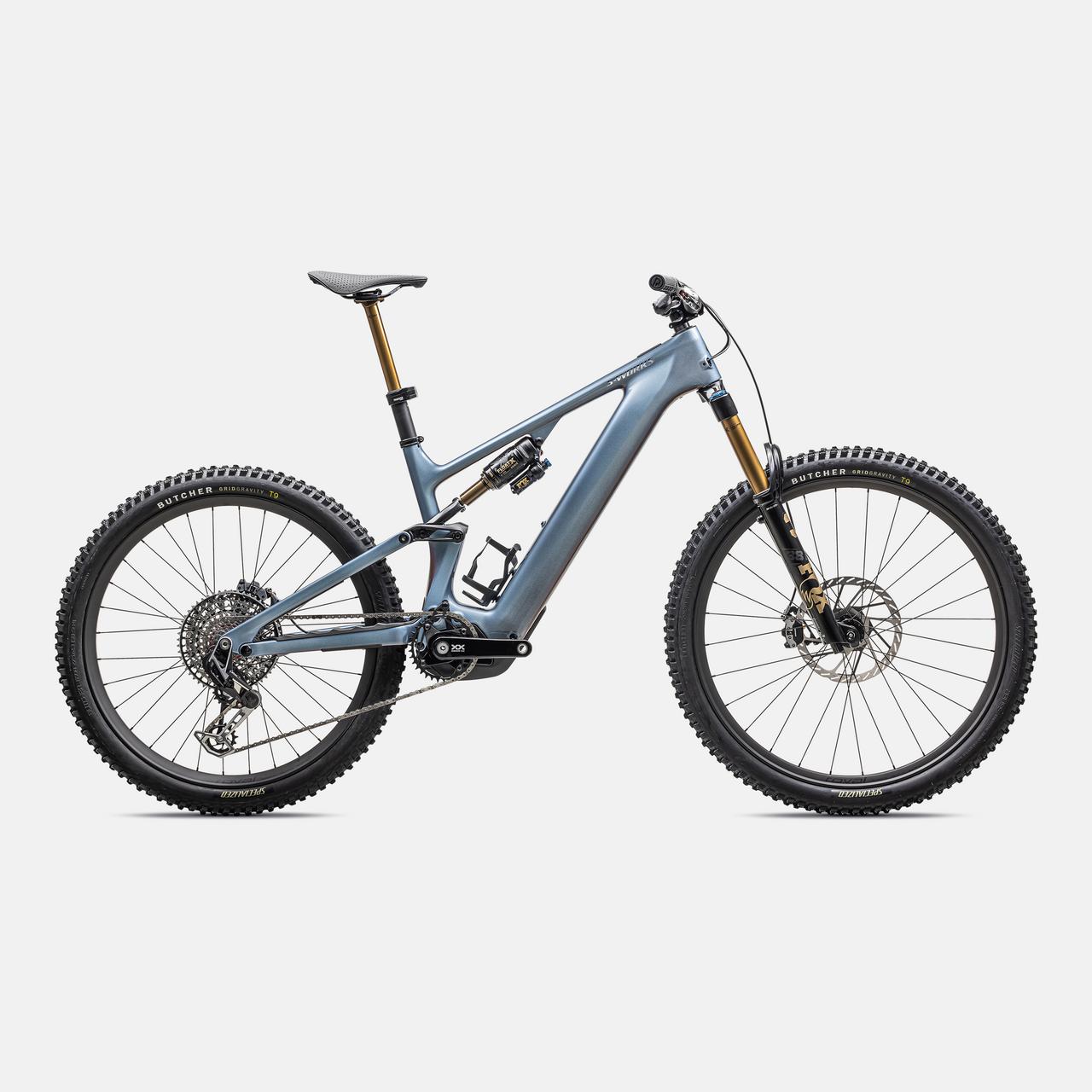

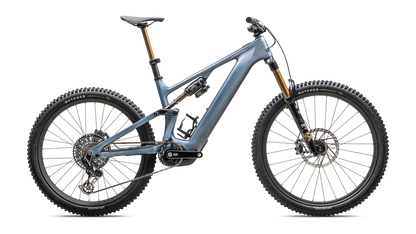

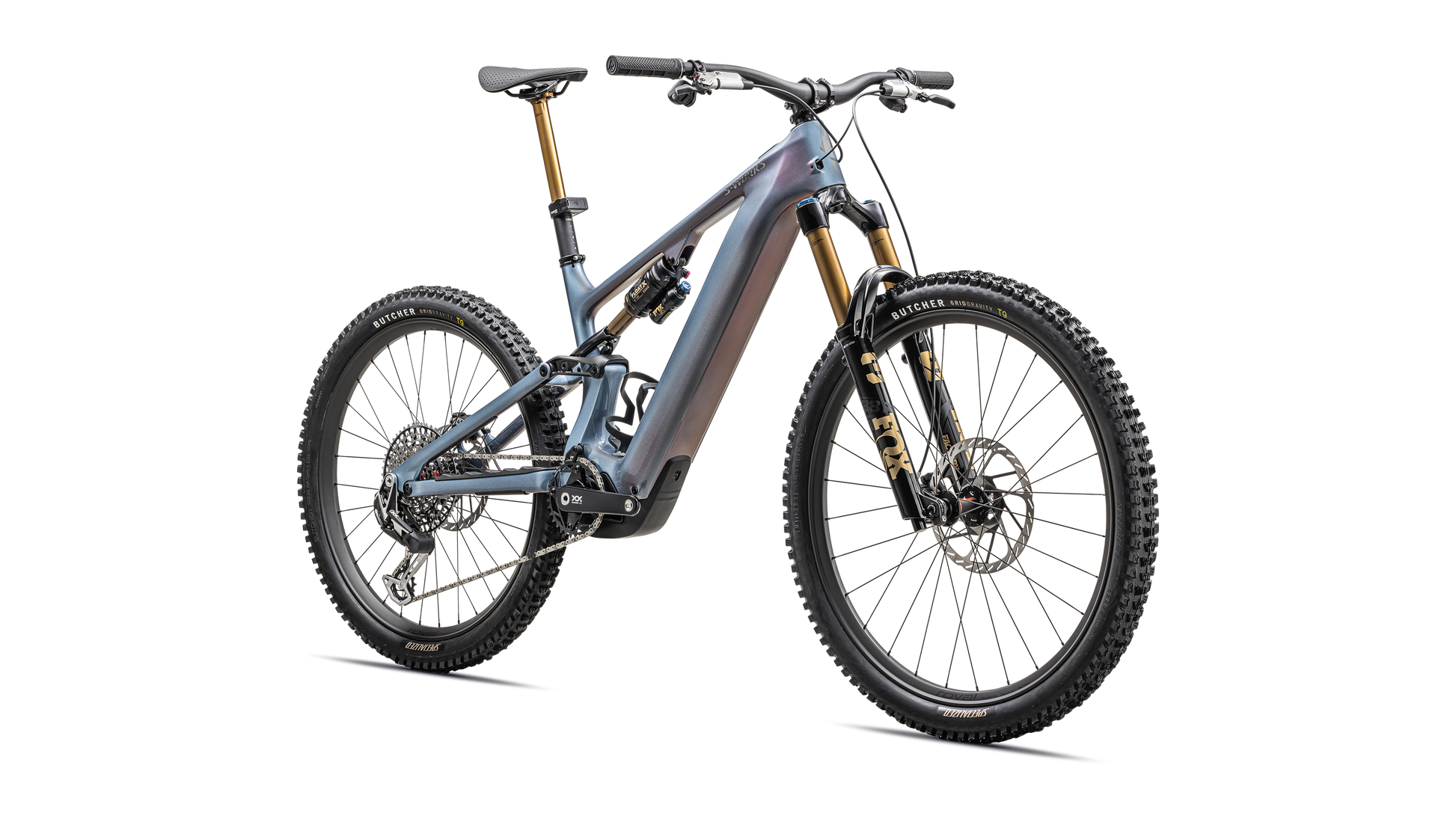

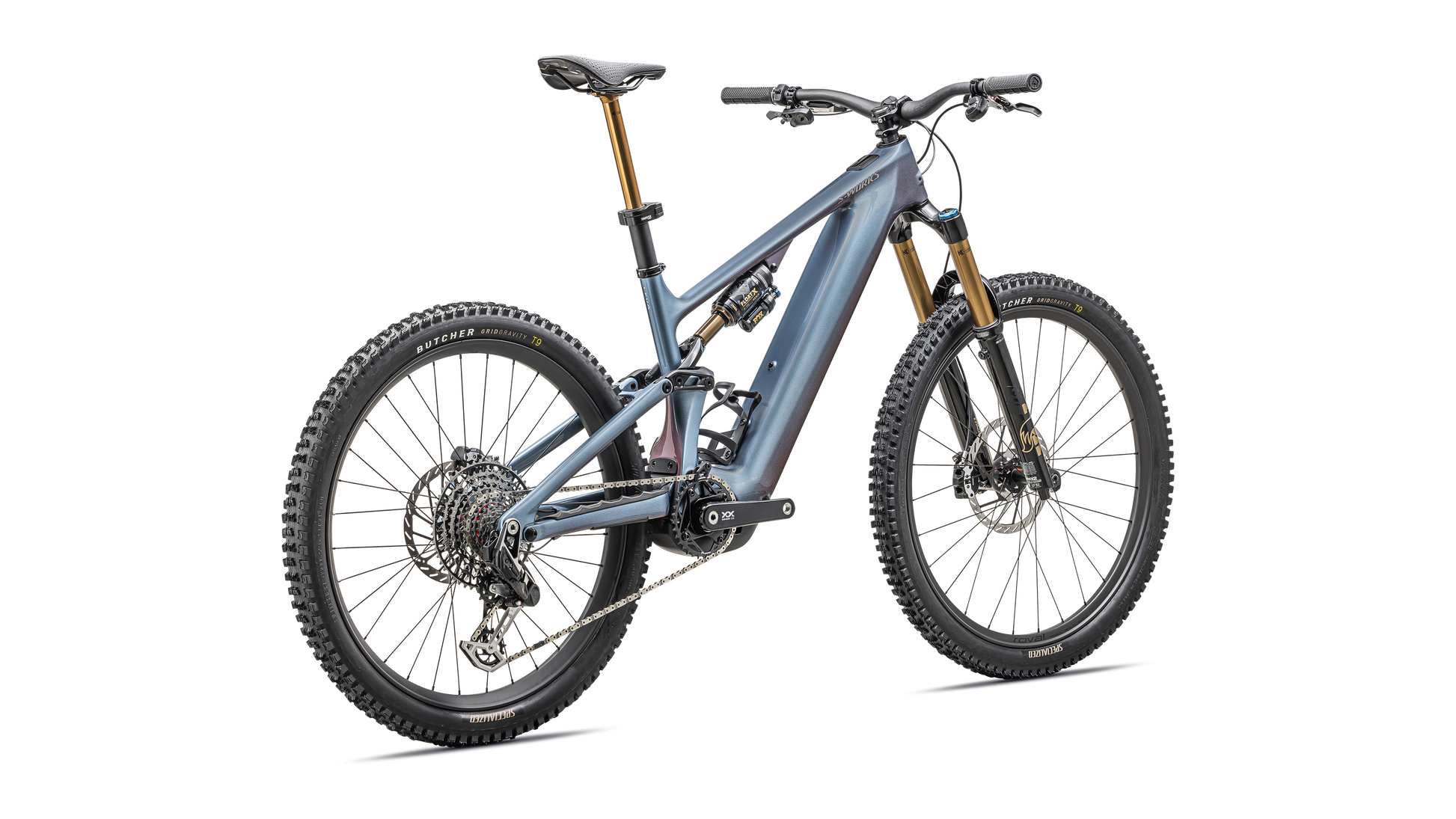

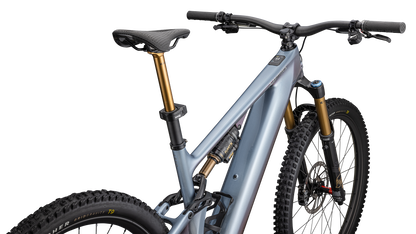

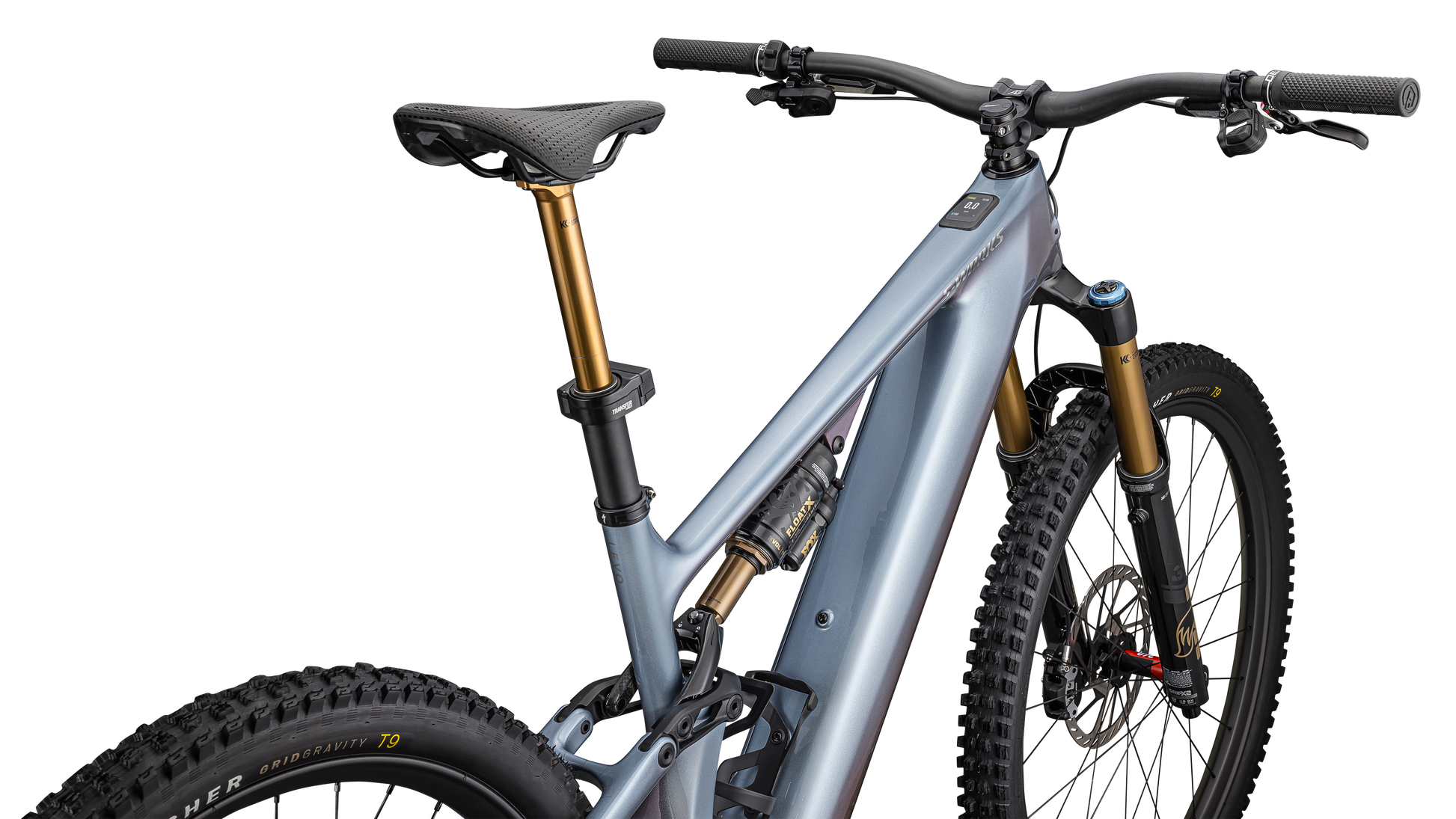

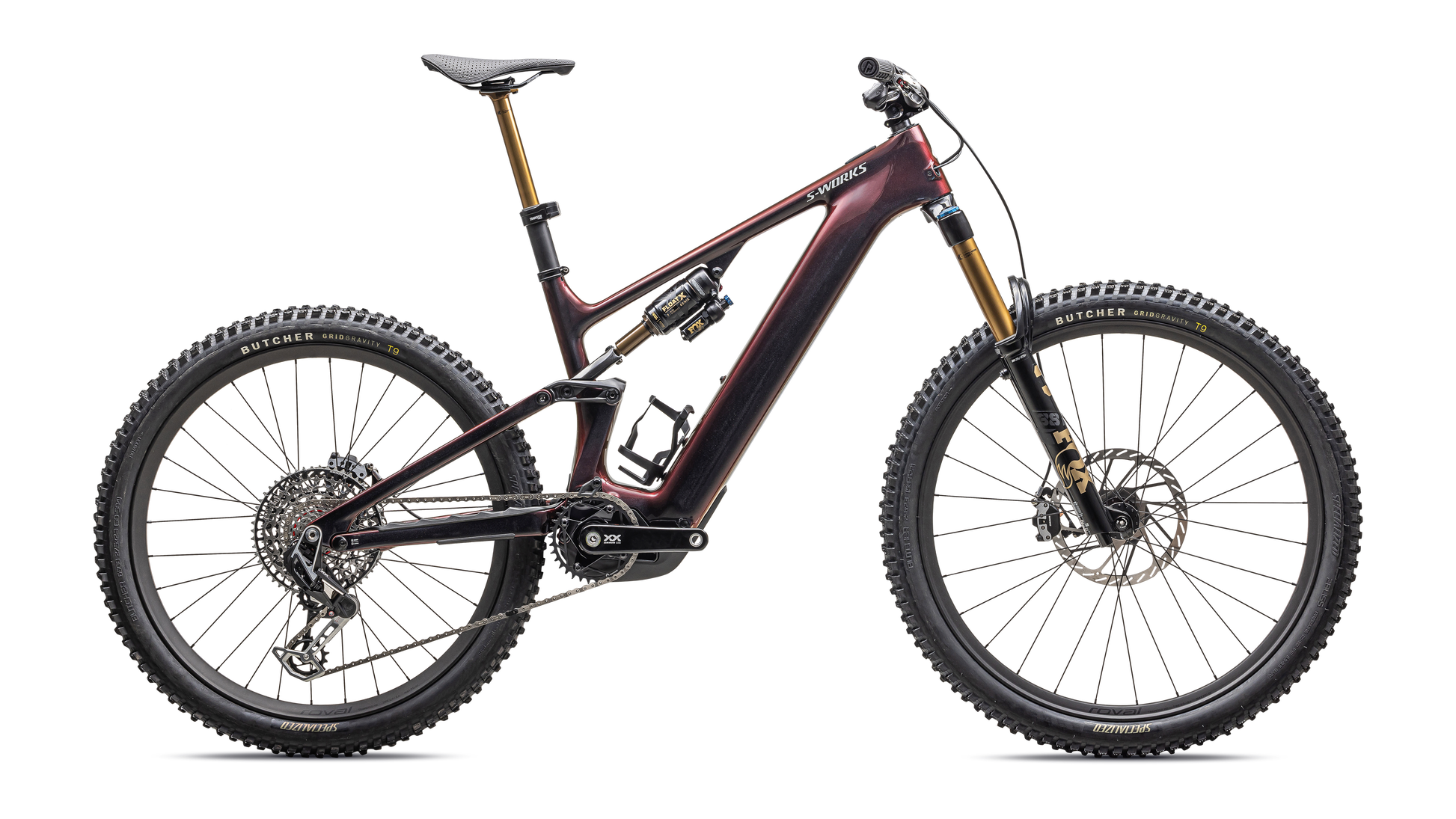

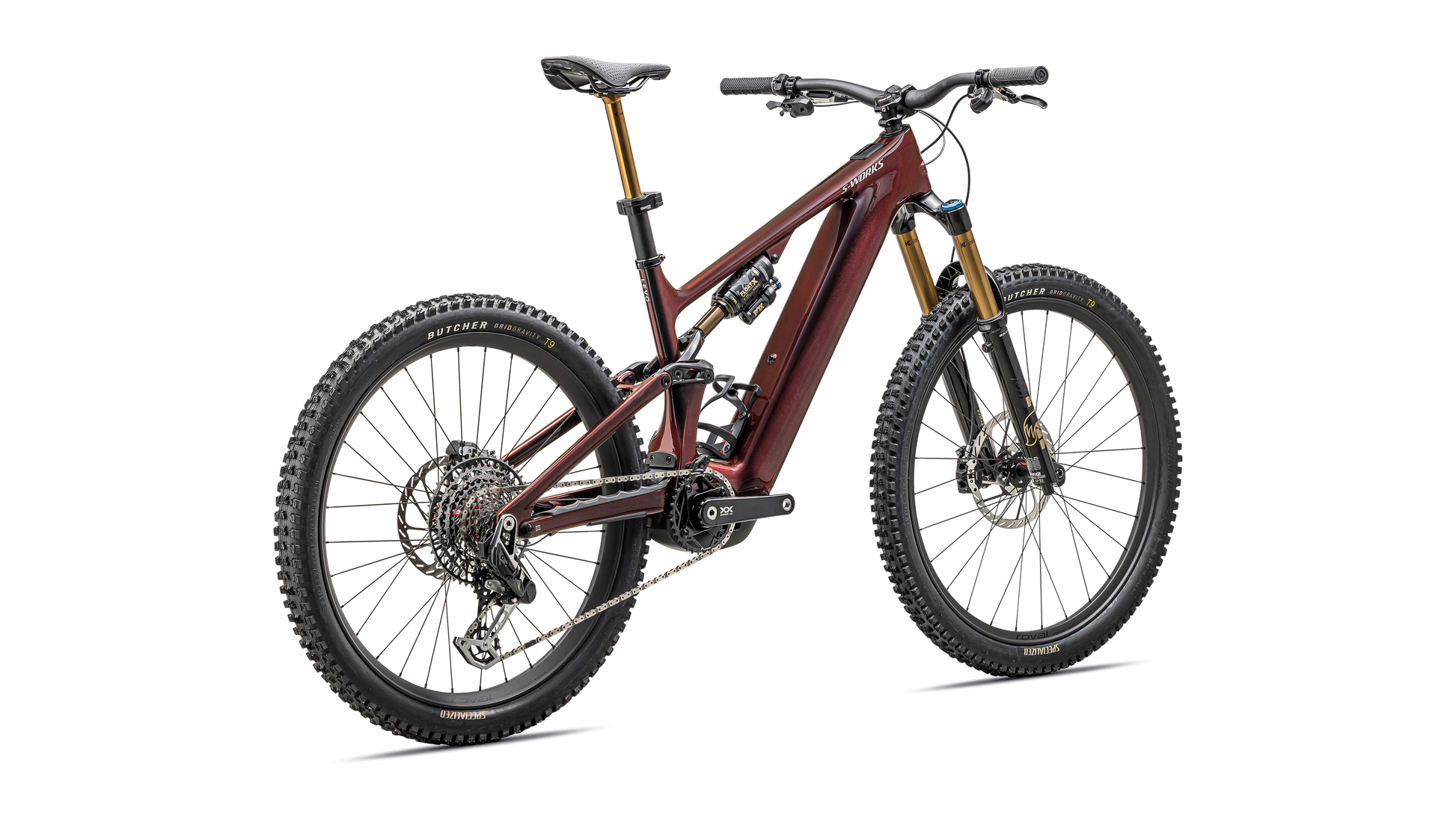

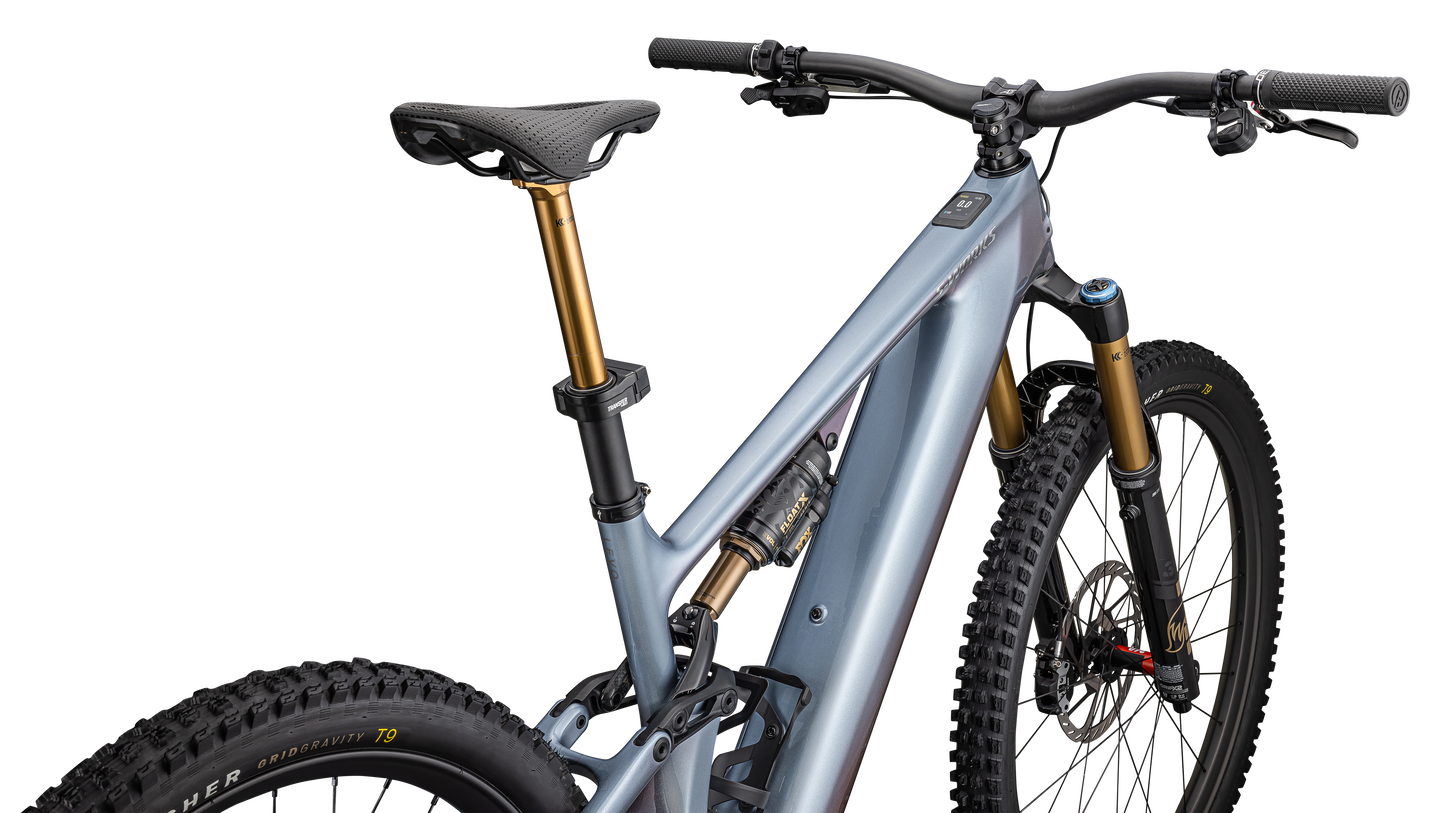

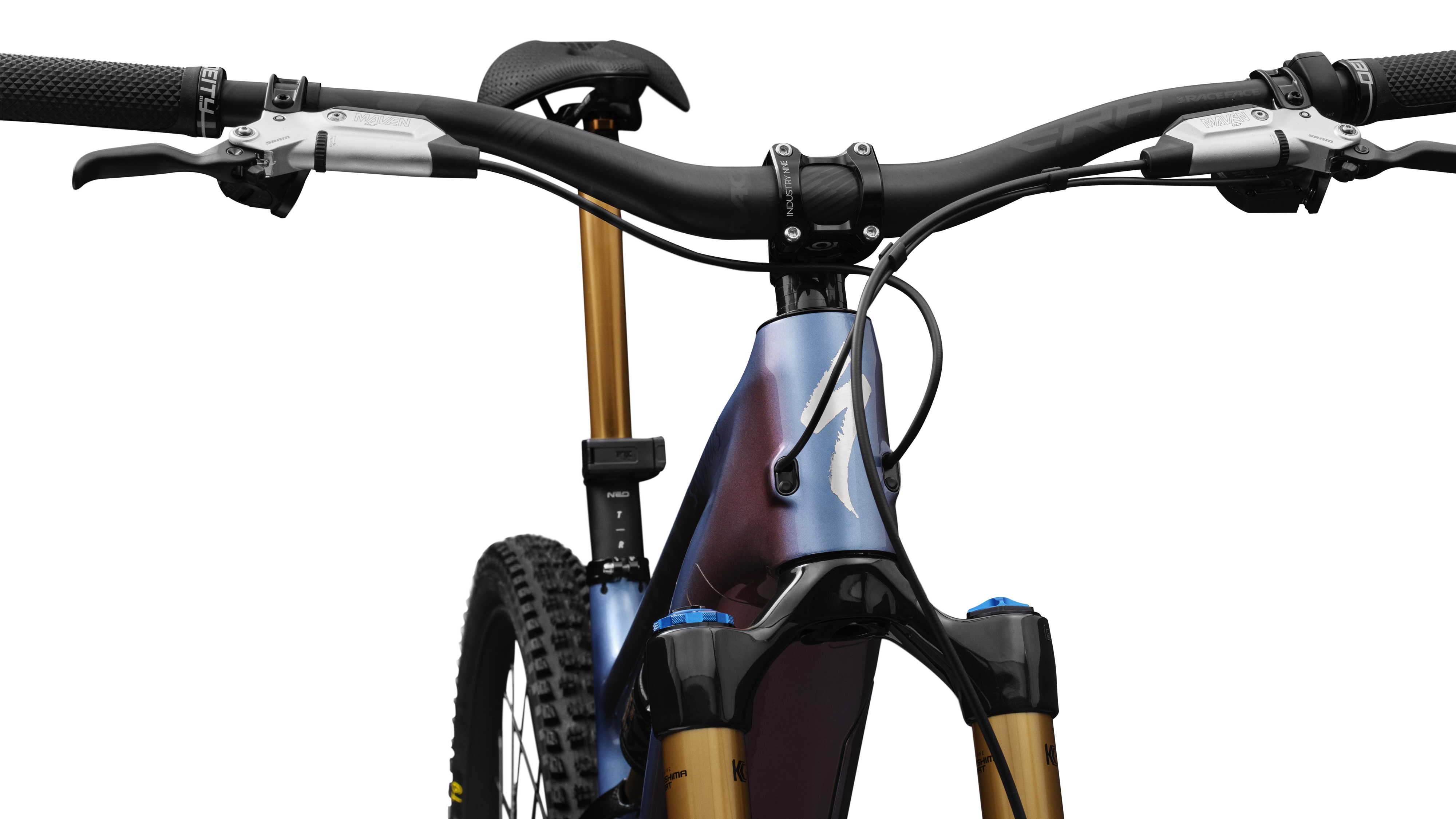

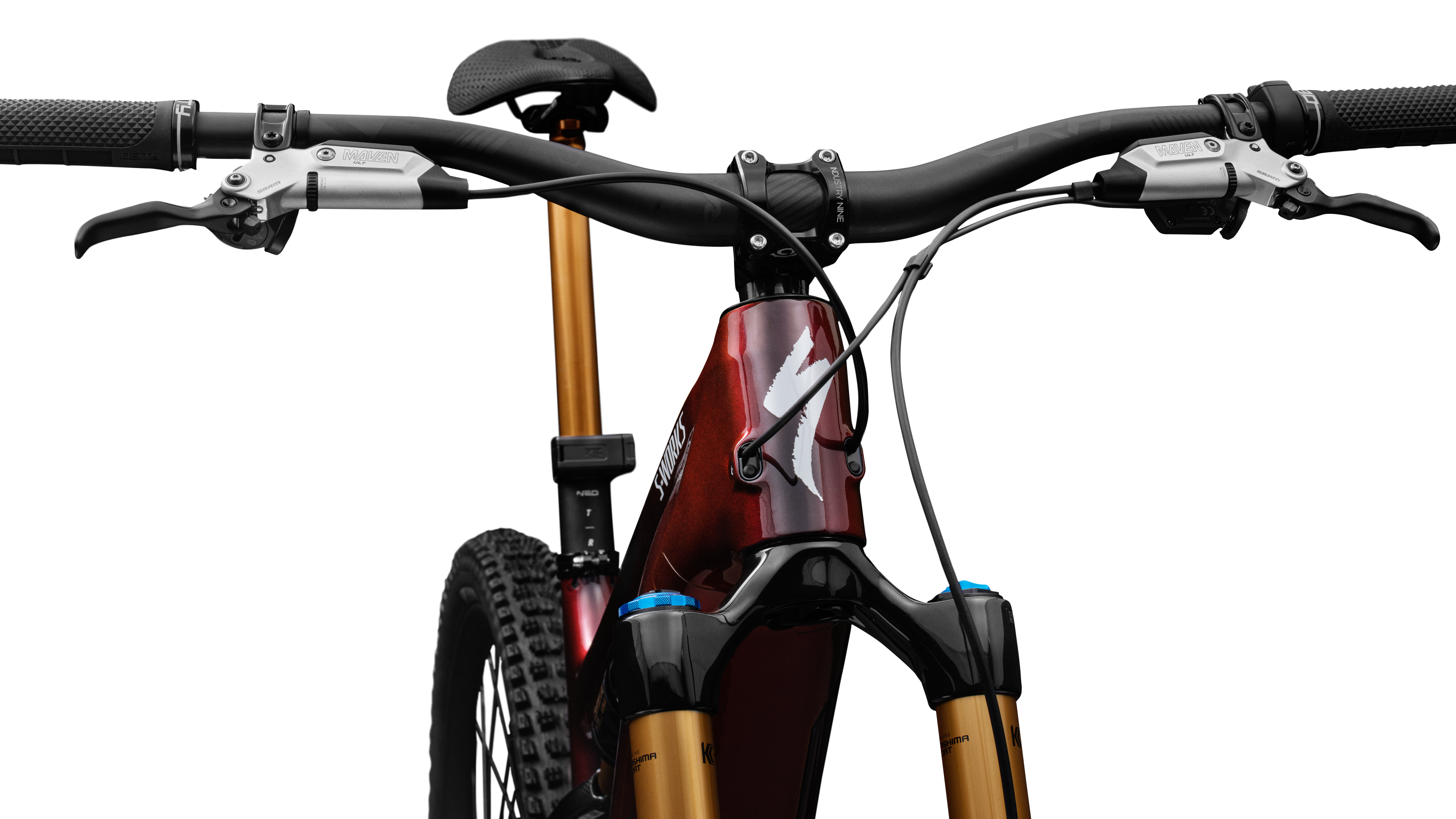

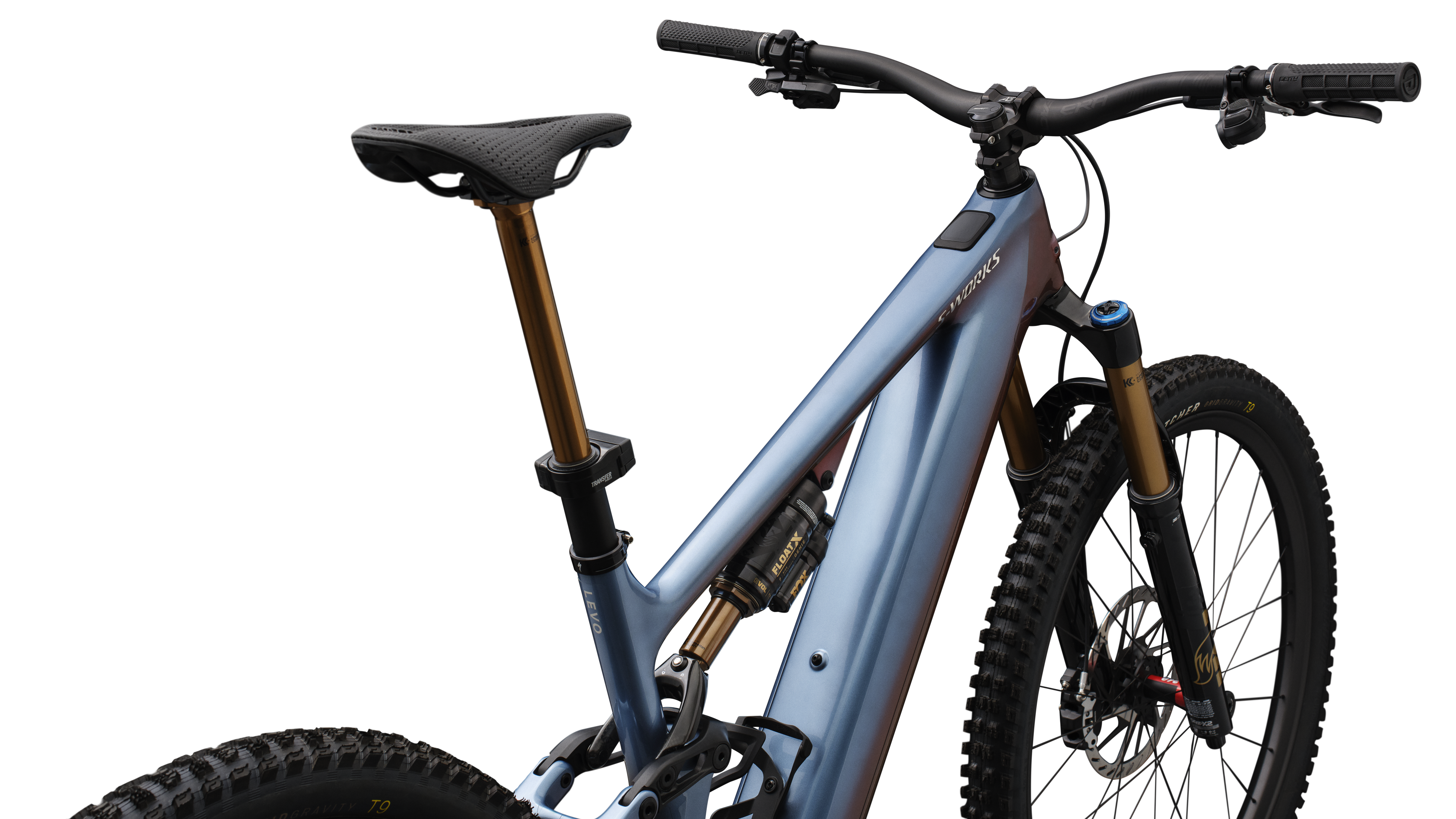

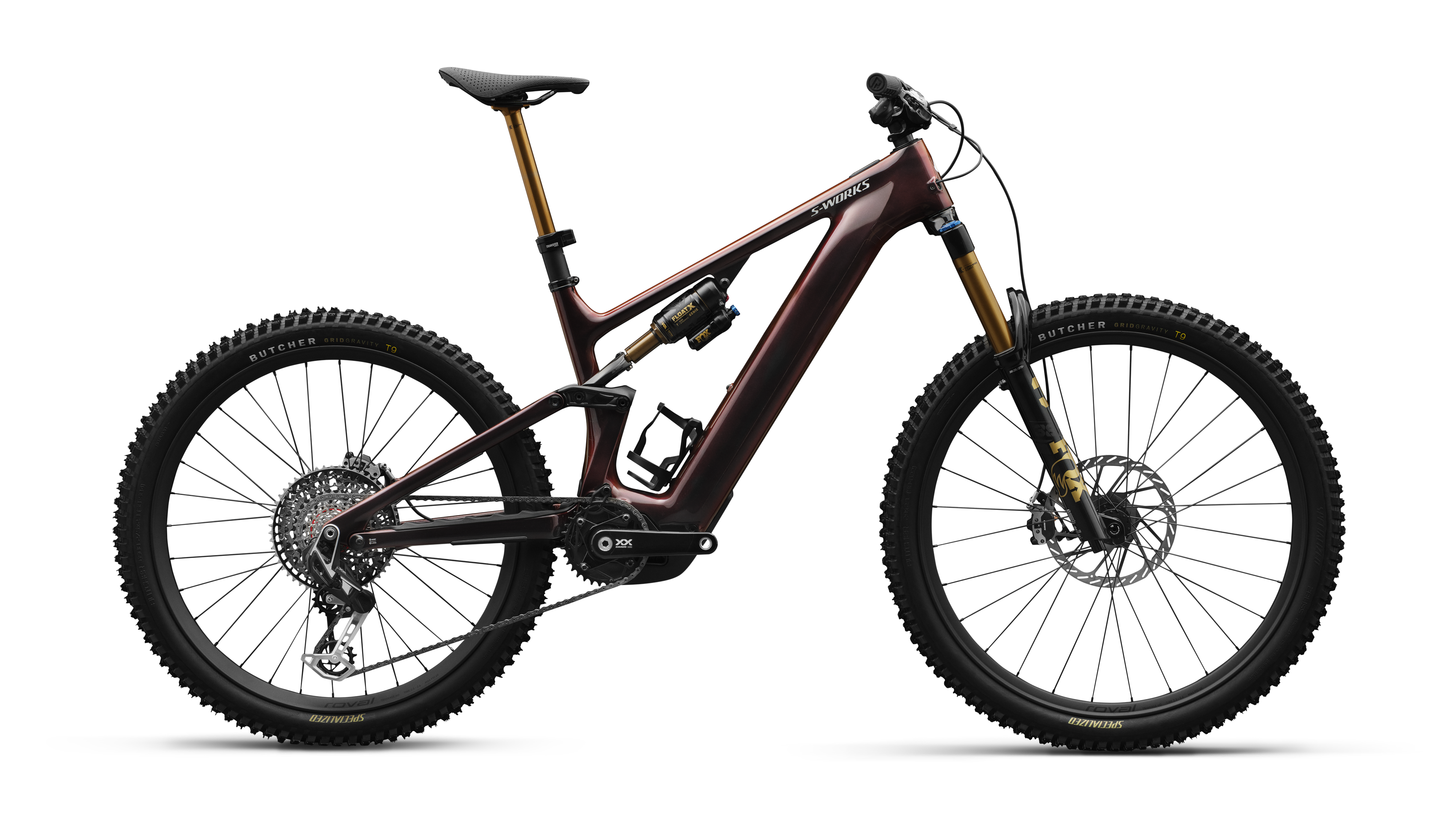

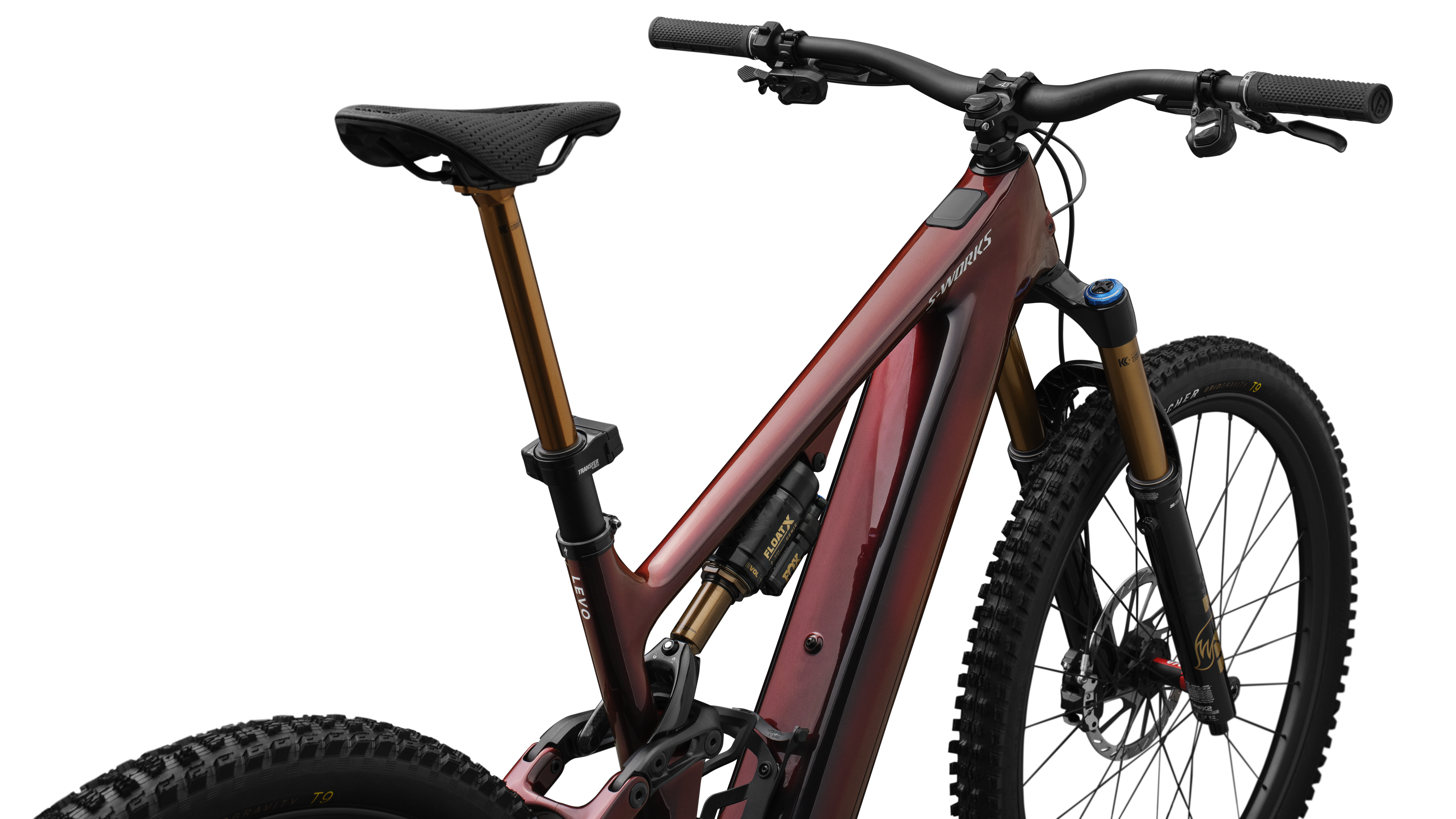

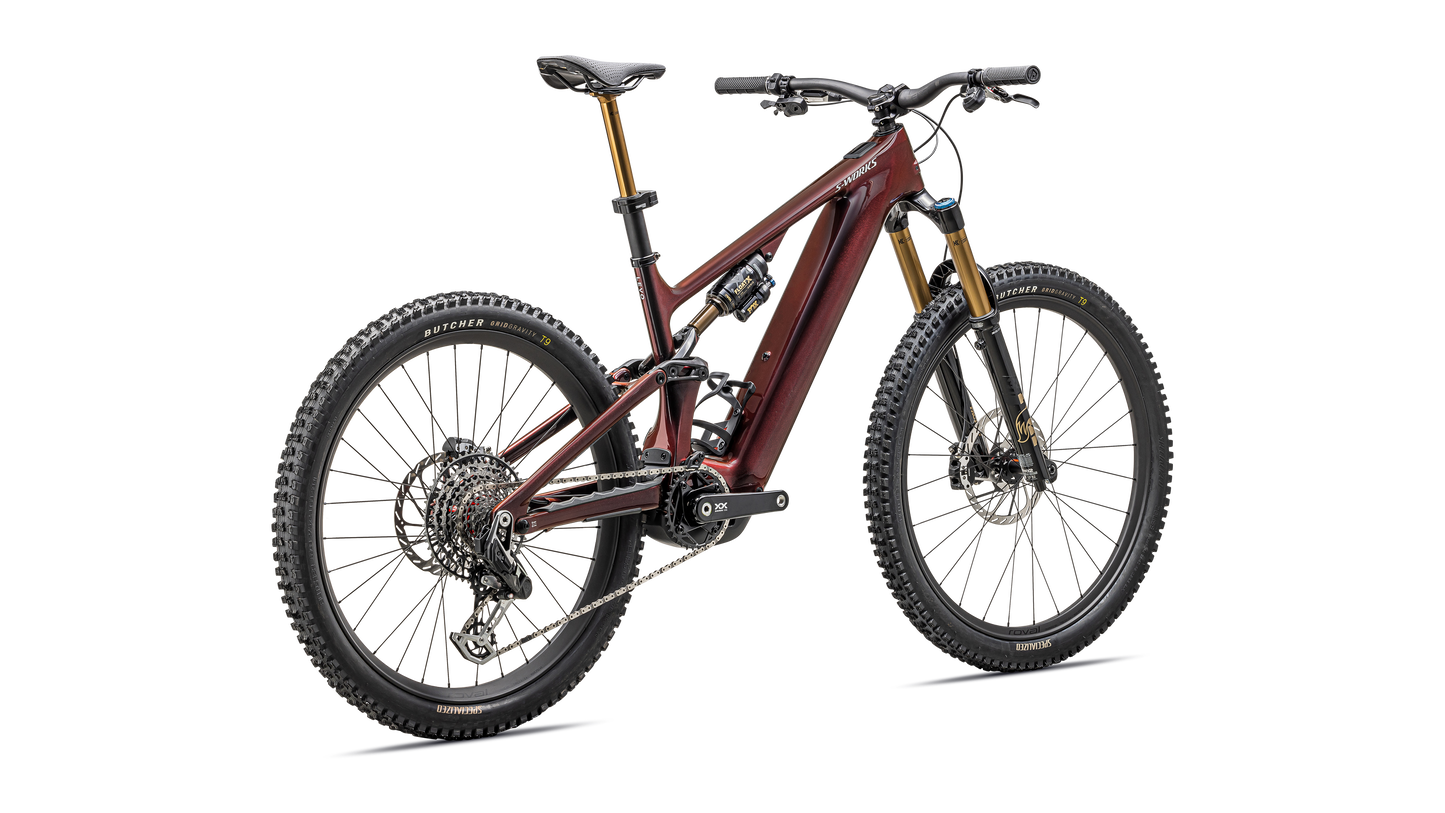

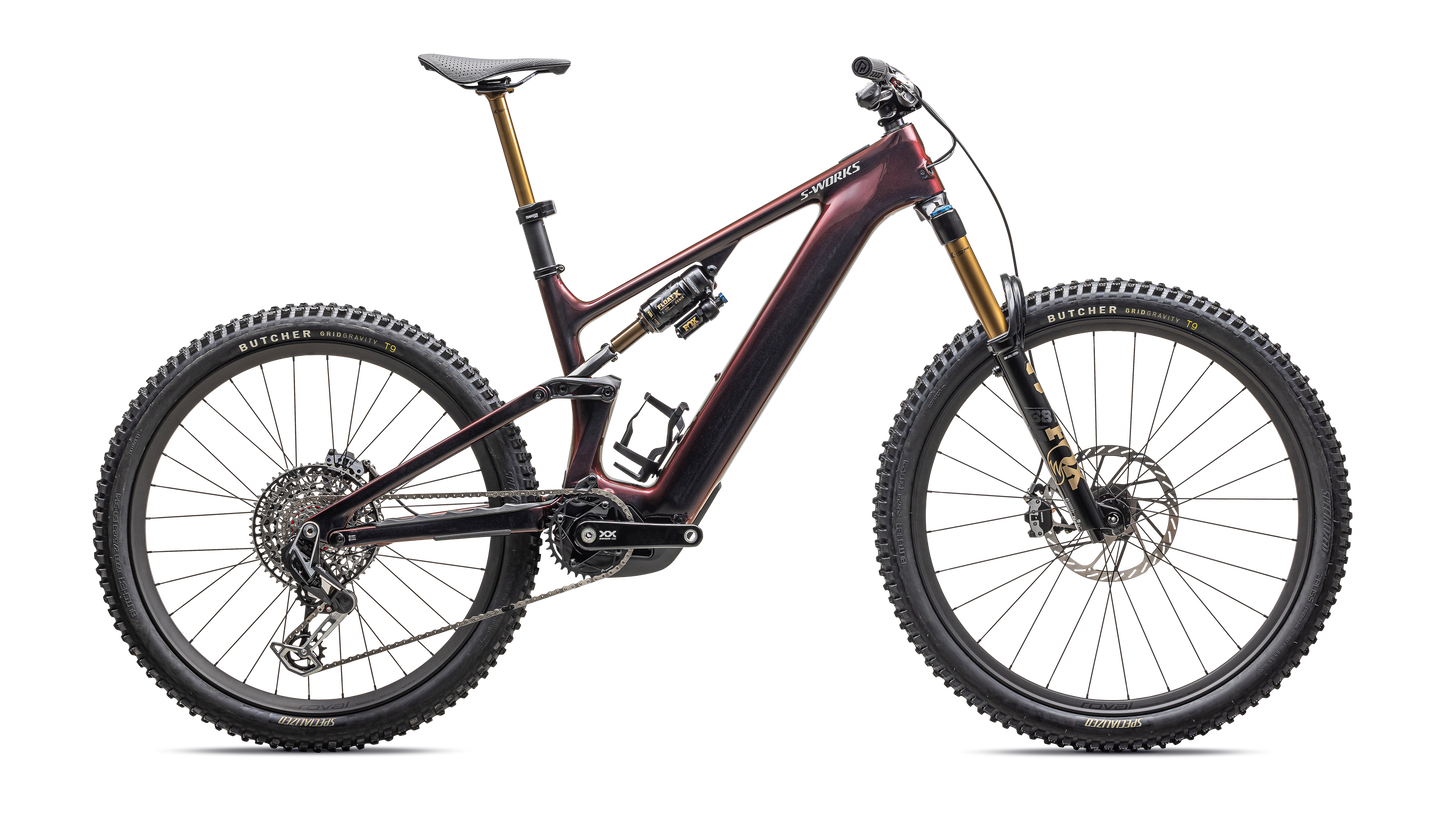

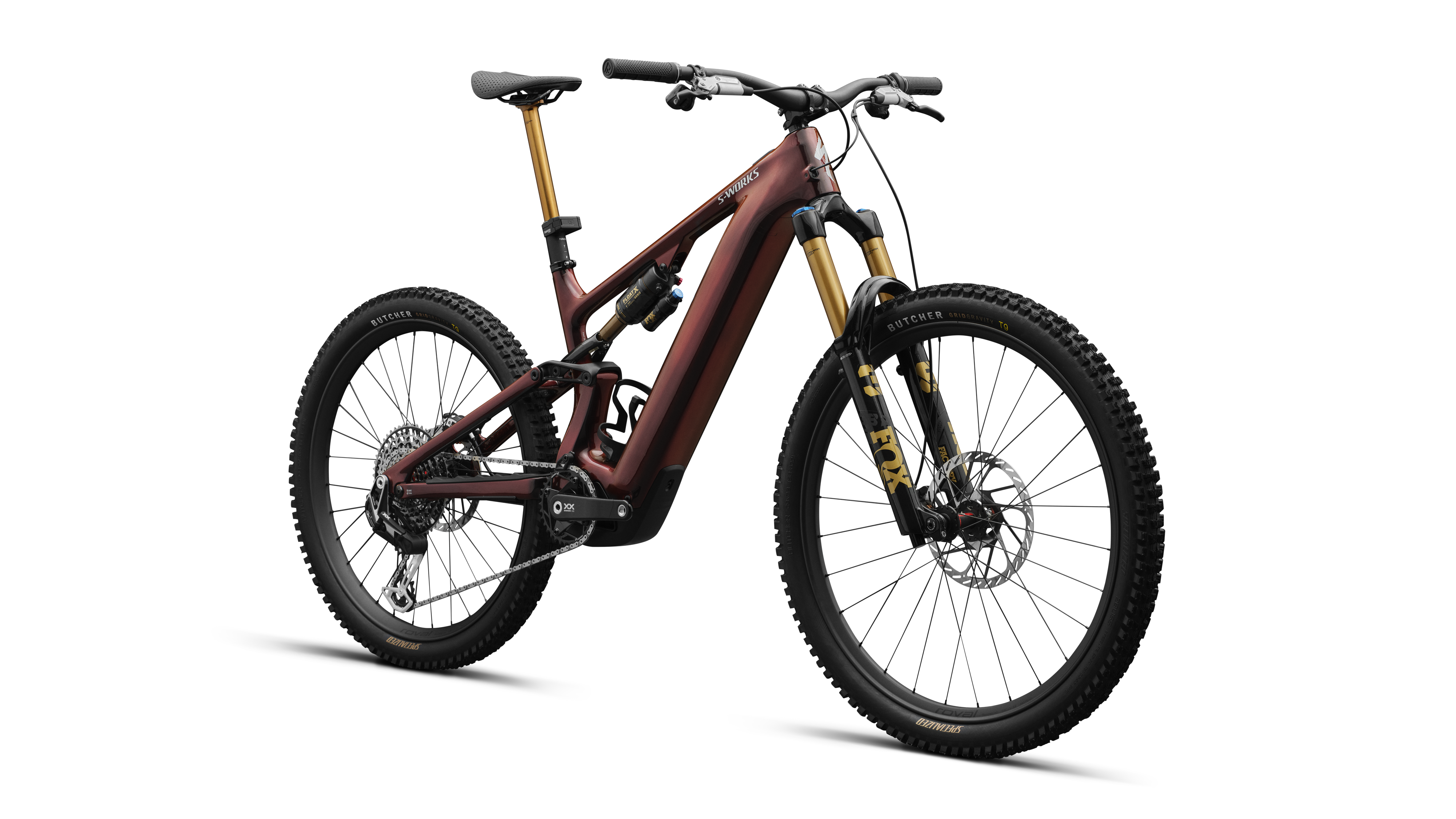

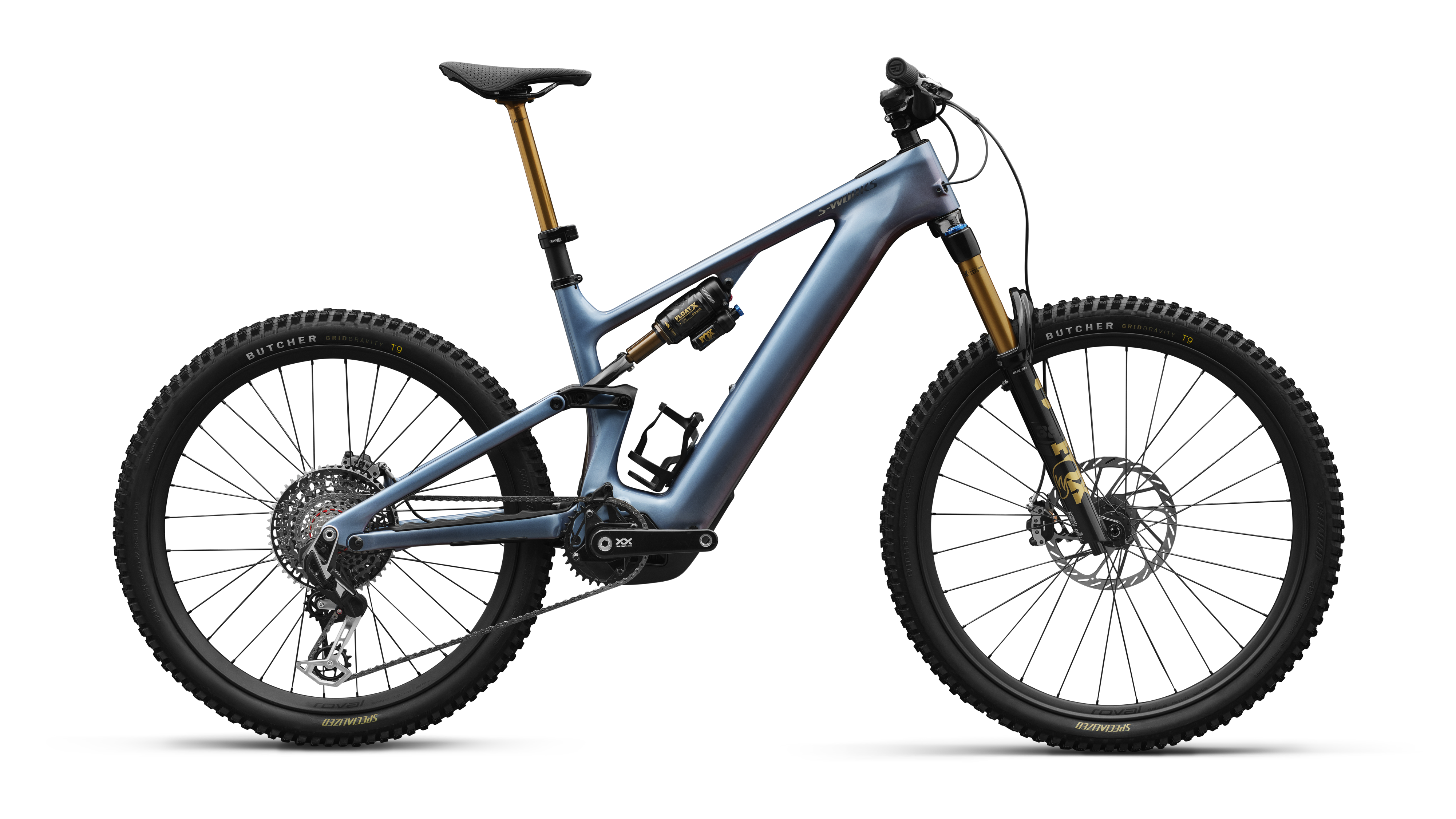

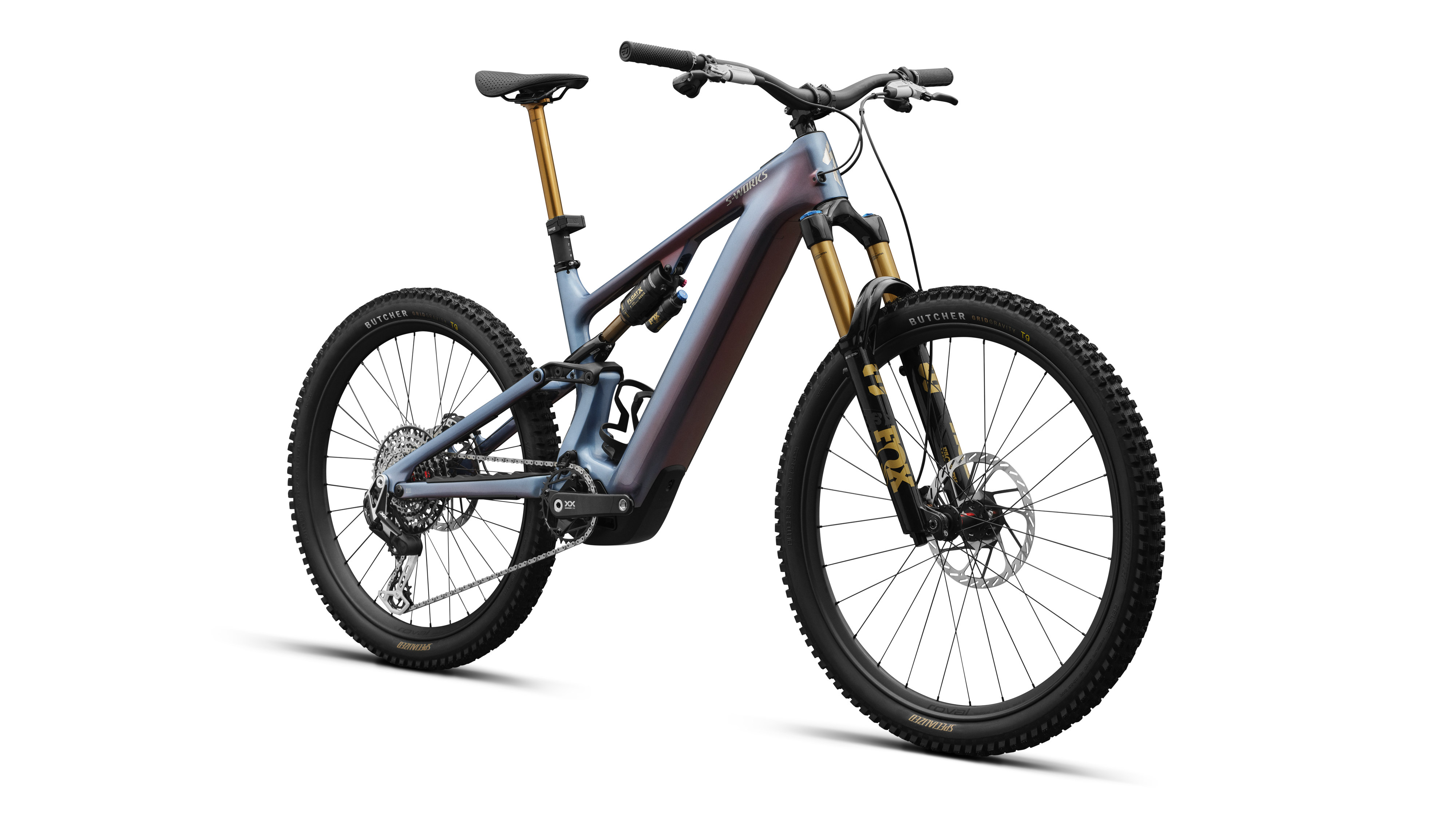

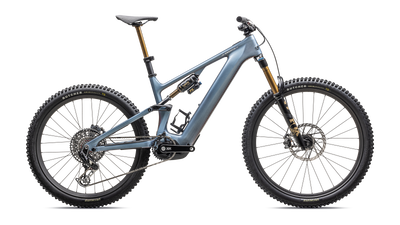

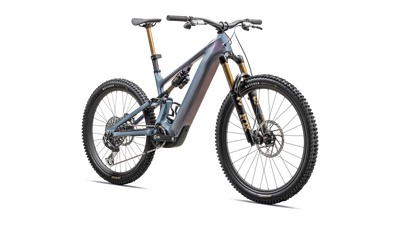

S-Works Turbo Levo 4

S-Works Turbo Levo 4

95224-0003

$23,500.00
$23,500.00
Sale Contact Us for Availability
Tax included.
Colour
Size
View Size Guide
View full details

Product Details

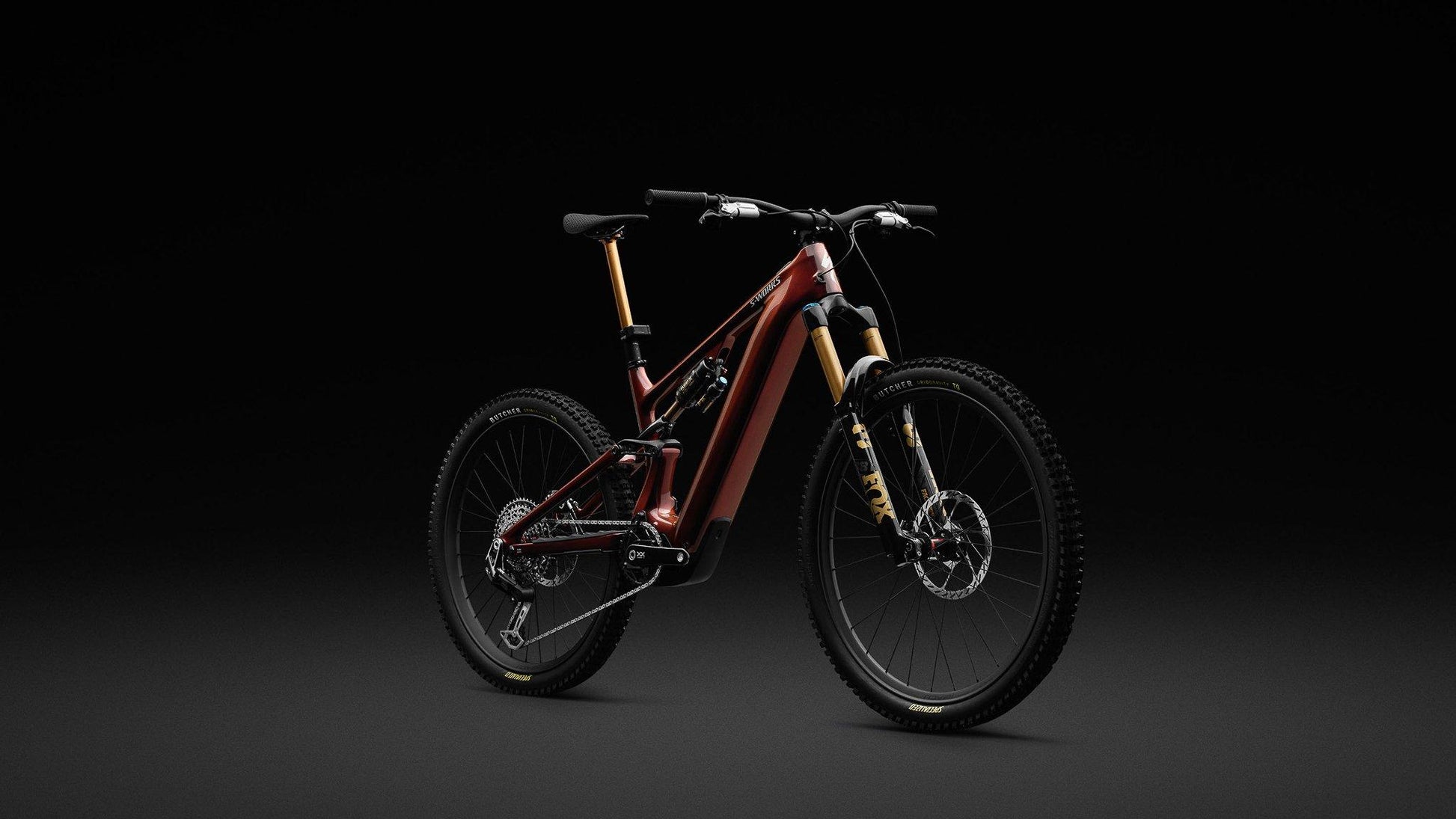

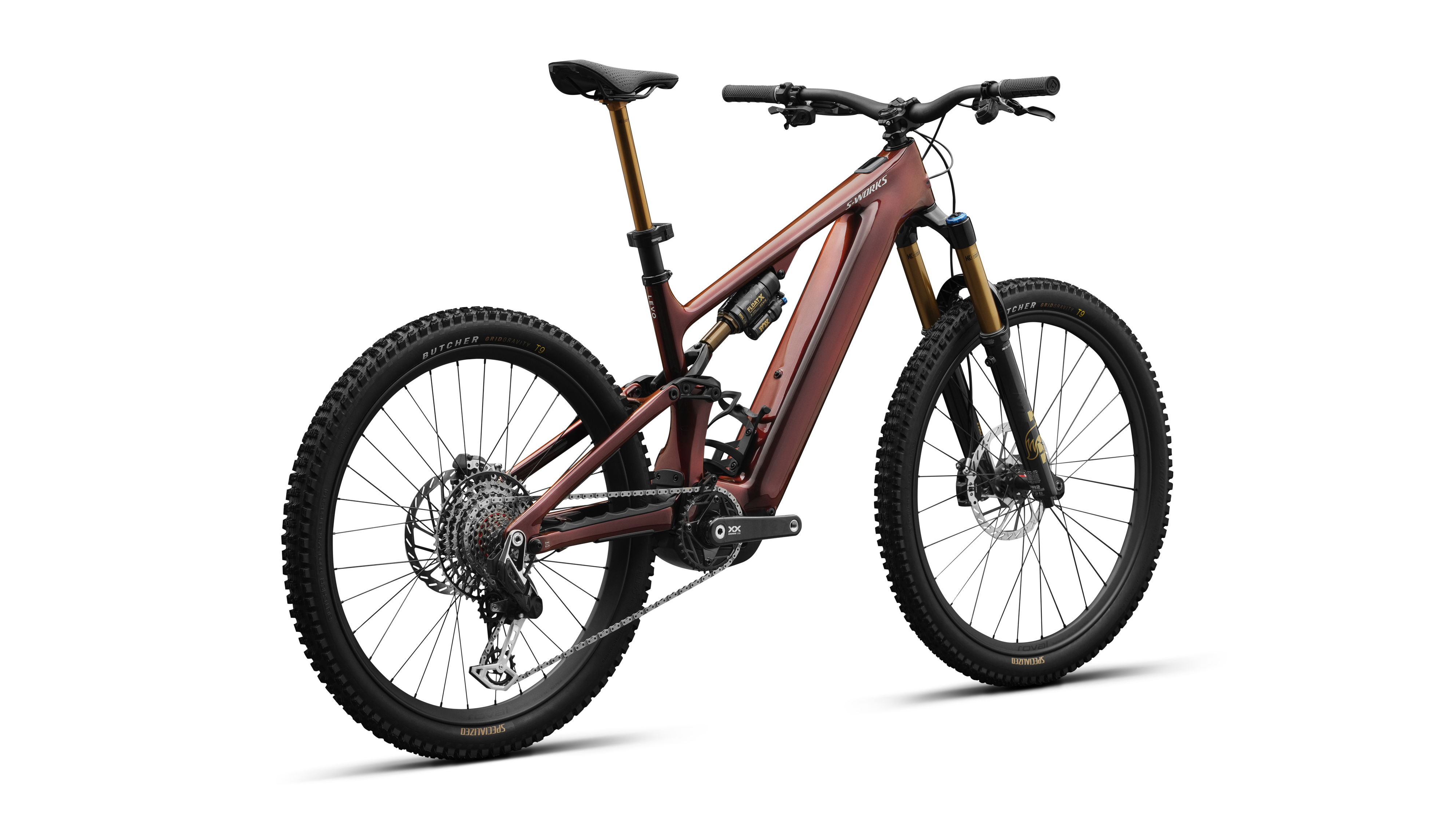

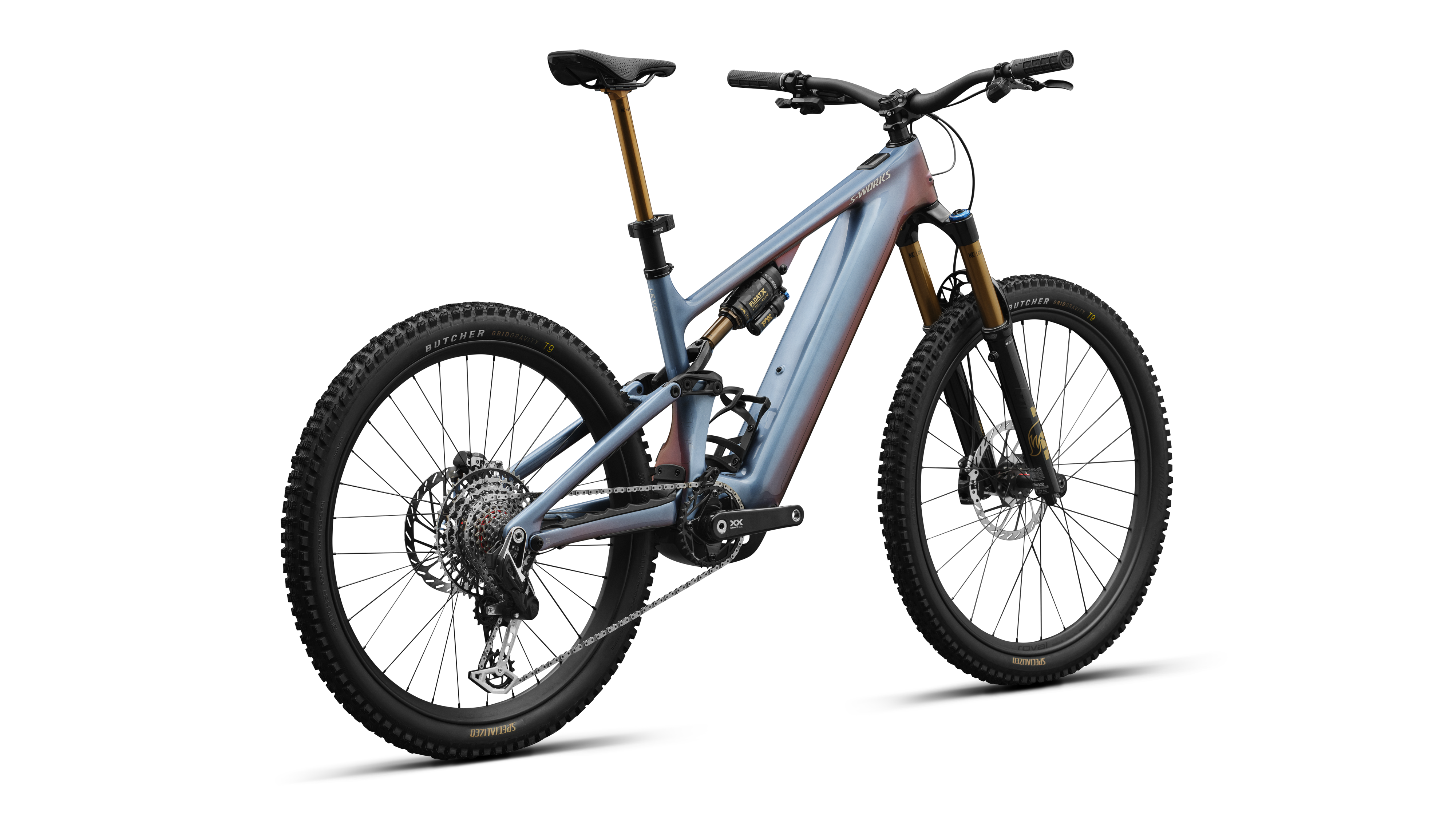

The Specialized Science Club Introduces the S-Works Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural. Use - Full Power E-MTB Trail

E-System - S-Works 3.1 Motor w/ 720 Watts & 111 Nm, 840 Wh battery, up to 4.75 hour range

Frame - FACT 11m Carbon w/ Carbon Link, Geo Adj & SWAT Storage

Suspension - Front: 160mm FOX 38 FACTORY GRIPX2, Rear: 150mm GENIE - FOX FLOAT X Factory

Drivetrain - SRAM XX Eagle T-Type AXS

Wheels - Roval Traverse HD Carbon / DT 240 DEG







Technical Specifications

Frameset

Frame

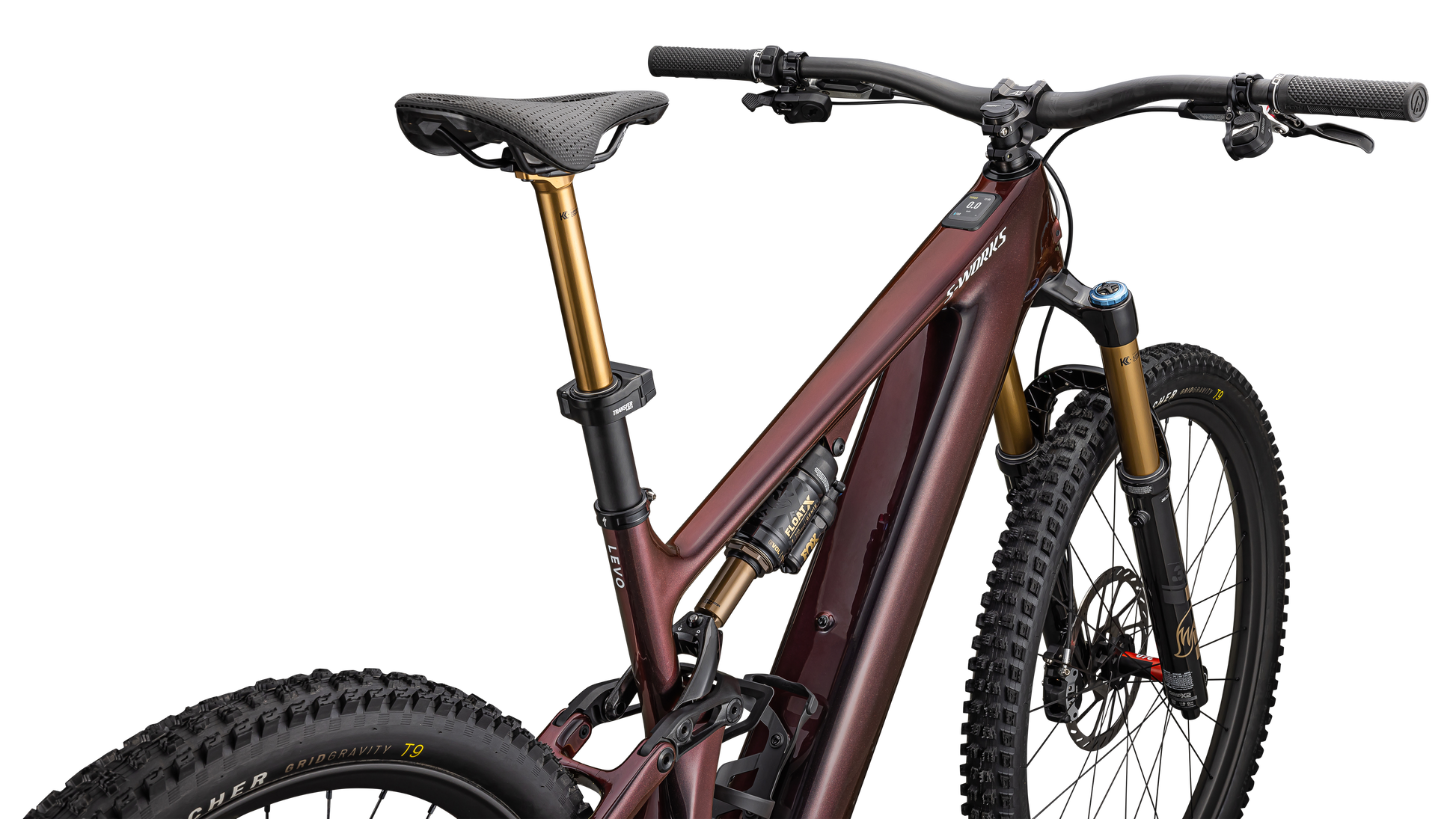

All new S-Works Levo 4 frame with carbon shock extension, FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, w/ SWAT storage, 150mm of travel, side entry battery, fork travel up to 180mm

Seat Binder

Alloy, 38.6mm

SWAT

SWAT internal downtube storage

Suspension

Rear Shock

FOX FLOAT X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment, 210x55mm

Fork

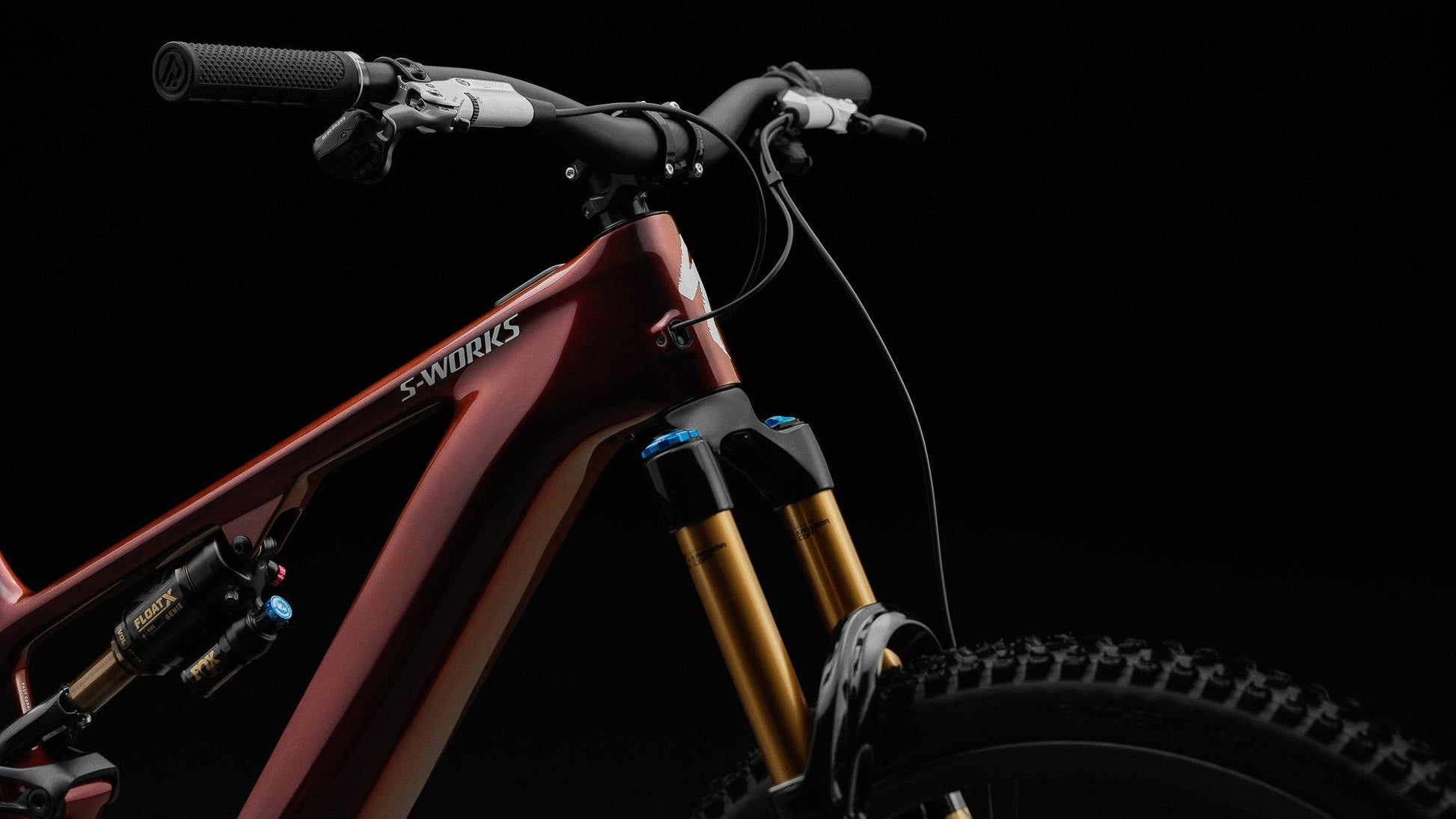

FOX FLOAT 38 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm axle, 44mm offset, 160mm of travel

Cockpit

Seat Post

FOX Transfer NEO Factory, 34.9, S2: 150mm, S3: 175mm, S4-S6: 200mm

Saddle

Specialized Power Pro Mirror w/hollow Ti rails

Stem

Industry 9 Mountain stem, 35mm clamp, 40mm length

Grips

Deity Lockjaw grips

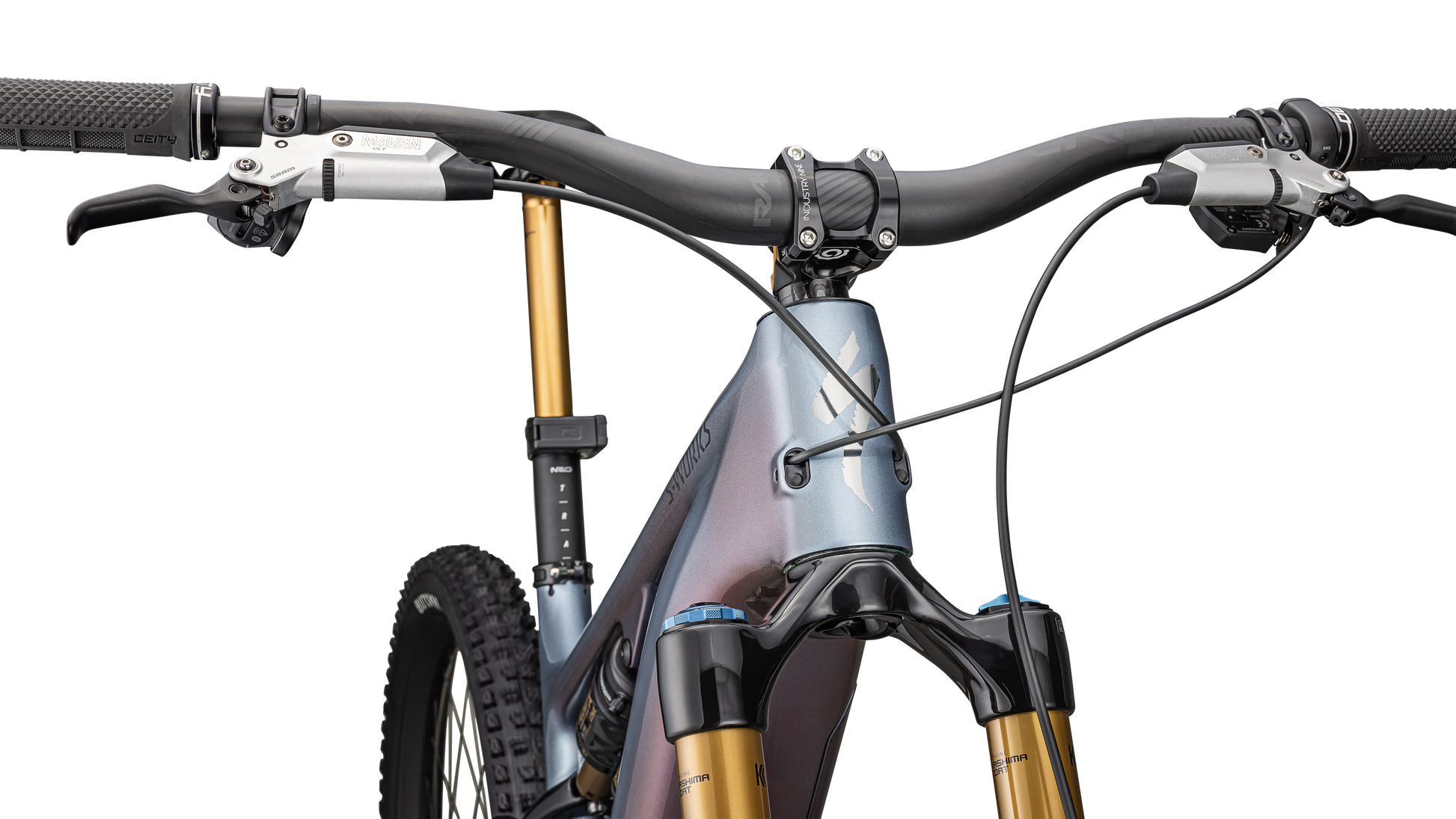

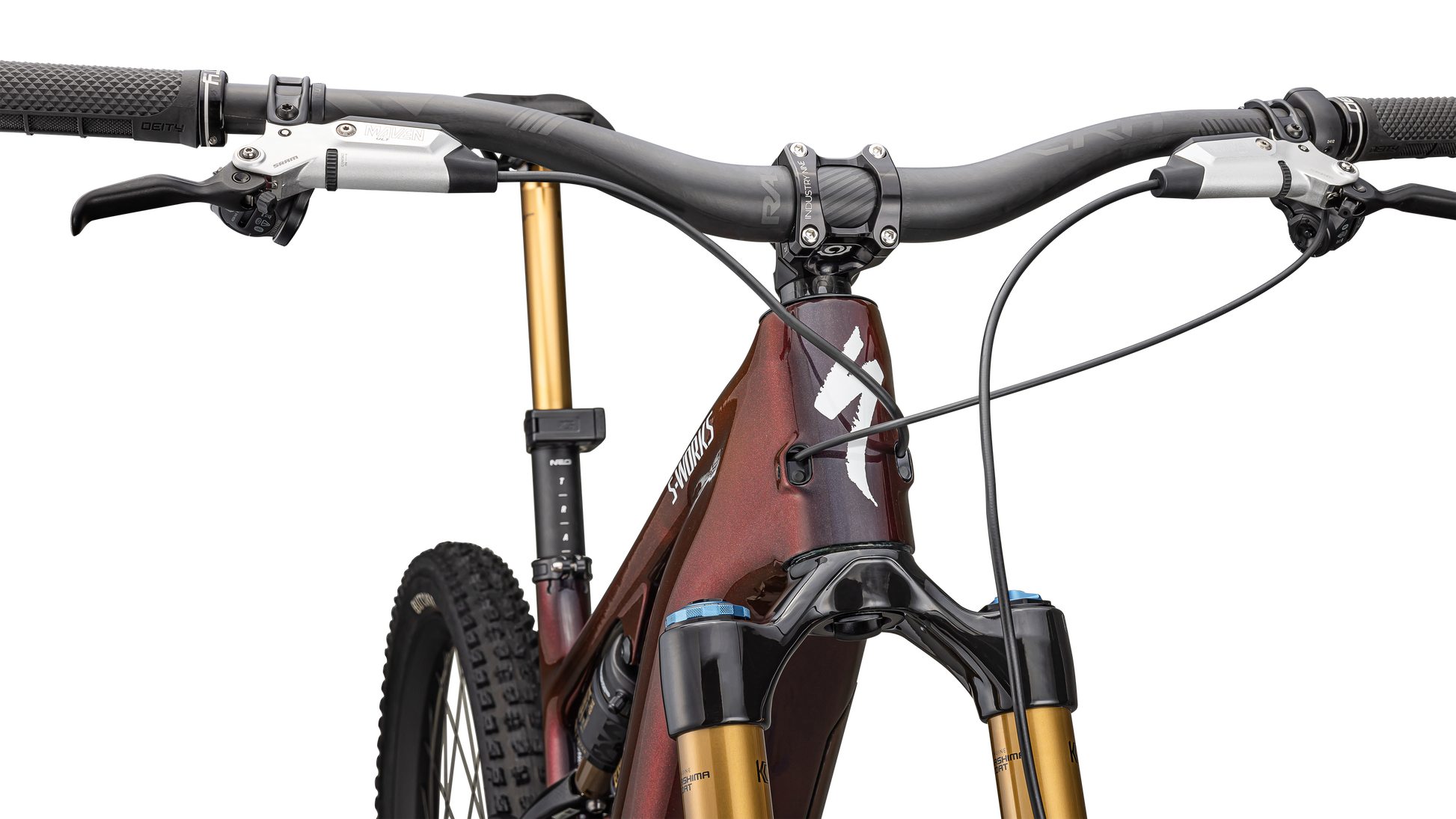

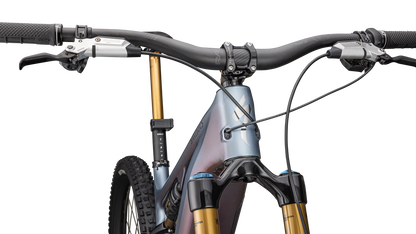

RaceFace Era Carbon, riser bar, 5-degree upsweep, 8-degree backsweep, S2:20mm Rise, S3-S6:40mm Rise, 800mm

RaceFace Era Carbon, riser bar, 5-degree upsweep, 8-degree backsweep, S2:20mm Rise, S3-S6:40mm Rise, 800mm

Brakes

Front Brake

SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 220mm HS2 Rotor

Rear Brake

SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor

Drivetrain

Shift Levers

SRAM AXS POD Ultimate Controller with Discrete clamp

Rear Derailleur

SRAM XX Eagle Transmission Derailleur

Cassette

SRAM XX Eagle Transmission Cassette, 12spd, 10-52t

Shift Levers

SRAM AXS POD Ultimate Controller with Discrete clamp

Crankset

SRAM XX Carbon crank, 55mm Chainline, ISIS interface, 160mm

Chain

SRAM XX EagleTransmission Flattop Chain

Chain Ring

SRAM 34t T-Type chainring, 104 BCD, steel

Wheels & Tyres

Front Wheel

Roval Traverse HD 29", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 DEG, 15x110mm, 28h

Rear Wheel

Roval Traverse HD 27.5", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 DEG, 12x148mm, 32h

Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"

Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"

Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"

Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"

Tubes

Standard, Presta Valve

E-Bike

Motor

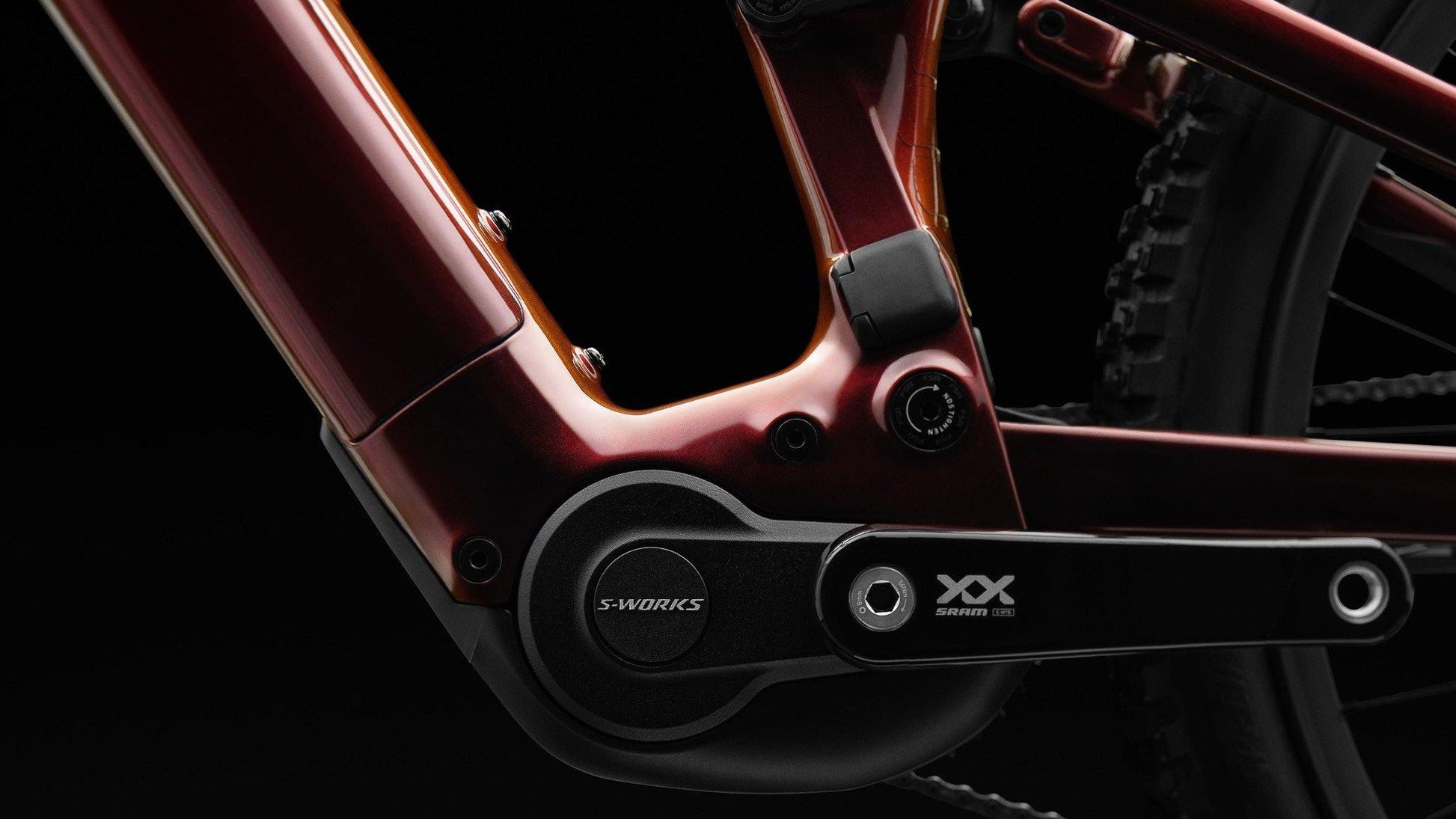

All New Specialized 3.1 S-Works motor, 111Nm torque, 720W power

UI Remote

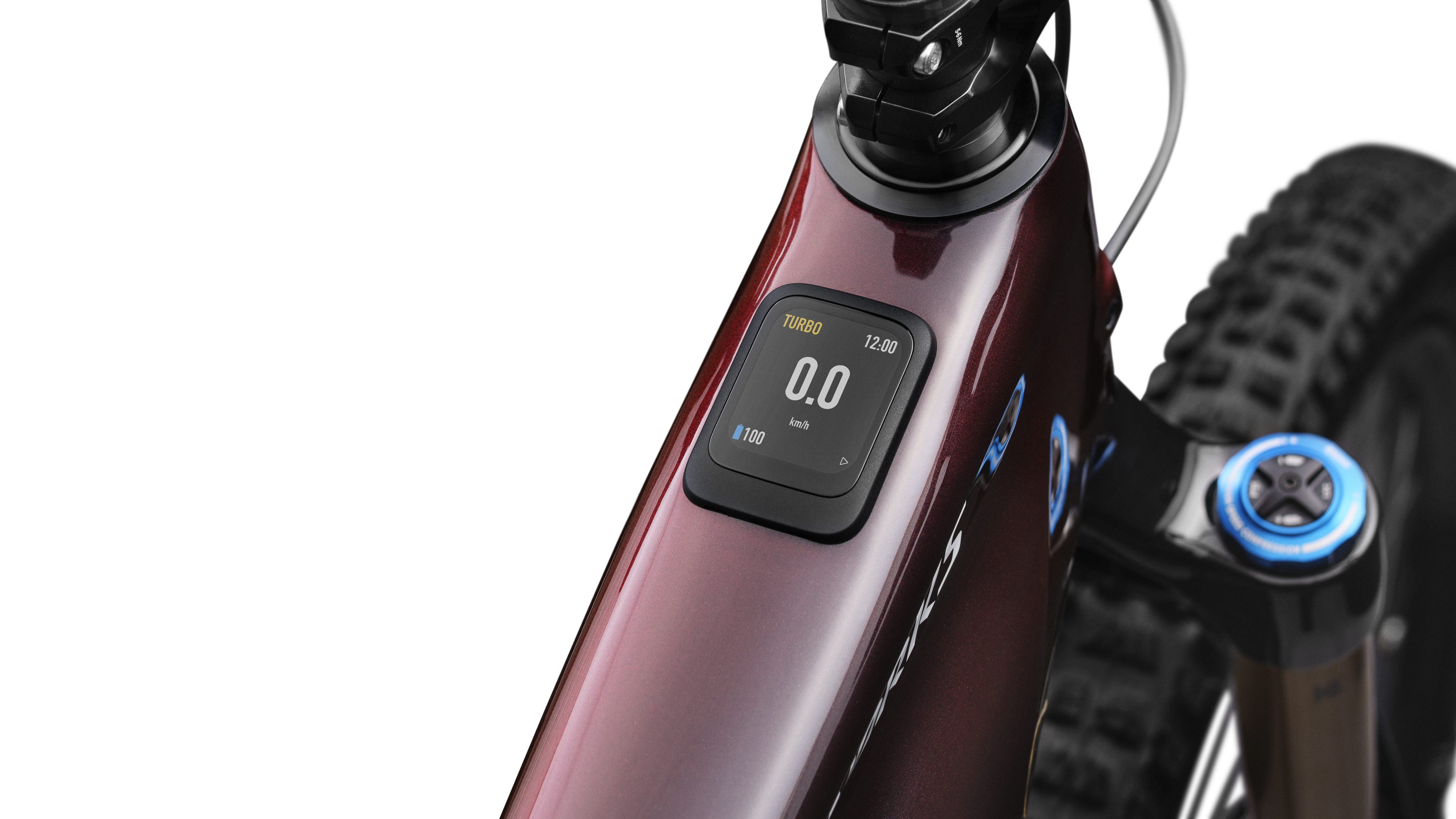

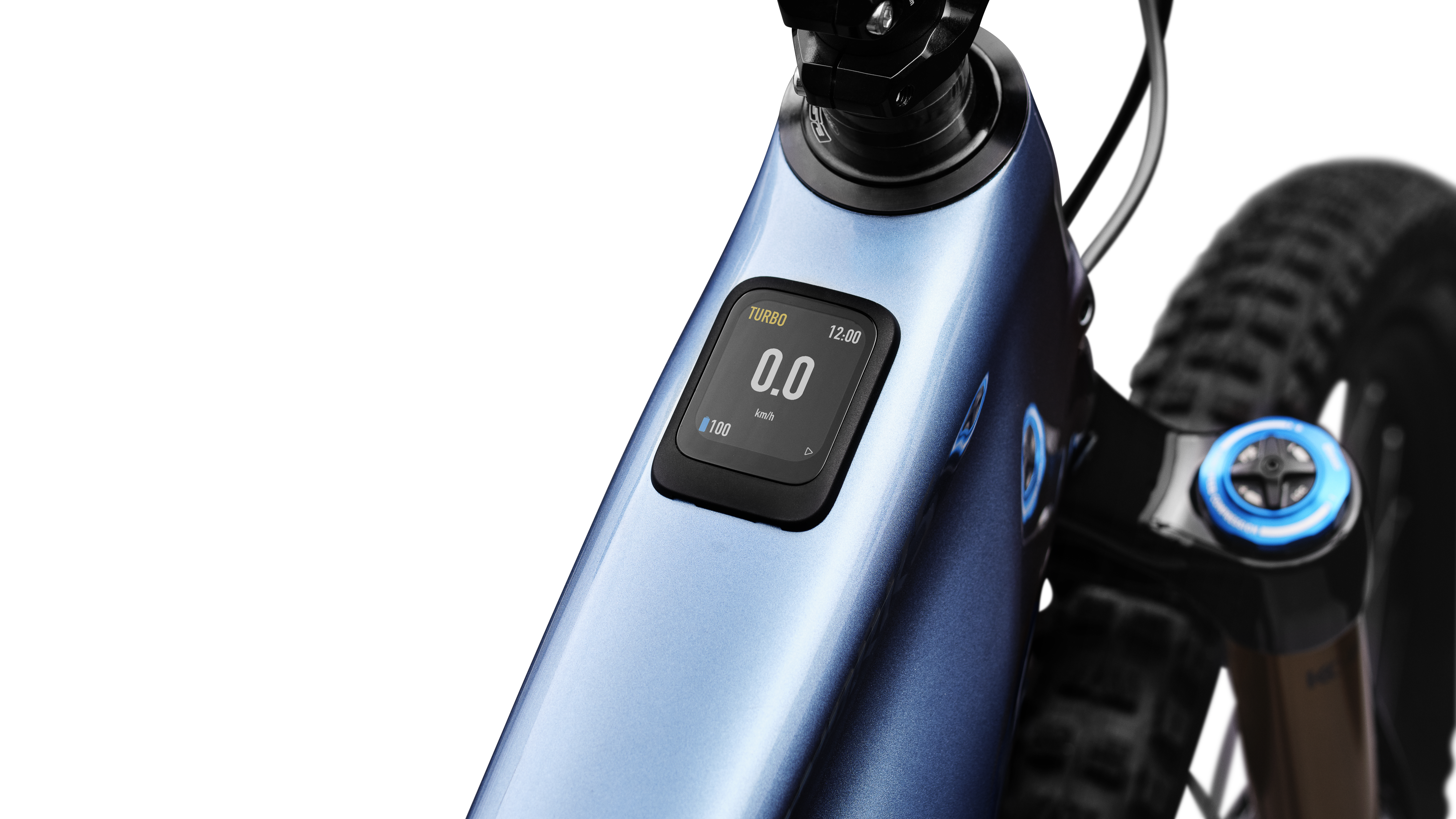

All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app

Battery

840wh battery

Specialized 12amp smart charger, 4 different charge functions including Standard, Fast, Eco, and charge to 80%

Specialized 12amp smart charger, 4 different charge functions including Standard, Fast, Eco, and charge to 80%
