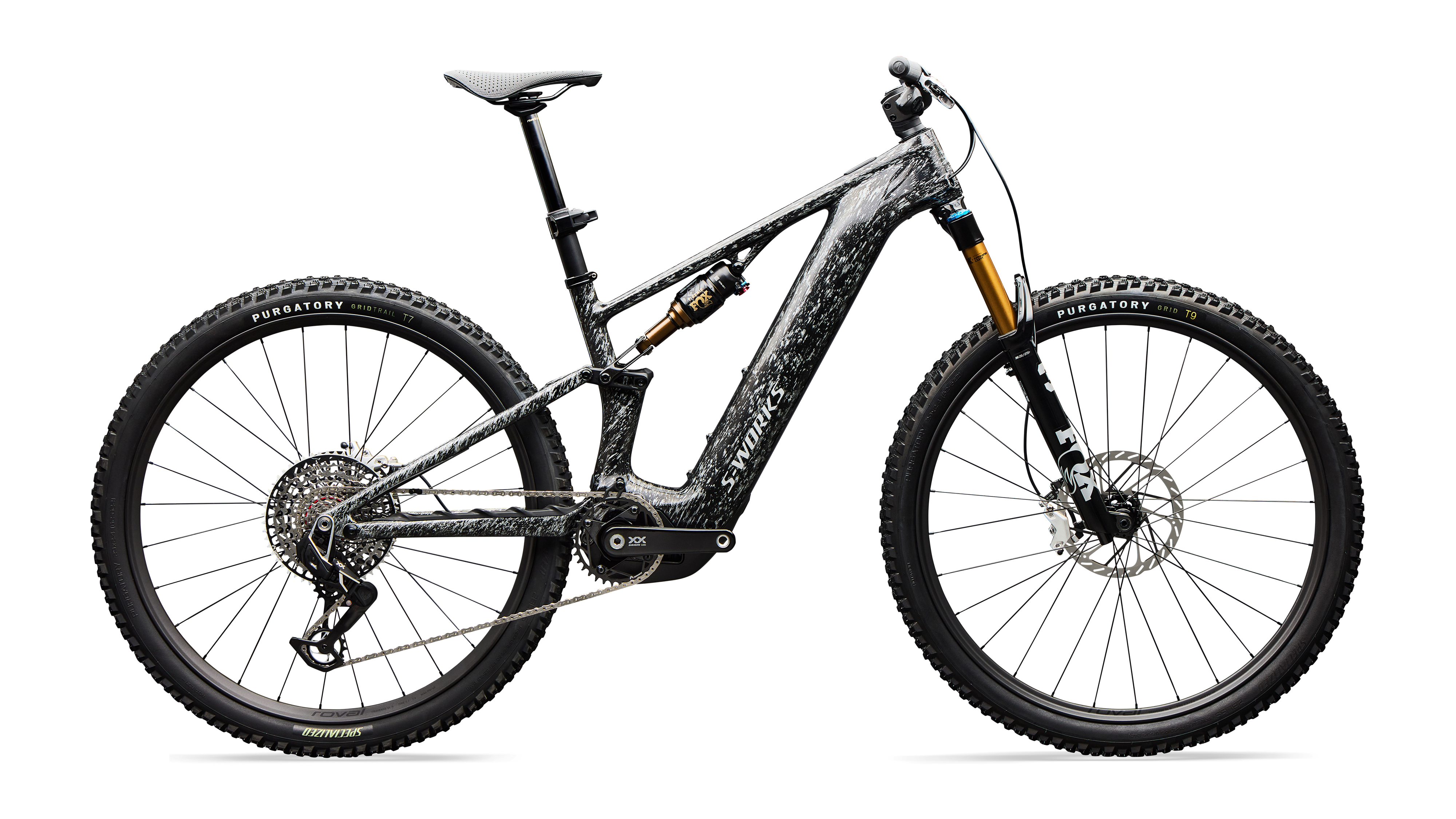

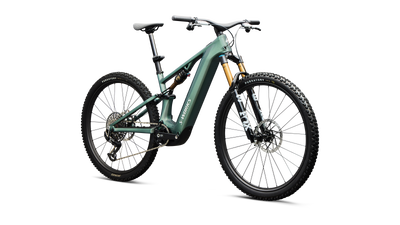

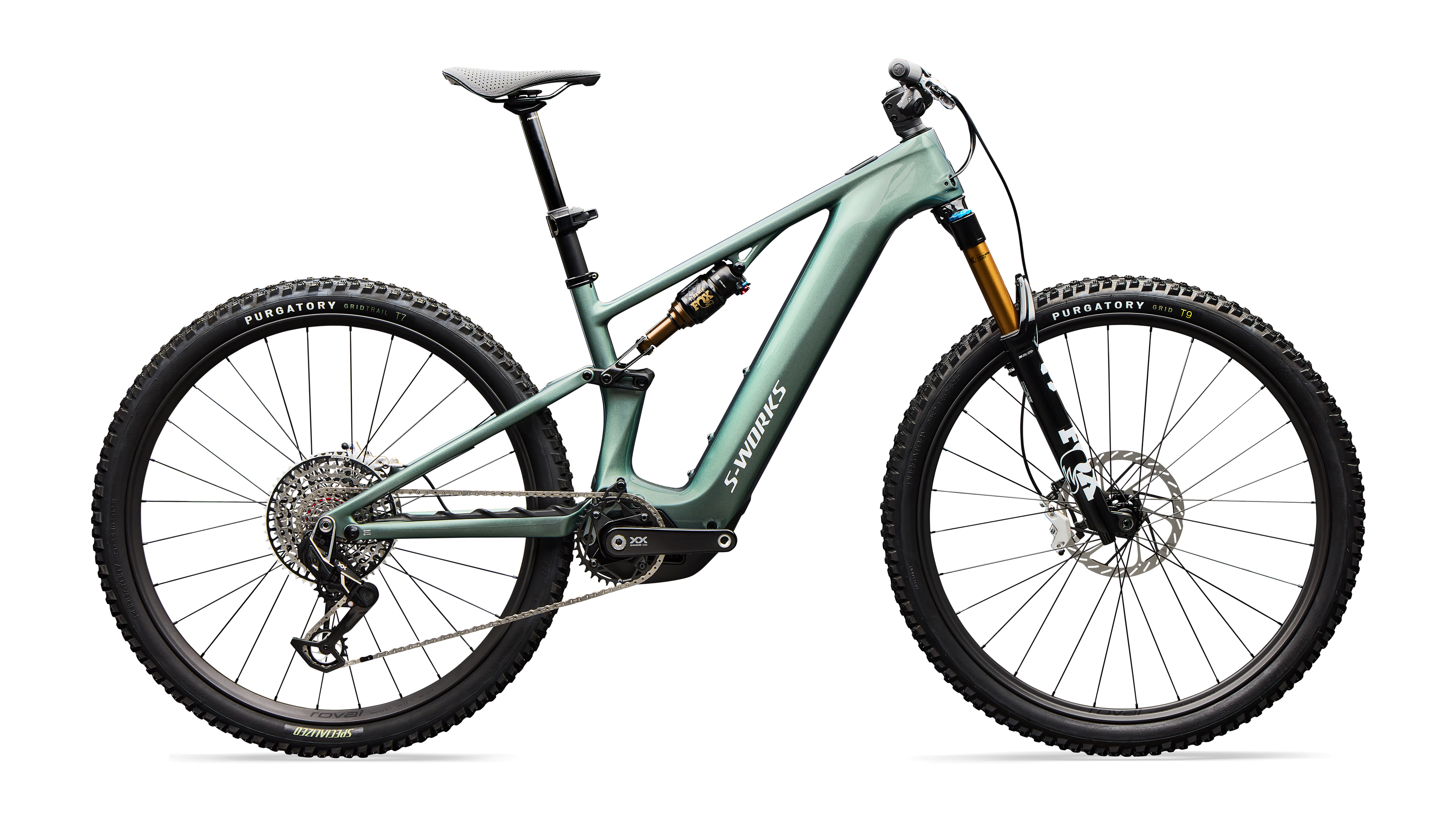

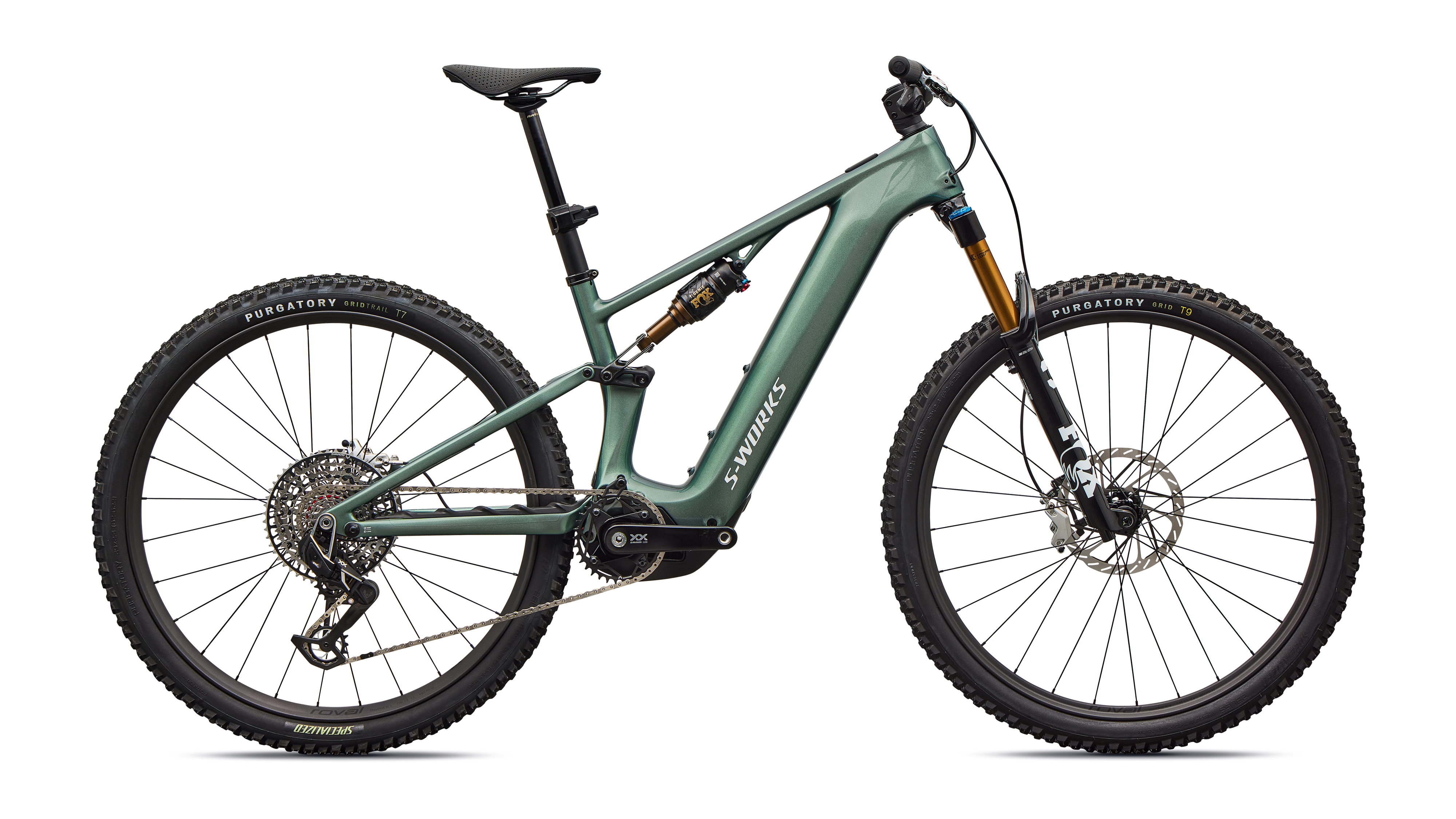

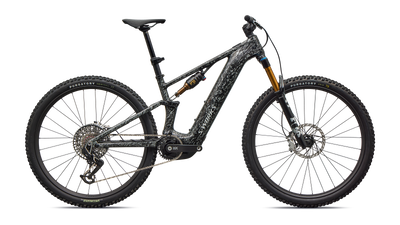

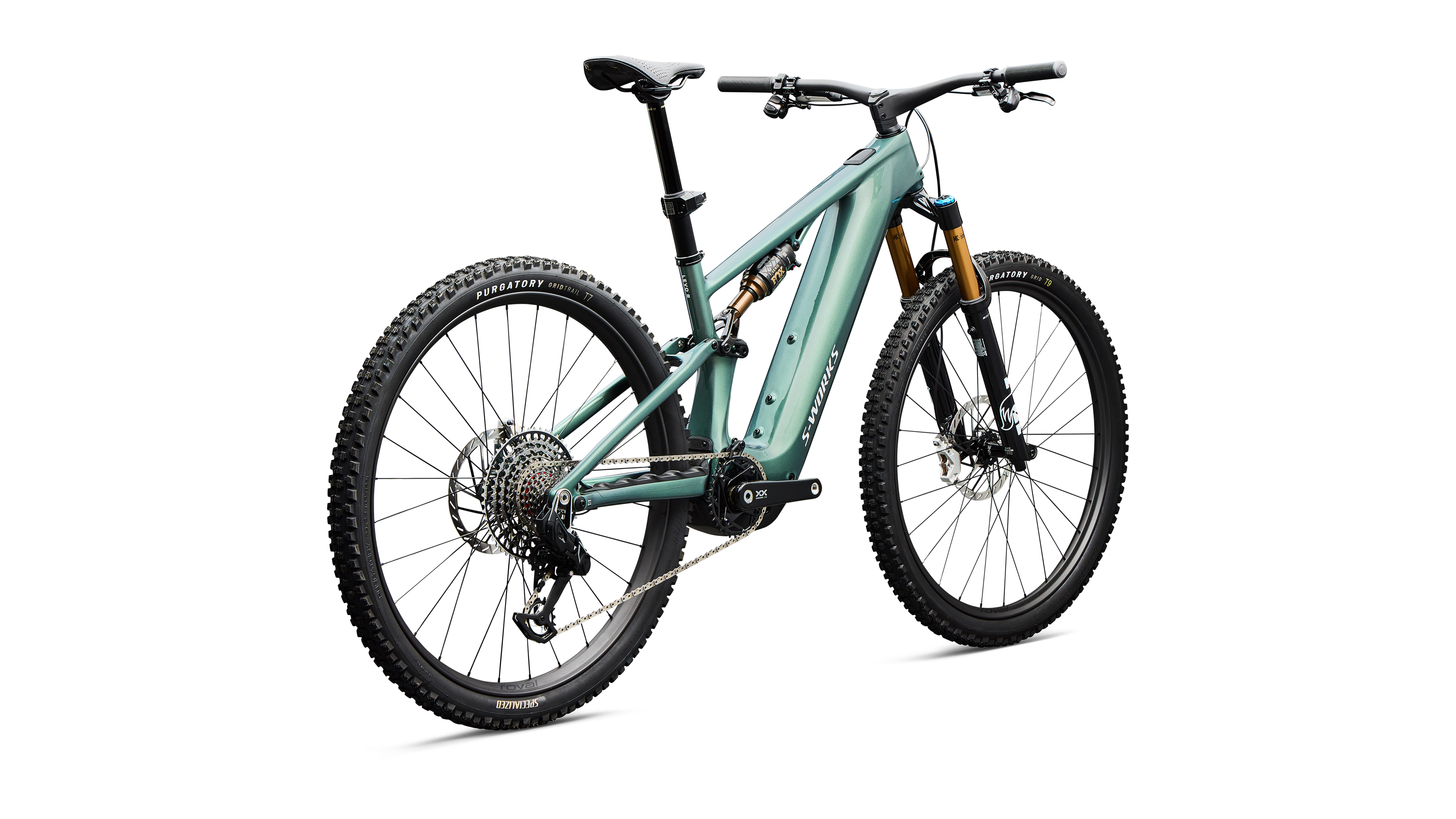

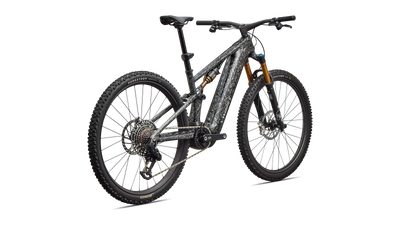

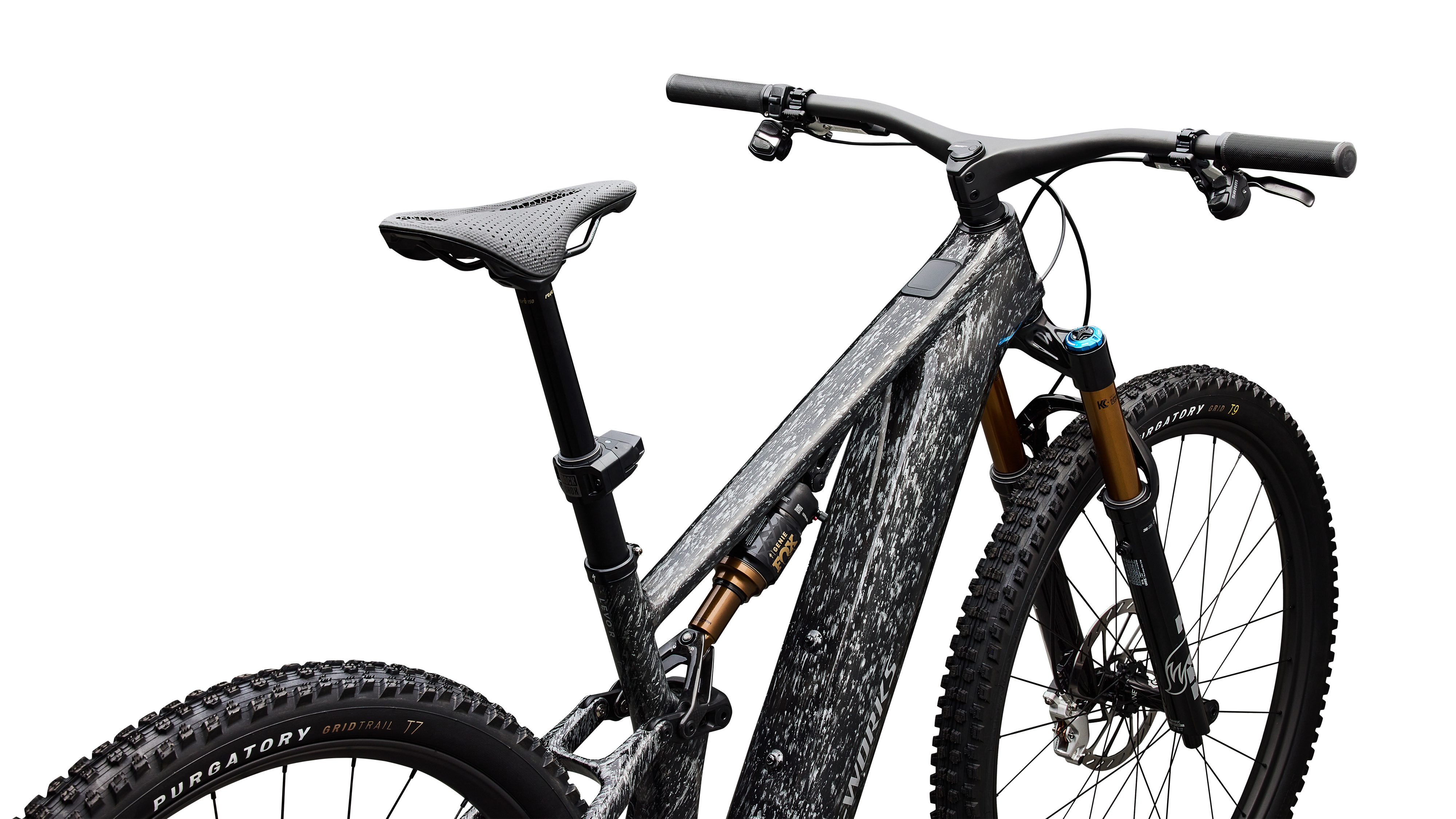

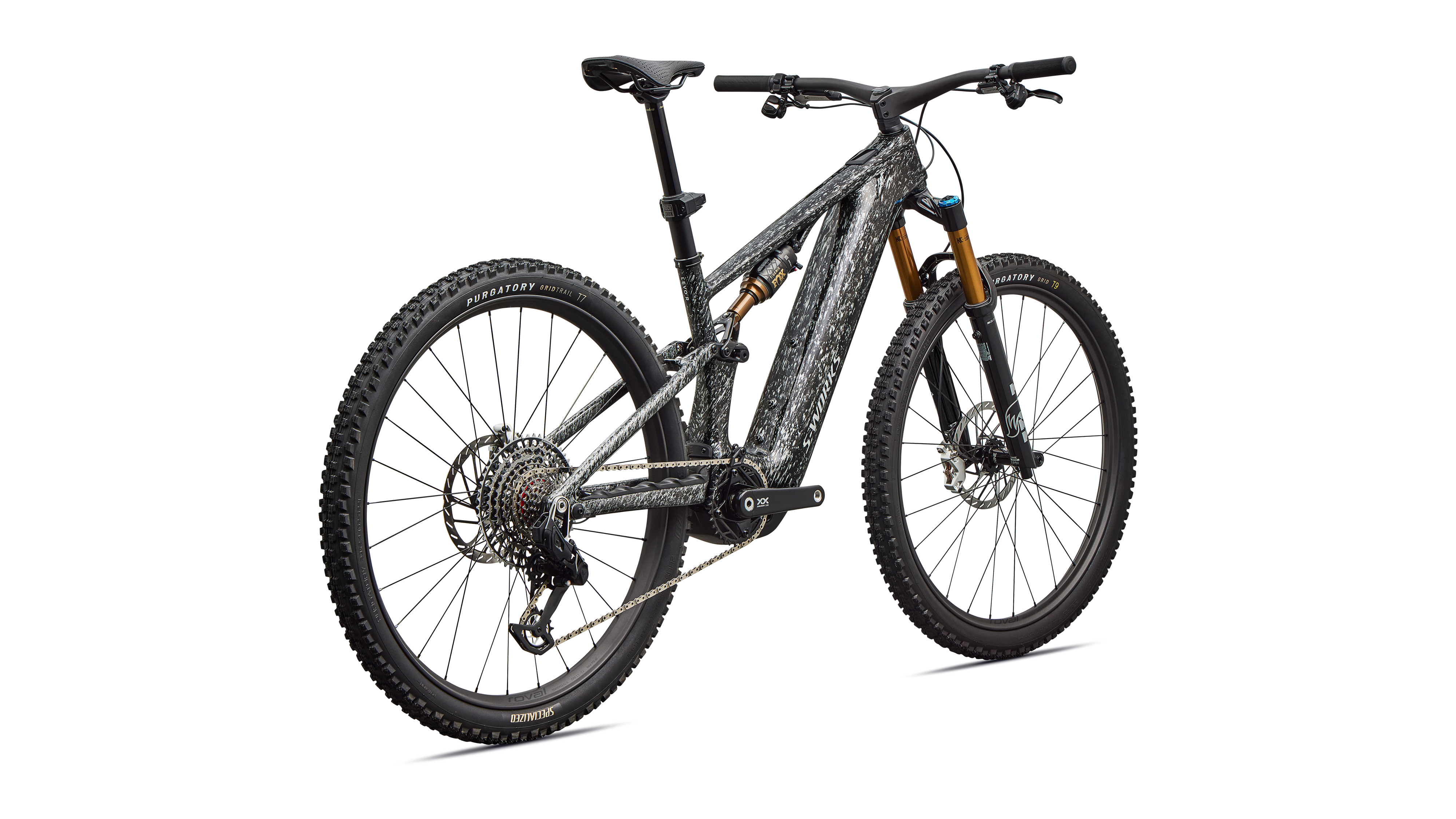

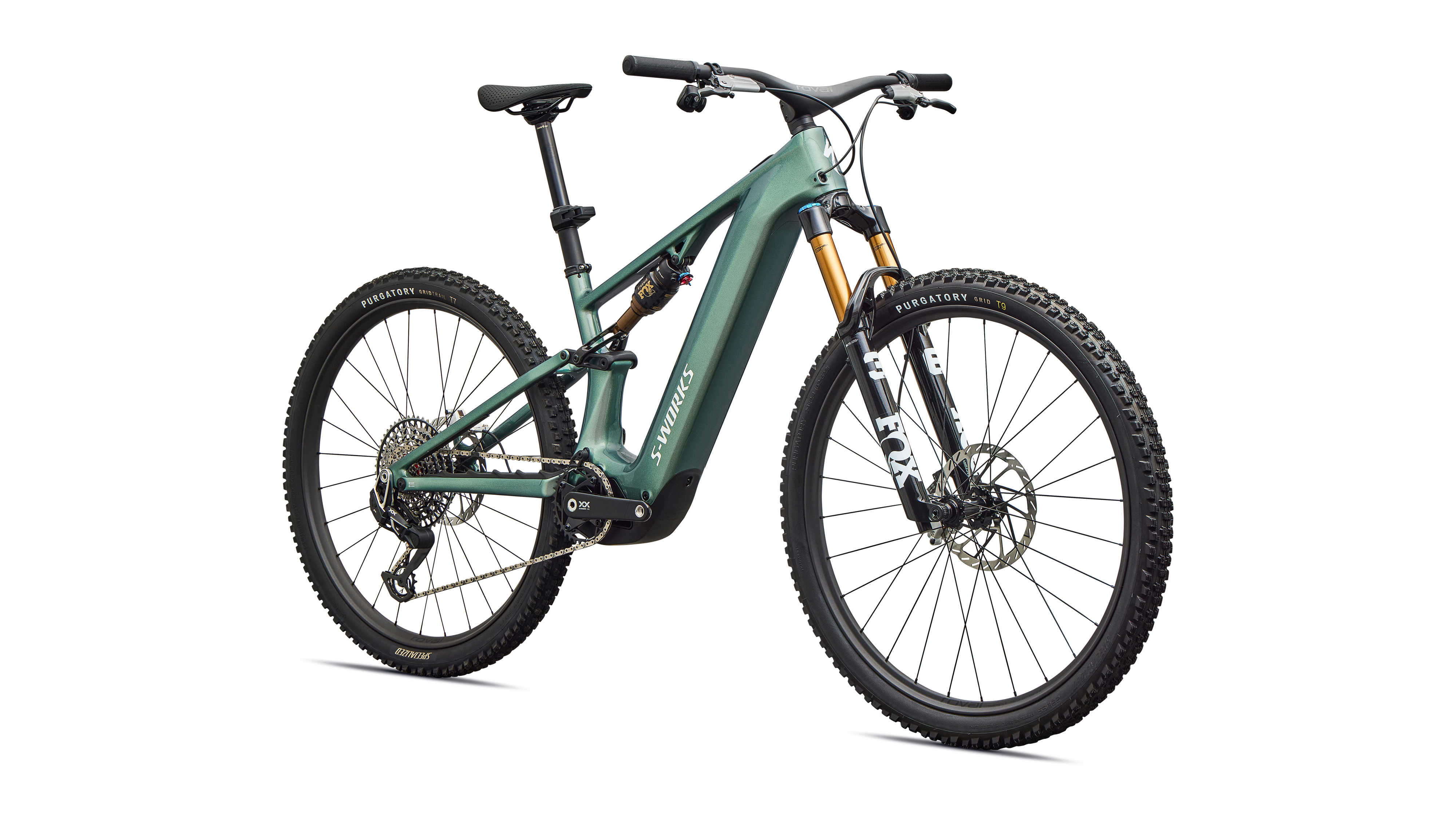

S-Works Turbo Levo R
95226-0103
Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on public roads.
Size Guide
Expertly built and shipped within 3-4 business days.
Free shipping on orders over $250, excludes bikes.
S-Works Turbo Levo R
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours from Tuesday to Saturday.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Product Details
Product Description
E-System - S-Works 3.1 Motor w/ 850 Watts & 111 Nm, 840 Wh battery, up to 4.40 hour range
Frame - FACT 11m Carbon w/ Carbon Link, Geo Adj & SWAT Storage
Suspension - Front: 140mm FOX 36 SL FACTORY GRIP X
Rear: 130mm GENIE - FOX FLOAT Factory
Drivetrain - SRAM XX Transmission
Wheels - Traverse SL2 w/ Hydra2 Hubs
Frameset
Frame
FACT 11m Carbon, carbon shock extension, titanium hardware, SWAT downtube storage, 12x148mm UDH compatible rear dropout, side entry battery, adjustable geometry, 130mm of travel
Seat Binder
Alloy, 38.6mm
SWAT
SWAT internal downtube storage
Suspension
Rear Shock
FOX FLOAT Factory GENIE, Ride Dynamics Developed, 2-position compression adjust, 190x45mm
Fork
FOX 36 SL Factory, GRIP X Damper, HSC, LSC, LSR adjust, 140mm travel, 44mm offset, 15x110mm
Cockpit
Seat Post
RockShox Reverb AXS, 34.9mm, S2: 125mm, S3: 150mm, S4-6: 200mm
Saddle
Specialized S-Works Power Mirror, Ti Rails, 143mm/155mm
Grips
Specialized Trail Grips

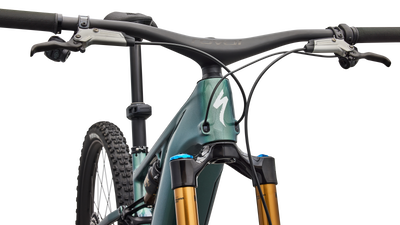

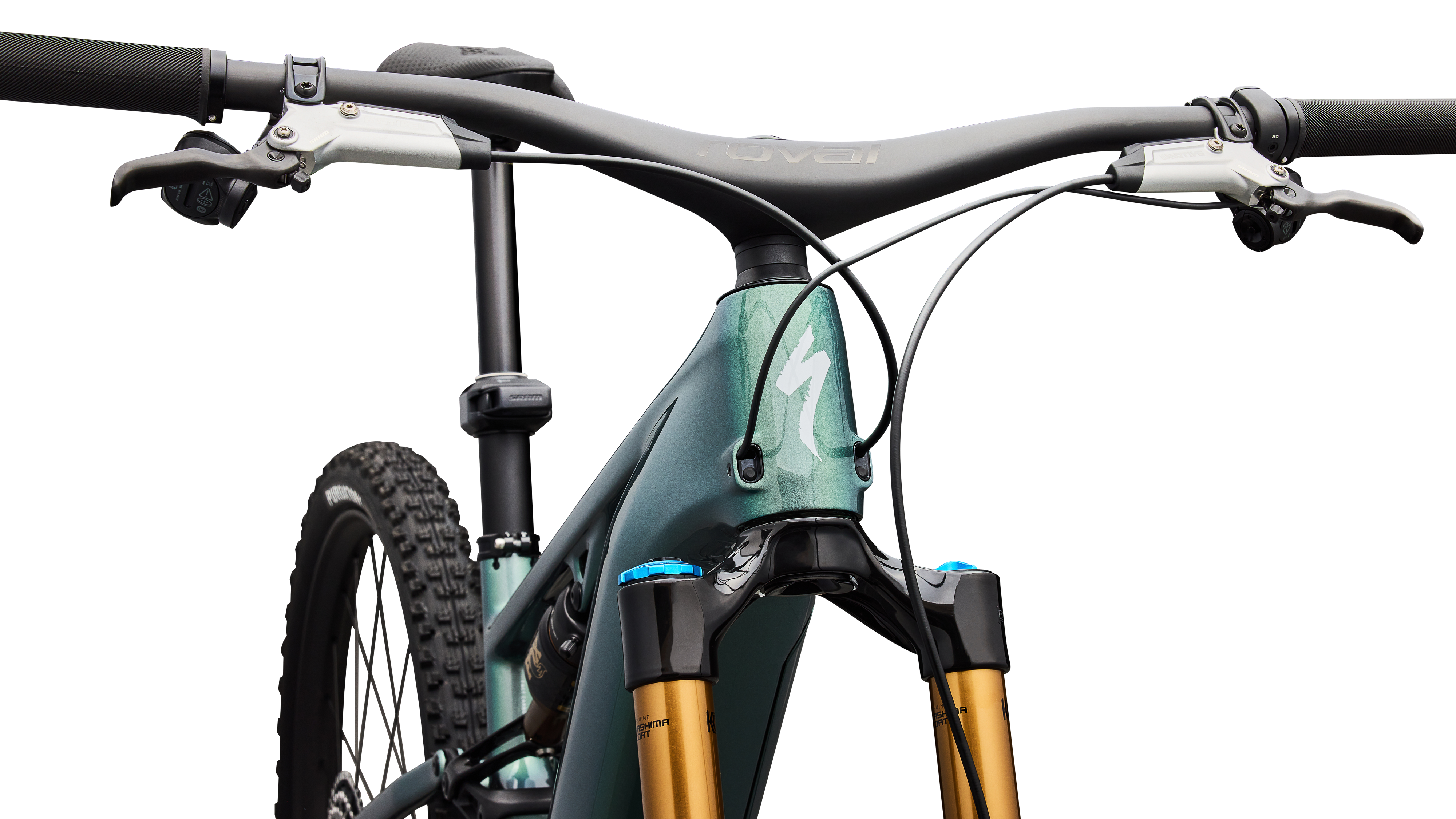

Handlebars

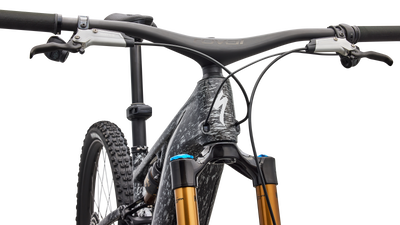

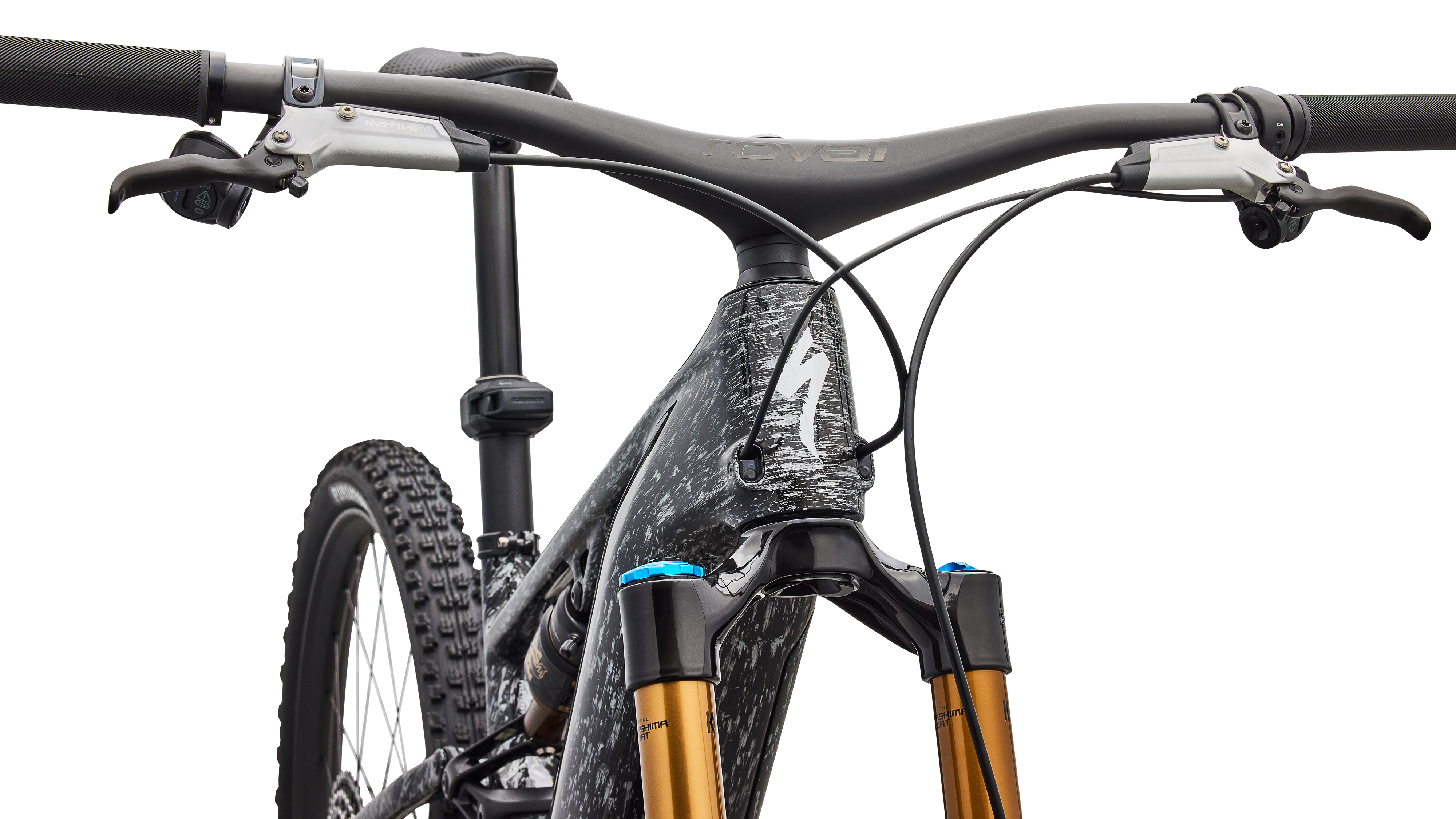

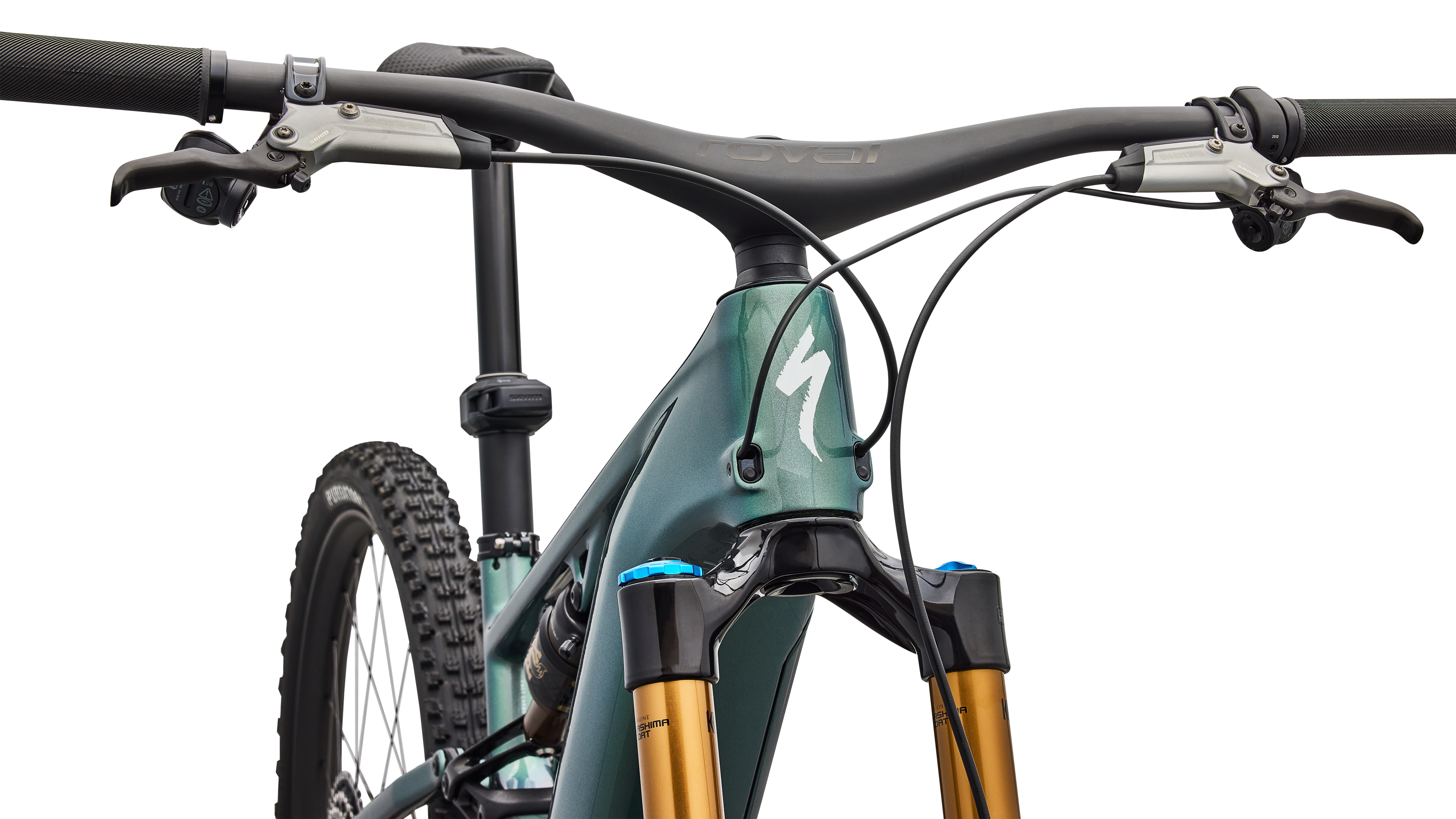

Roval Control SL RISE Integrated cockpit, 50mm integrated stem, 8-degree backsweep, 2 degree upsweep, 780mm wide
Brakes
Front Brake
SRAM Motive Ultimate, 4-piston caliper, hydraulic disc, 200mm rotor
Rear Brake
SRAM Motive Ultimate, 4-piston caliper, hydraulic disc, 200mm rotor
Drivetrain
Shift Levers
SRAM AXS POD Ultimate Controller
Rear Derailleur
SRAM XX Eagle AXS
Cassette
SRAM XX Transmission, XS 1297, 10-52t
Shift Levers
SRAM AXS POD Ultimate Controller
Crankset
SRAM XX Carbon crank, 160mm, ISIS interface
Chain
SRAM XX, T-TYPE
Chain Ring
SRAM 34t T-Type chainring, 104 BCD, steel
Wheels & Tyres
Roval Traverse SL II Rim, hookless carbon, 30mm inner width, tubeless ready, 29", Industry 9 Hydra 2 Hub, 15x110mm, 28H, DT Swiss Revolite Spokes, 6 bolt
Roval Traverse SL II Rim, hookless carbon, 30mm inner width, tubeless ready, 29", Industry 9 Hydra 2 Hub, 15x110mm, 28H, DT Swiss Revolite Spokes, 6 bolt
Rear Wheel
Roval Traverse SL II Rim, hookless carbon, 30mm inner width, tubeless ready, 29", Industry 9 Hydra 2 Hub, 12x148mm, 32H, DT Swiss Revolite Spokes, 6 bolt
Front Tire
Specialized Purgatory, GRID Casing, T9 Compound, 29x2.4
Rear Tire
Specialized Purgatory, GRID Trail Casing, T9 Compound, 29x2.4
Tubes
Specialized Turbo Tube
Electric
Motor
Specialized 3.1 S-Works motor, 111Nm power, 850W power
UI Remote
Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My
Battery
Specialized Turbo X2 840Wh integrated battery pack
Specialized 12amp smart charger, 4 different charge functions including Standard, Fast, Eco, and charge to 80%
Specialized 12amp smart charger, 4 different charge functions including Standard, Fast, Eco, and charge to 80%
