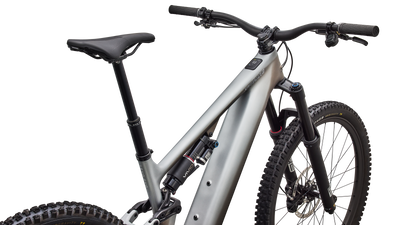

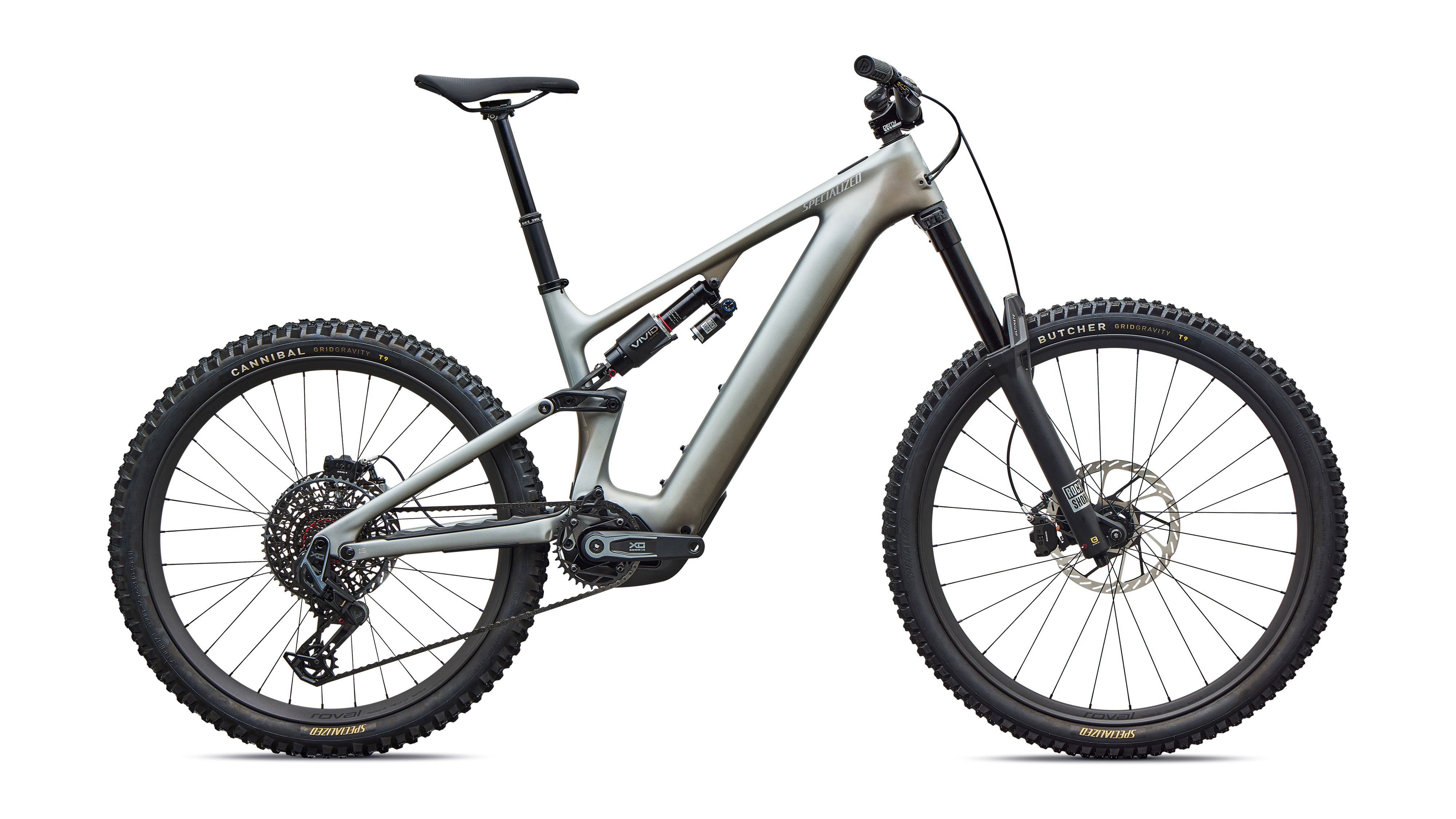

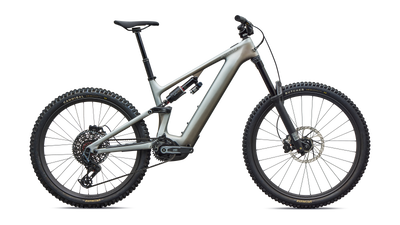

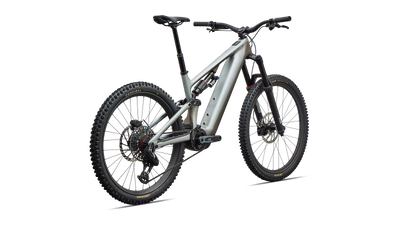

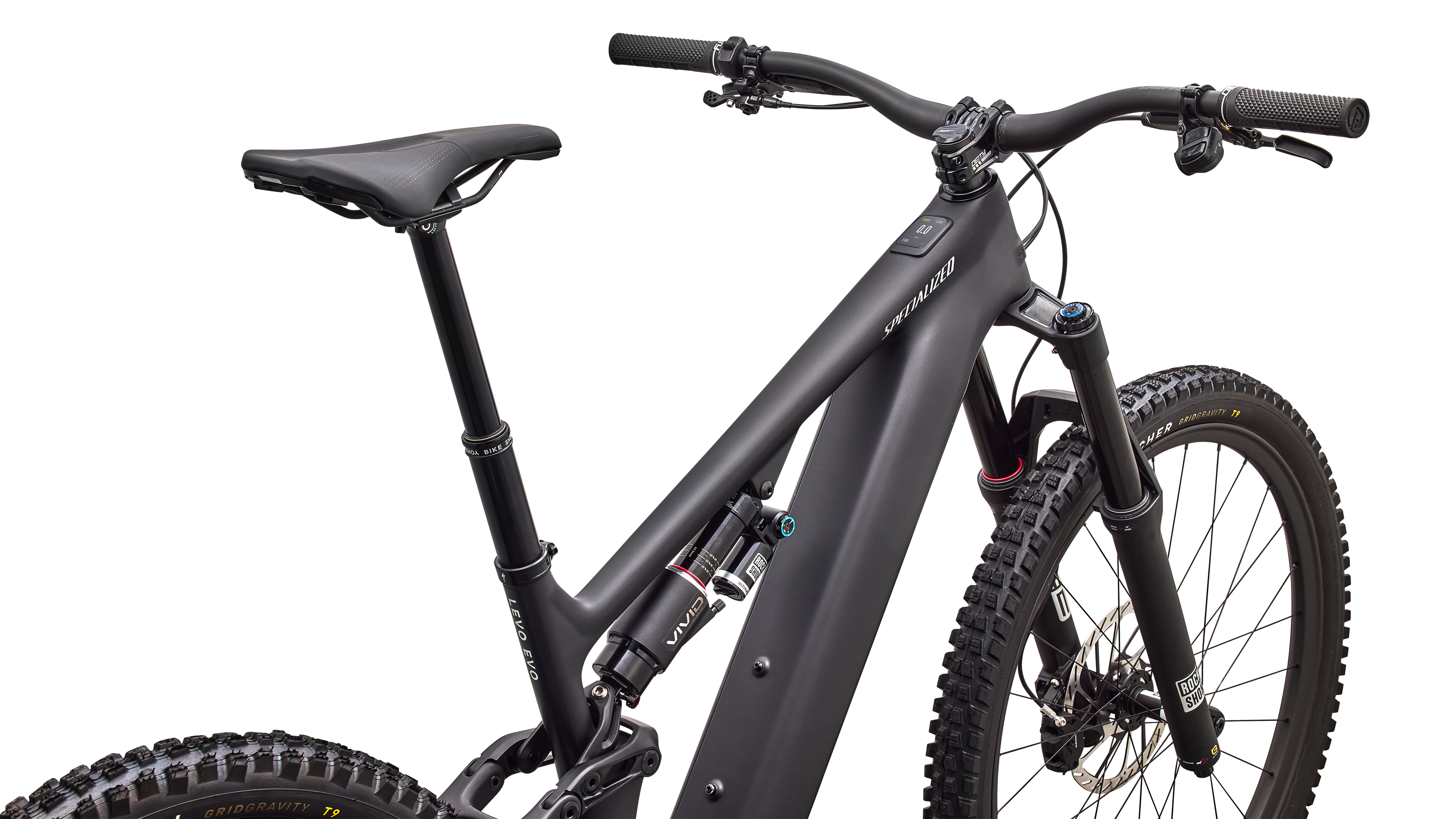

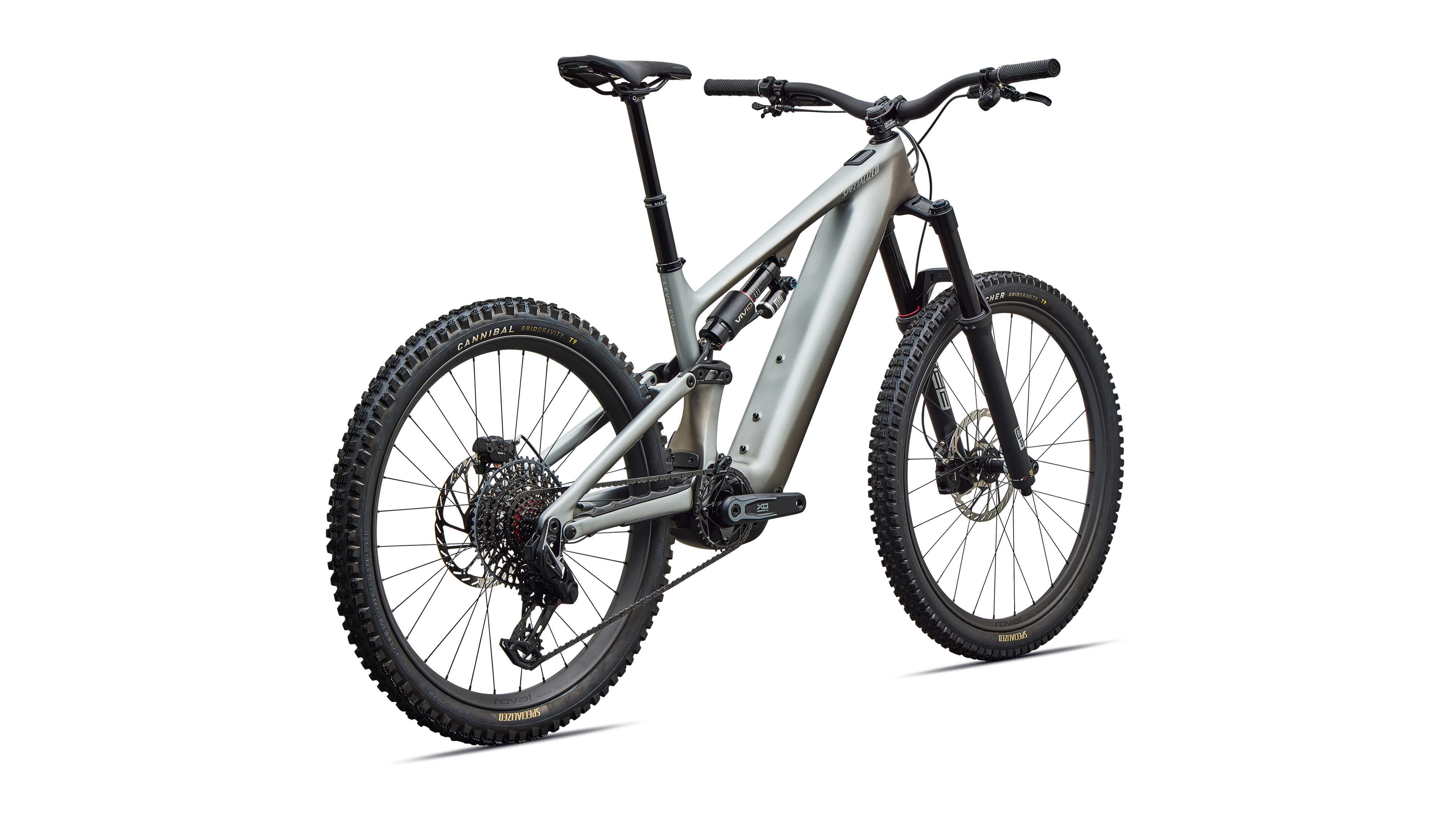

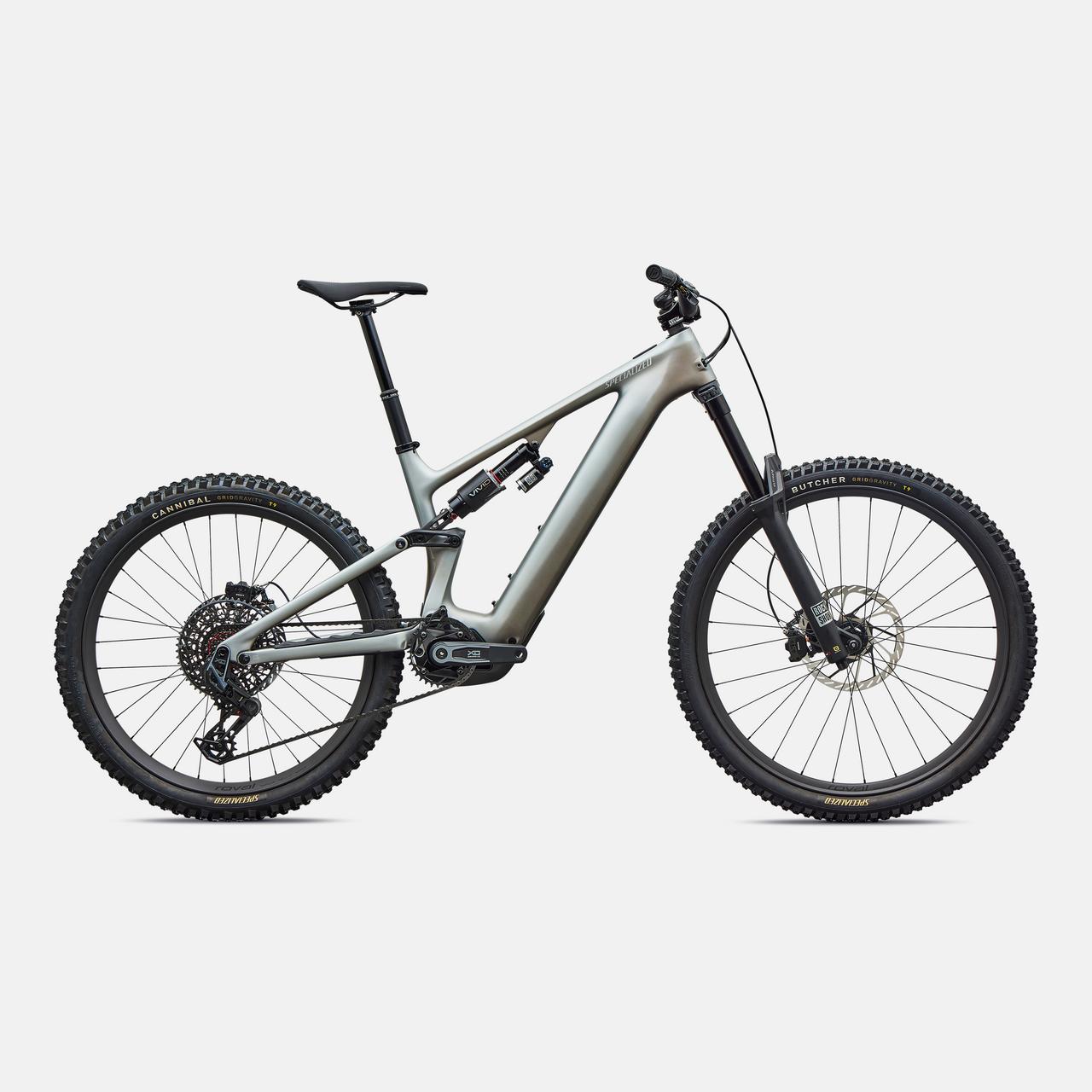

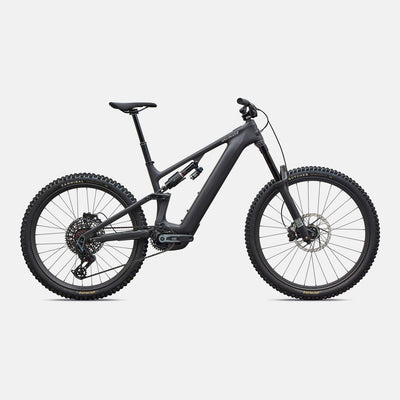

Levo 4 EVO Pro
95227-1102
Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on public roads.
Size Guide
Expertly built and shipped within 3-4 business days.
Free shipping on orders over $250, excludes bikes.
Levo 4 EVO Pro
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours from Tuesday to Saturday.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Product Details
Product Description
E-System - Specialized 3.1 Motor w/ 810 Watts & 105 Nm, 840 Wh Battery, up to 5 hour range w/ optional Range Extender
Frame - Levo EVO FACT 11m carbon frame, Geo Adj & SWAT Storage
Suspension - Fork: 180mm RockShox Zeb Ultimate
Shock: Vivid Ultimate Air Linear
Drivetrain - SRAM X0 Eagle Transmission
Wheels - Traverse HD with DT Swiss 350 hubs
Frameset
Frame
Levo Evo FACT 11m carbon frame, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm rear travel, 29" front wheel/27.5" rear wheel, adjustable head tube angle, chainstay length, integrated SWAT storage
Seat Binder
Alloy, 38.6mm
SWAT
SWAT Internal downtube storage
Suspension
Rear Shock
All New Vivid Ultimate air, 230x62.5mm, Linear XL spring, RCT2 damper w/HSC and LCS adjust, and HBO adjust, rebound adjust
Fork
All New SRAM FS ZEB Ultimate, 29" 180mm, Linear XL spring with ButterCups and adjustable bottom out, new Charger 3.2 damper with HSC and LSC, rebound adjust
Cockpit
Seat Post
Bike Yoke Revive Max 3.0, 34.9, S2:125mm, S3:160mm, S4: 185mm, S5/S6:213mm
Saddle
Bridge Expert with MIMIC, Hollow Ti rails
Stem
Deity, 35mm clamp, 42mm length
Grips
Deity Lockjaw, Lock On, 32mm OD, 133mm Length, Black

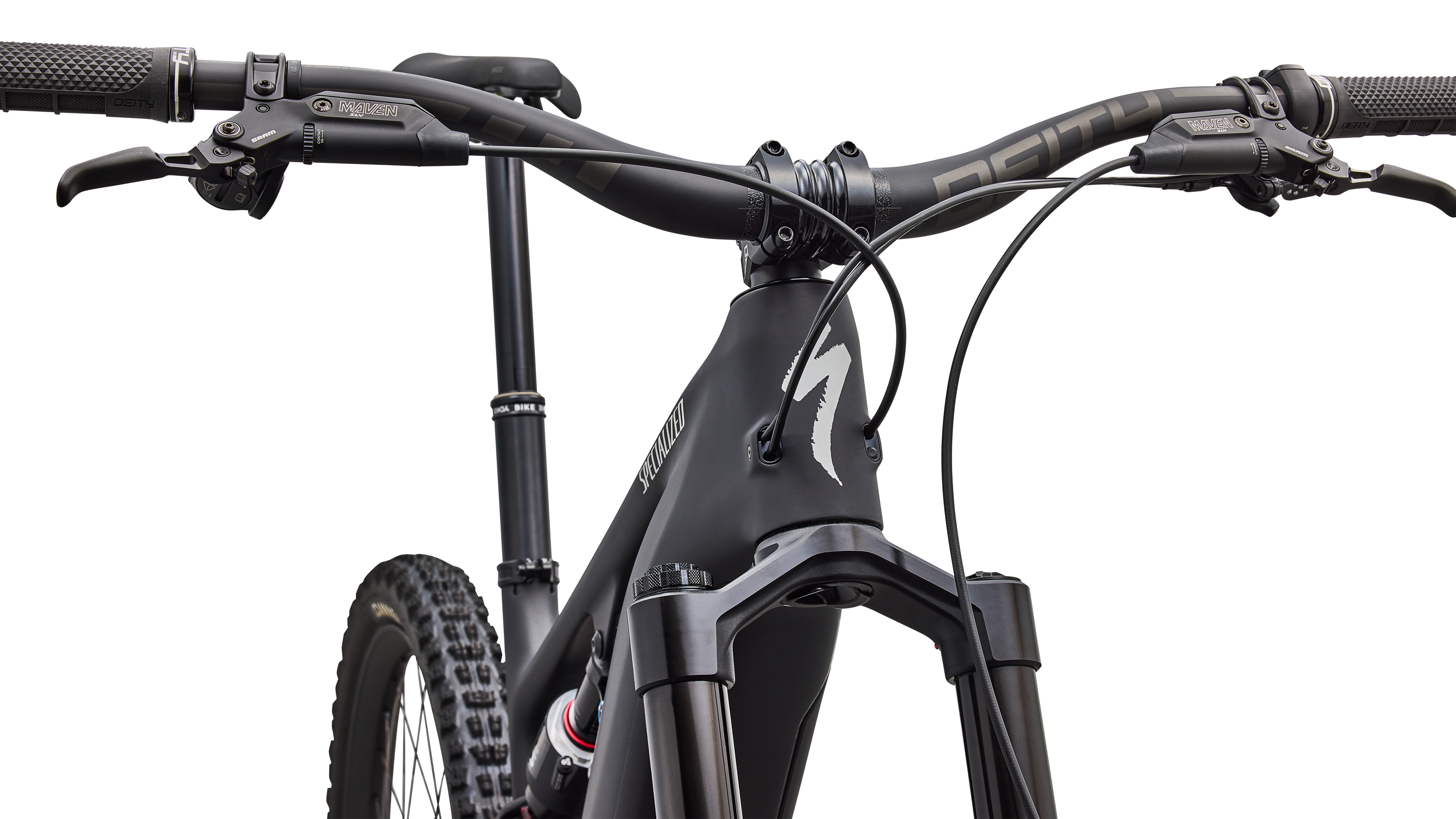

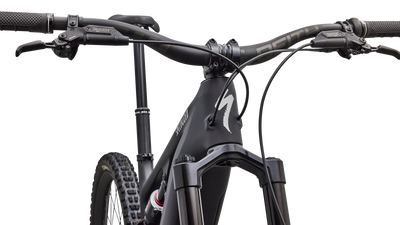

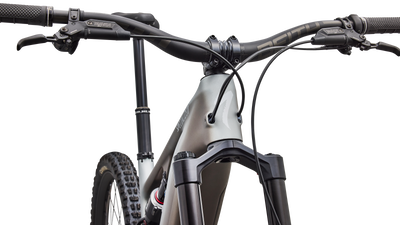

Handlebars
Deity Speedway Carbon, 5-degree upsweep, 9-degree backsweep. S1-S2: 810 width, 30mm rise: S3-S6: 810 width, 50mm rise
Brakes
Front Brake
SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm rotor
Rear Brake
SRAM Maven Silver, 4-piston caliper, hydraulic disc, 200mm rotor
Drivetrain
Shift Levers
SRAM AXS Pod Controller w/discrete clamp
Rear Derailleur
SRAM X0 Eagle Transmission
Cassette
SRAM XS 1295, 12 speed, 10-52
Shift Levers
SRAM AXS Pod Controller w/discrete clamp
Crankset
SRAM XO Alloy crank, 155mm, ISIS interface
Chain
SRAM X0 Eagle Transmission 12-Speed Flattop Chain
Chain Ring
SRAM 34t T-Type chainring, 104 BCD, steel
Wheels & Tyres
Front Wheel
Traverse HD Carbon 29" rim, DT Swiss 350, 29, 28H, carbon rim, 30mm inner width
Rear Wheel
Traverse HD 350, 27.5", 32H, carbon rim, 30mm inner width, DT Swiss 350 hub, 12x148
Butcher, GRID Gravity, T9 compound, TLR, 29x2.4"
Butcher, GRID Gravity, T9 compound, TLR, 29x2.4"
Cannibal GRID Gravity T9 TLR Downhill Tire 27.5x2.4"
Cannibal GRID Gravity T9 TLR Downhill Tire 27.5x2.4"
Tubes
Standard, Presta Valve
Electric
Motor
Specialized 3.1 Motor, 105Nm torque, 810W power
UI Remote
Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My
Battery
840Wh battery
Charger
Specialized 4amp charger
