Specialized

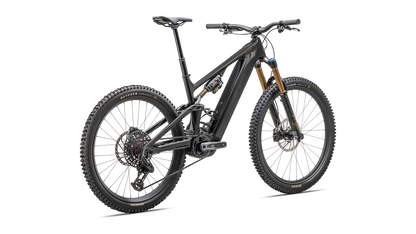

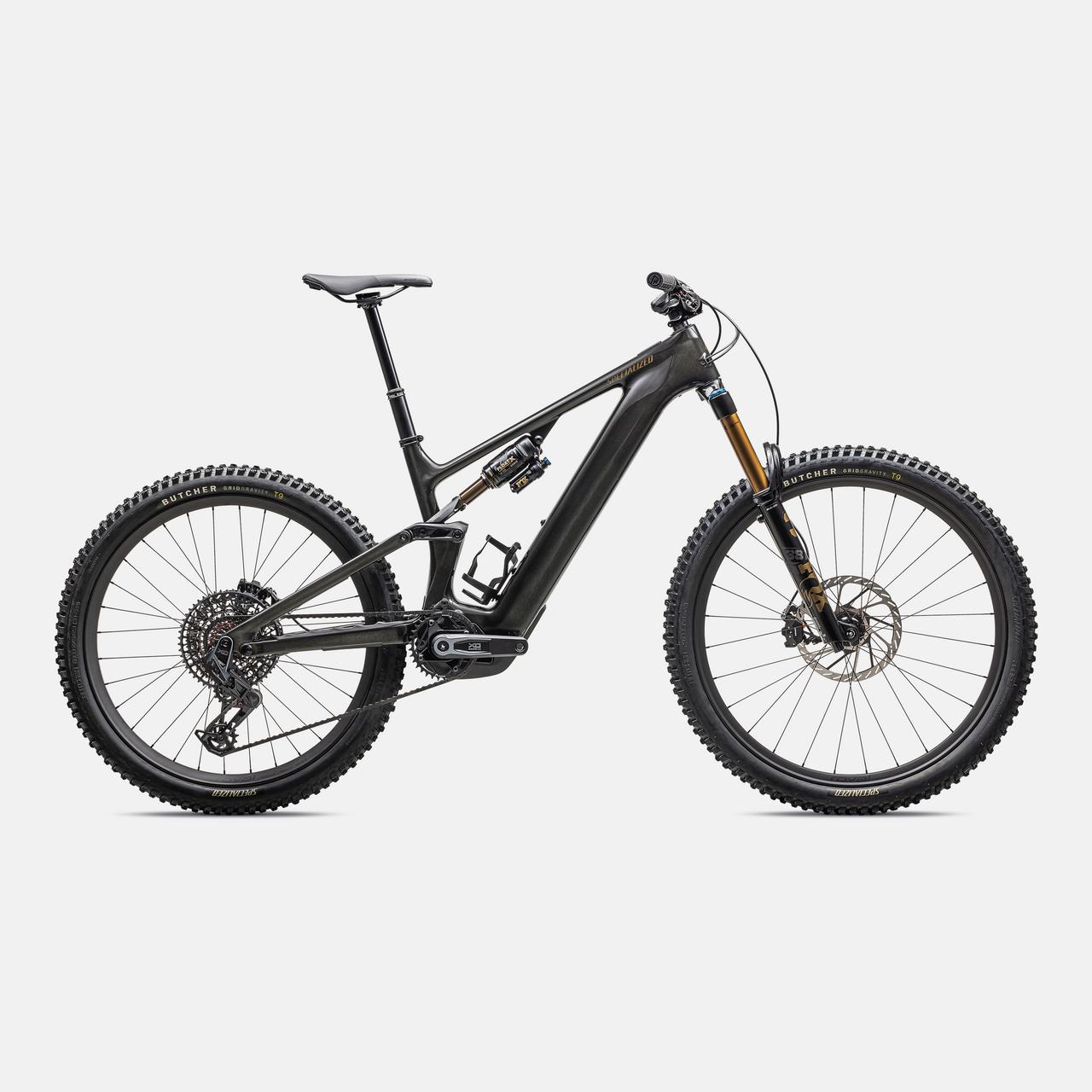

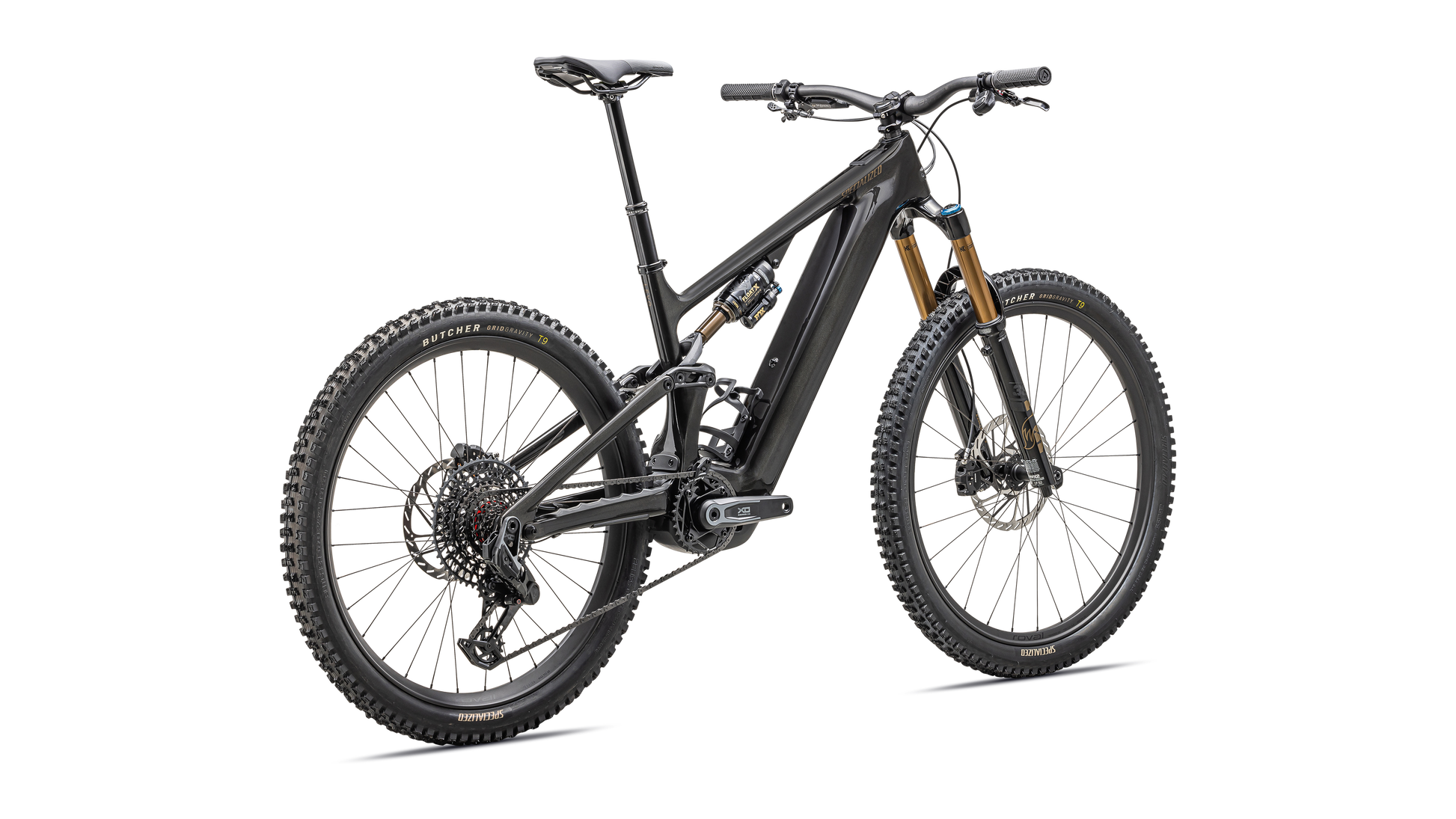

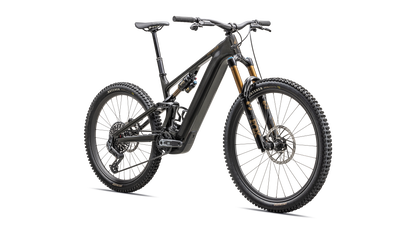

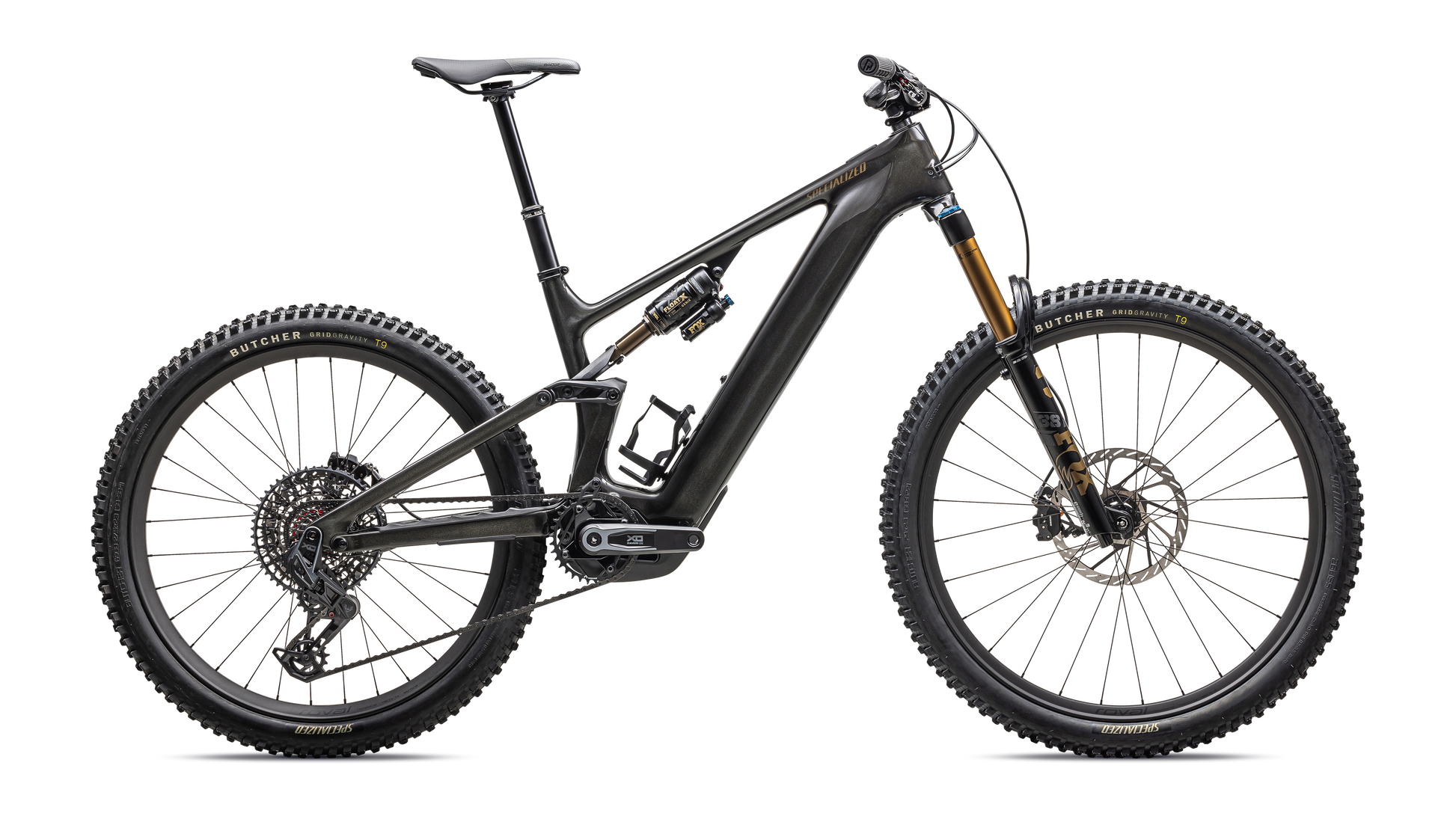

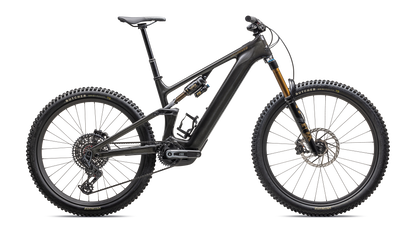

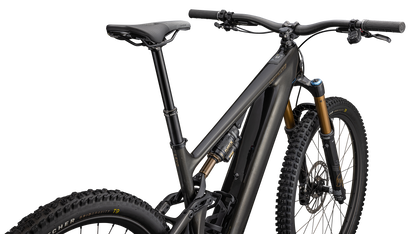

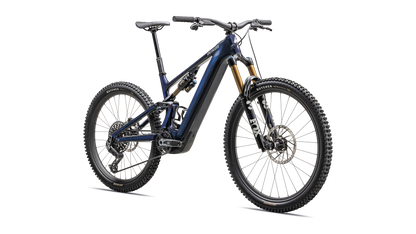

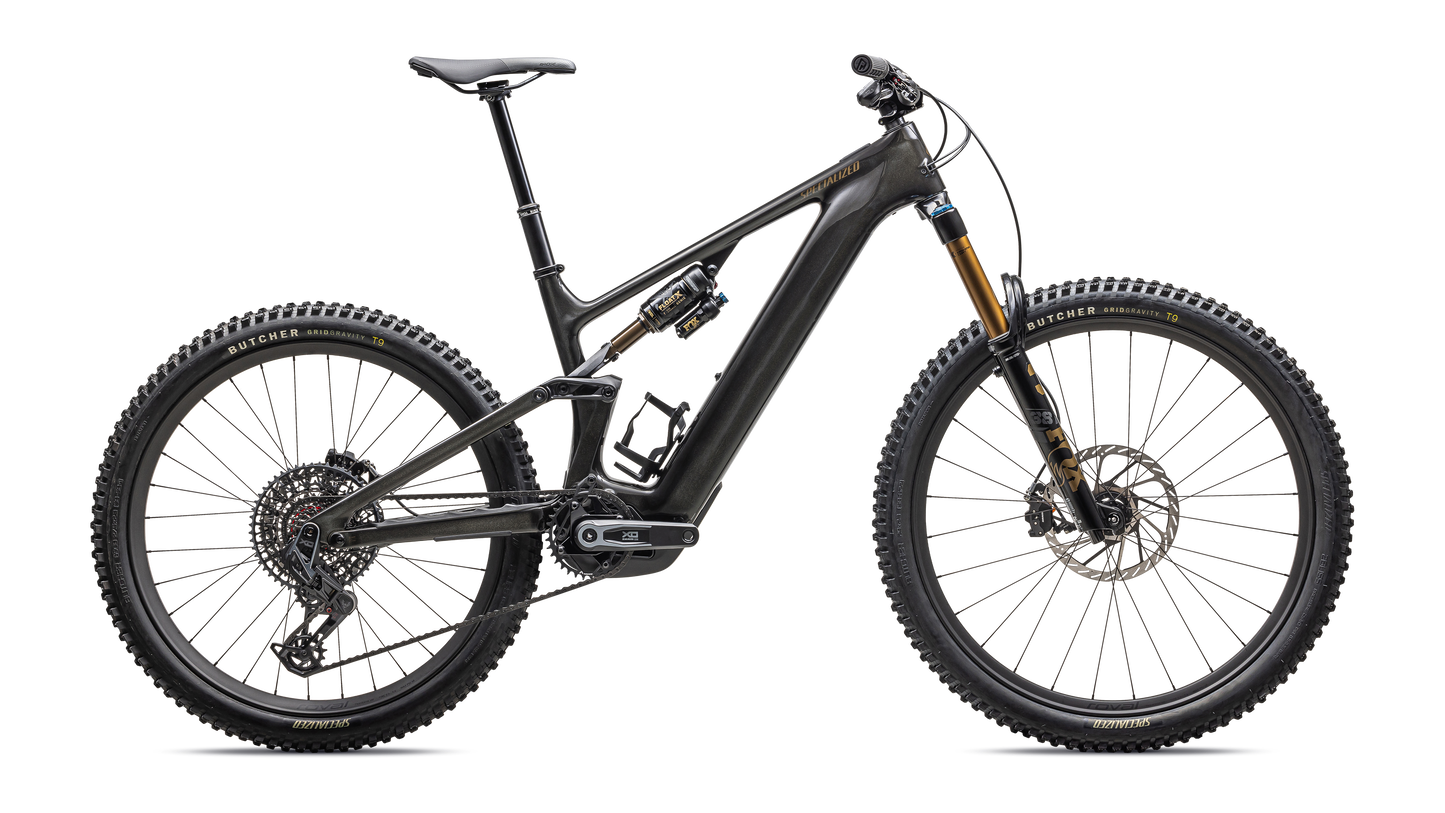

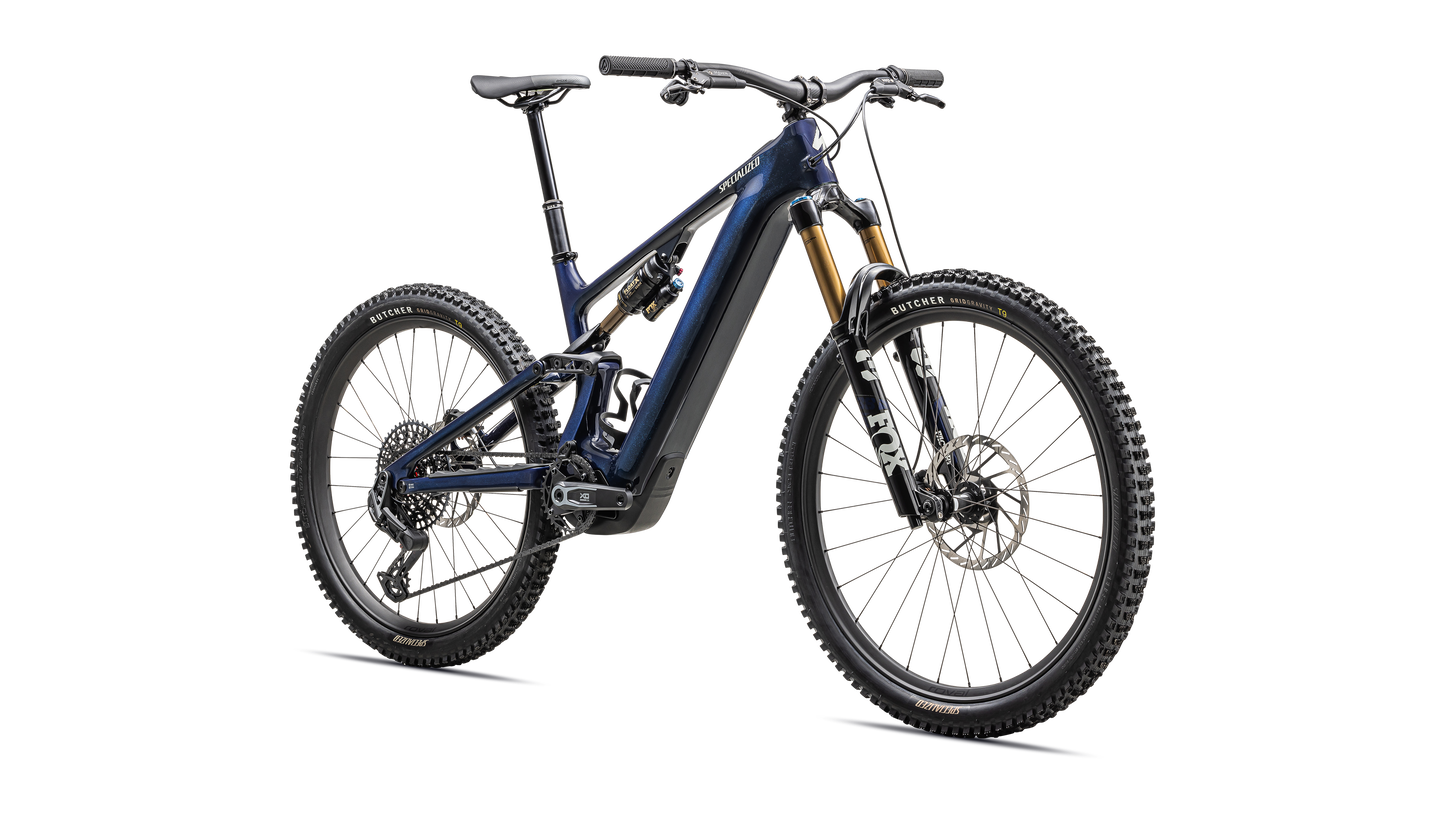

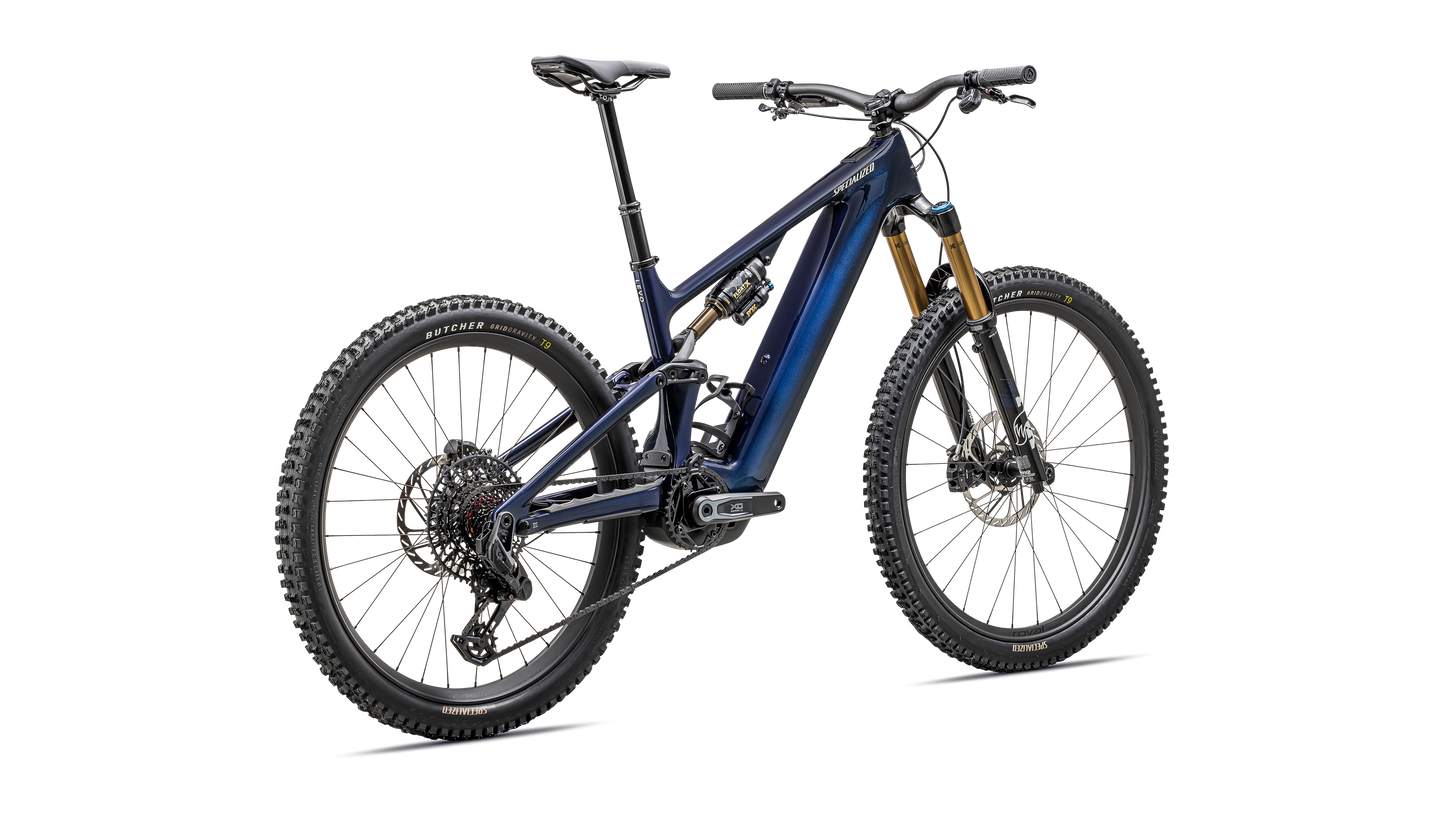

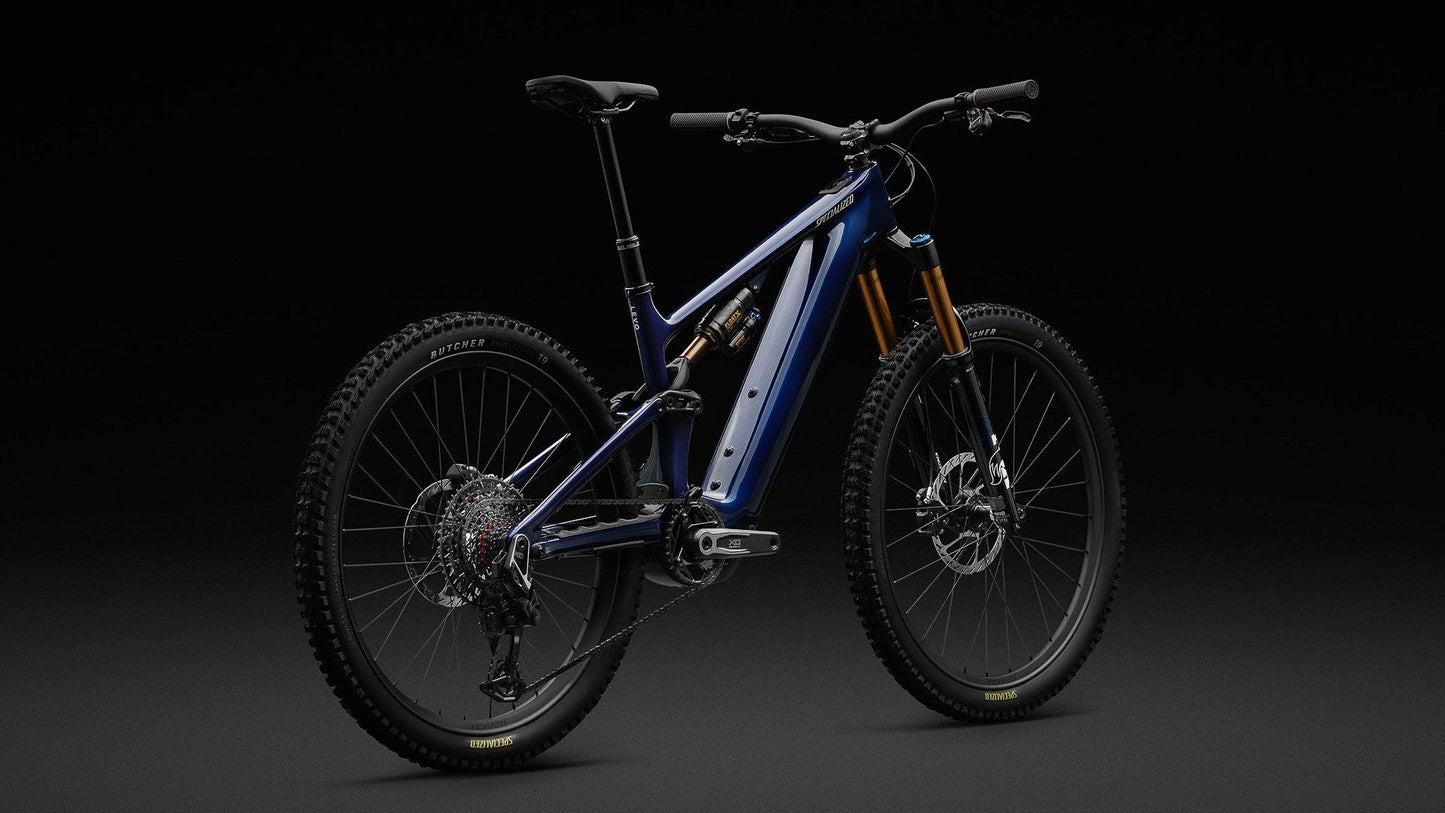

Turbo Levo 4 Pro

Turbo Levo 4 Pro

95224-1003

$17,900.00
$17,900.00
Sale Contact Us for Availability
Tax included.
Colour
Size
View Size Guide
View full details

Product Details

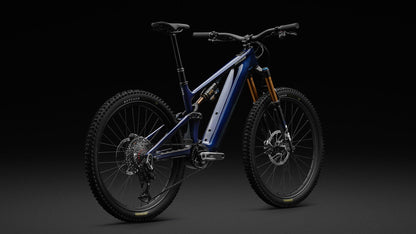

The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural. Use - Full Power E-MTB Trail

E-System - Specialized 3.1 Motor w/ 666 Watts & 101 Nm, 840 Wh Battery, up to 5.33 hour range

Frame - FACT 11m Carbon, Geo Adj & SWAT Storage

Suspension - Front: 160mm FOX 38 FACTORY GRIPX2, Rear: 150mm GENIE - FOX FLOAT X Factory

Drivetrain - SRAM XO Eagle T-Type AXS

Wheels - Roval Traverse HD Carbon / DT 350







Technical Specifications

Frameset

Frame

All new Levo 4 frame, FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, w/ SWAT storage, 150mm of travel, side entry battery, fork travel up to 180mm

Seat Binder

Alloy, 38.6mm

SWAT

SWAT internal downtube storage

Suspension

Rear Shock

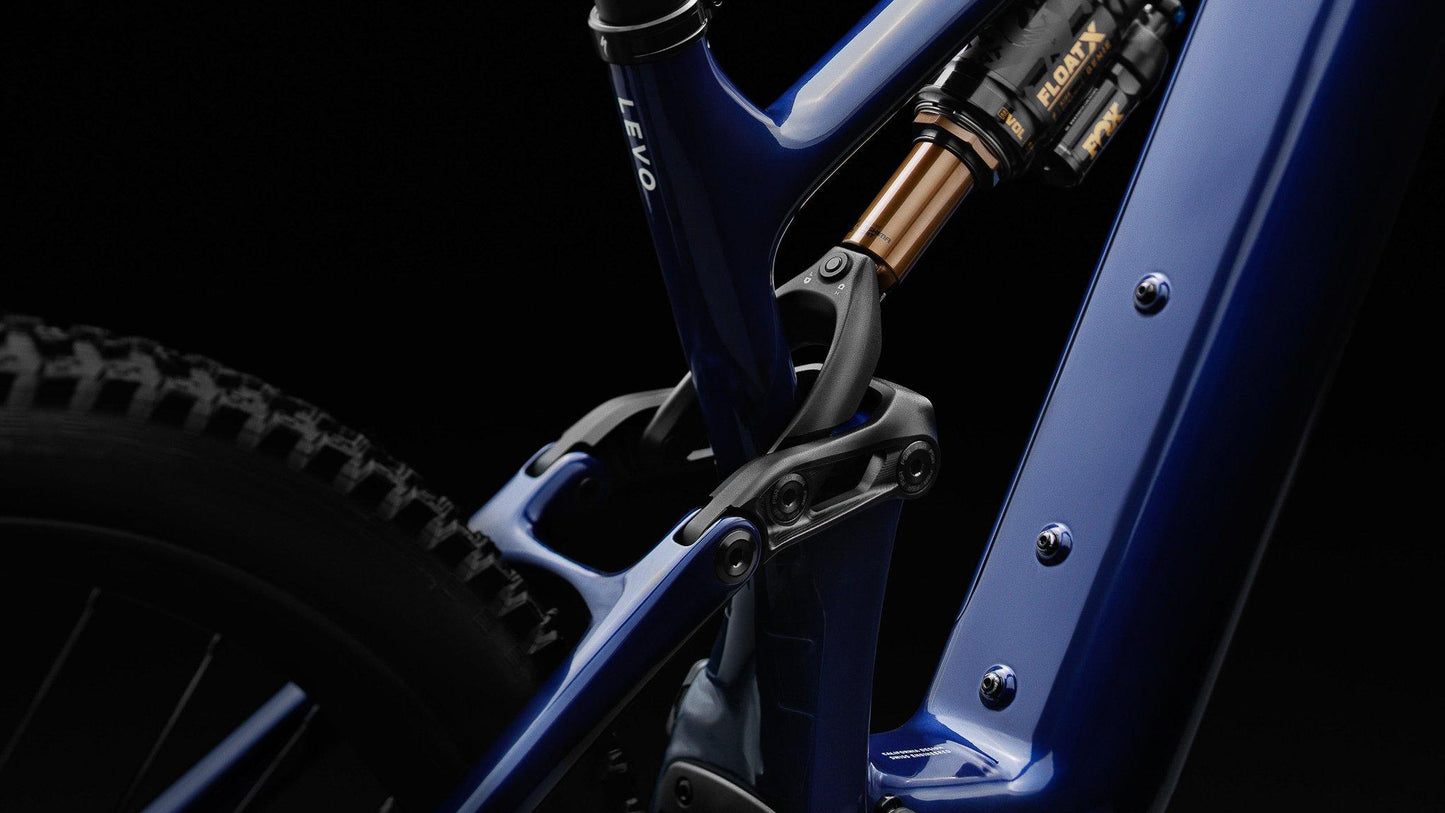

FOX FLOAT X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment, 210x55mm

Fork

FOX FLOAT 38 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm axle, 44mm offset, 160mm of travel

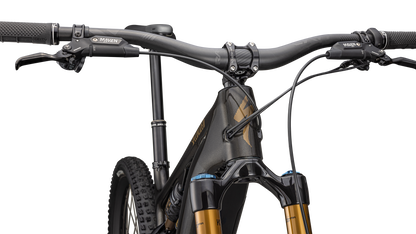

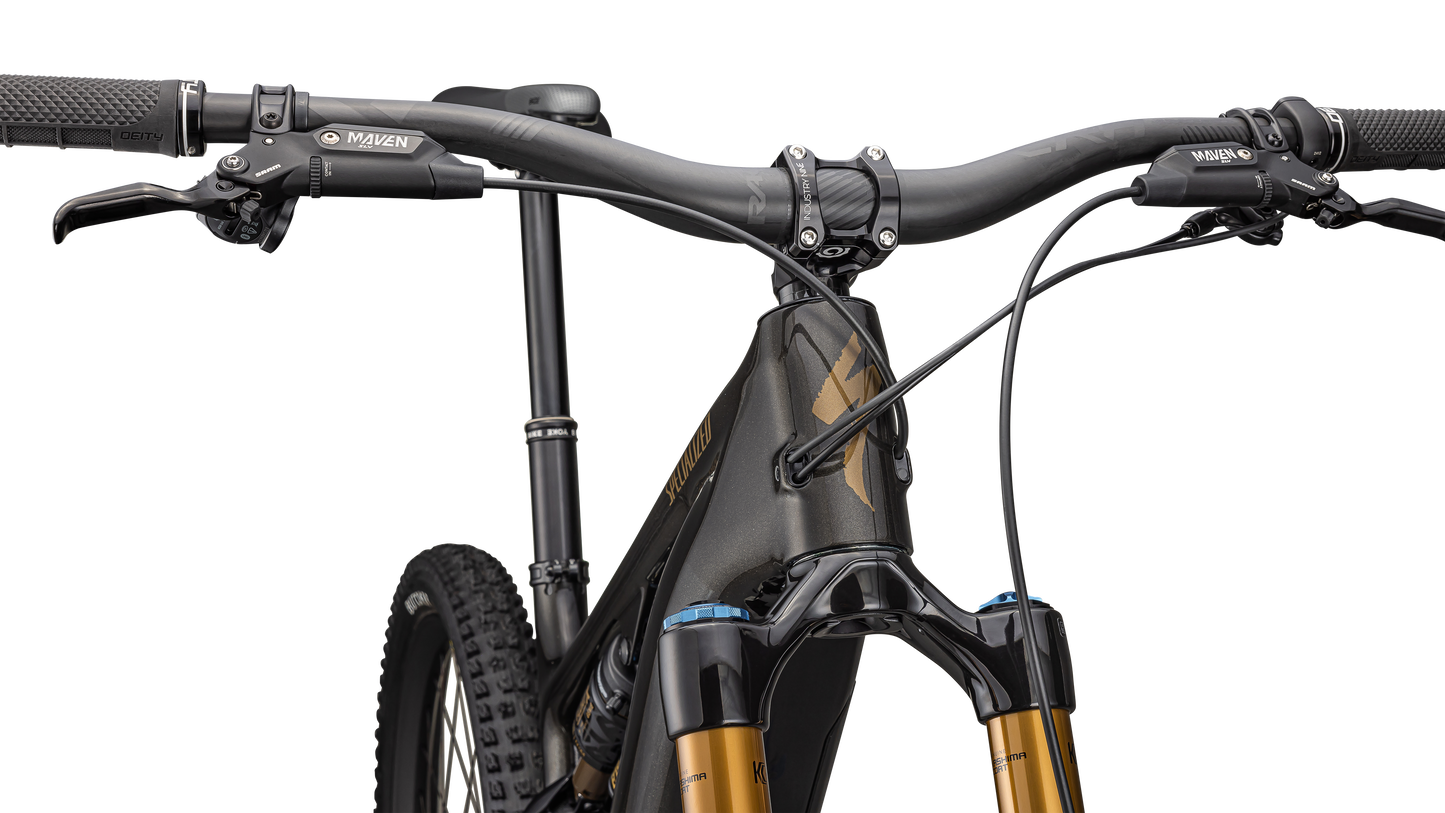

Cockpit

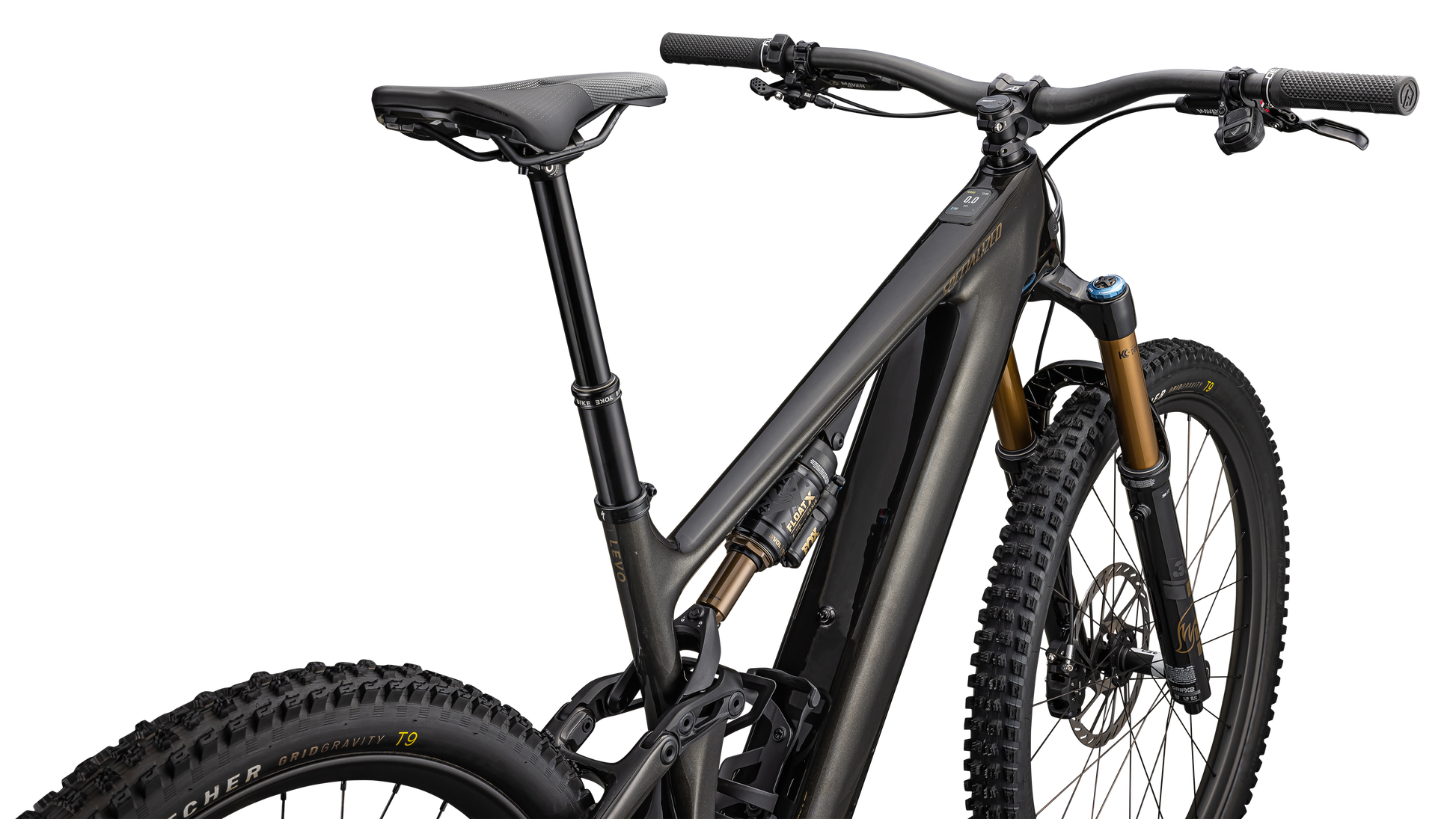

Seat Post

Bike Yoke Revive Max 3.0, 34.9, S2:125mm, S3:160mm, S4: 185mm, S5/S6:213mm

Saddle

Bridge Mimic Expert, Hollow Ti rails

Stem

Industry 9 Mountain stem, 35mm clamp, 40mm length

Grips

Deity Lockjaw grips

RaceFace Era Carbon, riser bar, 5-degree upsweep, 8-degree backsweep, S2:20mm Rise, S3-S6:40mm Rise, 800mm

RaceFace Era Carbon, riser bar, 5-degree upsweep, 8-degree backsweep, S2:20mm Rise, S3-S6:40mm Rise, 800mm

Brakes

Front Brake

SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm HS2 Rotor

Rear Brake

SRAM Maven Silver, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor

Drivetrain

Shift Levers

SRAM AXS POD Controller

Rear Derailleur

SRAM X0 Eagle Transmission

Cassette

SRAM XO 1295, 12 speed, 10-52

Shift Levers

SRAM AXS POD Controller

Crankset

SRAM XO Alloy crank, ISIS interface, 55mm Chainline, 155mm

Chain

SRAM X0

Chain Ring

SRAM 34T T-Type chainring, 104 BCD, steel

Wheels & Tyres

Front Wheel

Roval Traverse HD 29", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 350, 15x110, 28h

Rear Wheel

Roval Traverse HD 27.5", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 350, 12x148, 32h

Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"

Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"

Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"

Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"

Tubes

Standard, Presta valve

E-Bike

Motor

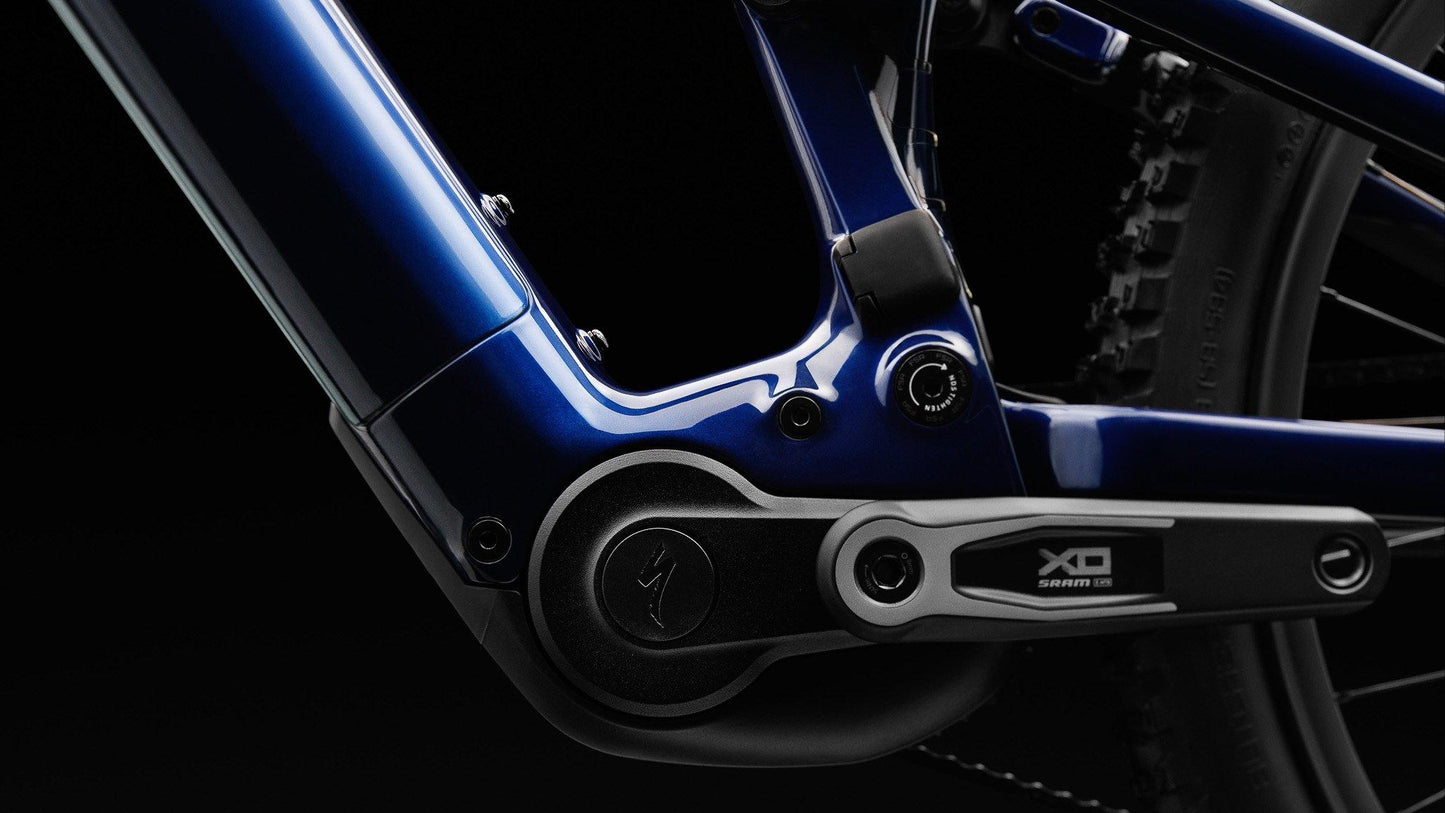

All New Specialized 3.1 Motor, 101Nm torque, 666W power

UI Remote

All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app

Battery

840wh battery

Charger

Specialized 4amp charger
