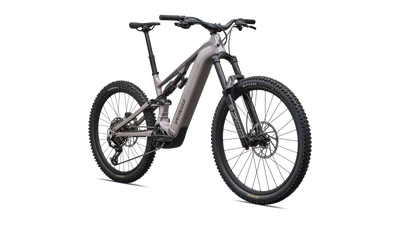

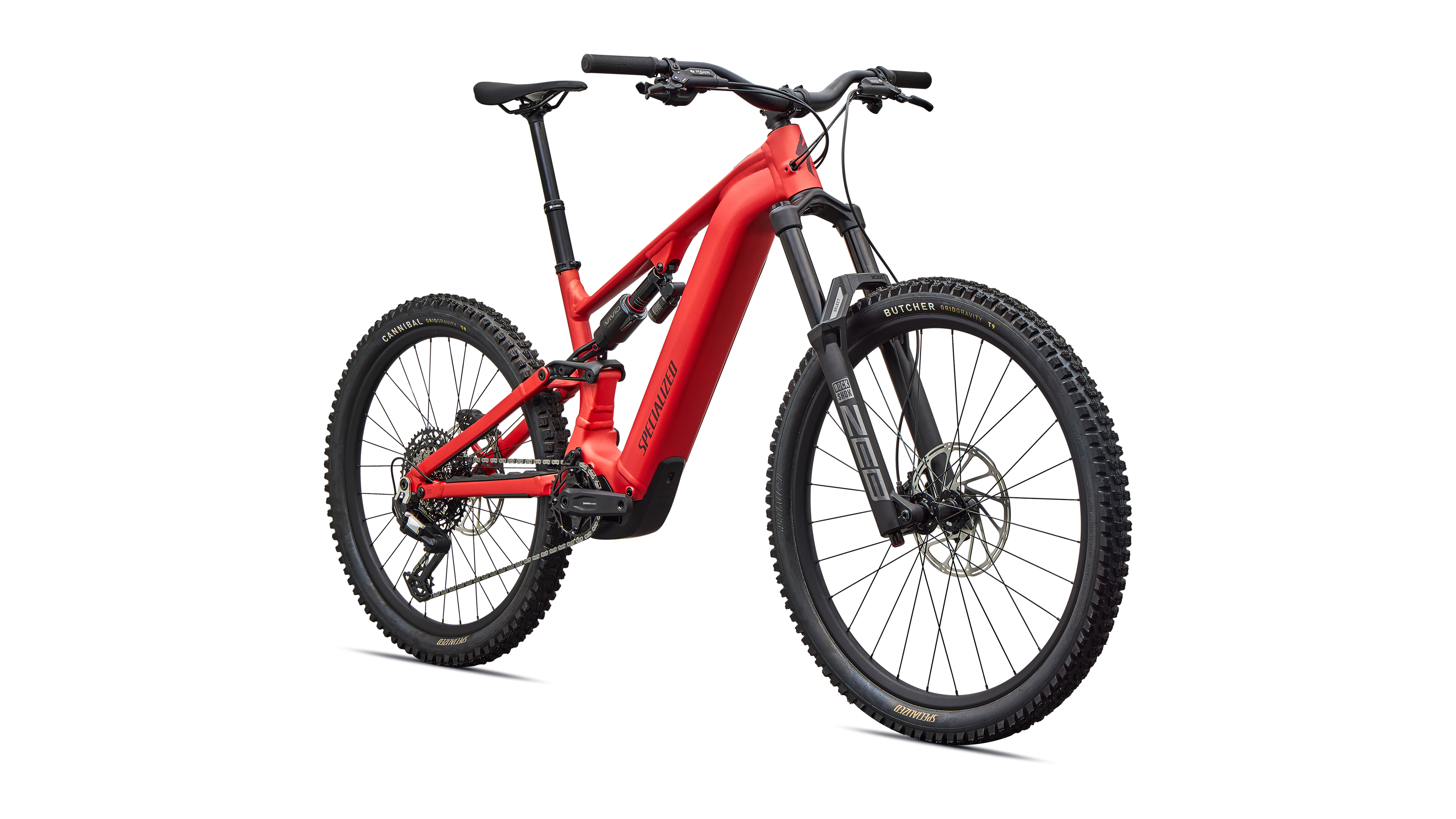

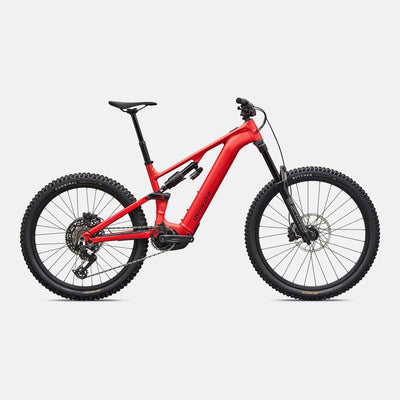

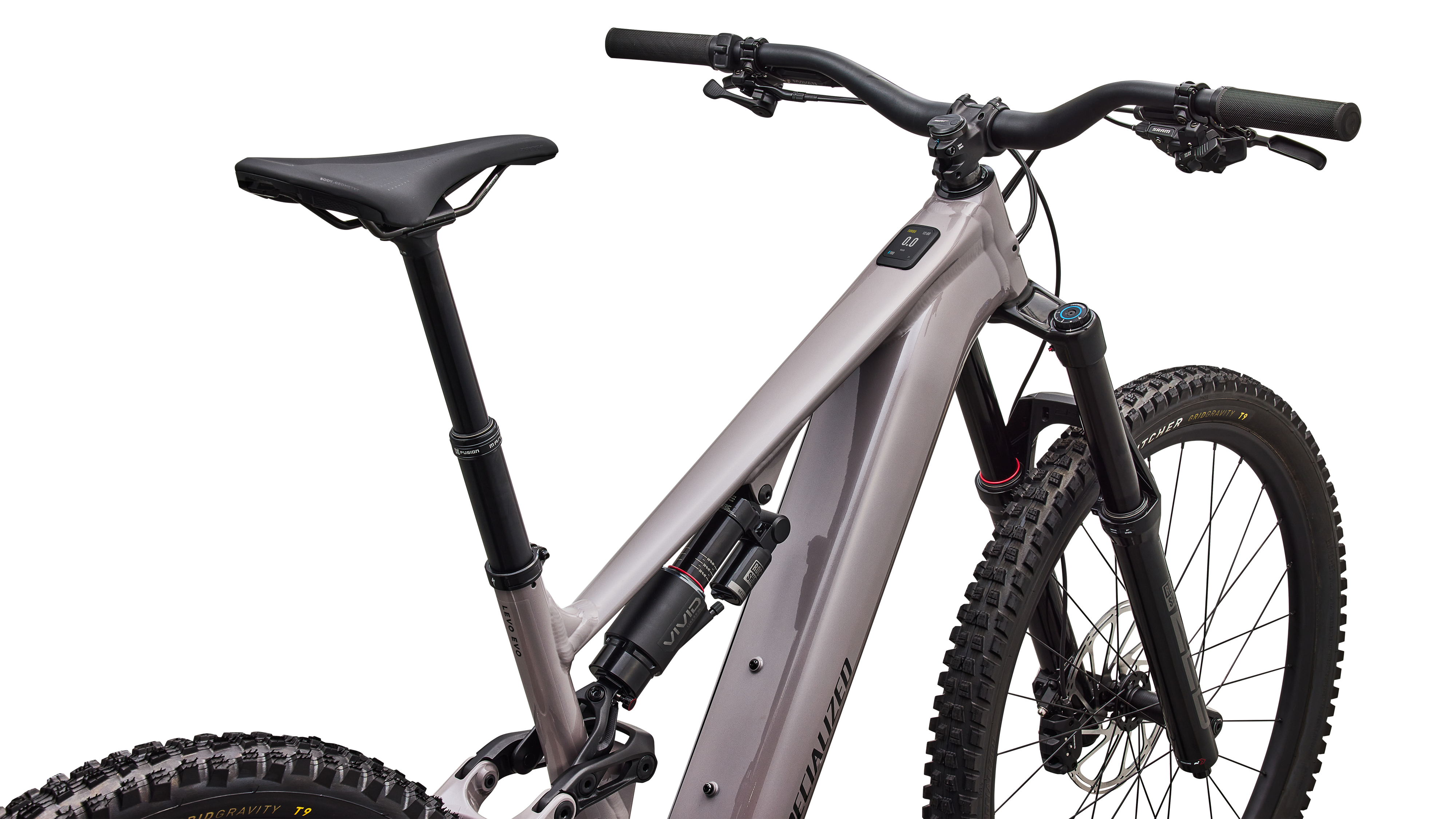

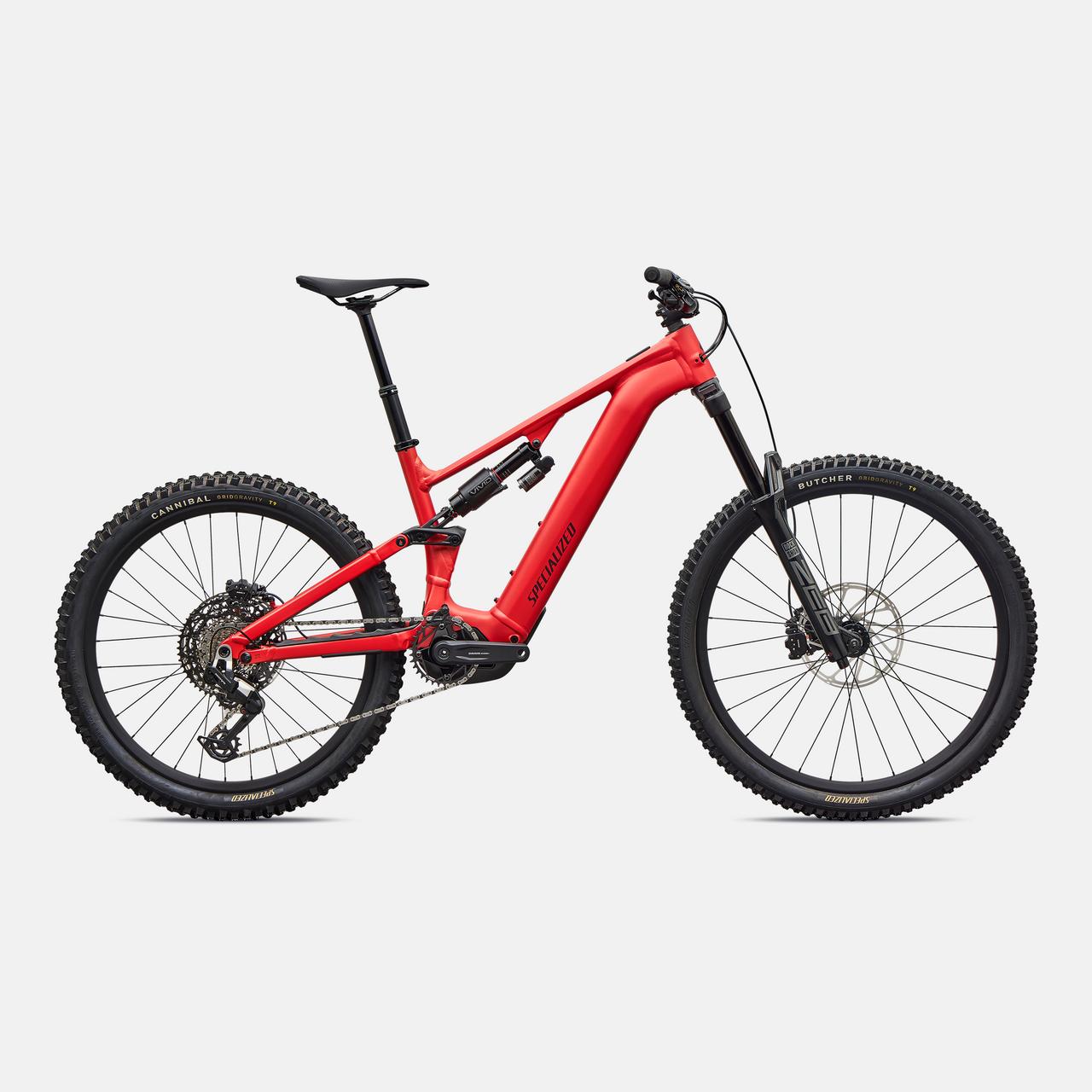

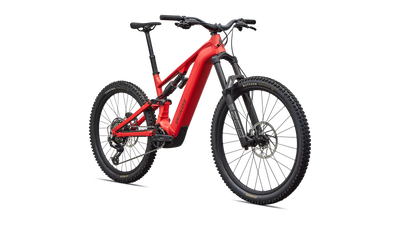

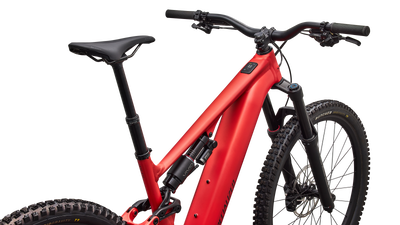

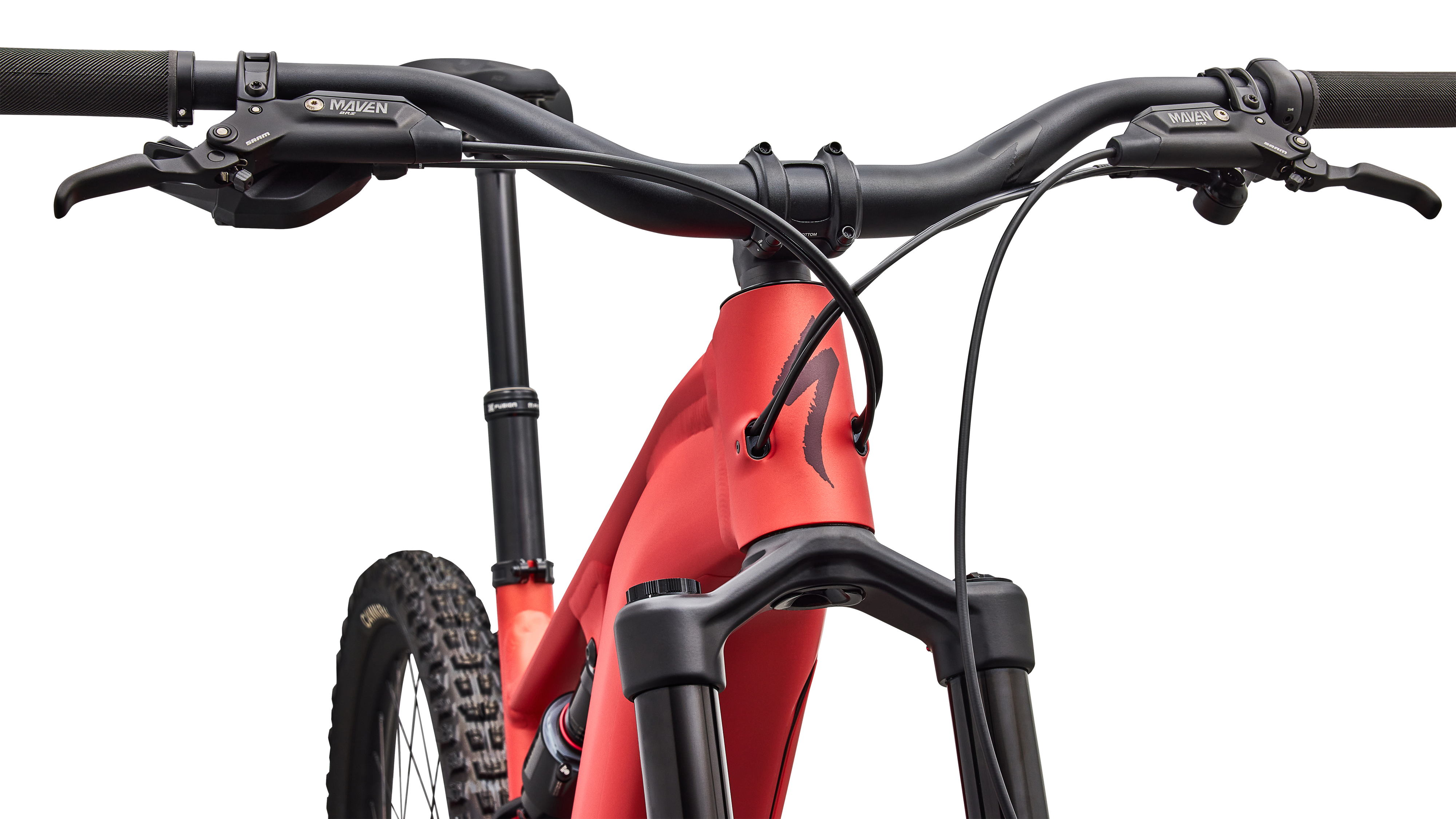

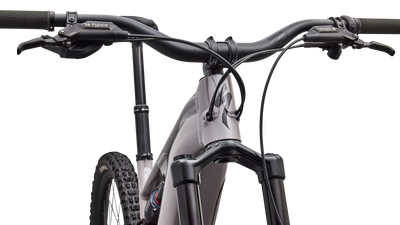

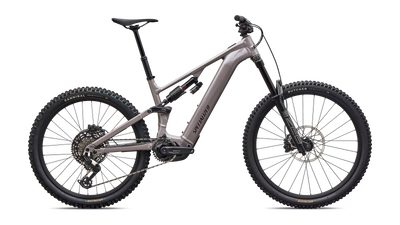

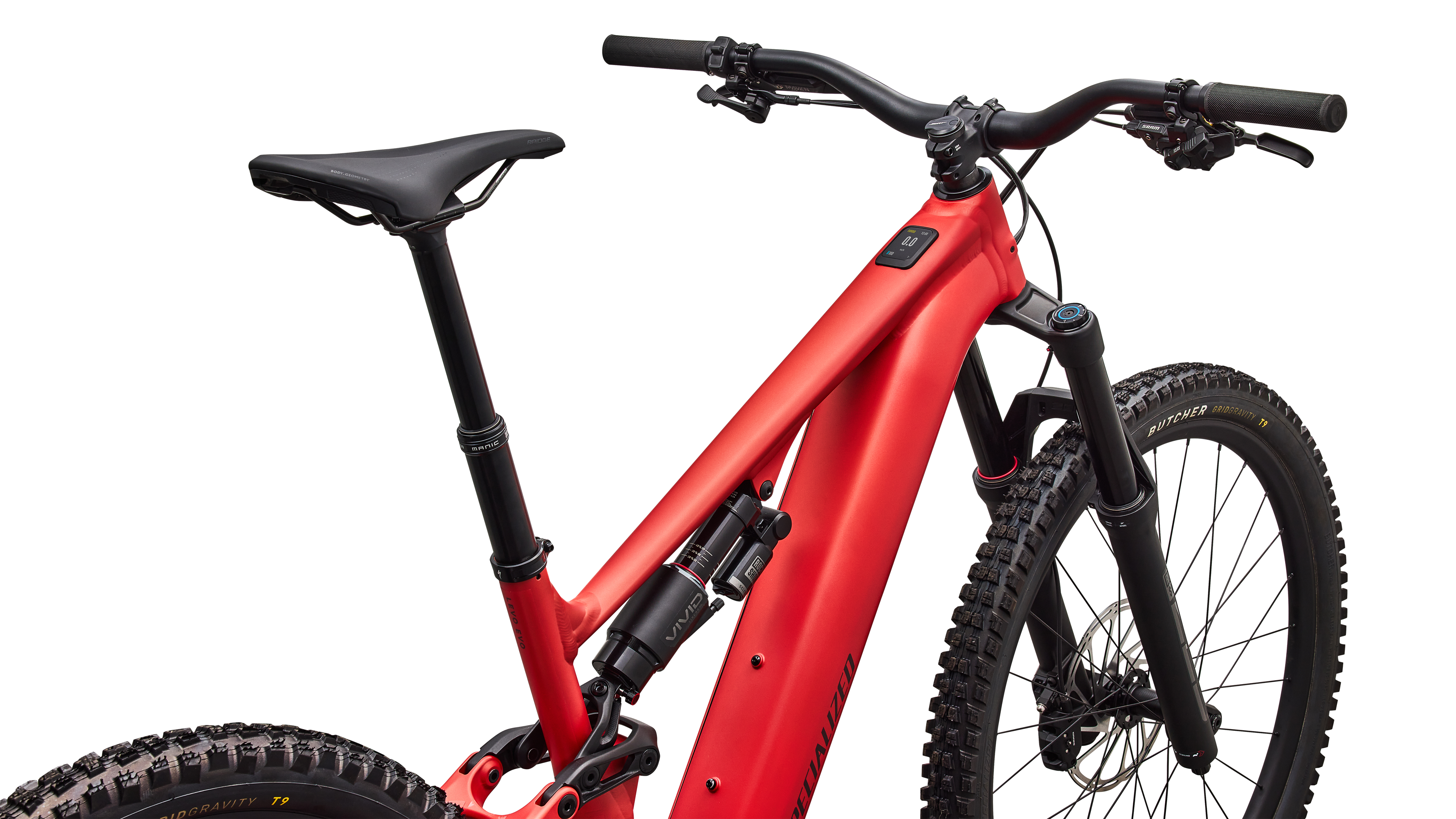

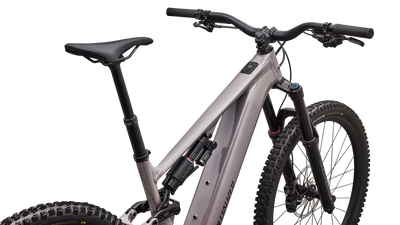

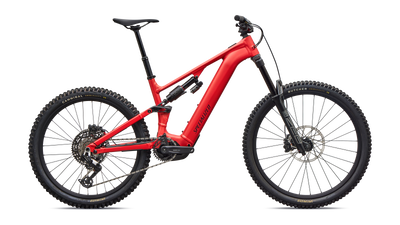

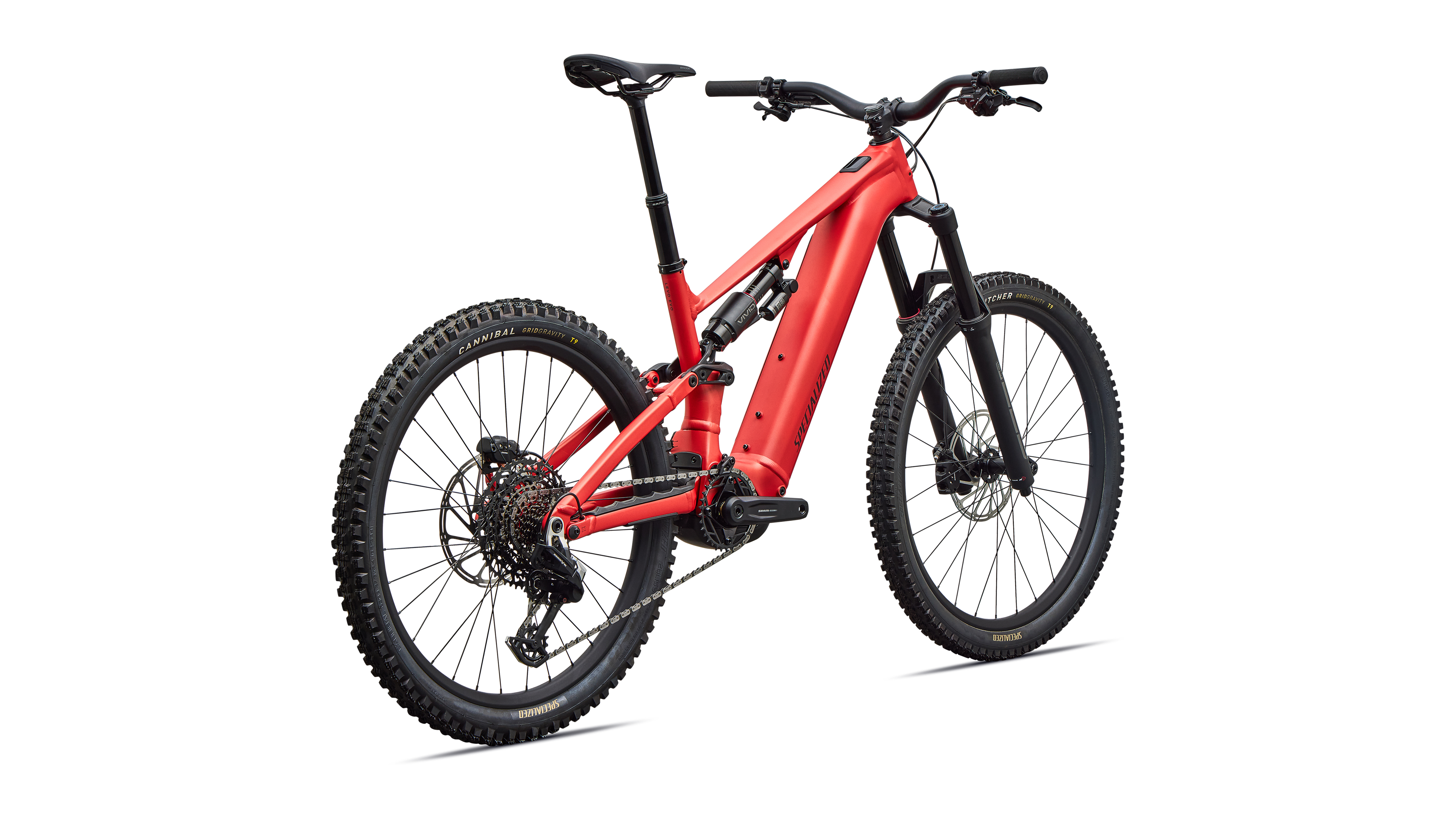

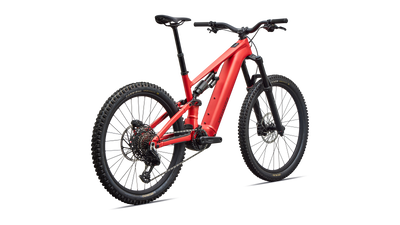

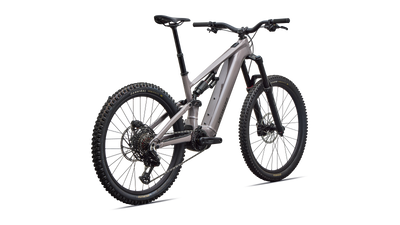

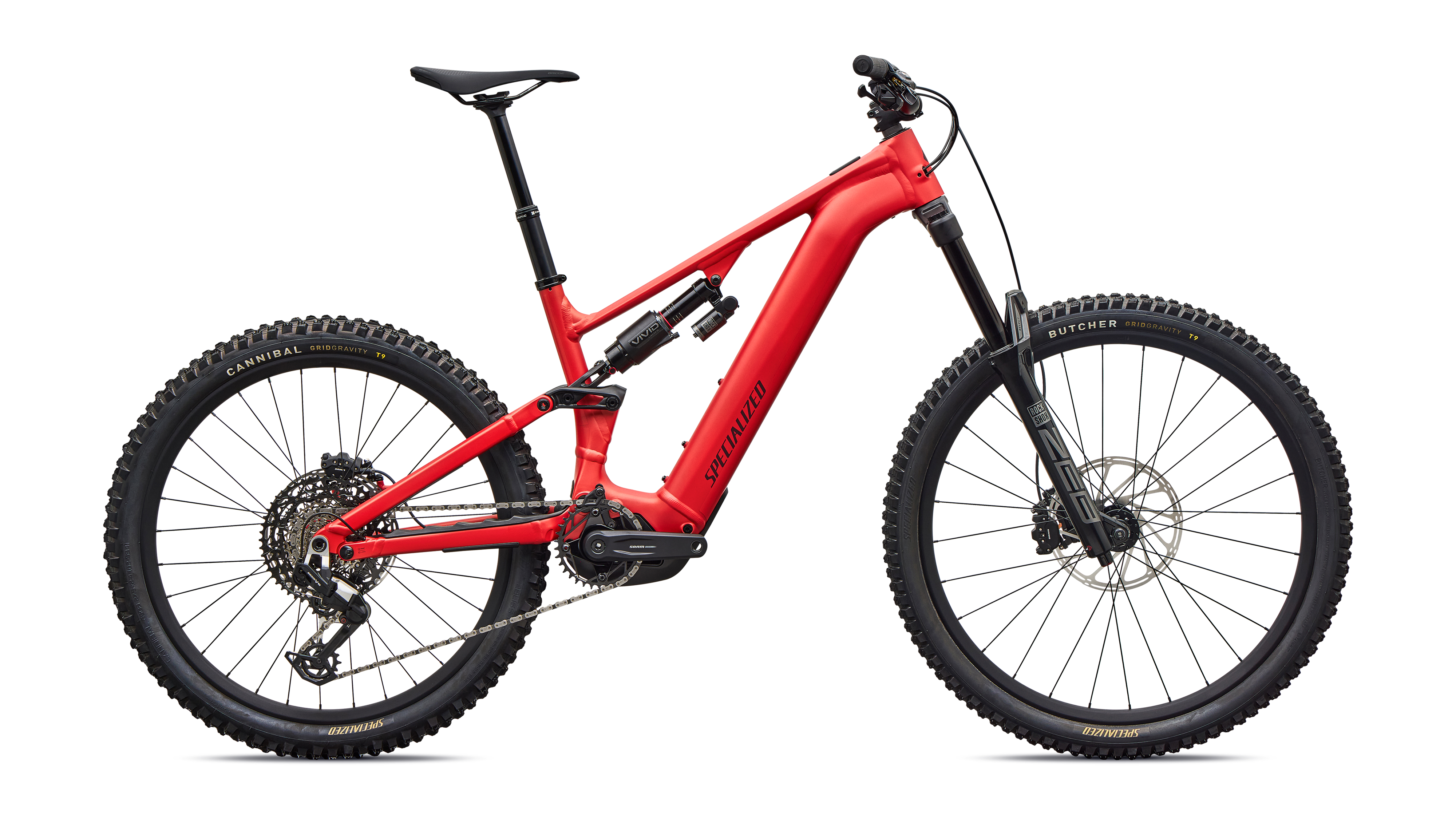

Levo 4 EVO Comp Alloy
95227-5402
Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on public roads.
Size Guide
Expertly built and shipped within 3-4 business days.
Free shipping on orders over $250, excludes bikes.
Levo 4 EVO Comp Alloy
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours from Tuesday to Saturday.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Product Details
Product Description
E-System - Specialized 3.1 Motor w/ 810 Watts & 105 Nm, 840 Wh Battery, up to 5 hour range w/ optional Range Extender
Frame - Levo EVO M5 alloy frame, Geo Adj & SWAT Storage
Suspension - Fork: 180mm RockShox Zeb Select
Shock: Vivid Select Air Linear
Drivetrain - SRAM Eagle 90 T-Type
Wheels - Sp[ecialized Alloy Wheels
Frameset
Frame
Levo 4 alloy frame, 150mm travel, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29" front wheel/27.5" rear wheel
Seat Binder
Alloy, 38.6mm
SWAT
SWAT Internal downtube storage
Suspension
Rear Shock
All New Vivid Select air, 230x62.5mm, Linear XL spring, RT damper w/climb switch, rebound adjust
Fork
All New SRAM FS ZEB Select, 29" 180mm, Linear XL spring, Delta RC damper, rebound adjust
Cockpit
Seat Post
Xfusion Manic, infinite adjustable, two bolt head, Remote SLR LE lever, 34.9, S2: 125mm, S3: 170mm, S4-S6: 190mm
Saddle
Bridge Comp, Hollow Cr-mo rails 155/143
Stem
Alloy Trail Stem, 35mm bar bore
Grips
Specialized Trail Grips

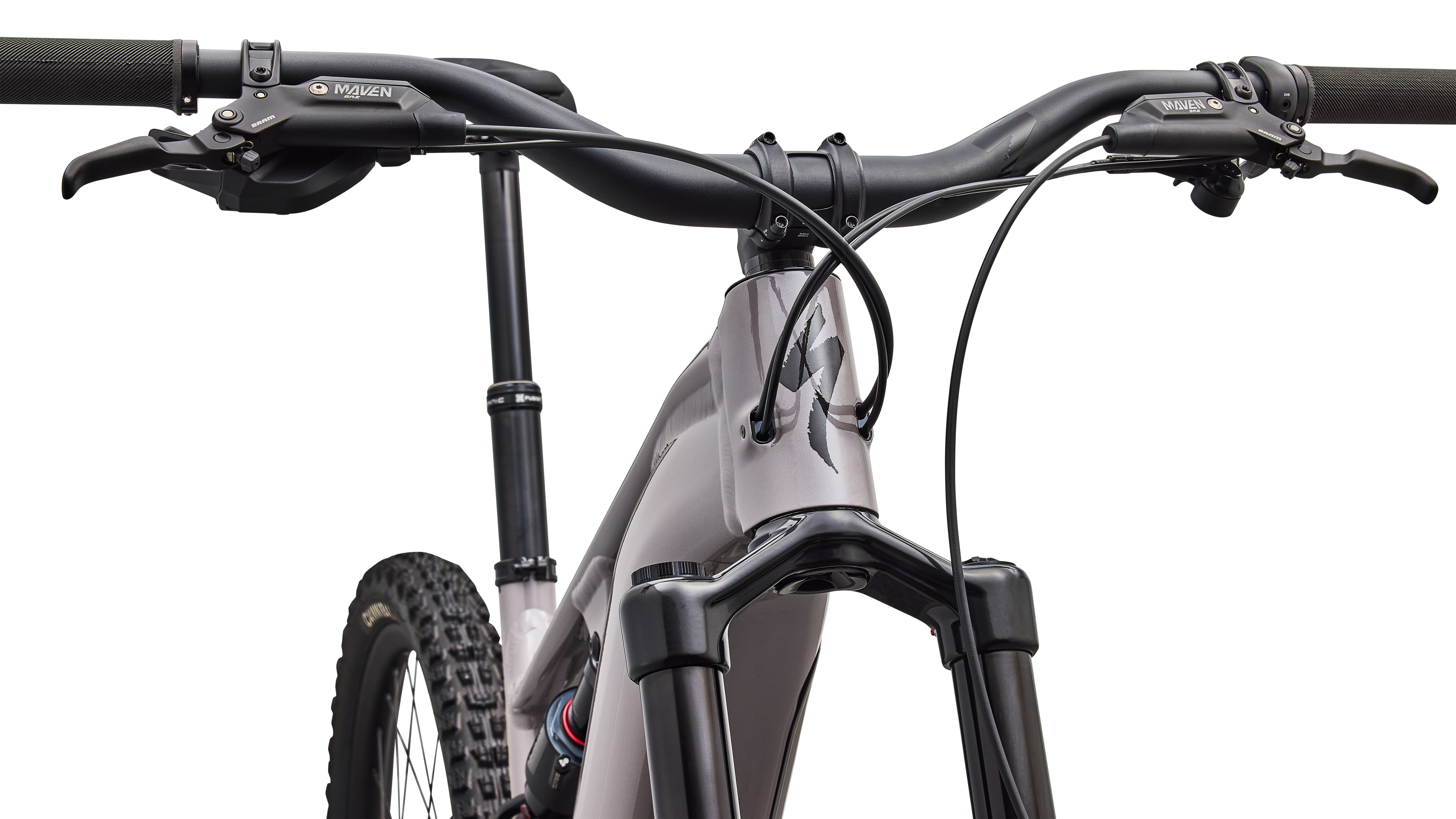

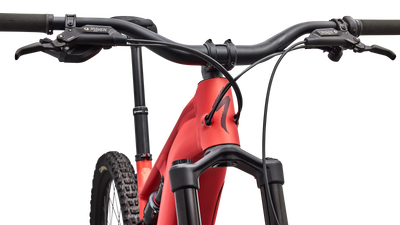

Handlebars
Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S1/S2: 780mm/30mm rise, S3-S6: 800mm/50mm rise
Brakes
Front Brake
SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm rotor
Rear Brake
SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 200mm rotor
Drivetrain
Shift Levers
SRAM Eagle 90T, single click, with MMX
Rear Derailleur
SRAM Eagle 90 T-Type
Cassette
SRAM 12-speed,10-52t
Shift Levers
SRAM Eagle 90T, single click, with MMX
Crankset
SRAM S1000 Alloy crank, ISIS interface, 155mm length
Chain
SRAM 70 Transmission 12-Speed Flattop Chain
Chain Ring
SRAM 34t T-Type chainring, 104 BCD, steel
Wheels & Tyres
Front Hub
Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 32h
Rear hub
Specialized alloy rear hub disc, sealed cartridge bearings, 6-Bolt, 12X148mm thru-axle, 28h, HG Steel Fhb
Rims
Specialized Alloy Rims
Butcher, GRID Gravity, T9 compound, TLR, 29x2.4"
Butcher, GRID Gravity, T9 compound, TLR, 29x2.4"
Cannibal GRID Gravity T9 TLR Downhill Tire 27.5x2.4"
Cannibal GRID Gravity T9 TLR Downhill Tire 27.5x2.4"
Spokes
DT Swiss Elemental
Tubes
Standard, Presta Valve
Electric
Motor
Specialized 3.1 Motor, 105Nm torque, 810W power
UI Remote
Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My
Battery
Specialized Turbo 840Wh integrated battery pack
Charger
Specialized 4amp charger
