Specialized

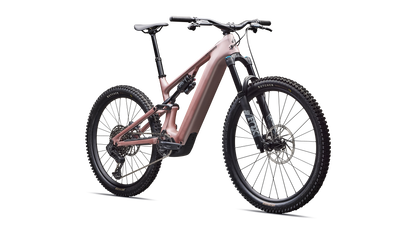

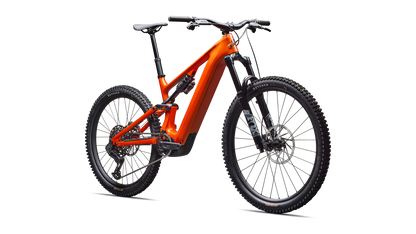

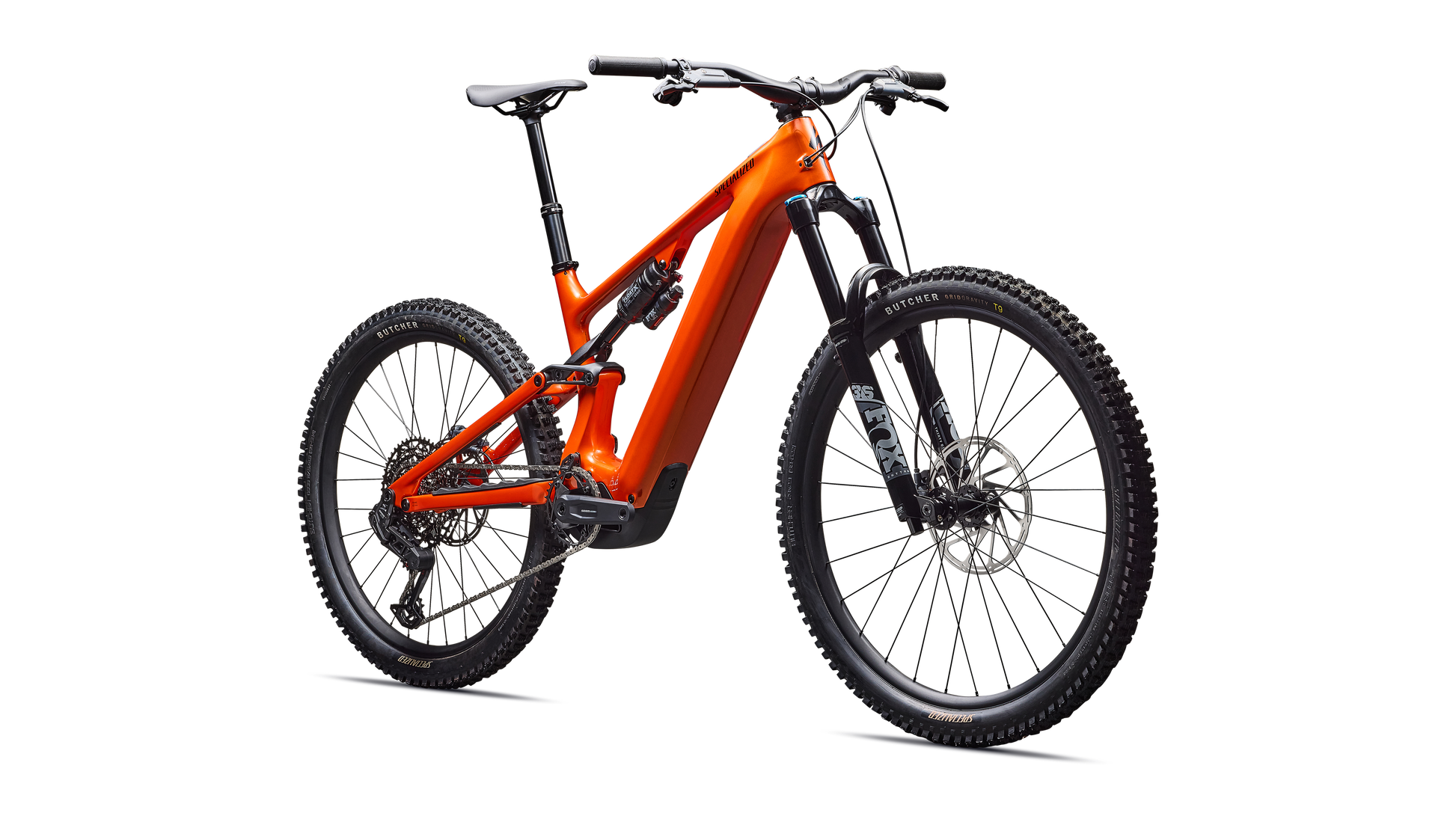

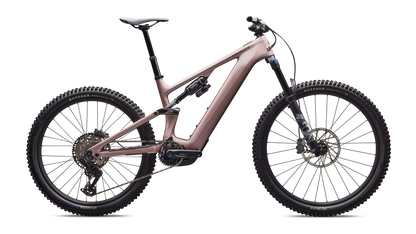

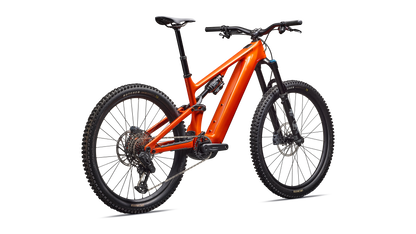

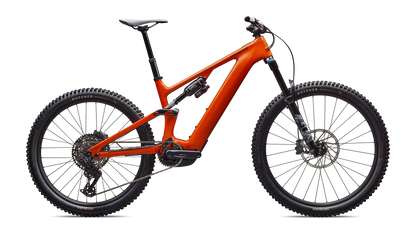

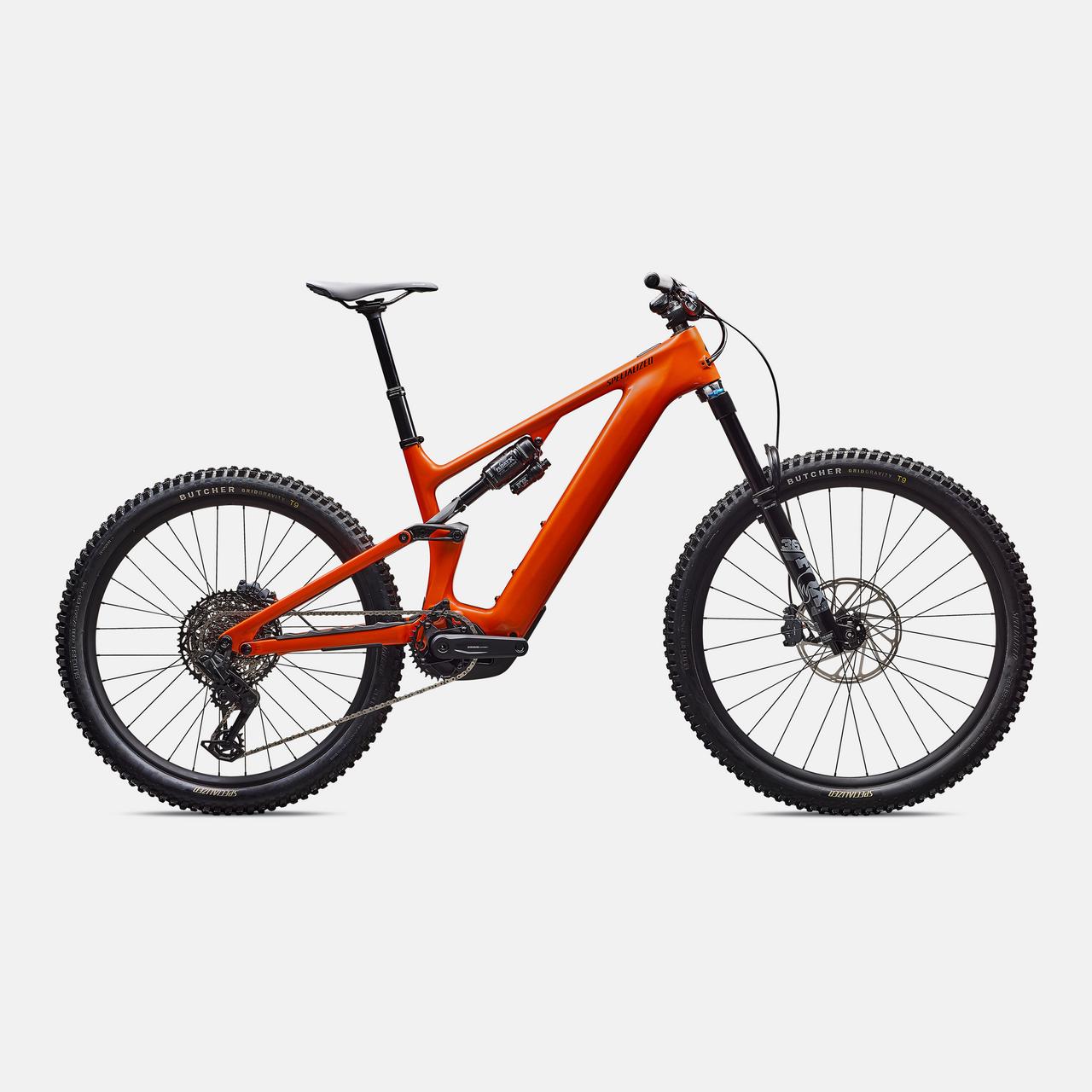

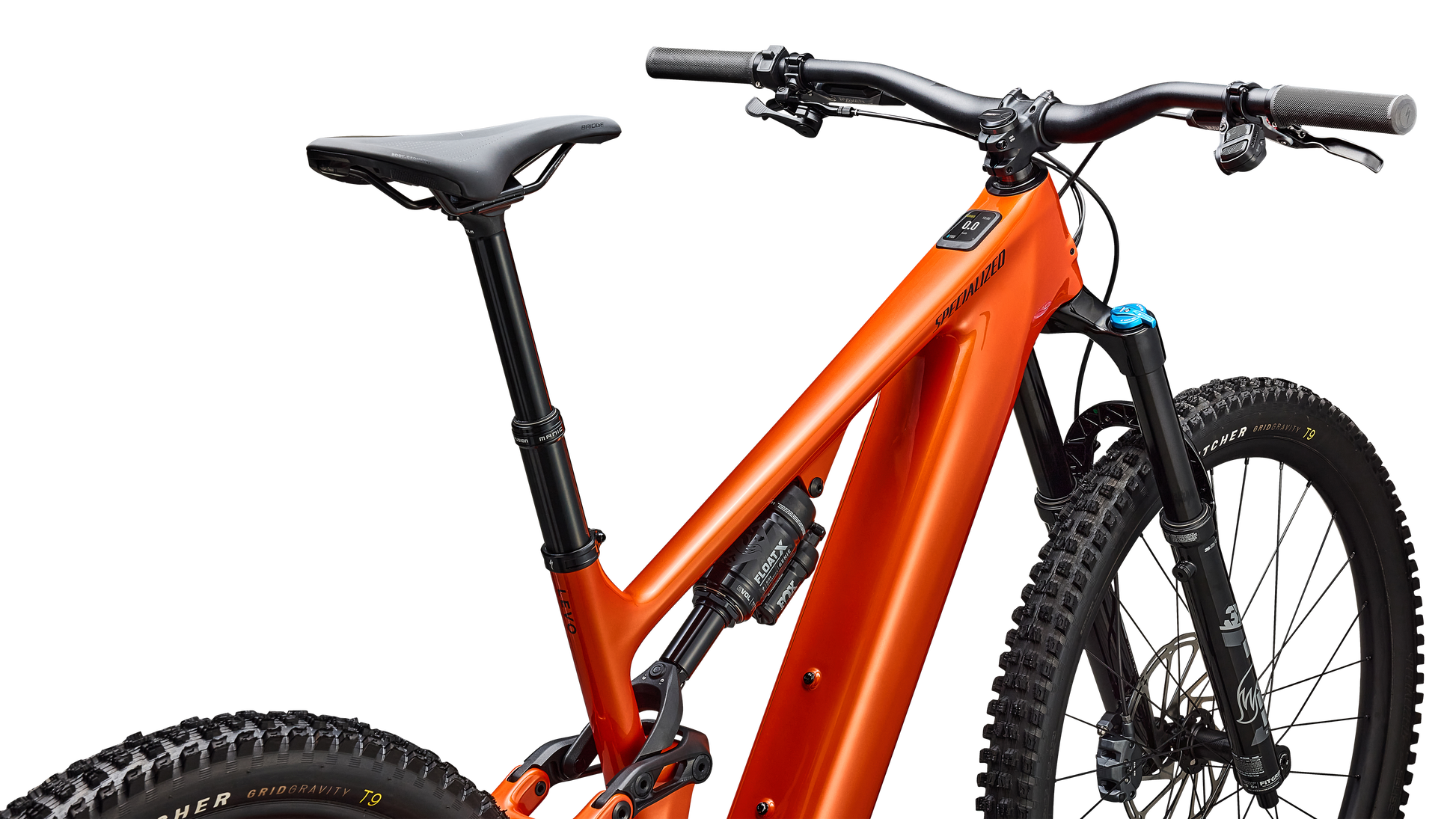

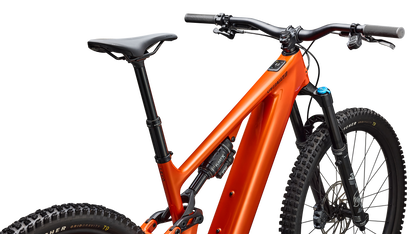

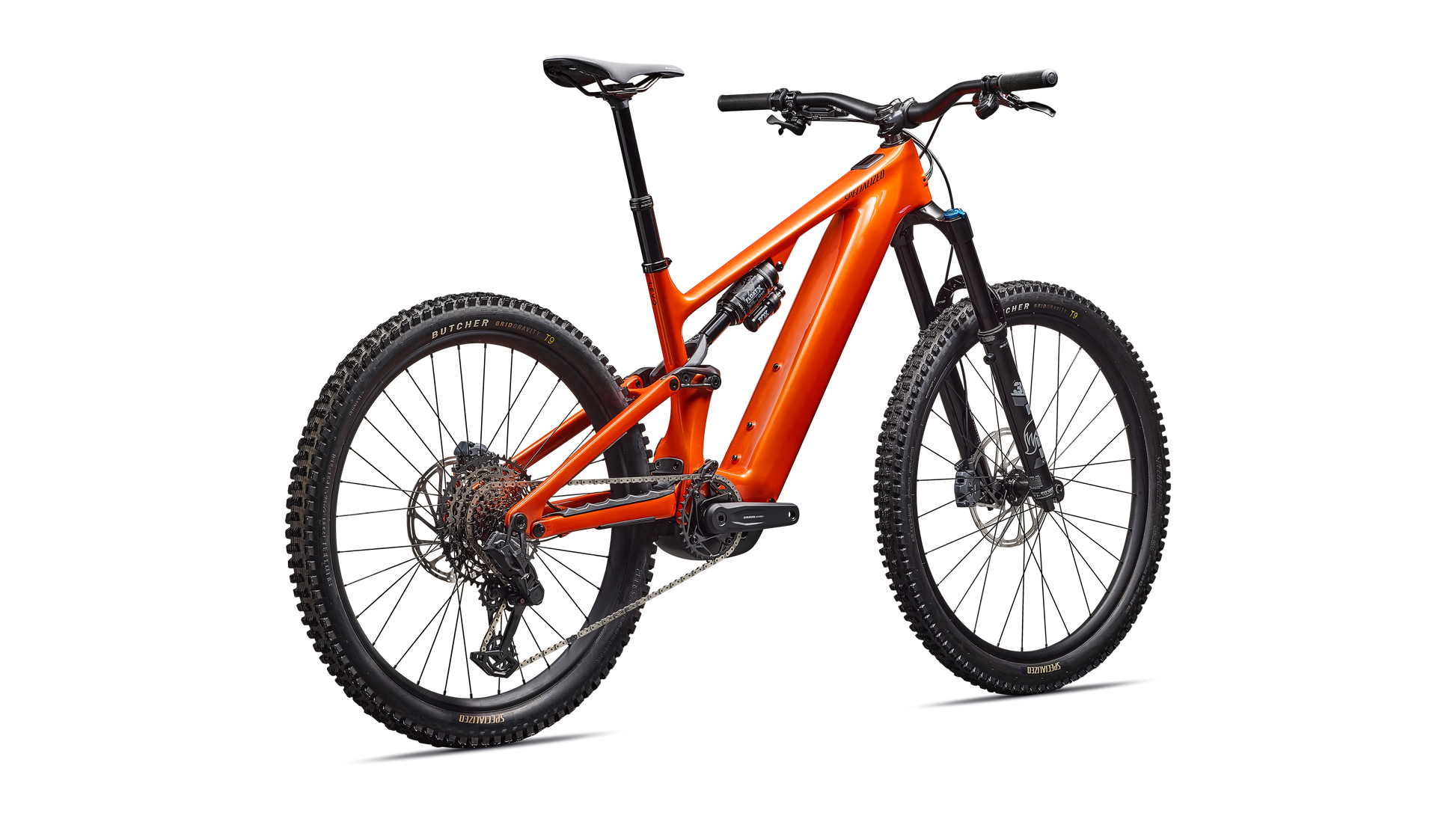

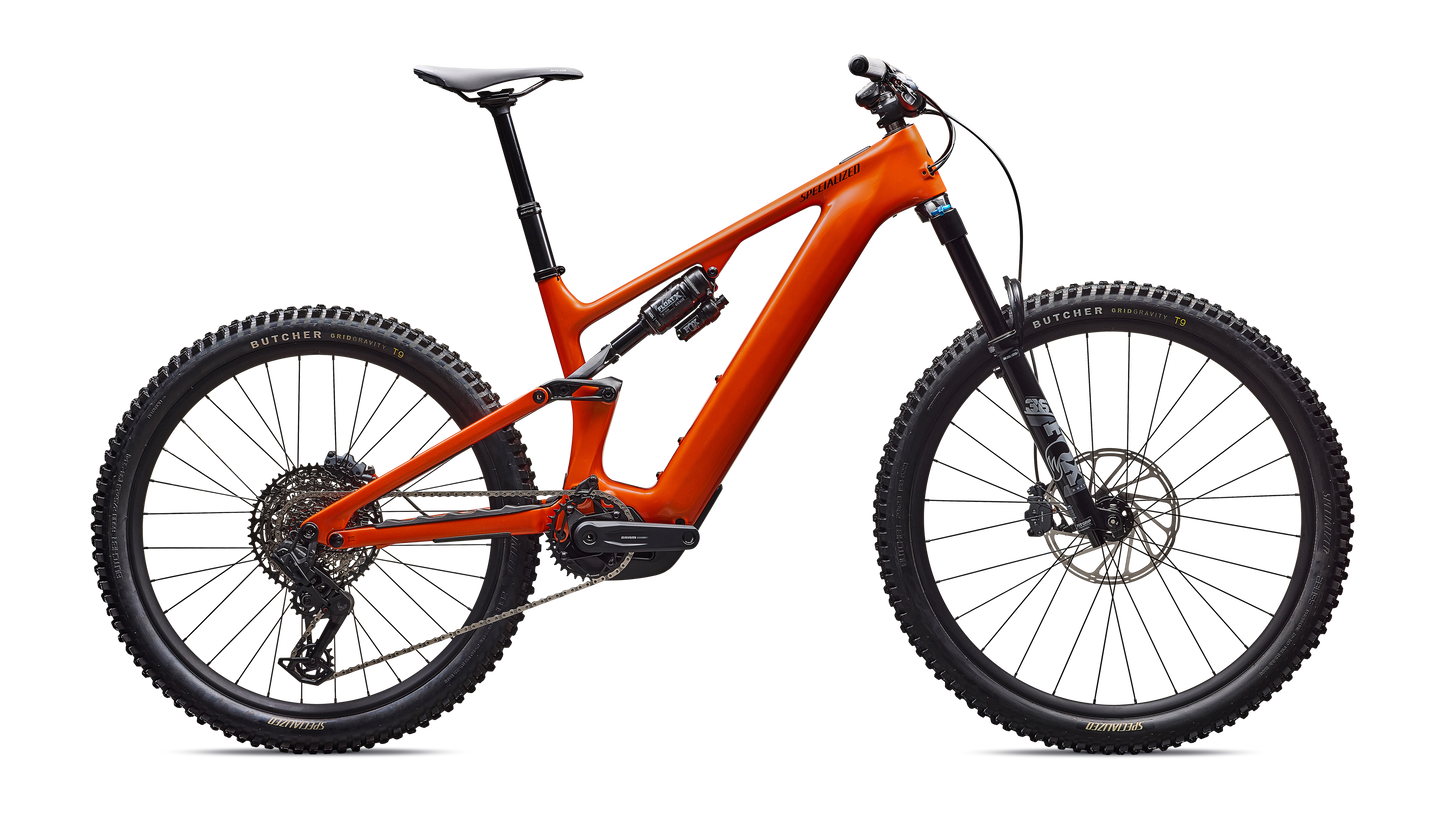

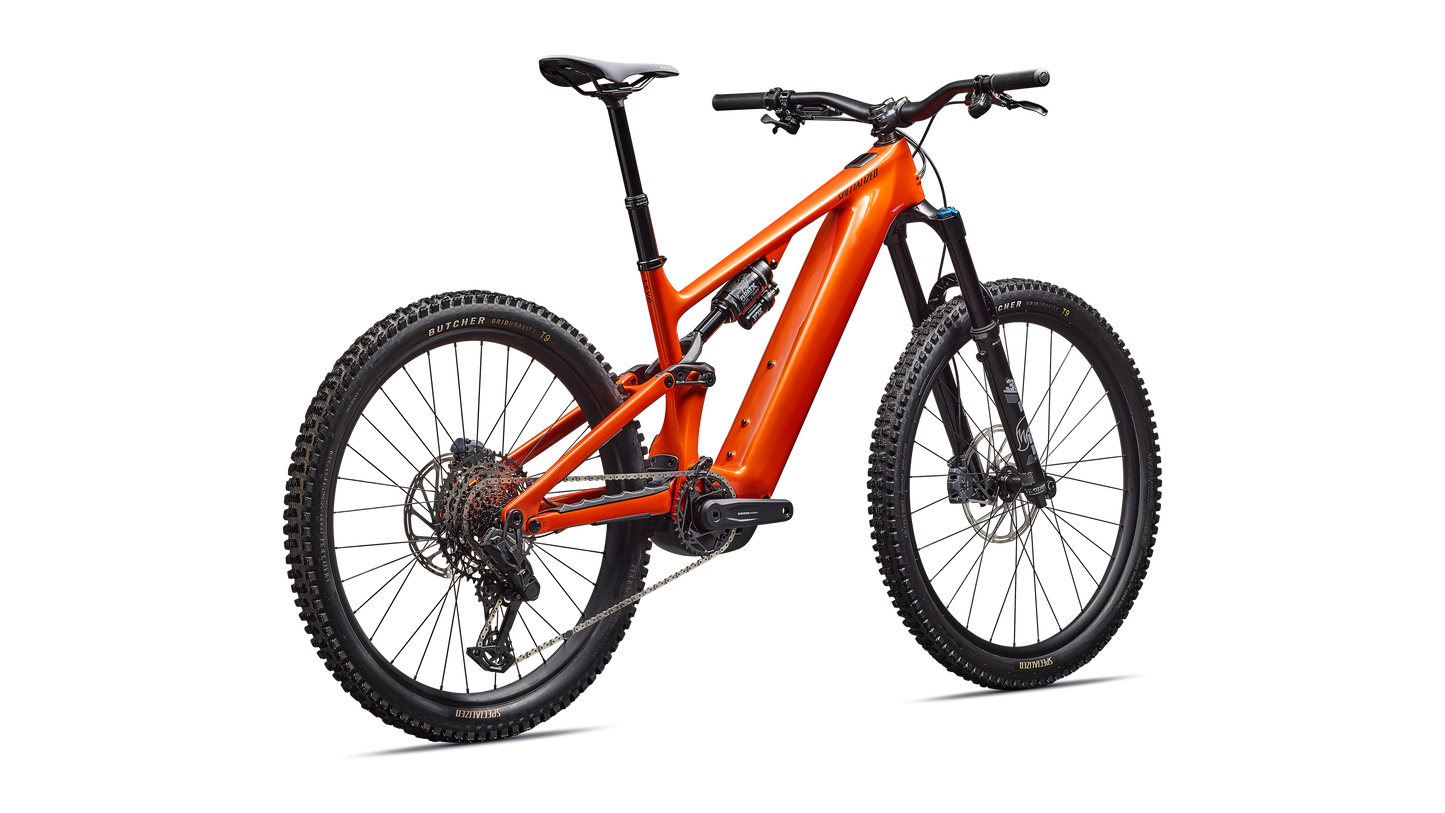

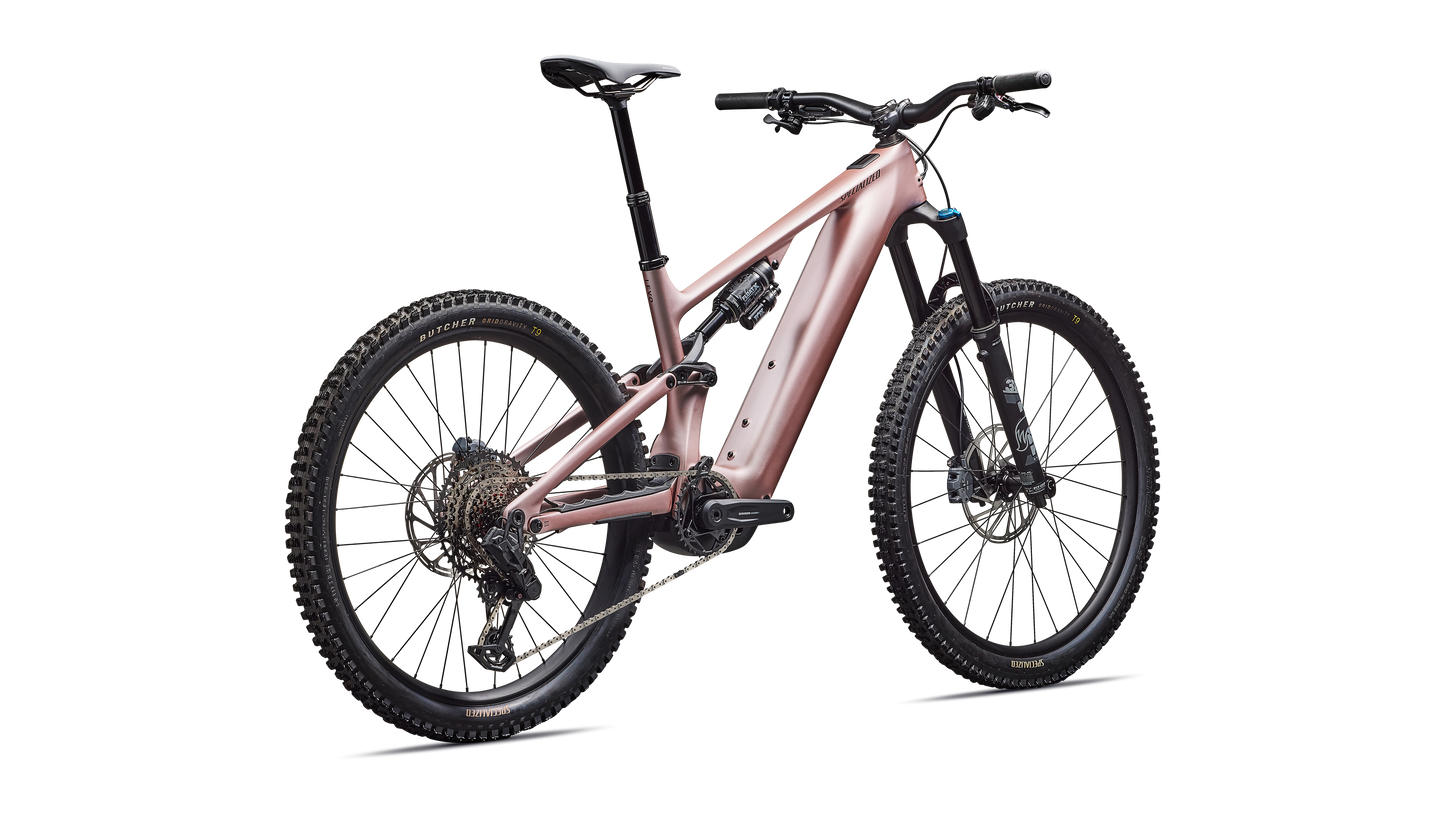

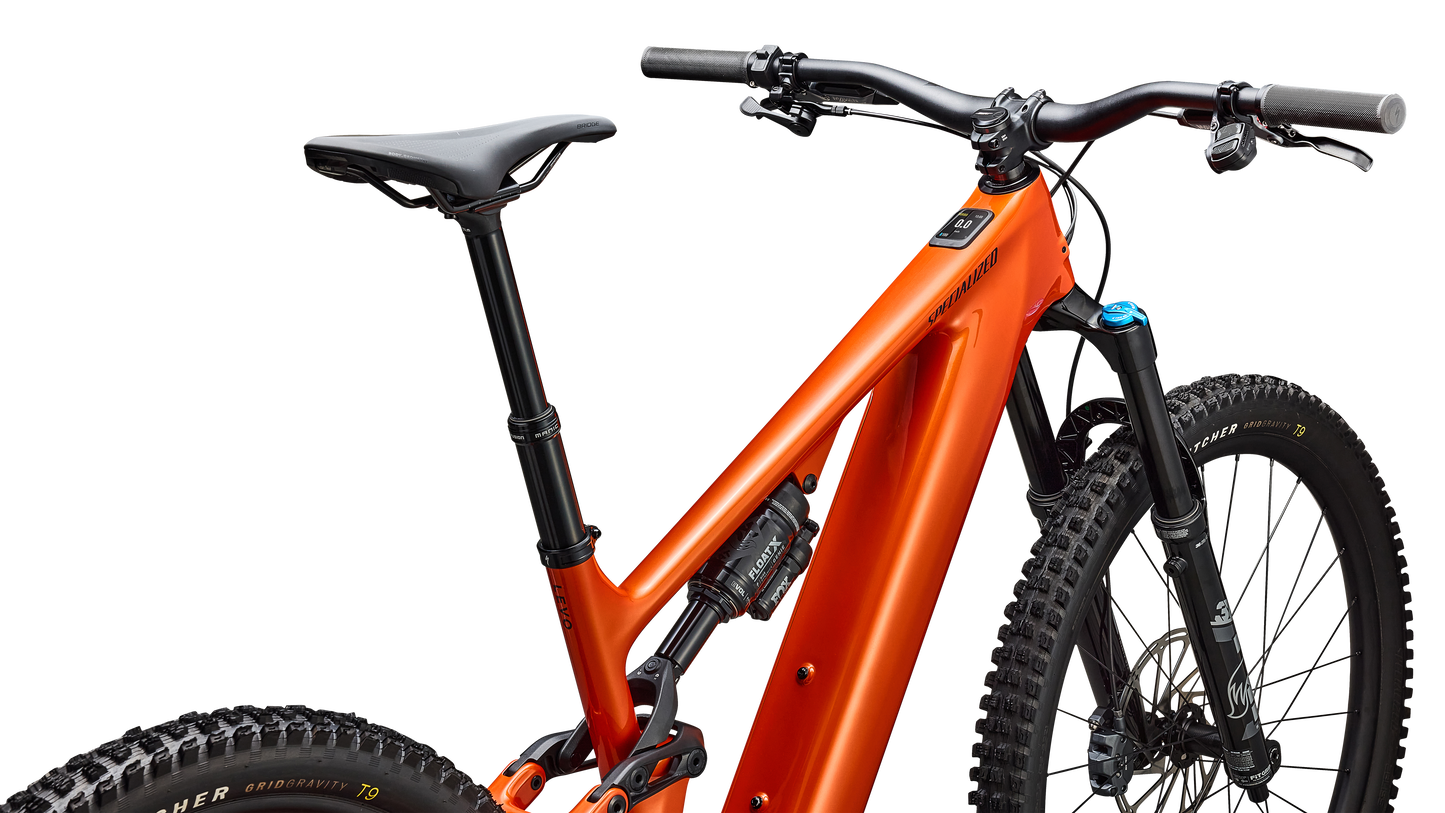

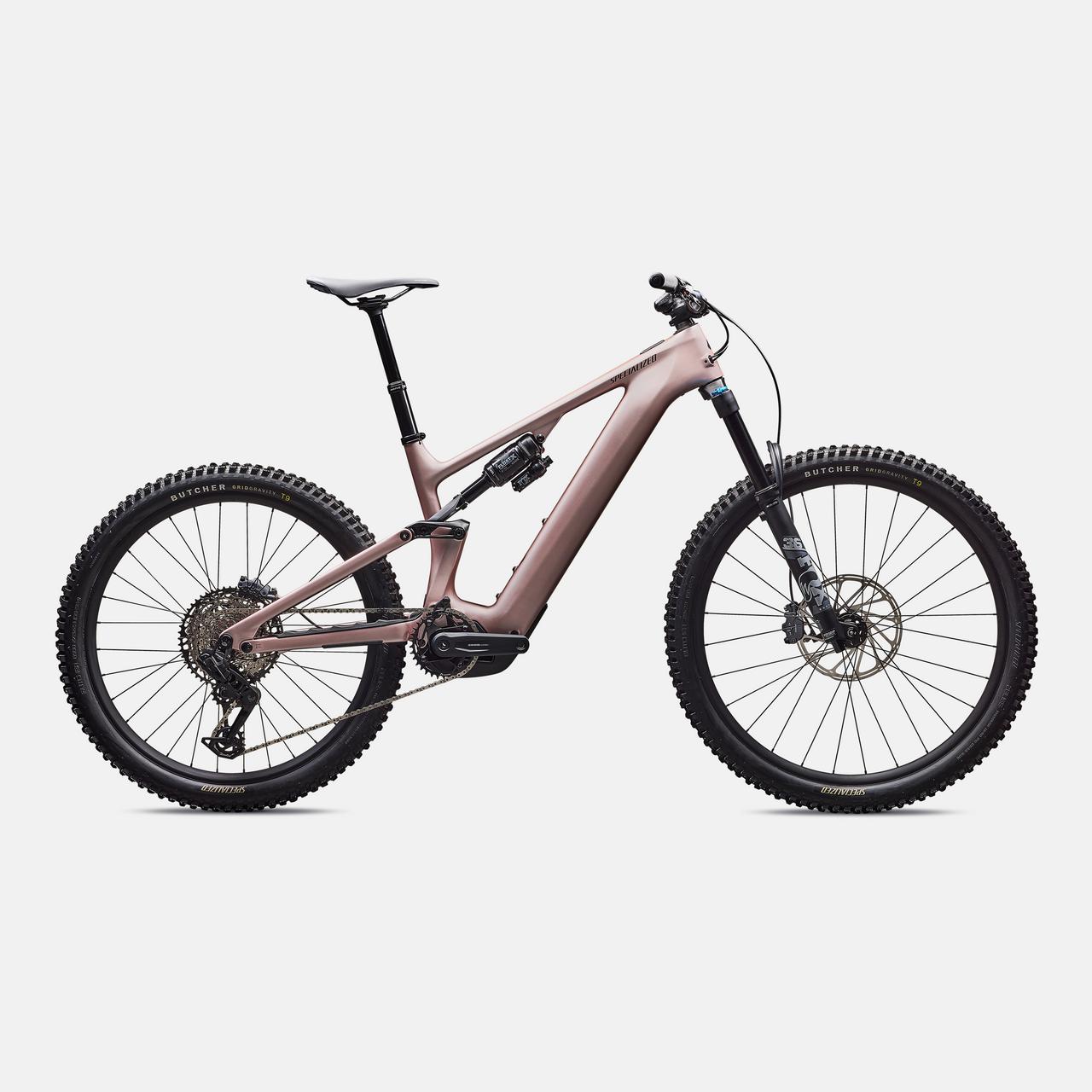

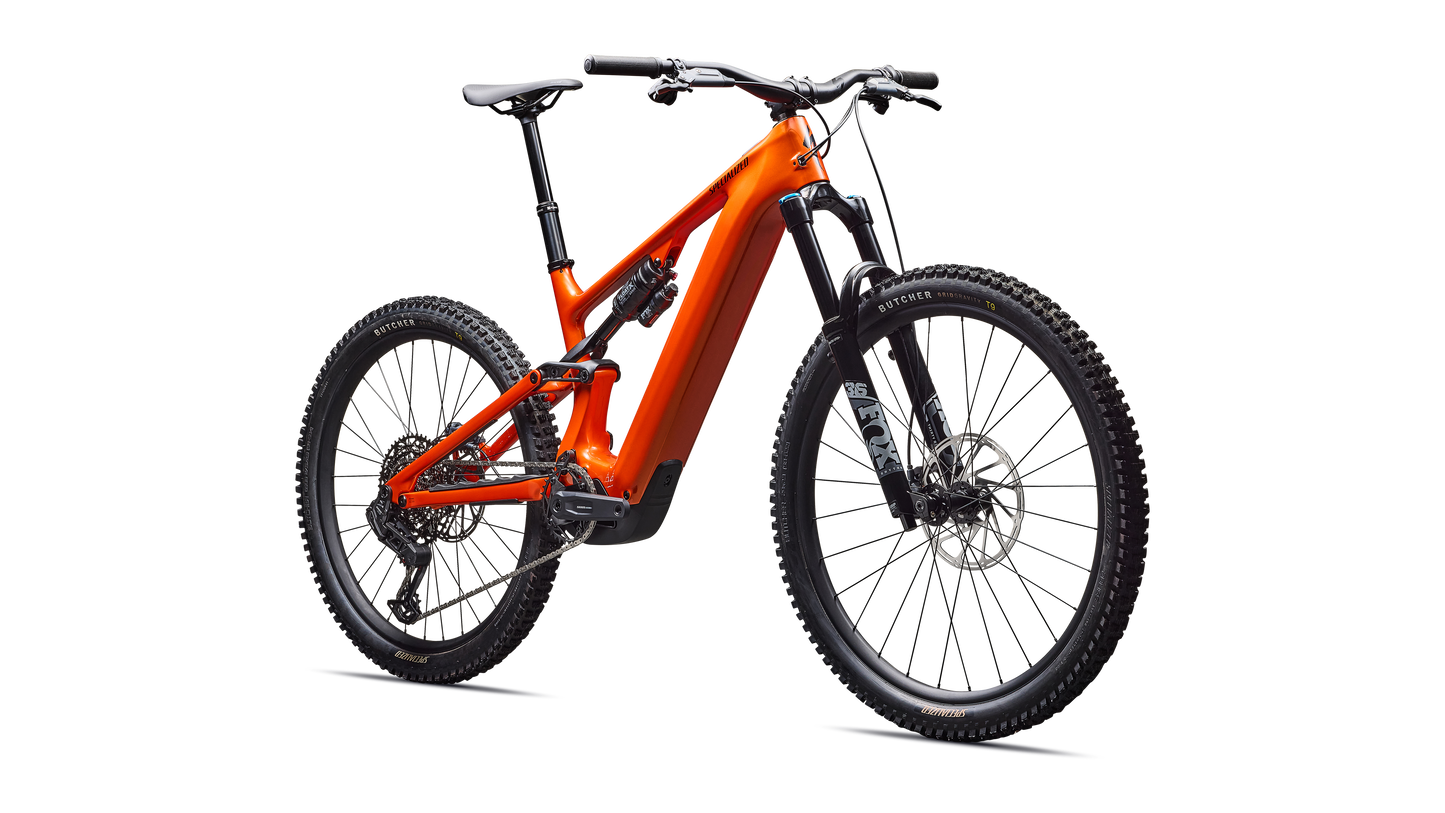

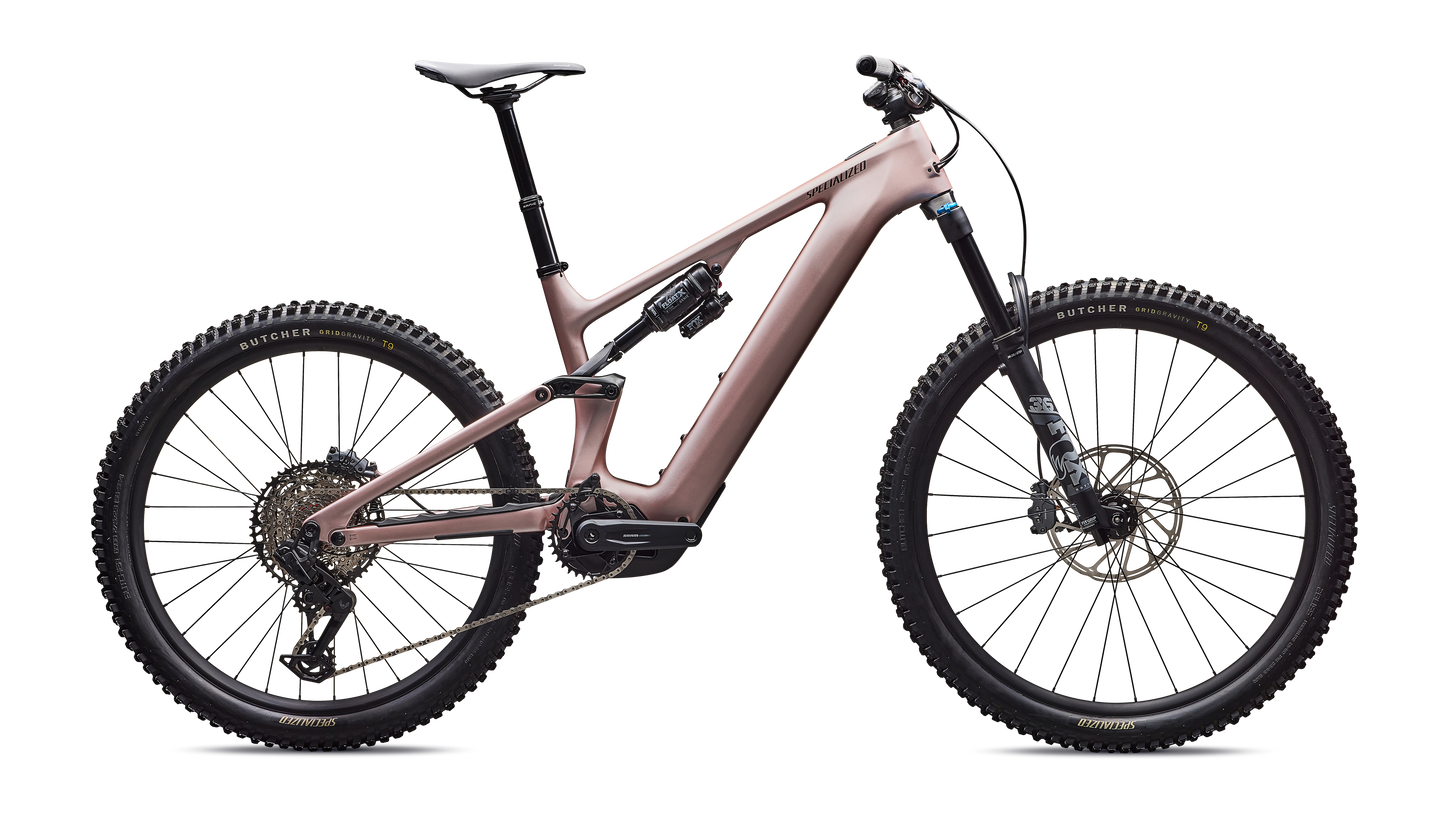

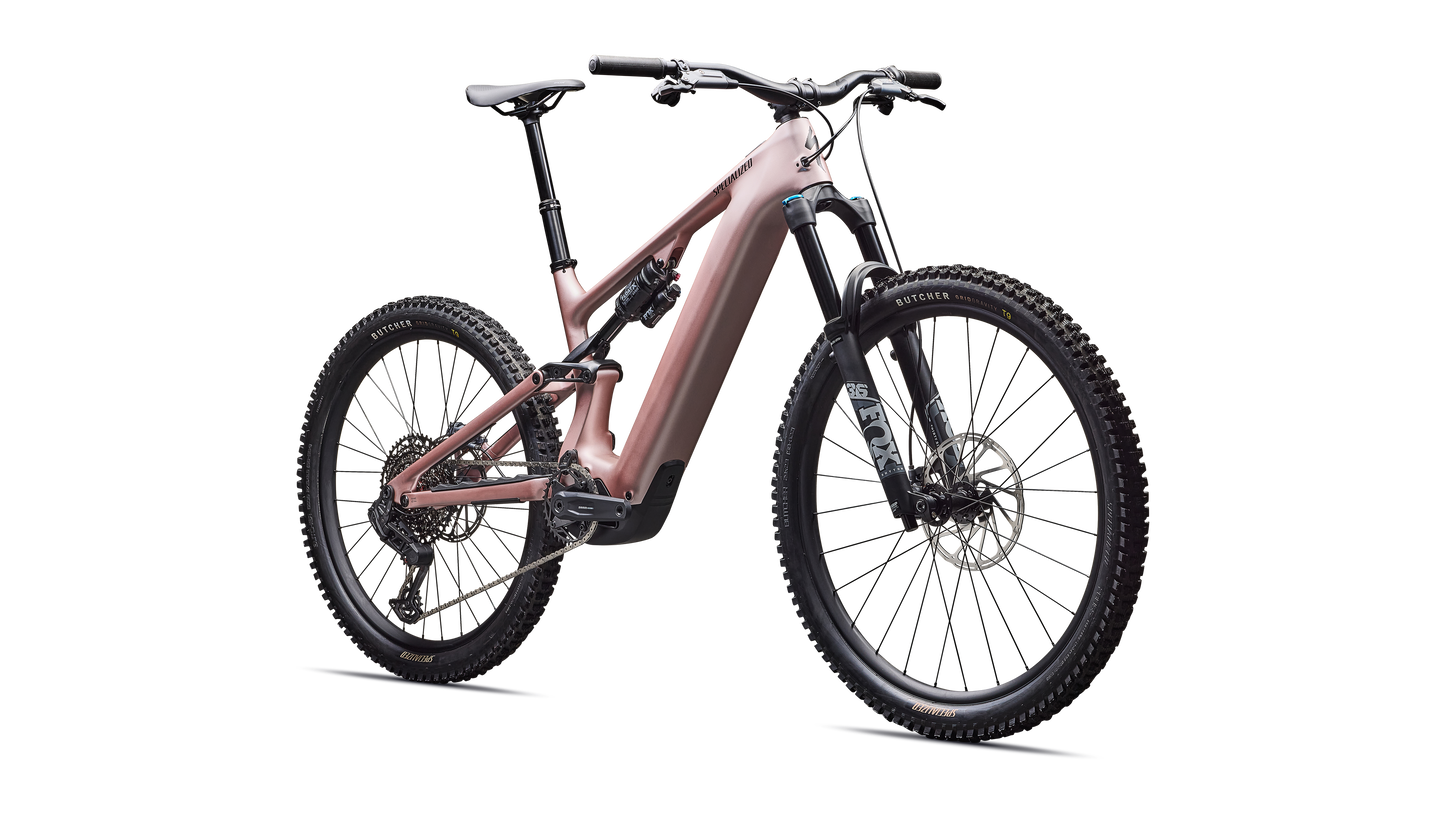

Turbo Levo 4 Comp
Turbo Levo 4 Comp
SKU:95224-5702
Levo Size Guide
Product Details
The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural. Use - Full Power E-MTB Trail
E-System - Specialized 3.1 Motor w/ 666 Watts & 101 Nm, 840 Wh Battery, up to 5.33 hour range
Frame - FACT 11m Carbon, Geo Adj & SWAT Storage
Suspension - Front: 160mm FOX 36 Rhythm GRIP, Rear: 150mm GENIE - FOX FLOAT X Performance
Drivetrain - SRAM S1000 Eagle T-Type AXS
Wheels - Specialized Alloy / Bear Pawls hubs
Technical Specifications
Frameset

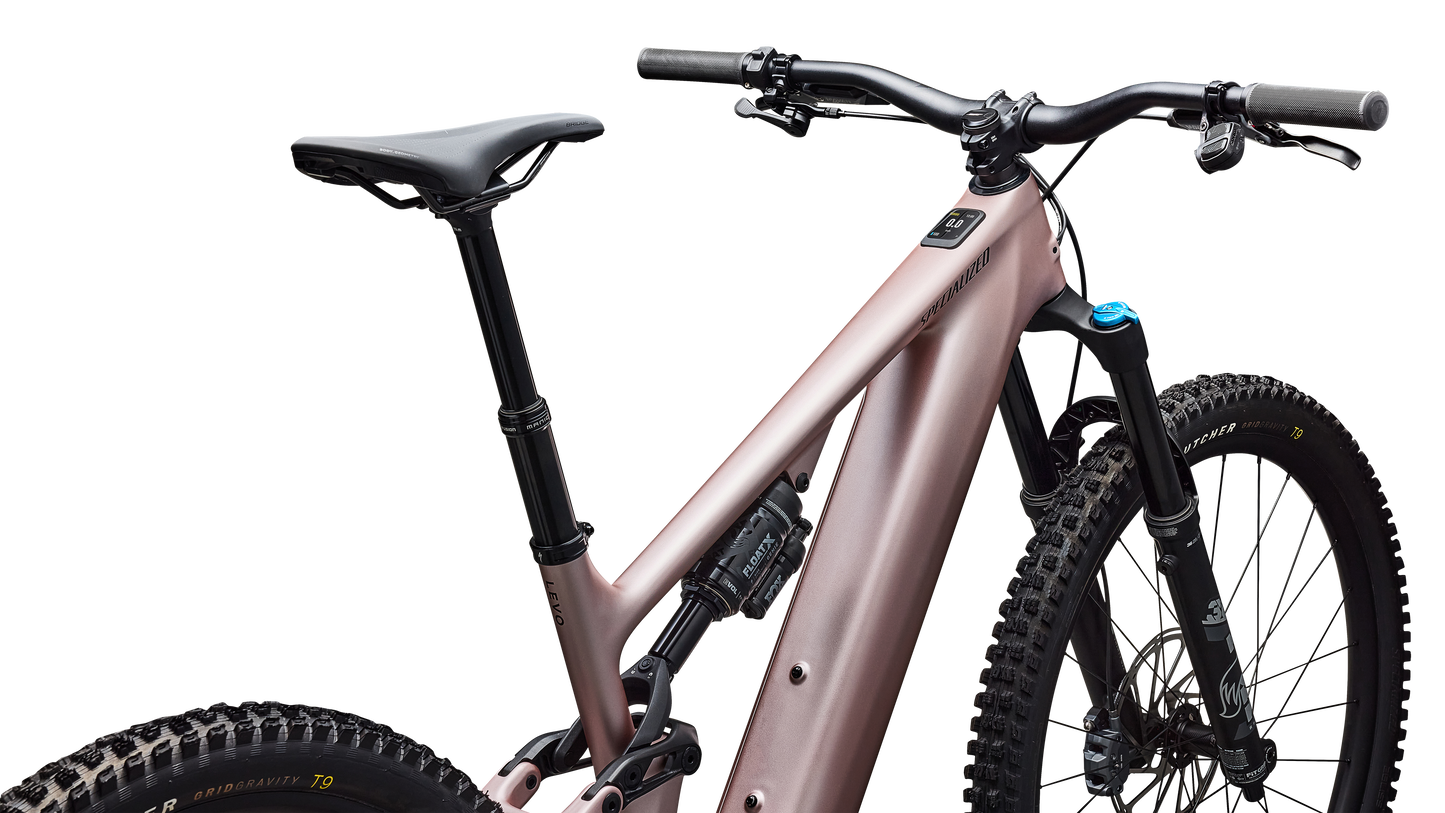

Frame
All new Levo 4 frame, FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, w/ SWAT storage, 150mm of travel, side entry battery, fork travel up to 180mm
Seat Binder
Alloy, 38.6mm
SWAT
SWAT internal downtube storage
Suspension
Rear Shock
FOX FLOAT X Performance with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSR adjustment
Fork
FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm axle, 44mm offset, 160mm of travel
Cockpit
Seat Post
Xfusion Manic, infinite adjustable, two bolt head, Remote SLR LE lever, 34.9, S2: 125mm, S3: 170mm, S4-S6: 190mm
Saddle
Bridge Comp, Hollow Cr-mo rails
Stem
Alloy Trail Stem, 35mm bar bore
Grips
Specialized Trail Grips

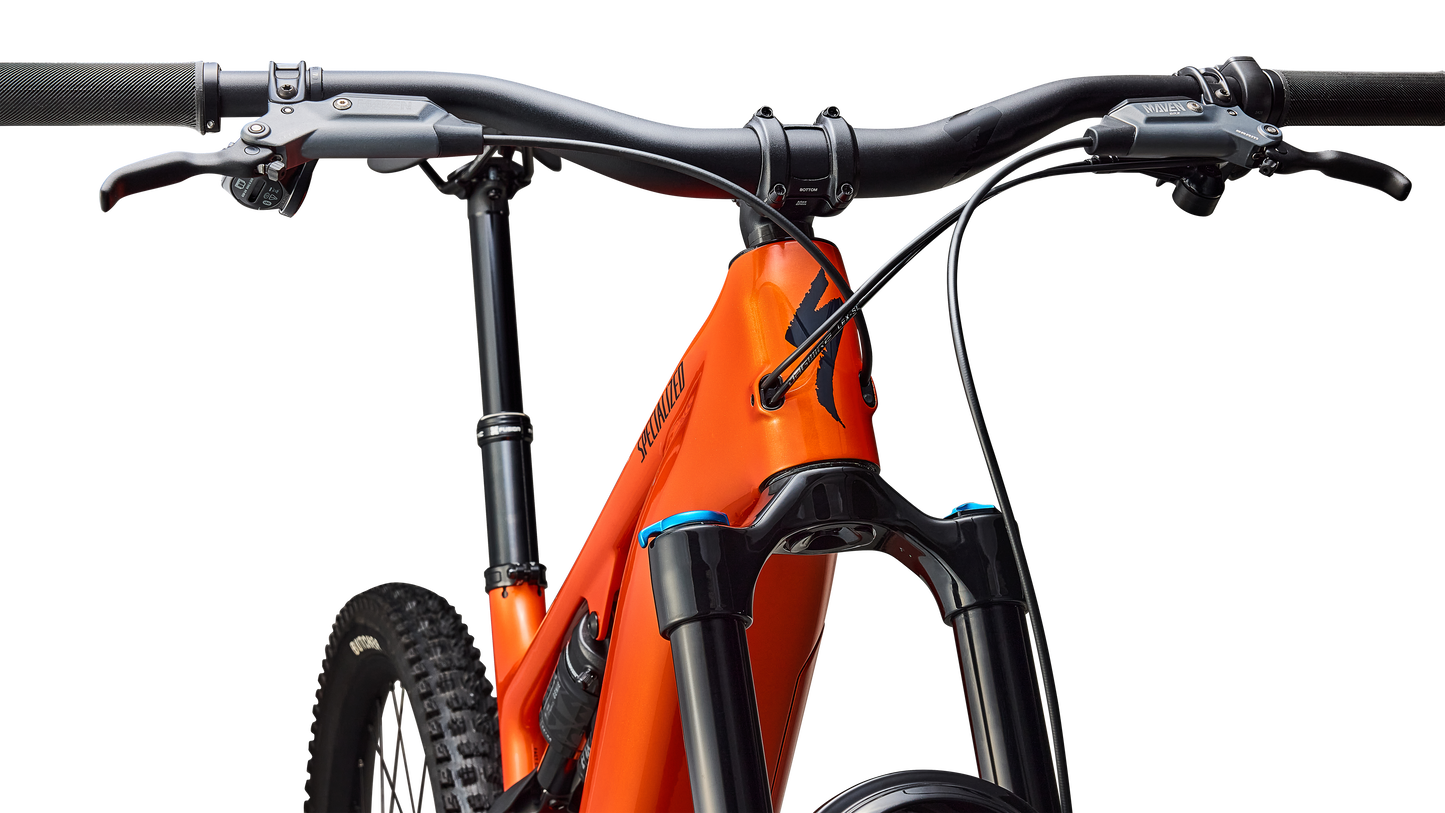

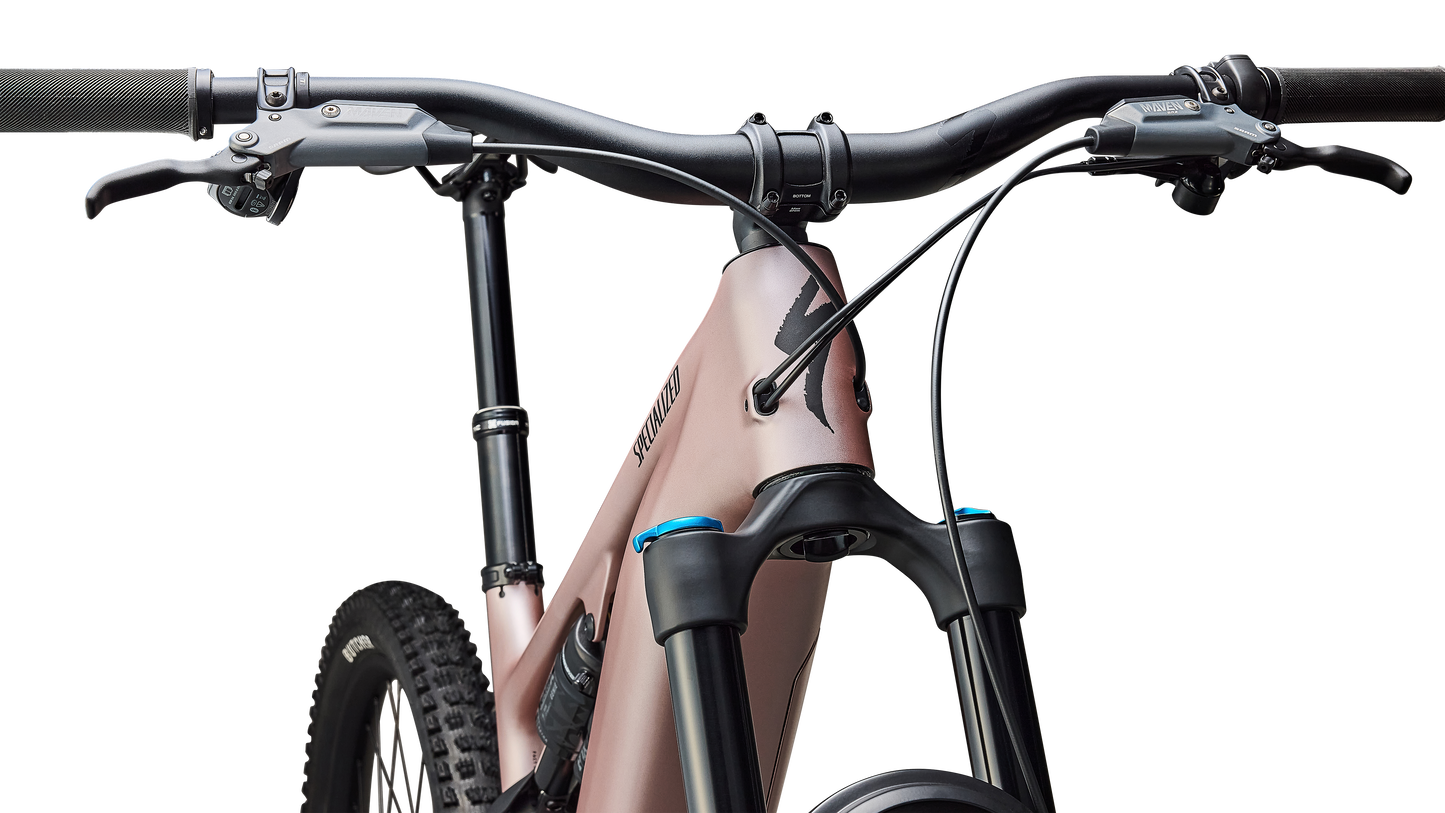

Handlebars
Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S2: 30mm rise, 780mm width, S3-S5: 40mm rise 800mm width
Brakes
Front Brake
SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm Rotor
Rear Brake
SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 200mm Rotor
Drivetrain
Shift Levers
SRAM AXS POD Controller
SRAM S1000 Eagle Transmission, Wired SRAM AXS battery (powers AXS rear derailleur with integrated hot shoe directly off the Levo 4 main battery).
SRAM S1000 Eagle Transmission, Wired SRAM AXS battery (powers AXS rear derailleur with integrated hot shoe directly off the Levo 4 main battery).
Cassette
SRAM 1270 Transmission Cassette, 12 Spd,10-52t
Shift Levers
SRAM AXS POD Controller
Crankset
SRAM S1000 Crankset, ISIS interface, Integrated Guard, 55mm Chainline, 155mm
Chain
SRAM GX Eagle Transmission Flattop Chain
Chain Ring
SRAM T-type ring, 34T, 104 BCD, steel
Wheels & Tyres
Front Hub
Specialized alloy front hub disc, sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 32h
Rear hub
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Rims
Specialized 29F/27.5R, hookless alloy, 30mm inner width, tubeless ready
Butcher, GRID GRAVITY casing, GRIPTONĀ® T9 compound, 2Bliss Ready, 29x2.3"
Butcher, GRID GRAVITY casing, GRIPTONĀ® T9 compound, 2Bliss Ready, 29x2.3"
Butcher, GRID GRAVITY casing, GRIPTONĀ® T9 compound, 2Bliss Ready, 27.5x2.3"
Butcher, GRID GRAVITY casing, GRIPTONĀ® T9 compound, 2Bliss Ready, 27.5x2.3"
Spokes
DT Swiss Industry
Tubes
Standard, Presta valve
E-Bike
Motor
All New Specialized 3.1 Motor, 101Nm torque, 666W power
UI Remote
All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app
Battery
840Wh battery
Charger
Specialized 4amp charger
