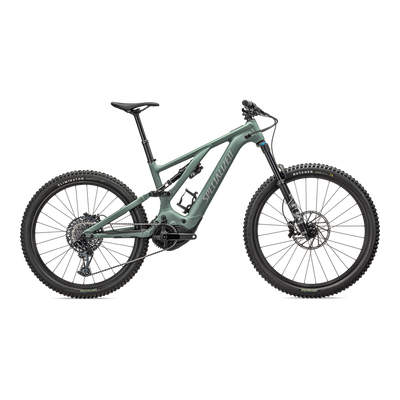

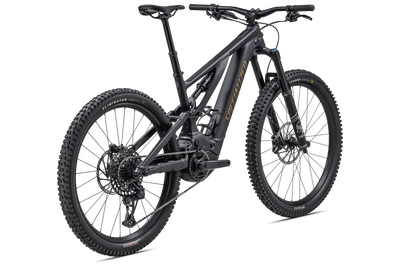

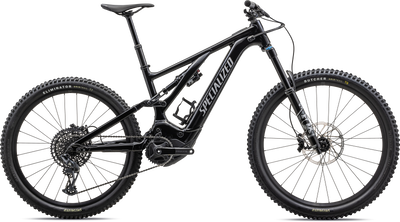

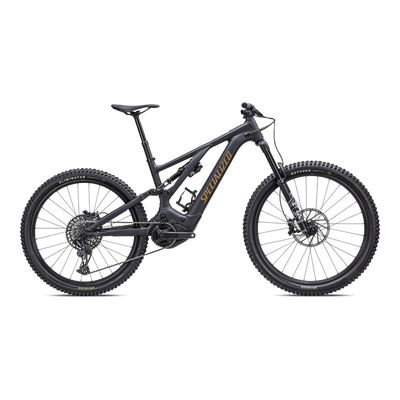

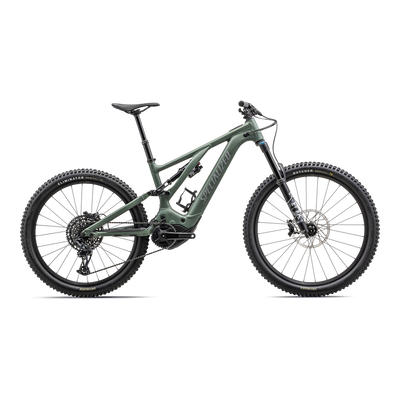

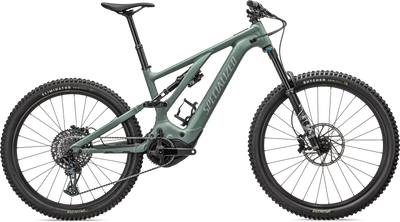

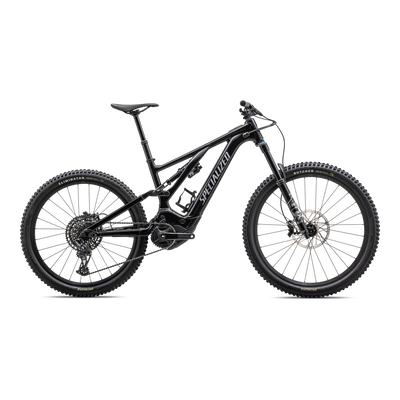

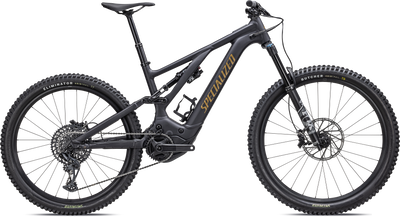

Turbo Levo Comp Alloy
Turbo Levo Comp Alloy

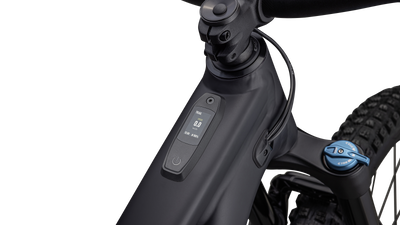

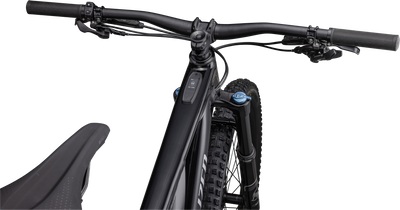

The MasterMind Turbo Control Unit is your information hub with customizable display fields, including the exact percentage of battery level, and it features our all-new MicroTune function to adjust power delivery in 10% increments, so you get exactly the support you need to experience precisely the ride you want.
A dedicated mixed-wheel size design with a 27.5” wheel in the back and 29” up front delivers a nimble ride that carves circles around other full-power e-MTBs. A generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack headtube angle and reduced fork offset keep things stable in the rough.
Levo offers six distinct geometry settings, allowing you to easily dial-in its performance for any riding style and any terrain. Head tube angle can be adjusted between 63- and 65.5-degrees. Bottom bracket height can be fine-tuned up or down by 7mm.
Levo’s 150mm of rear travel is supple on small bumps, devours square-edged hits without a twitch, eats massive G-outs for breakfast, yet still offers amazing pedal response and delivers your power to the ground with total efficiency.
The Levo’s S-Sizing is based on what matters—rider size and style, not inseam. Six sizes, all with similar headtube lengths and standover, allow you to choose the size that best suits your individual style. Smaller S-Size numbers are going to be nimble and more flickable, while bigger S-Sizes deliver more stability and a roomier ride.
Share
Levo Size Guide
Technical Specifications
Frameset
Frame
Specialized M5 premium alloy, headset adjust, BB height adjust, S-Sizing, internal cable routing, 150mm travel, 148mm spacing
Seat Binder
Alloy, 38.6mm
Suspension
Rear Shock
S1: FOX DPS Performance Series, 3-position lever, rebound adjust, 52.5x210mm, S2-S6: FOX FLOAT X Performance, LSR, 2-position lever, 55x210mm
Fork
Fox Rhythm 36, S1: 150mm travel, S2-S6: 160mm travel
Cockpit
Seat Post
X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 170mm, S6: 190mm
Saddle
Bridge Comp, Hollow Cr-mo rails, 155/143mm
Stem
Alloy Trail Stem, 35mm bar bore
Grips
Specialized Trail Grips

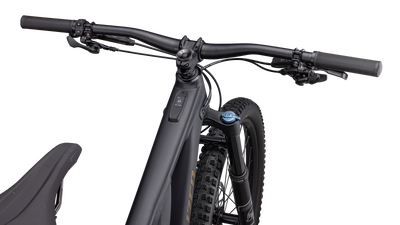

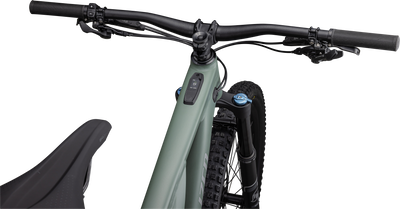

Handlebars
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width
Brakes
Front Brake
SRAM Code R, 4-piston caliper, hydraulic disc, S1-S3: 200mm, S4-S6: 220mm
Rear Brake
SRAM Code R, 4-piston caliper, hydraulic disc, 200mm
Drivetrain
Shift Levers
SRAM GX Eagle, trigger, 12-speed
Rear Derailleur
SRAM GX Eagle, 12-speed
Cassette
Sram XG-1275, 12-speed, 10-52t
Shift Levers
SRAM GX Eagle, trigger, 12-speed
Crankset
Praxis Forged/Custom Offset/ISIS Spindle Interface, 160mm
Chain
SRAM NX Eagle, 12-speed
Chain Ring
SRAM X-Sync Eagle, 104 BCD, 34t, steel
Wheels & Tyres
Front Hub
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
Rear hub
Alloy, sealed cartridge bearings, 148mmx12mm thru-axle, 28h
Rims
Specialized 29, hookless alloy, 30mm inner width, tubeless ready
Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6"
Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6"
Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"
Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"
Spokes
DT Swiss Industry
Tubes
Standard, Presta Valve
E-Bike
Motor
Specialized Turbo Full Power System 2.2 Motor
UI Remote
Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote
Battery
Specialized M3-700, Integrated battery, 700Wh
Charger
Custom charger, 42V4A w/ Rosenberger plug, 100-240V
Wiring Harness
Custom Specialized wiring harness
