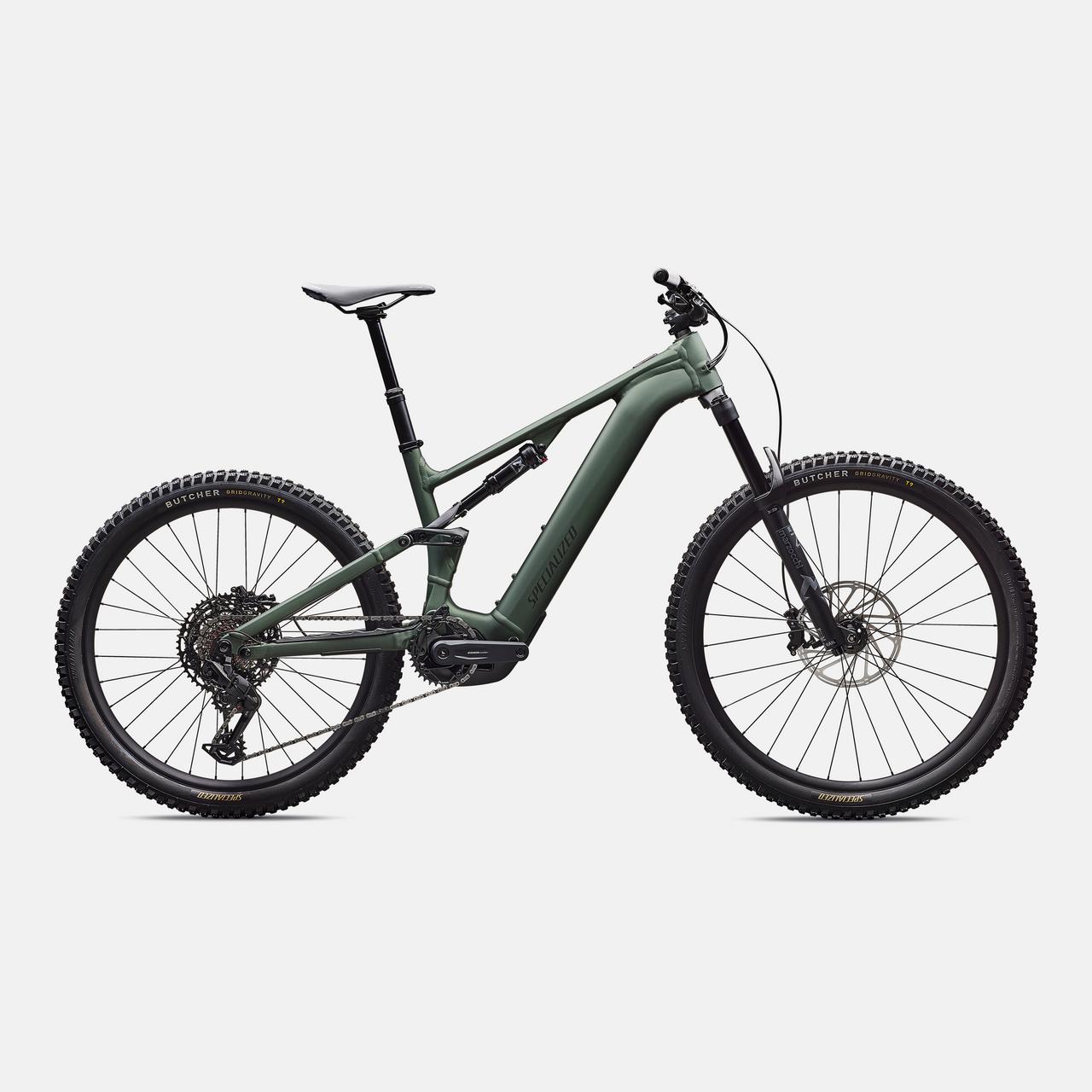

Turbo Levo 4 Alloy
95226-7001
Couldn't load pickup availability
Pickup currently unavailable at Will Ride
Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on public roads.
Size Guide
Expertly built and shipped within 3-4 business days.
Free shipping on orders over $250, excludes bikes.
Turbo Levo 4 Alloy
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours from Tuesday to Saturday.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Product Details
Product Description
E-System - Specialized 3.1 Motor w/ 666 Watts & 101Nm, 840Wh Battery, up to 5.33 hour range
Frame - Premium M5 Alloy, Geo Adj & SWAT Storage
Front: 160mm Marzocchi Bomber Z1, Rear: 150mm Marzocchi Bomber Inline
Drivetrain - SRAM 70 Eagle T-Type Mechanical
Wheels - Specialized Alloy / Bear Pawls hubs
Frameset
Frame
All new Levo 4 M5 Alloy frame, 150mm travel,, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29" front wheel/27.5" rear wheel, fork travel up to 180mm
Seat Binder
Alloy, 38.6mm
SWAT
SWAT internal downtube storage
Suspension
*Marzocchi Bomber Inline, EVOL LV air sleeve, rebound adjust, 210x55mm
*Marzocchi Bomber Inline, EVOL LV air sleeve, rebound adjust, 210x55mm
Fork
Marzocchi Bomber Z1, 29", S2-S6: 160mm, S1: 150mm, sweep adjust compression
Cockpit
Seat Post
TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6: 200mm
Saddle
Body Geometry Bridge Saddle, steel rails
Stem
Alloy Trail Stem, 35mm bar bore
Grips
Specialized Trail Grips
Handlebars
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1-S2: 780mm width, S3-S6 800mm width
Brakes
Front Brake
SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 220mm Centerline rotor
Rear Brake
SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 200mm Centerline rotor
Drivetrain
Shift Levers
SRAM 70 trigger, 12-speed, single click
Rear Derailleur
SRAM Eagle 70 T-Type
Cassette
XS-1270, 12-speed, 10-52t
Shift Levers
SRAM 70 trigger, 12-speed, single click
Crankset
SRAM S1000 Crankset, ISIS Interface, Integrated Guard, 55mm Chainline, 155mm
Chain
SRAM Eagle 70 T-Type Flattop Chain
Chain Ring
SRAM 34t T-Type chainring, 104 BCD, steel
Wheels & Tyres
Front Hub
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
Rear hub
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Rims
Specialized 29/27.5, hookless alloy, 30mm inner width, tubeless ready
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.4"
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.4"
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.4"
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.4"
Spokes
DT Swiss Industry
Tubes
Standard, Presta valve
Electric
Motor
Specialized 3.1 Motor, 101Nm torque, 666Nm power
UI Remote
All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app
Battery
840Wh battery
Charger
Specialized 4amp charger
