Specialized

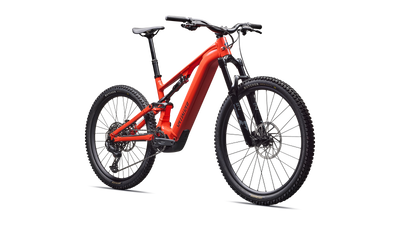

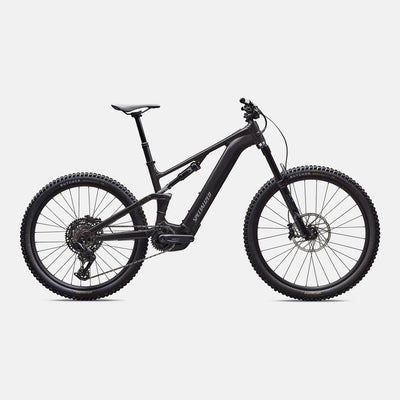

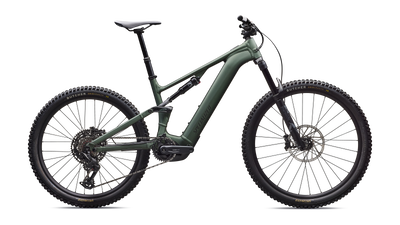

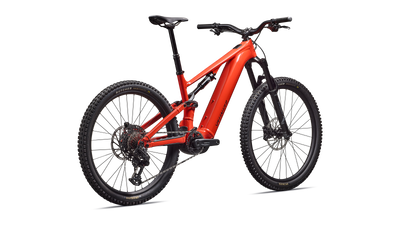

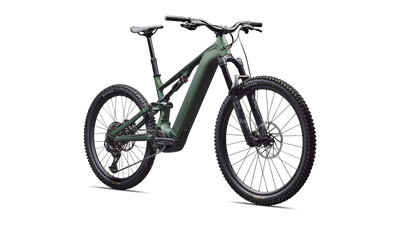

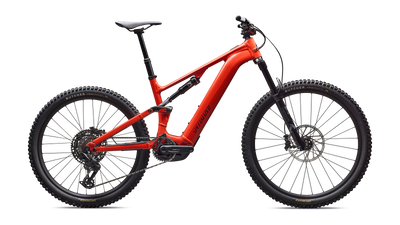

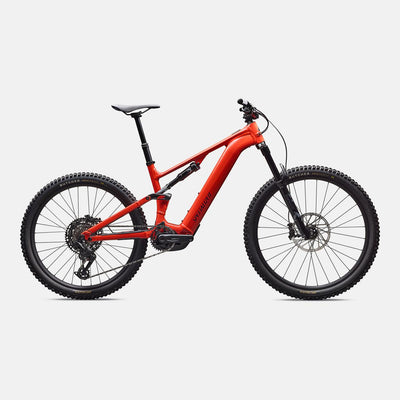

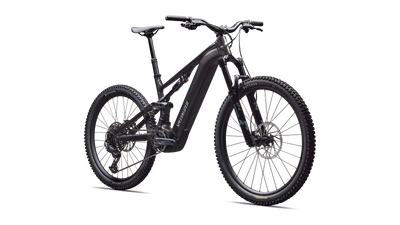

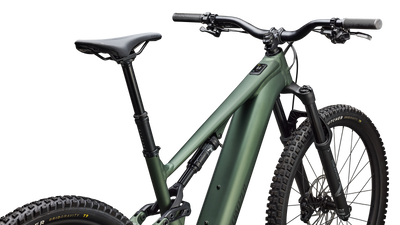

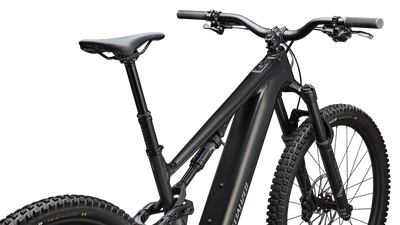

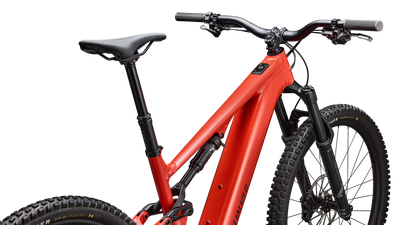

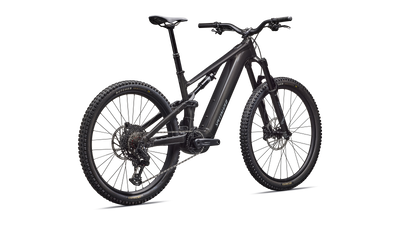

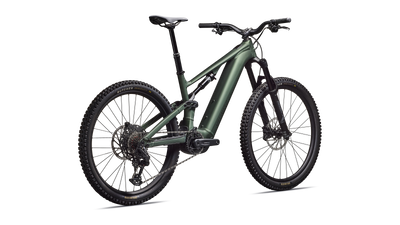

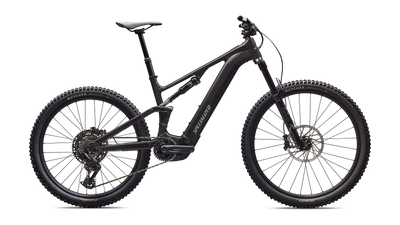

Turbo Levo 4 Alloy

Turbo Levo 4 Alloy

95226-7002

$8,900.00
$8,900.00
Sale Contact Us for Availability
Tax included.
Colour
Size
View Size Guide
View full details

Product Details

The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural. Use - Full Power E-MTB Trail

E-System - Specialized 3.1 Motor w/ 666 Watts & 101Nm, 840Wh Battery, up to 5.33 hour range

Frame - Premium M5 Alloy, Geo Adj & SWAT Storage

Front: 160mm Marzocchi Bomber Z1, Rear: 150mm Marzocchi Bomber Inline

Drivetrain - SRAM 70 Eagle T-Type Mechanical

Wheels - Specialized Alloy / Bear Pawls hubs







Technical Specifications

Frameset

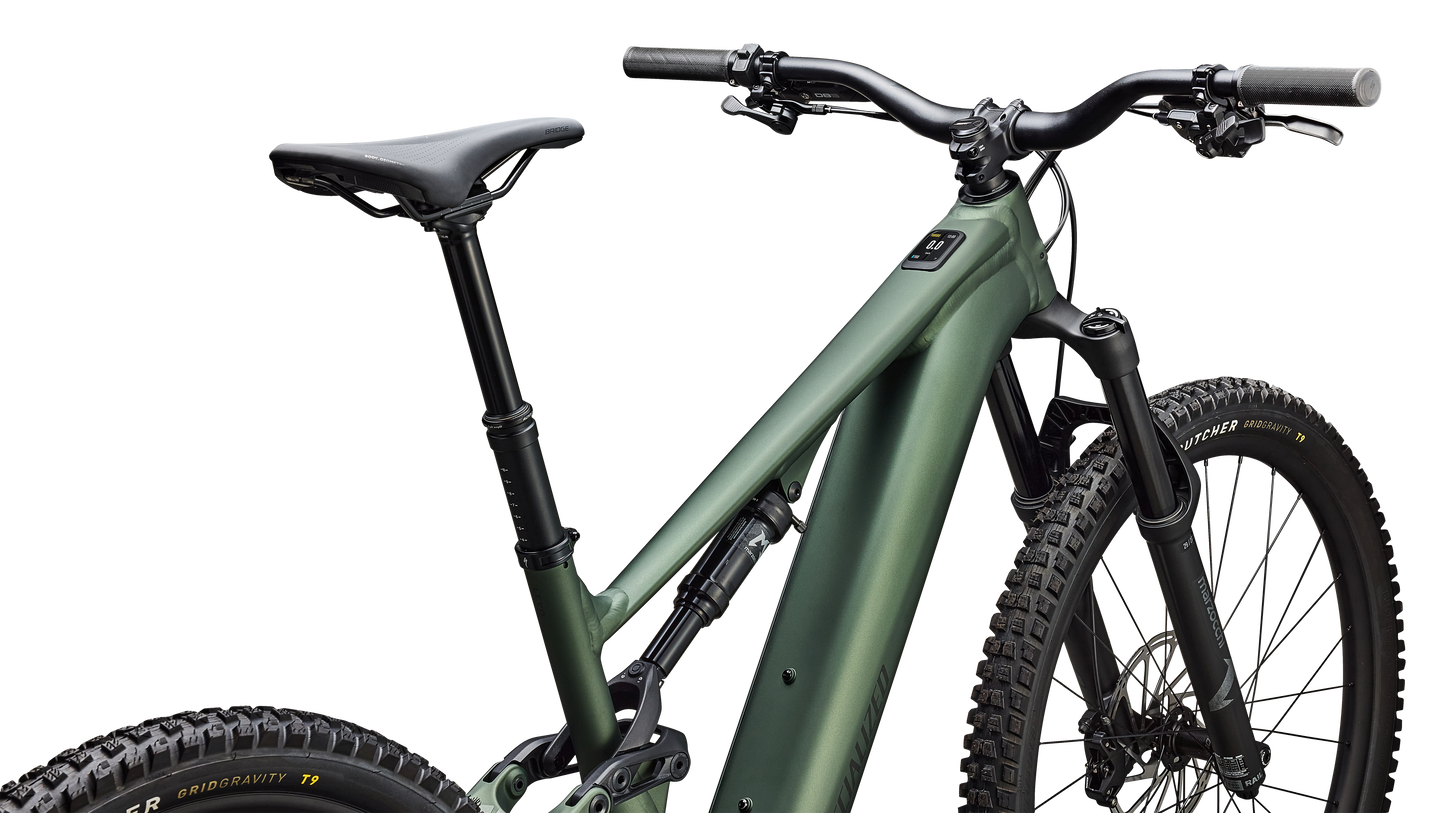

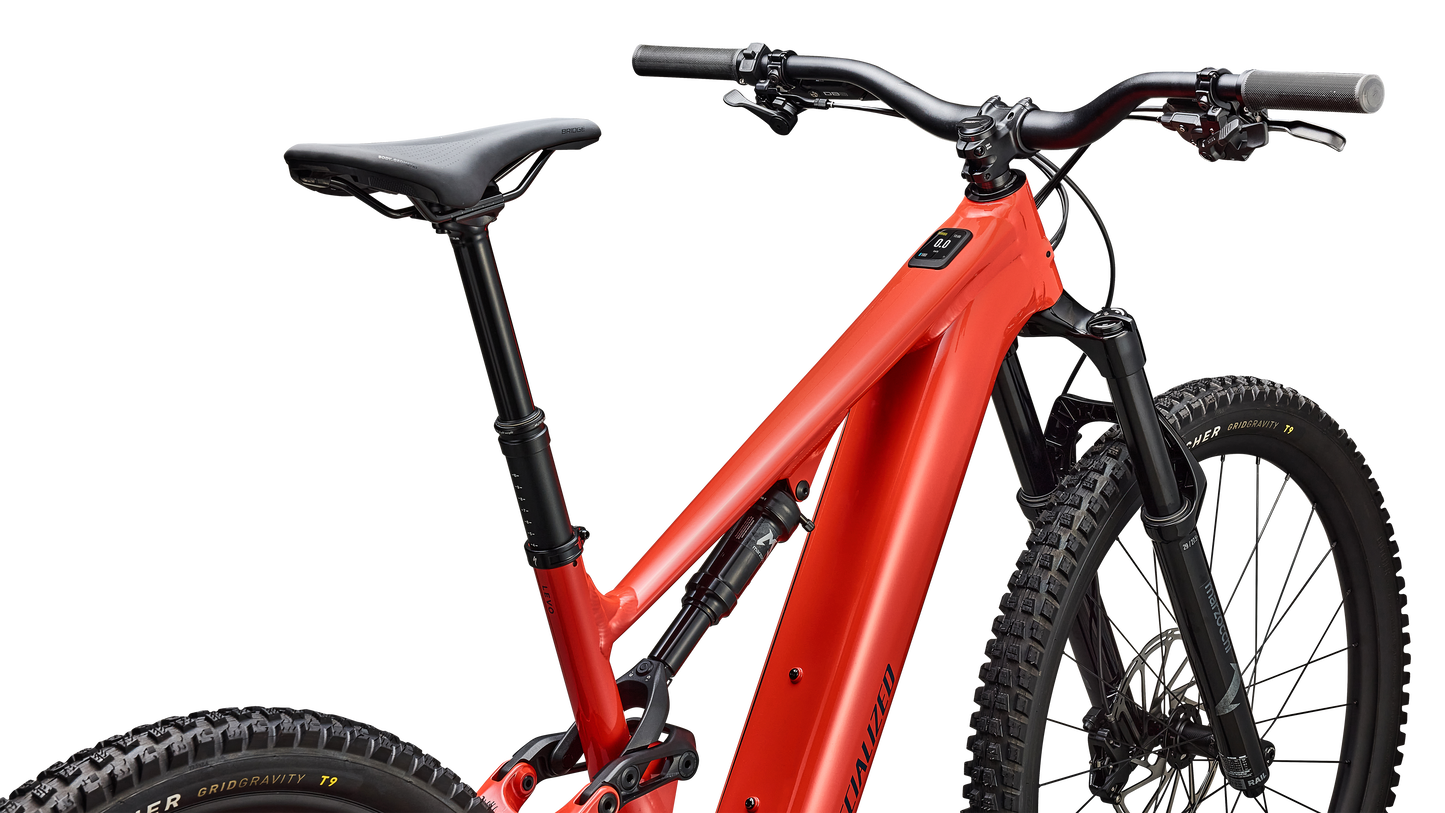

Frame

All new Levo 4 M5 Alloy frame, 150mm travel,, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29" front wheel/27.5" rear wheel, fork travel up to 180mm

Seat Binder

Alloy, 38.6mm

SWAT

SWAT internal downtube storage

Suspension

*Marzocchi Bomber Inline, EVOL LV air sleeve, rebound adjust, 210x55mm

*Marzocchi Bomber Inline, EVOL LV air sleeve, rebound adjust, 210x55mm

Fork

Marzocchi Bomber Z1, 29", S2-S6: 160mm, S1: 150mm, sweep adjust compression

Cockpit

Seat Post

TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6: 200mm

Saddle

Body Geometry Bridge Saddle, steel rails

Stem

Alloy Trail Stem, 35mm bar bore

Grips

Specialized Trail Grips

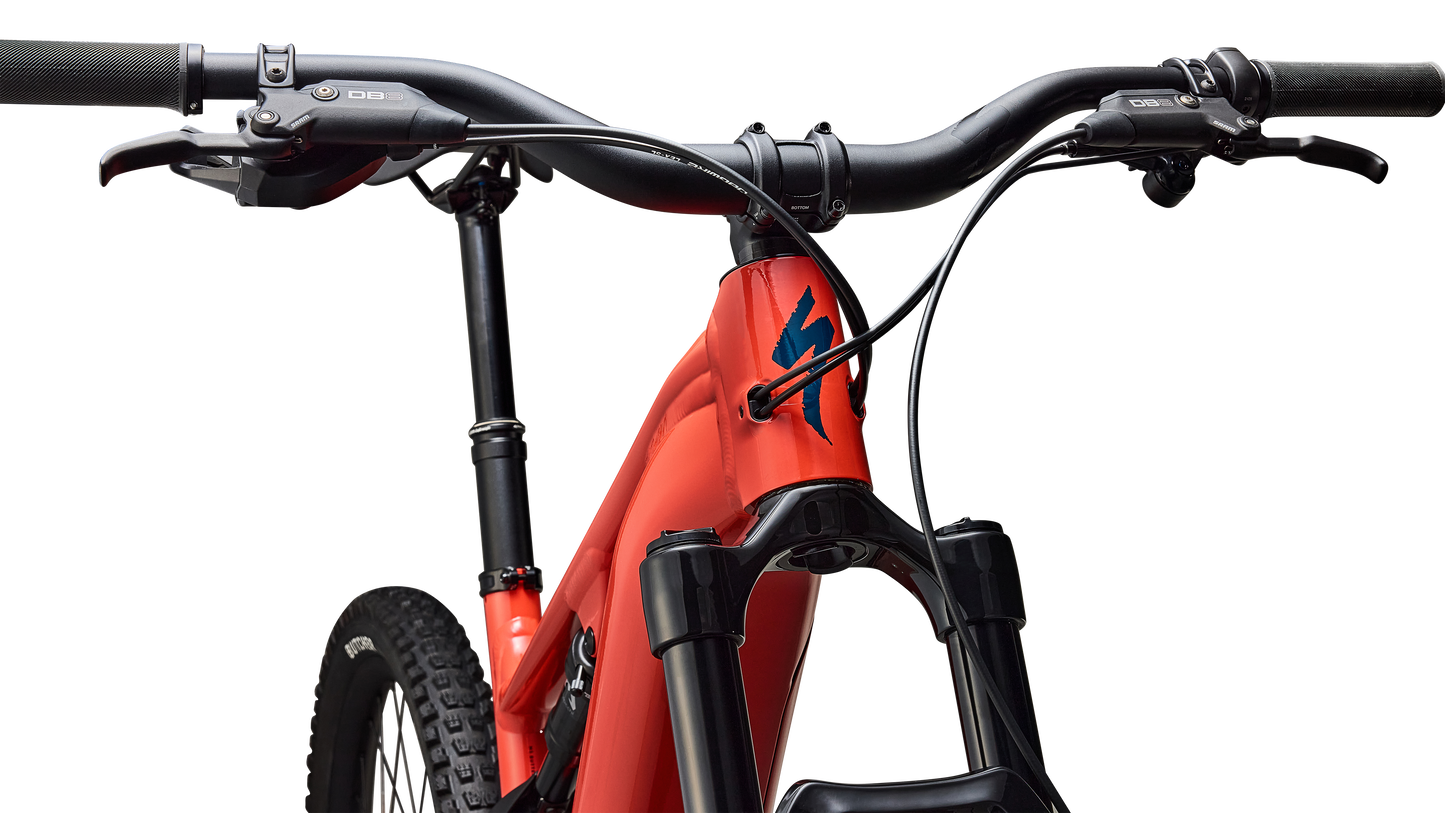

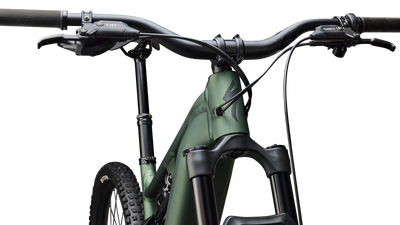

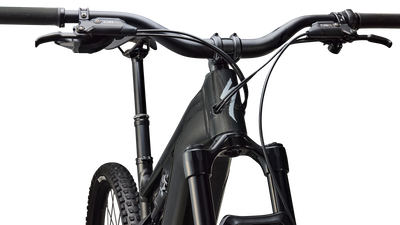

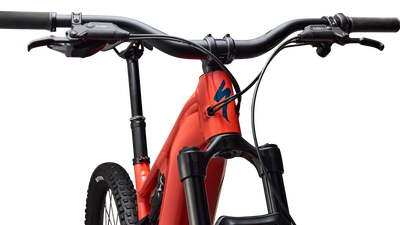

Handlebars

Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1-S2: 780mm width, S3-S6 800mm width

Brakes

Front Brake

SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 220mm Centerline rotor

Rear Brake

SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 200mm Centerline rotor

Drivetrain

Shift Levers

SRAM 70 trigger, 12-speed, single click

Rear Derailleur

SRAM Eagle 70 T-Type

Cassette

XS-1270, 12-speed, 10-52t

Shift Levers

SRAM 70 trigger, 12-speed, single click

Crankset

SRAM S1000 Crankset, ISIS Interface, Integrated Guard, 55mm Chainline, 155mm

Chain

SRAM Eagle 70 T-Type Flattop Chain

Chain Ring

SRAM 34t T-Type chainring, 104 BCD, steel

Wheels & Tyres

Front Hub

Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h

Rear hub

Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h

Rims

Specialized 29/27.5, hookless alloy, 30mm inner width, tubeless ready

Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.4"

Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.4"

Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.4"

Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.4"

Spokes

DT Swiss Industry

Tubes

Standard, Presta valve

E-Bike

Motor

All New Specialized 3.1 Motor, 101Nm torque, 666Nm power

UI Remote

All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app

Battery

840Wh battery

Charger

Specialized 4amp charger
