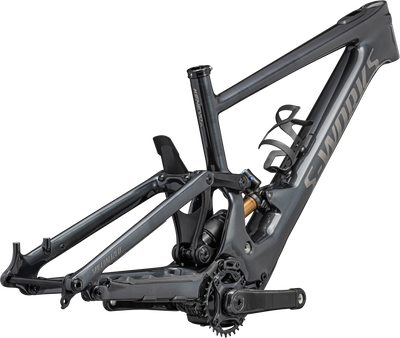

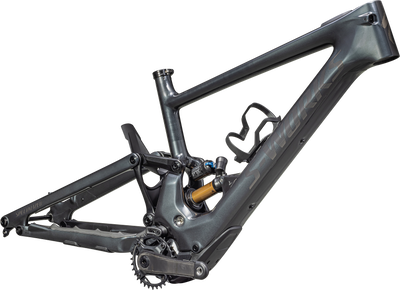

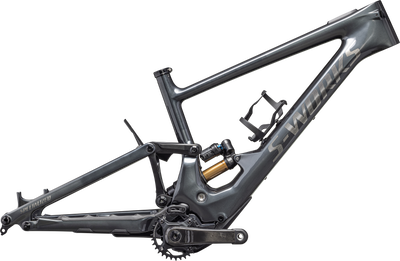

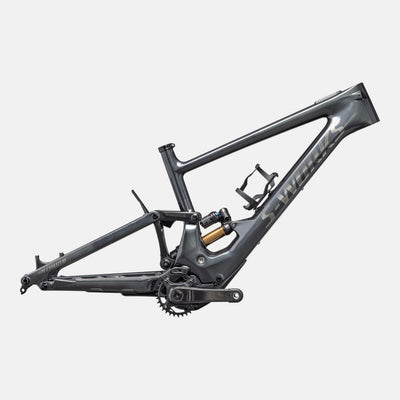

S-Works Turbo Kenevo SL Frameset 2
S-Works Turbo Kenevo SL Frameset 2
Our next-generation MasterMind TCU is your information hub, with customizable display fields including the exact percentage of battery level, and features our all-new, bar-mounted MicroTune function to adjust power delivery in 10% increments, so you get exactly the support you need to experience precisely the ride you want.
29” wheels front and rear deliver a nimble ride that carves circles around other full-power e-MTBs. A generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack headtube angle and reduced fork offset keep things stable in the rough.
The Turbo Kenevo Super Light geometry can be fine-tuned for wherever and however you ride. Six distinct geometry settings allow easy adjustment to hone performance in any terrain. Head angle can be adjusted between 62.5 and 64.5 degrees. Bottom bracket height can be fine-tuned up or down by 7mm. We’ve never made a more adjustable, adaptable trail bike.
The Turbo Kenevo Super Light’s 170mm of Enduro-inspired travel is supple on small bumps, devours square-edged hits without a twitch, eats massive G-outs for breakfast, yet still offers amazing pedal response and delivers your power to the ground with total efficiency.
The Turbo Kenevo Super Light’s S-Sizing is based on what matters—rider size and style, not inseam. Six sizes, all with similar headtube lengths and standover, allow you to choose the size that best suits your individual style. Smaller S-Size numbers are going to be nimble and more flickable, while bigger S-Sizes deliver more stability and a roomier ride.
Share
Kenevo Size Guide
Technical Specifications
Frameset
Frame
FACT 11m full carbon, 29", full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 170mm rear travel, geo adjust head tube, geo adjust horst pivot
Seat Binder
Alloy, 38.6mm
SWAT
SWAT CC, integrated tool and chain tool with spare link in steerer tube
Suspension
Rear Shock
Fox Float X2 Factory, Kashima, 230x62.5mm
Cockpit
Brakes
Drivetrain
Crankset
SRAM Dub carbon crank, S2/S3: 165mm, S4/S5: 170mm
Chain Ring
SL 1.2 spider, 104BCD, w/SRAM 32t X-Sync 2 alloy ring
Wheels & Tyres
E-Bike
Motor
New Specialized 1.2 SL Custom Rx Trail Tuned Motor
UI Remote
Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote
Battery
Specialized SL1-320, fully integrated, 320Wh
Charger
Custom charger, 48V System w/ SL system charger plug
Wiring Harness
Custom Specialized wiring harness
