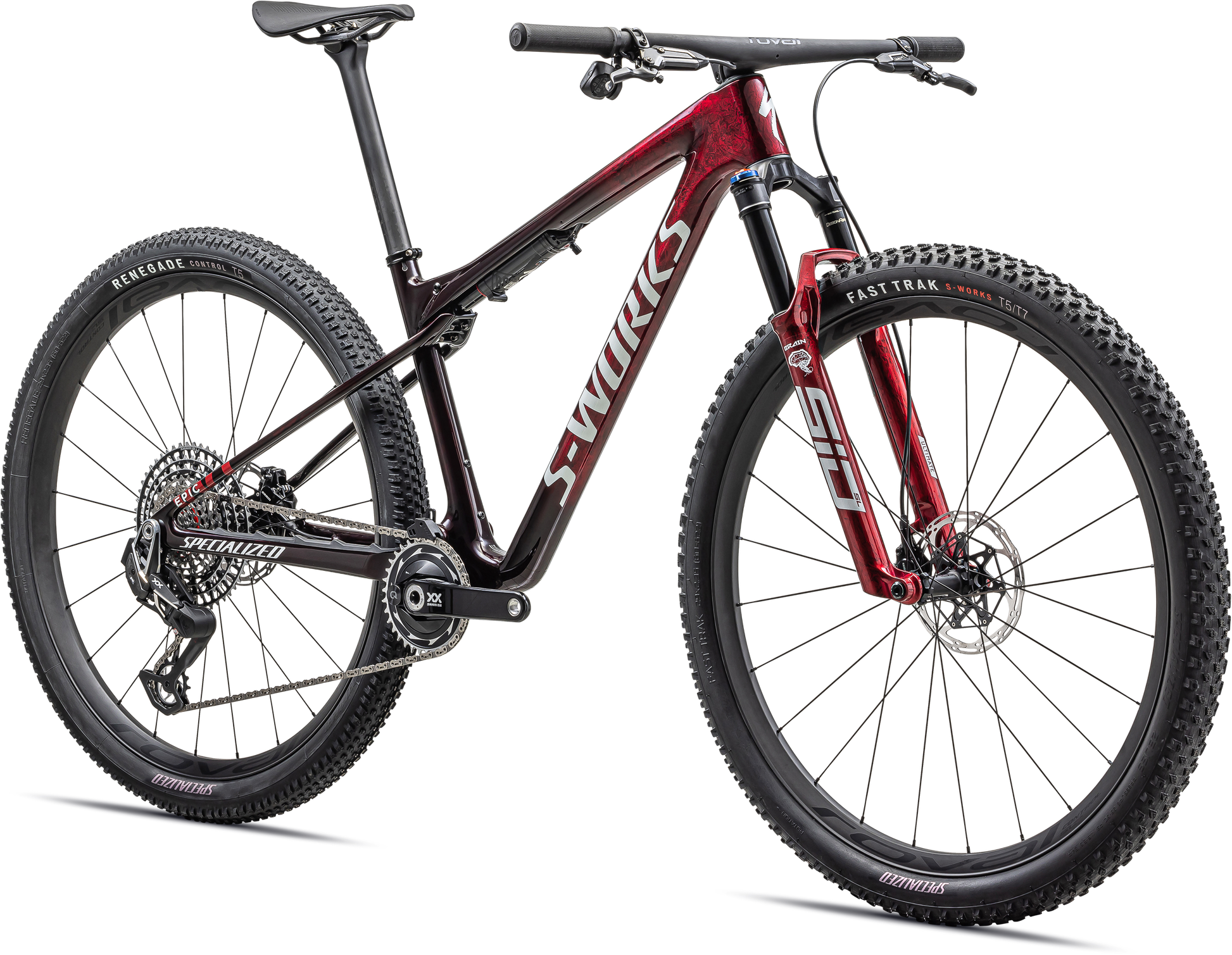

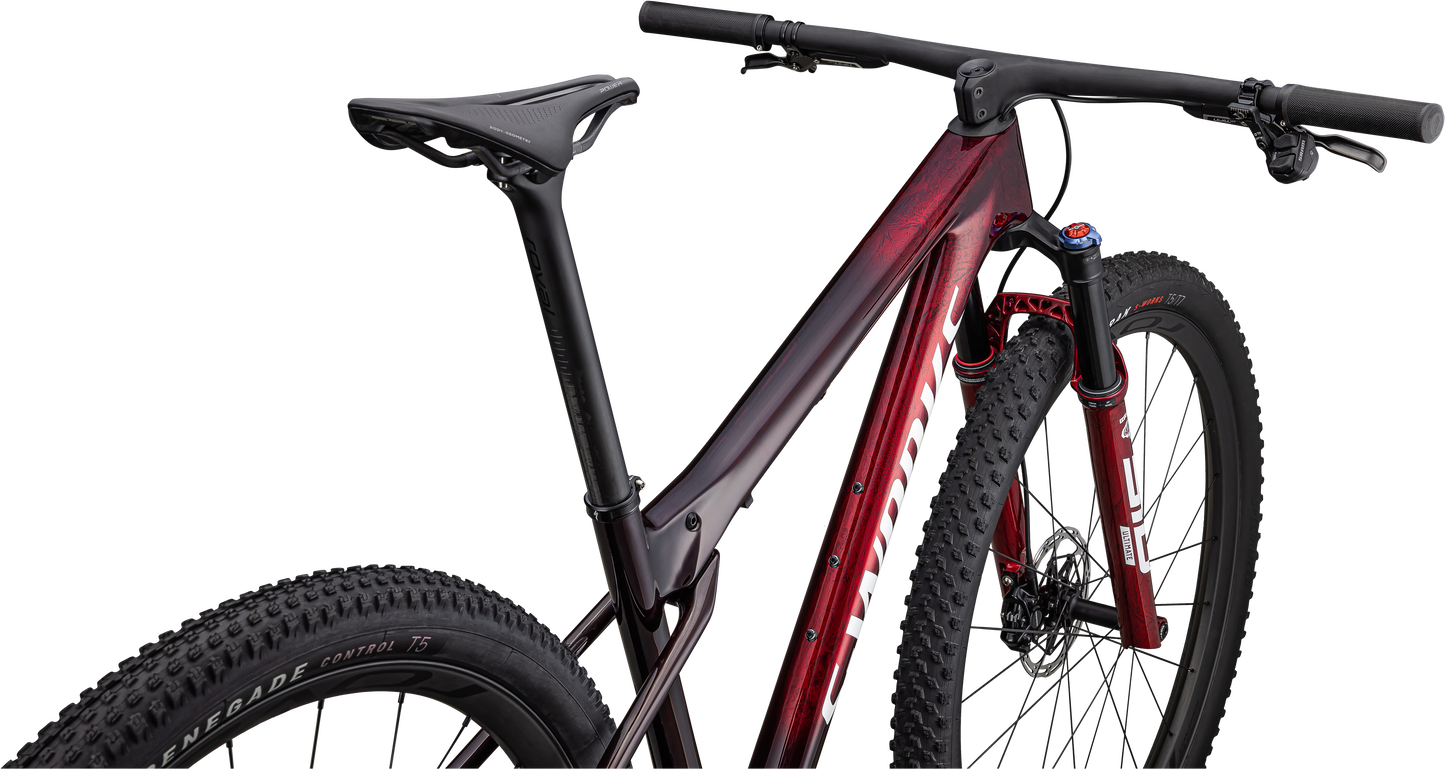

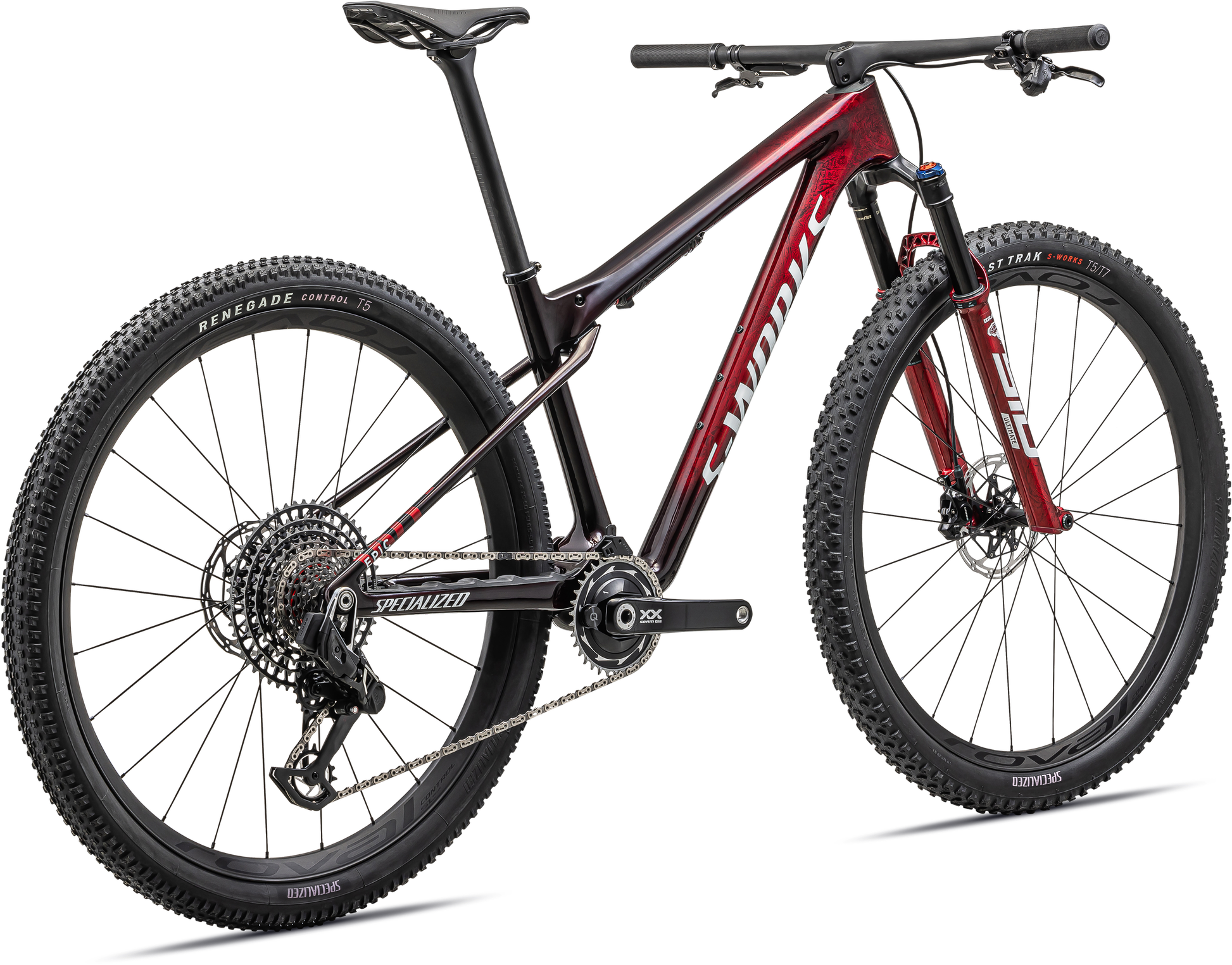

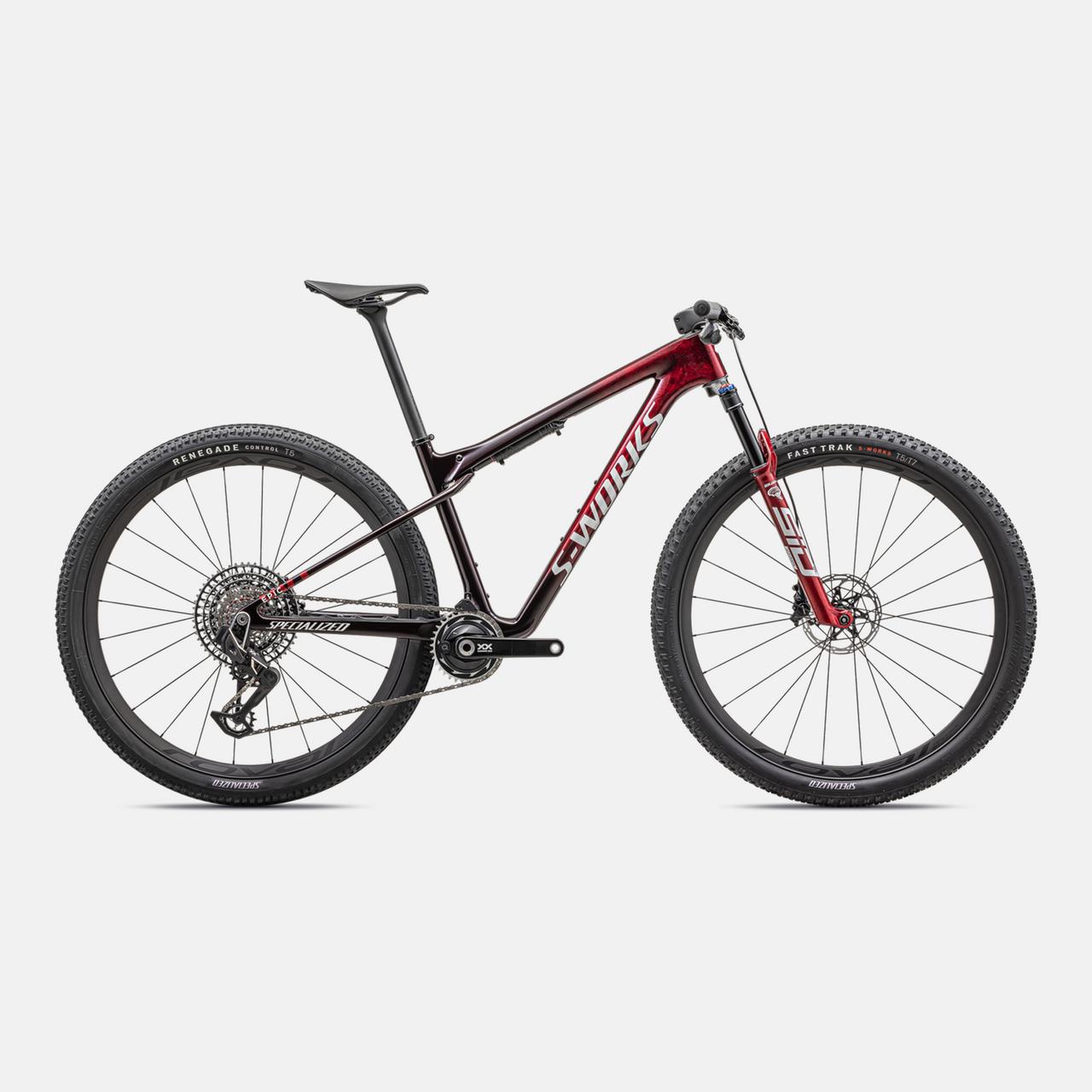

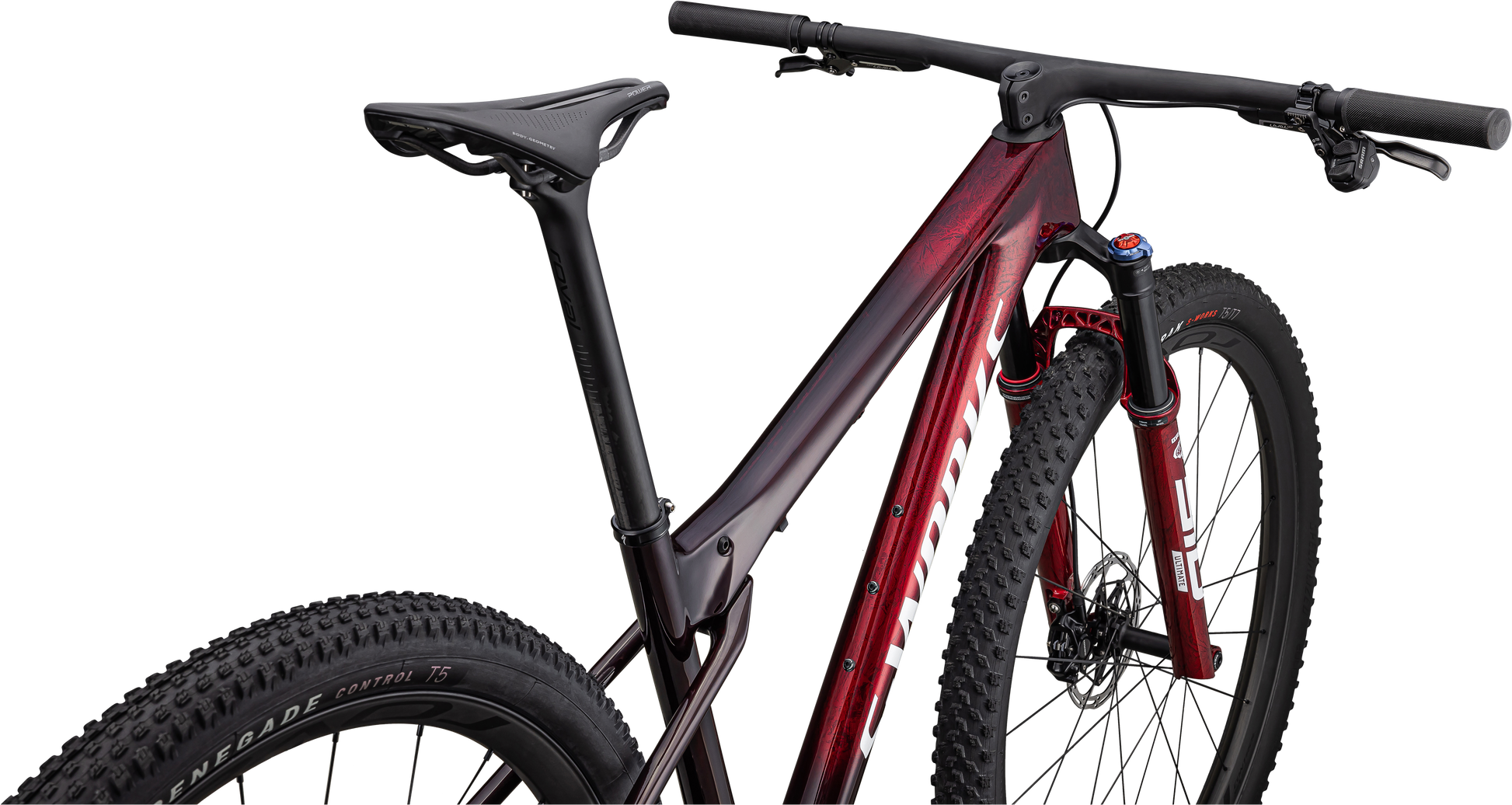

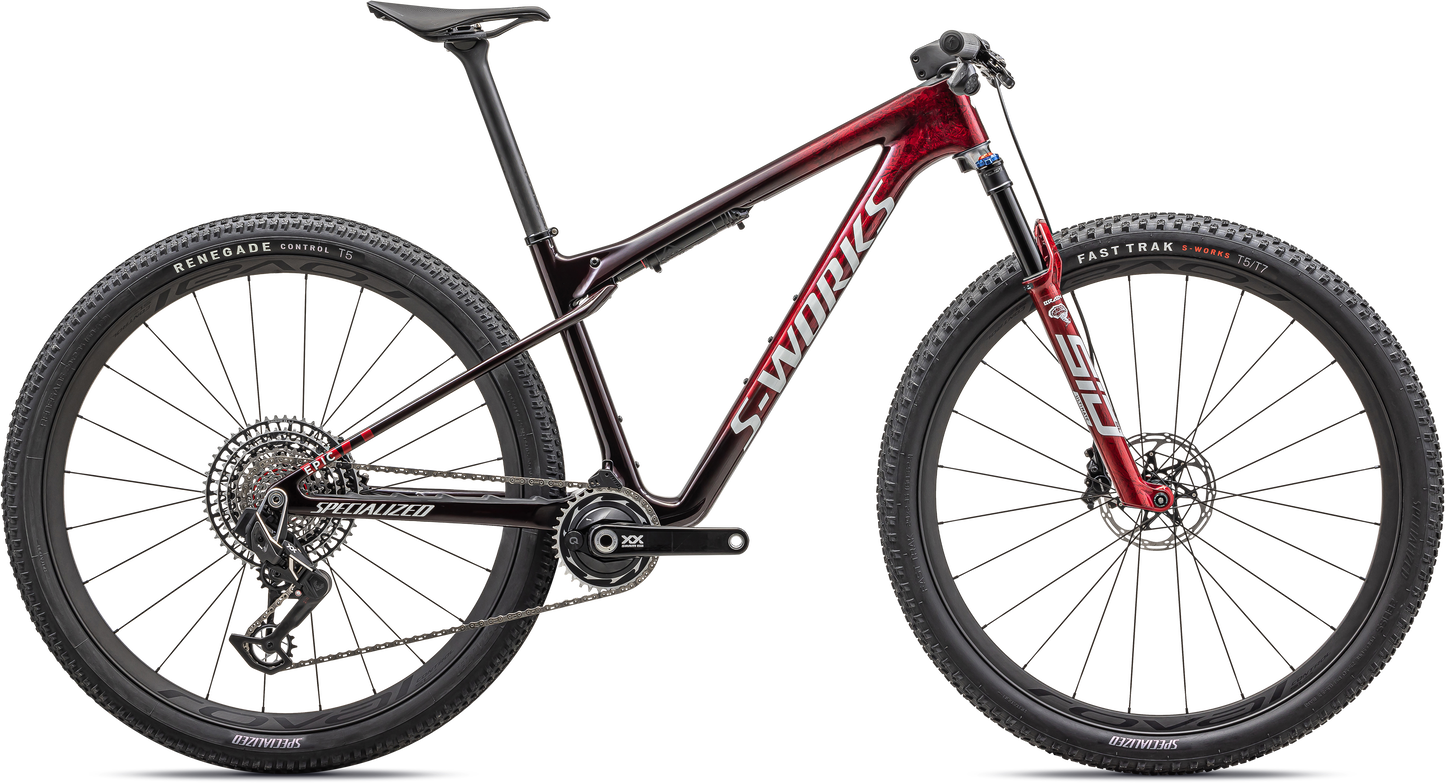

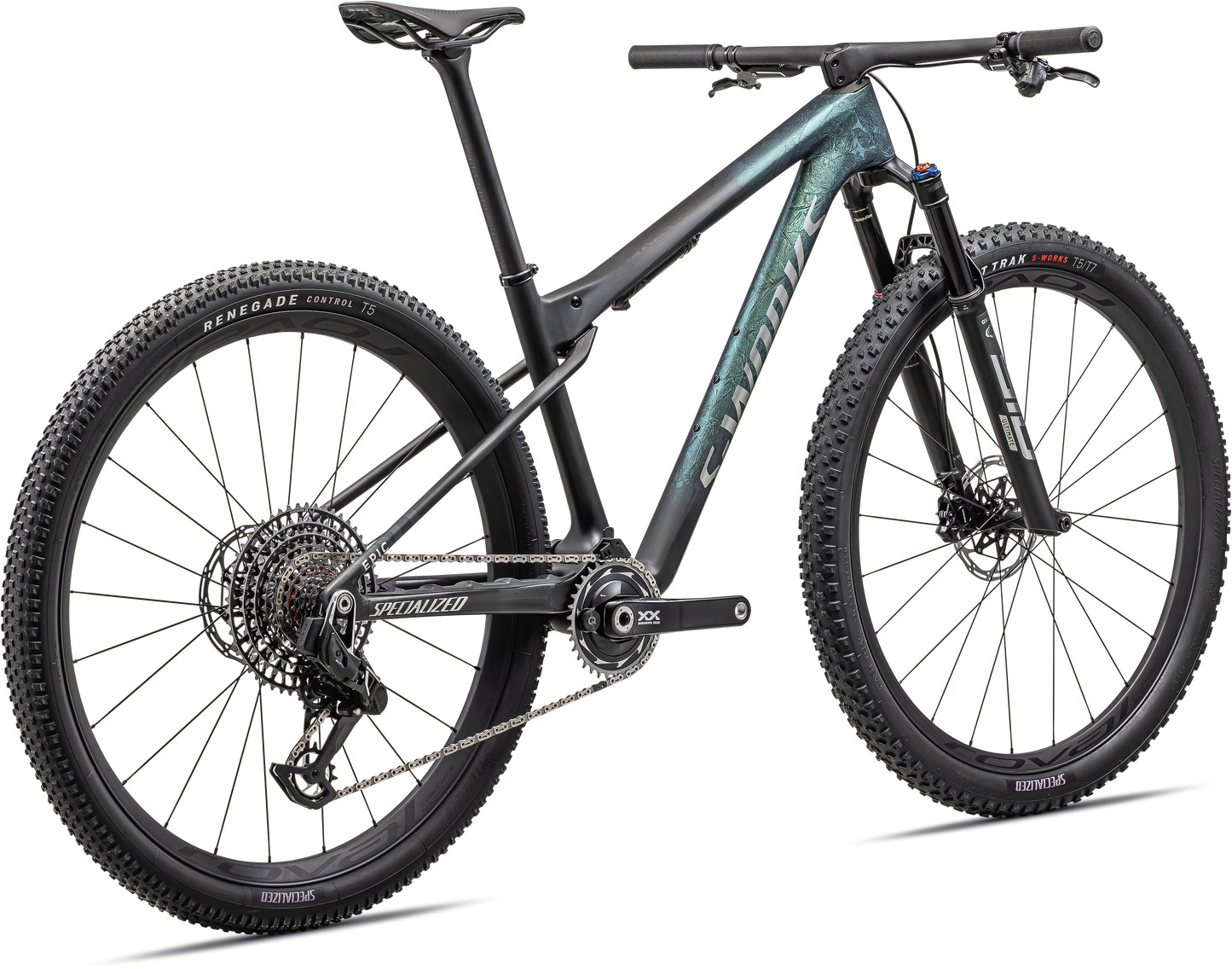

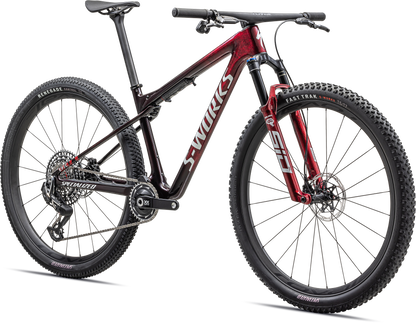

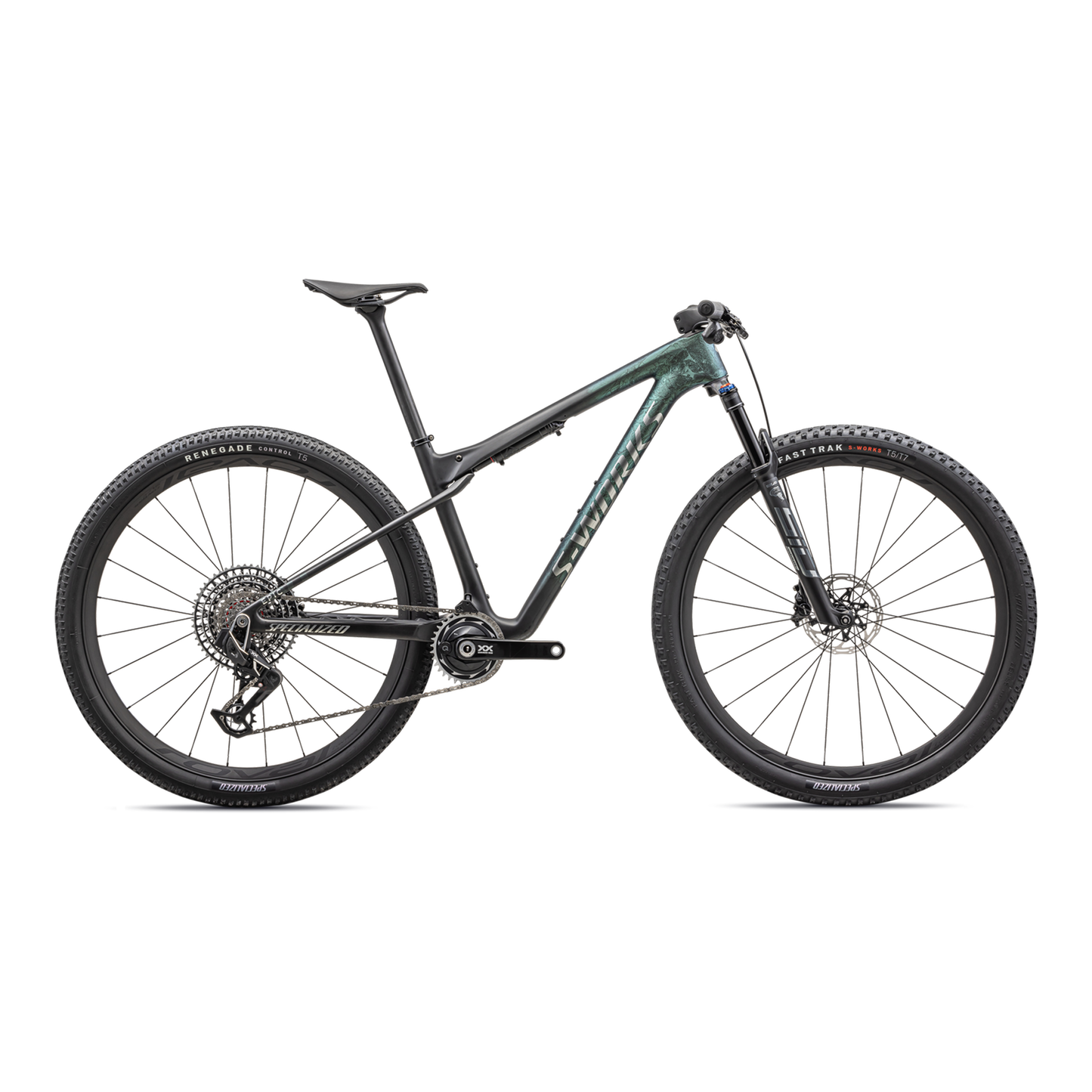

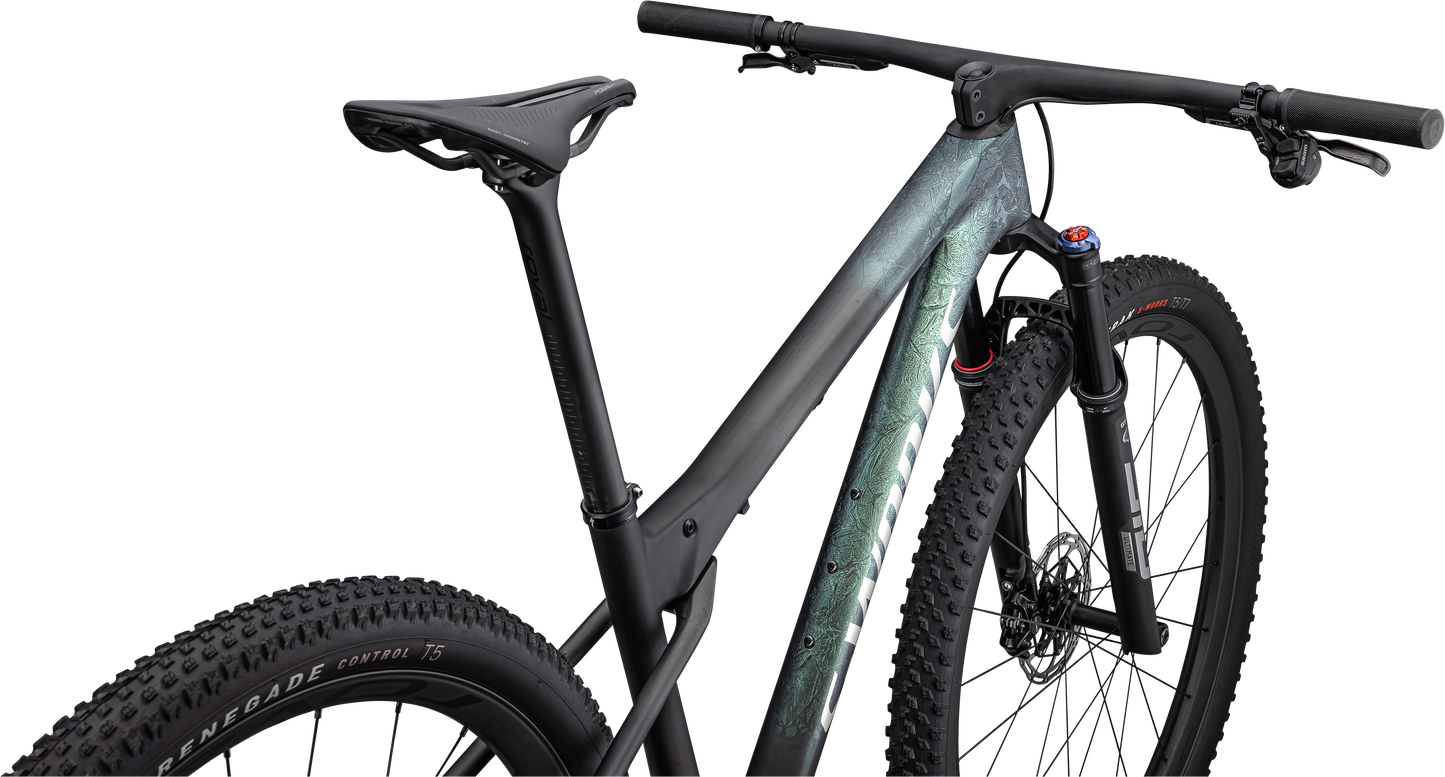

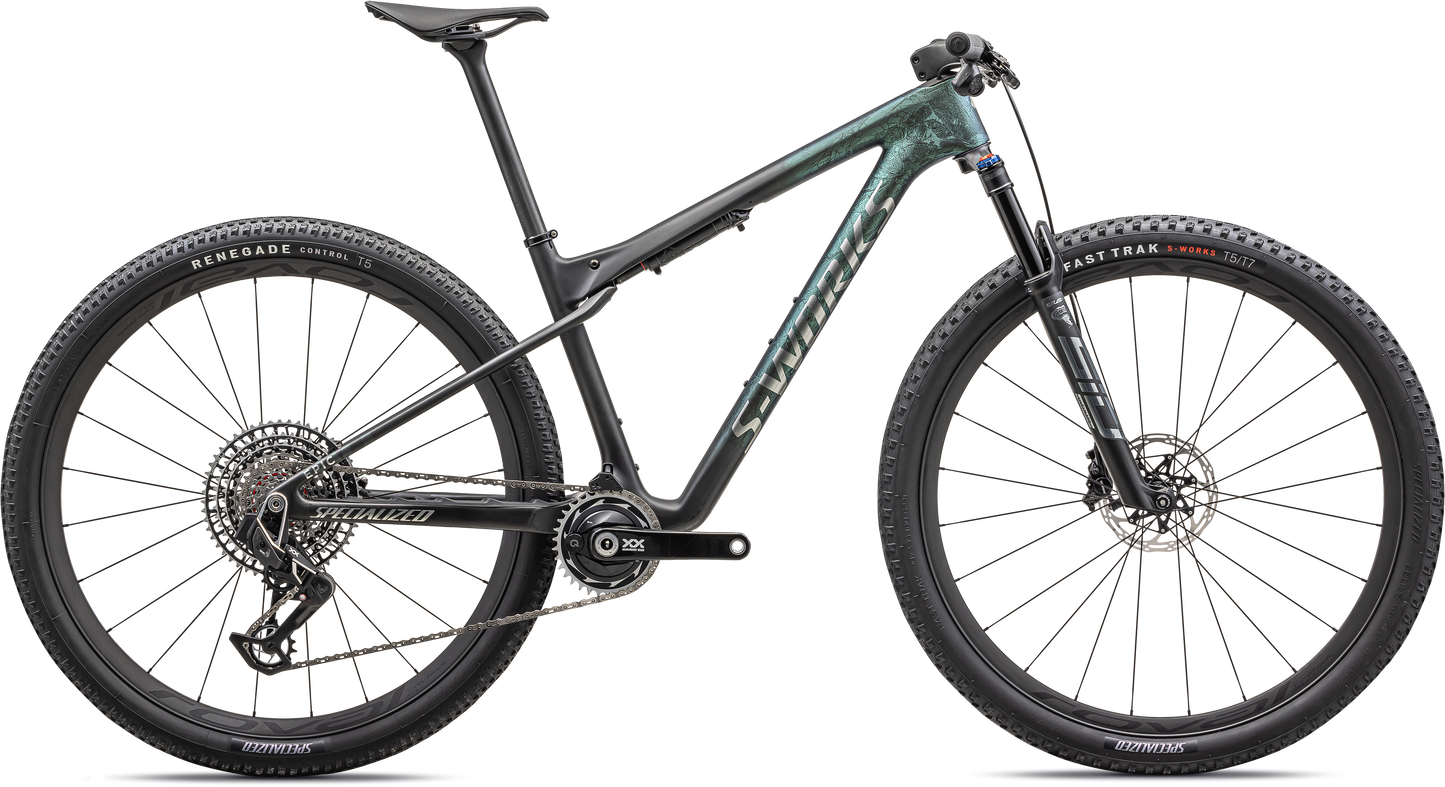

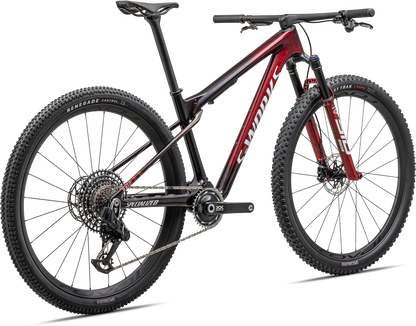

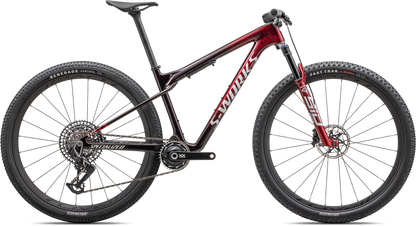

S-Works Epic World Cup
S-Works Epic World Cup
SRAM XX SL transmission builds on what top riders need in shifting performance and robustness, making it perfectly matched for the brutal demands of off-road racing.

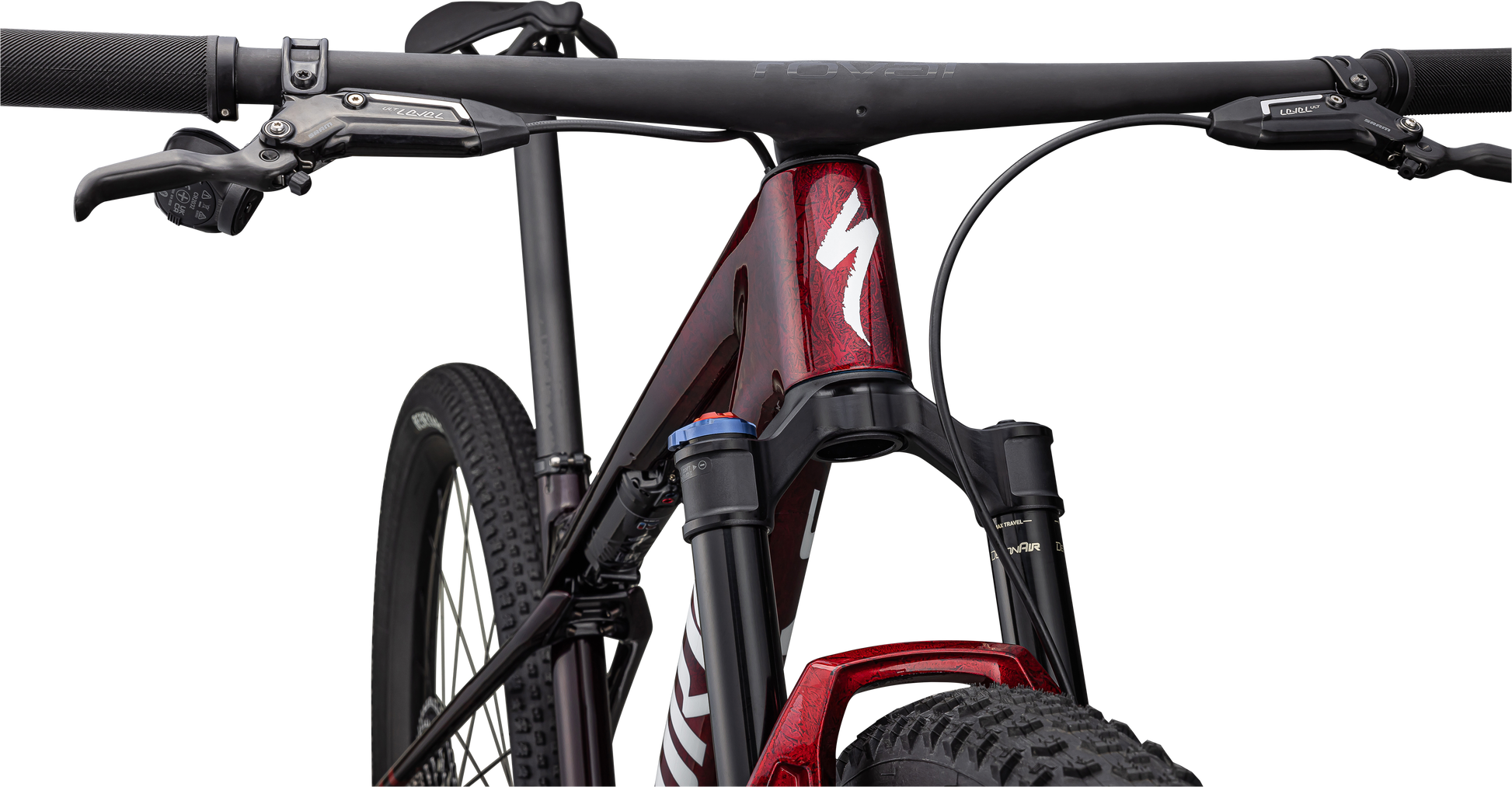

An all-new SID SL BRAIN fork provides 110mm of bump-muting performance while discerning inputs from the ground or rider to provide ultimate efficiency.
Created specifically to match the increased capabilities of the Epic World Cup, the Roval Control SL rim introduces a completely new offset rim profile that features a 29mm internal width that not only increases strength and reduces weight, but also improves pinch-flat resistance by 22-percent.
Share
Epic Size Guide
Technical Specifications
Frameset
Frame
S-Works FACT 12m Carbon, WCID suspension design, Progressive XC Race Geometry, Rider-First Engineered™, threaded BB, 12x148mm UDH compatible rear spacing, internal cable routing, 75mm of travel
Seat Binder
Specialized Alloy 34.9, Titanium Bolt
SWAT
SWAT EMT Cage-Mount Tool
Suspension
Rear Shock
RockShox-Specialized SIDLuxe WCID Ultimate, Ride Dynamics Developed, Independent negative spring, Rebound Adjust, 215x40mm
Fork
RockShox SID SL ULTIMATE BRAIN, Top-Adjust Brain damper, Debon Air, 15x110mm, 44mm offset, 110mm Travel
Cockpit
Seat Post
Roval Control SL carbon seatpost, Two-bolt clamp, 0mm offset, 415/370mm x 30.9

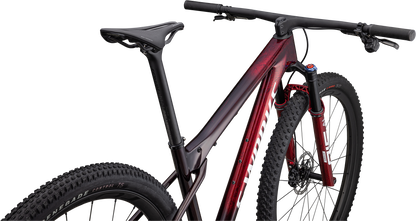

Saddle
Body Geometry S-Works Power, carbon fiber rails, carbon fiber base
Grips
Specialized Trail Grips

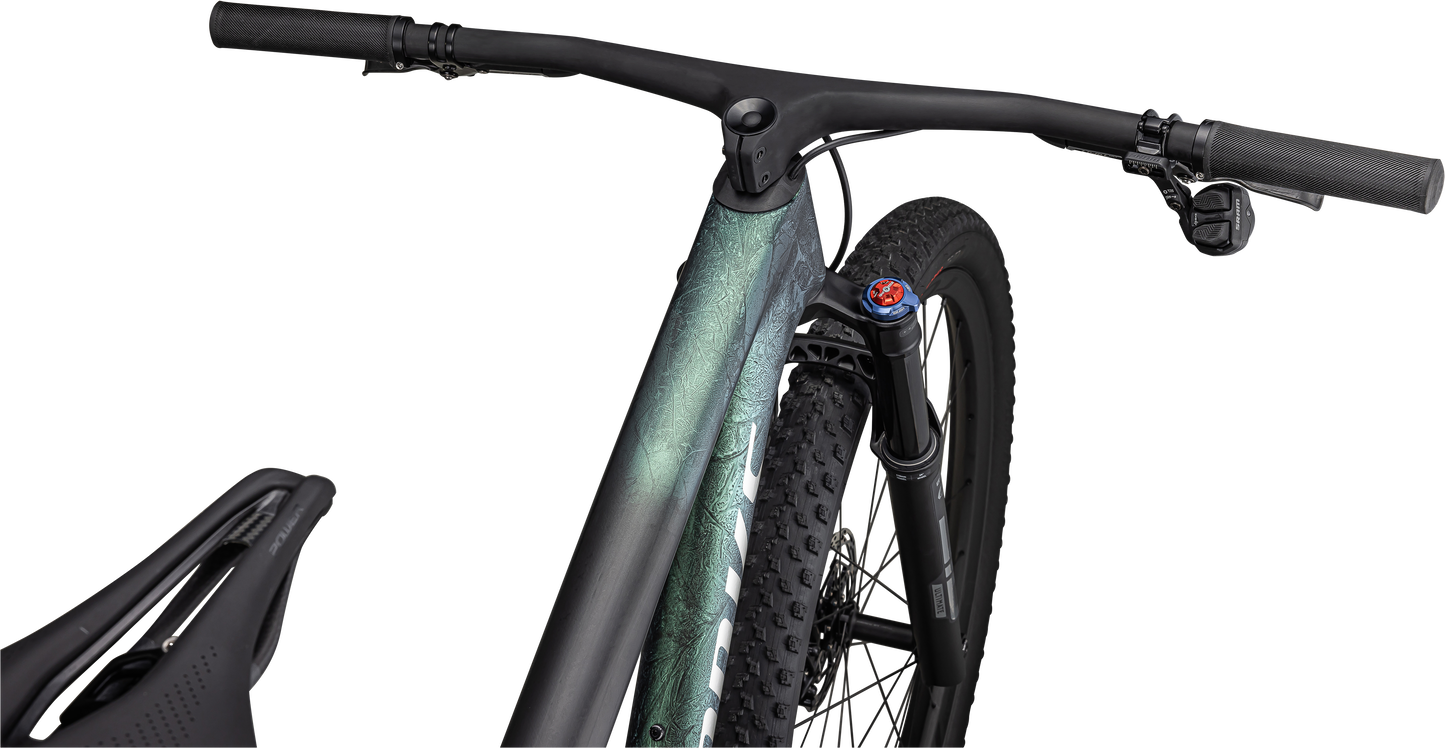

Handlebars

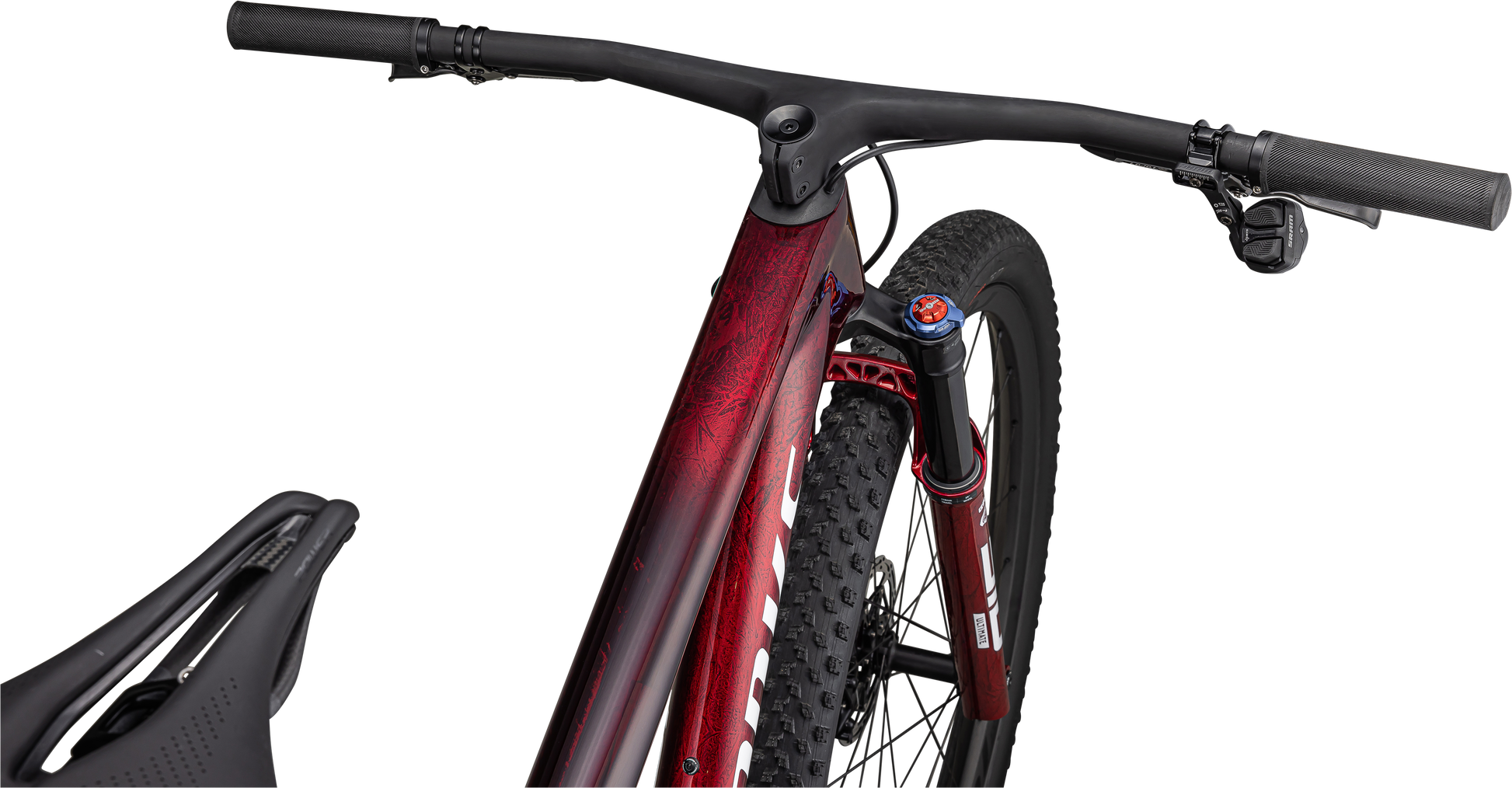

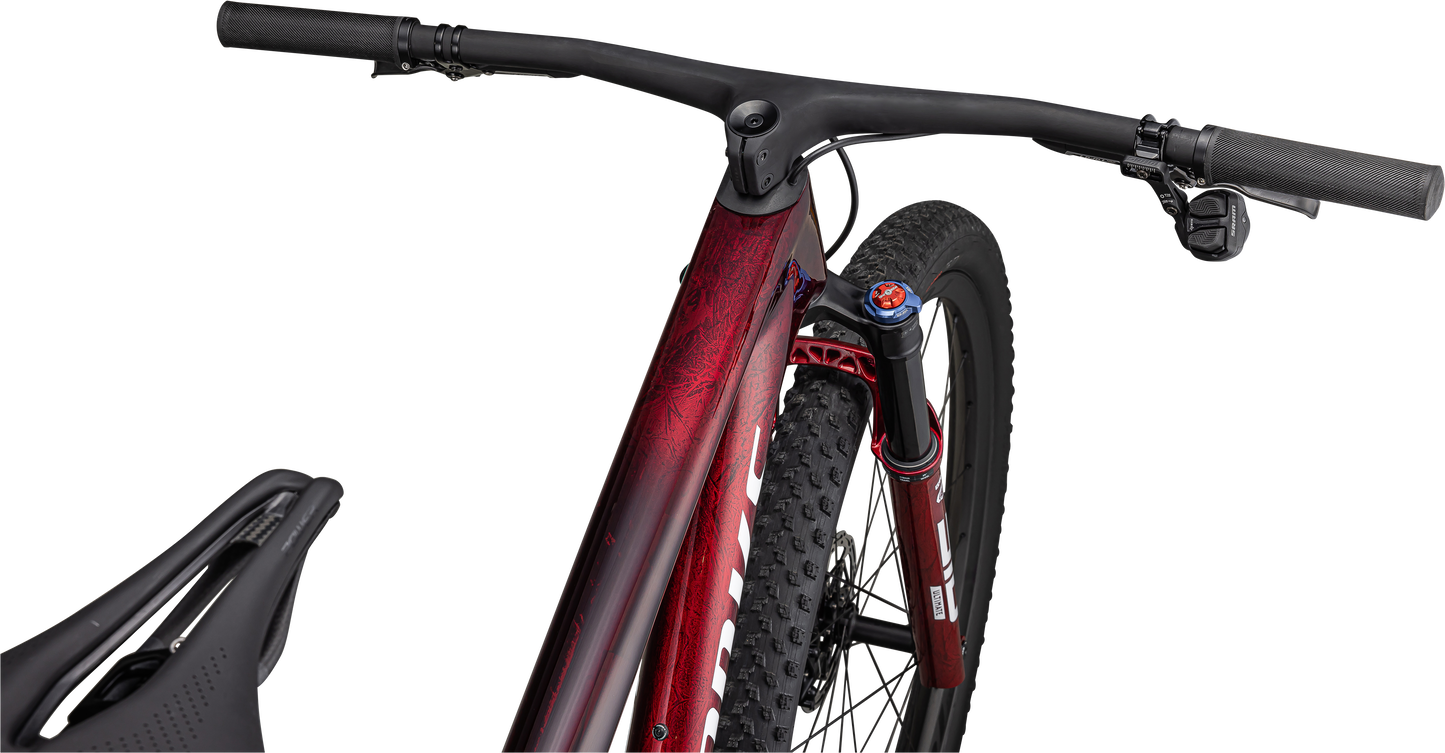

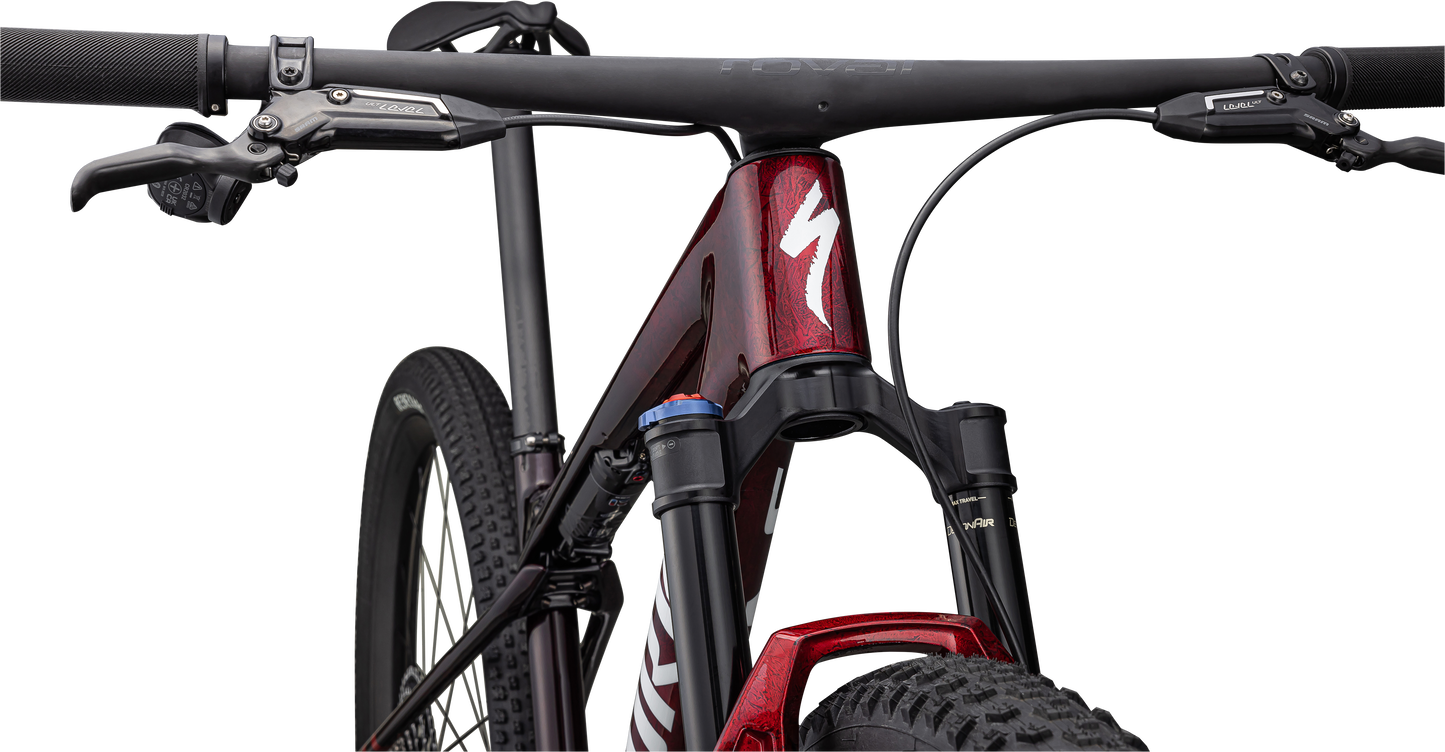

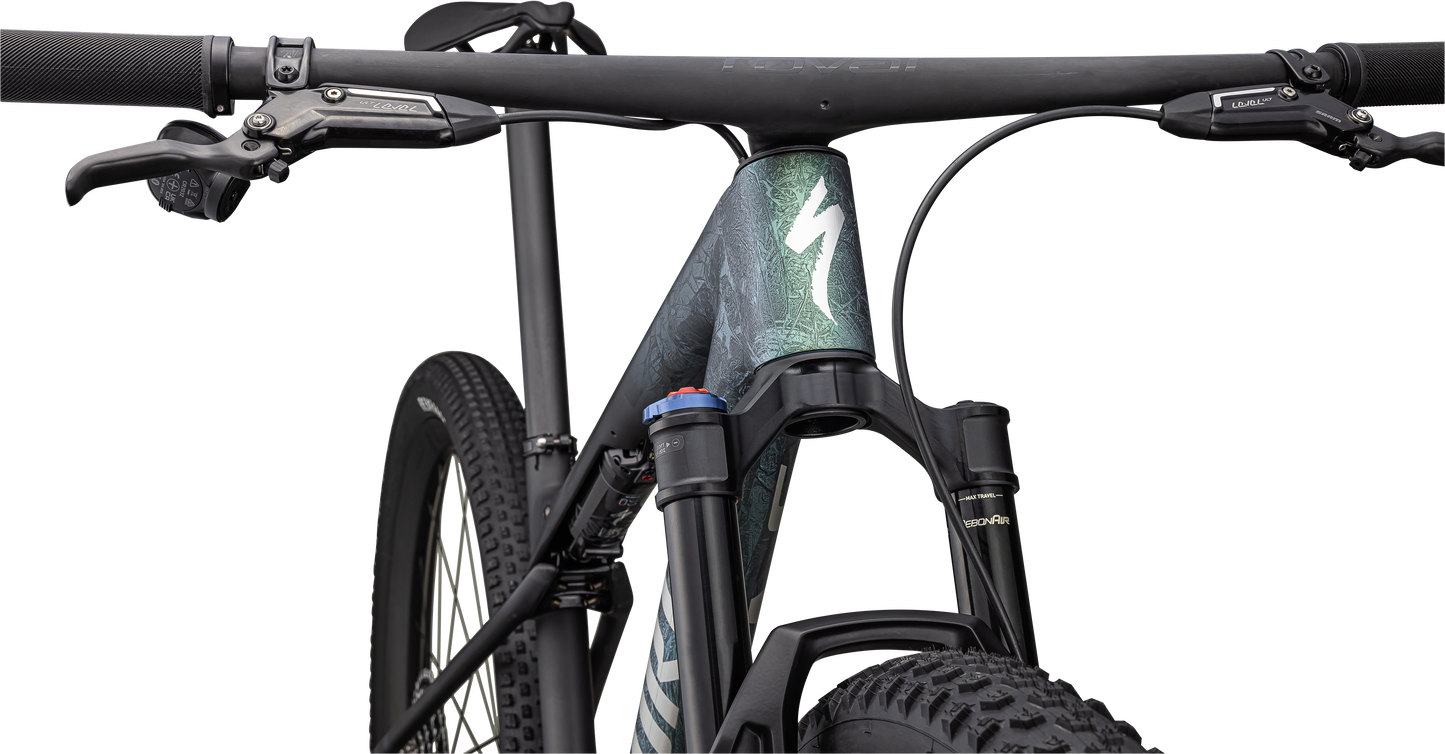

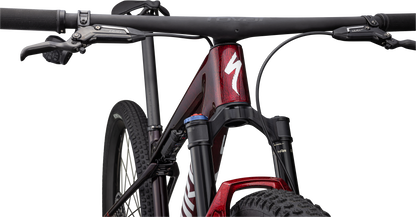

Roval Control SL Integrated cockpit, 60mm/70mm X- 12 degree integrated stem, 8-degree backsweep, 1 degree upsweep, 760mm wide
Brakes
Front Brake
SRAM Level Ultimate, 2-piston caliper, hydraulic disc, stealth, 180/160mm rotor
Rear Brake
SRAM Level Ultimate, 2-piston caliper, hydraulic disc, stealth, 160mm rotor
Drivetrain
Shift Levers
SRAM POD AXS controller
Rear Derailleur
SRAM XX SL Eagle Transmission
Cassette
SRAM CS-1299 Cassette, 12-speed, 10-52t
Shift Levers
SRAM POD AXS controller
Crankset
Quarq XX SL power meter crankset, Carbon, 168 Q-Factor, DUB, 170/175mm, 34T
Chain
SRAM XX SL Eagle
Bottom Bracket
SRAM DUB, BSA 73mm, Threaded
Chain Ring
34t
Wheels & Tyres
Front Hub
Roval Control SL, DT Swiss Internals, Ceramic Bearings, 6-bolt, 15mm thru-axle, 110mm spacing, Torque caps, 24h straight pull t-head
Rear hub
Roval Control SL, DT Swiss 180 Internals, DT Swiss Ratchet EXP, Ceramic bearings, 12mm thru-axle, 148mm spacing, 24h straight-pull t-head
Rims
Roval Control SL, Carbon offset design, 29mm internal width, 4mm hook width, Tubeless ready, 24h
Front Tire
Specialized S-Works Fast Trak, S-Works Casing, T5/T7 Compound, 29x2.35
Rear Tire
Specialized Renegade, Control Casing, T5 Compound, 29x2.35
Spokes
DT Swiss Aerolite Straight-pull t-head
Tubes
Specialized Turbo Tube
