Pairing 100 millimeters of the most efficent travel on earth with RockShox's svelte-yet-stiff SID SL Ultimate chassis, the RockShox SID SL Ultimate BRAIN fork serves as the pinnacle of XC-race supsension perfection.

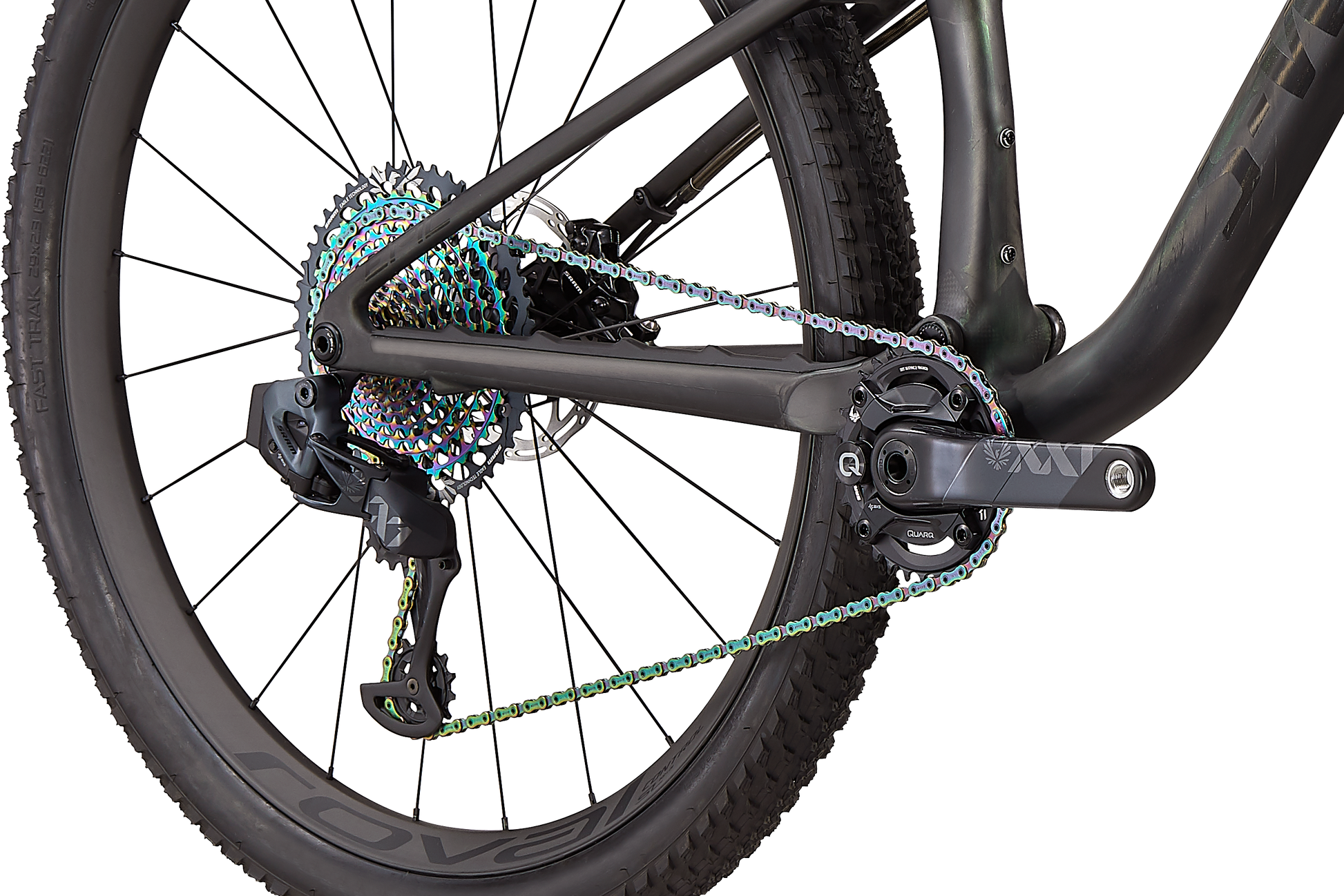

SRAM's XX1 Eagle AXS isn't just the lightest electronic MTB groupset on the market, it's also designed to withstand World-Cup winning chain loads while instantaneously snapping of instantaneous shifts to ensure you're never caught on the back foot.
Created specifically to match the increased capabilities of the Epic, the Roval Control SL rim introduces a completely new offset rim profile that features a 29-millimeter-wide internal width and not only increases strength and reduces weight, but also improves pinch-flat resistance by 22-percent.
Frame
S-Works FACT 12m Carbon, Progressive XC Race Geometry, Rider-First Engineered™, threaded BB, 12x148mm rear spacing, internal cable routing, 100mm of travel
Seat Binder
Specialized Alloy, 34.9mm, Titanium bolt
SWAT
SWAT EMT Cage-Mount Tool

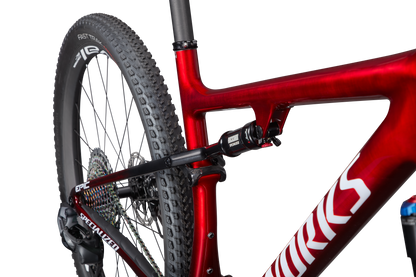

Rear Shock

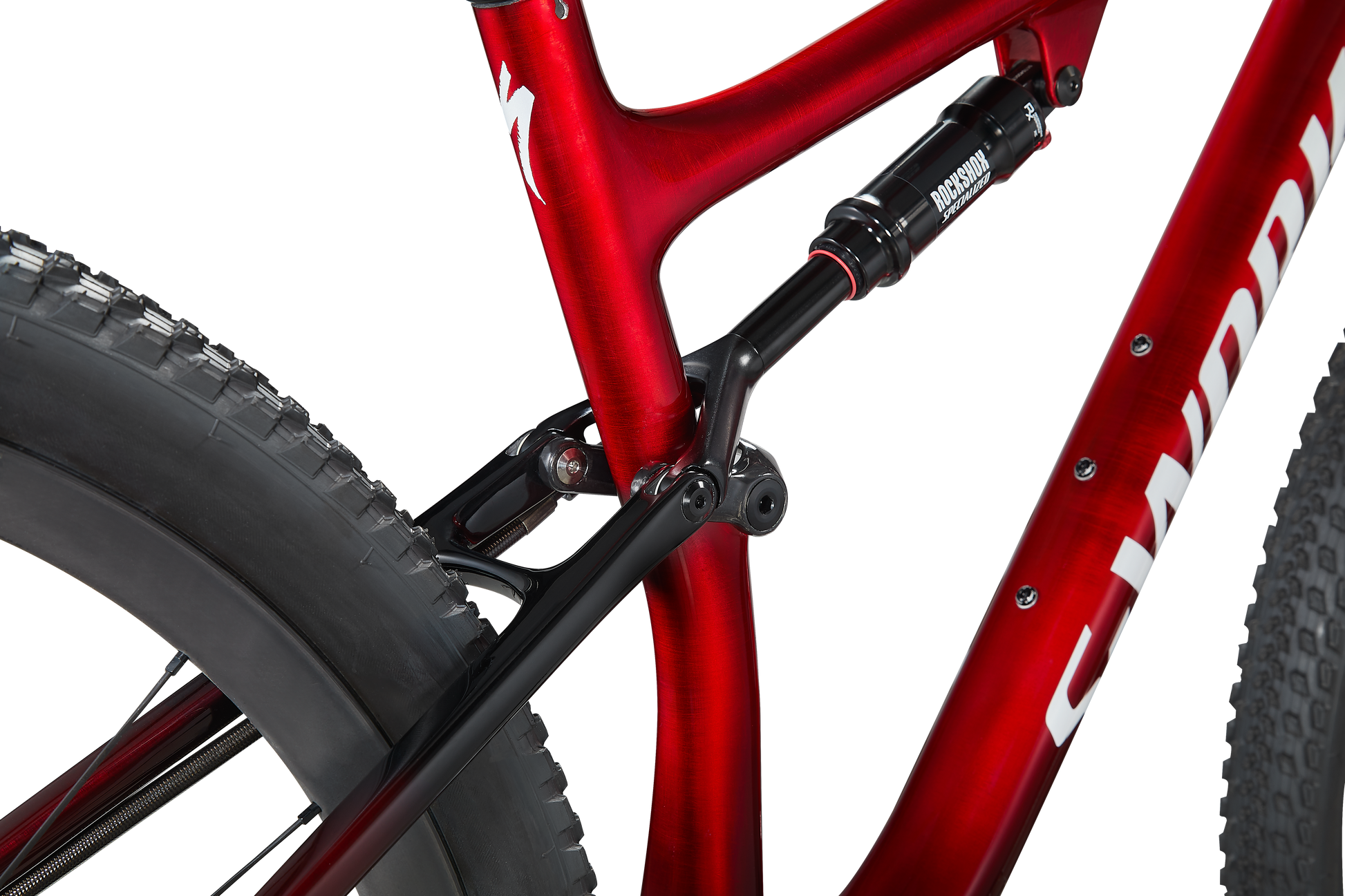

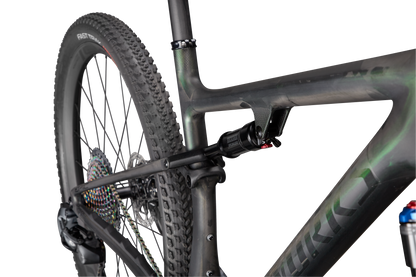

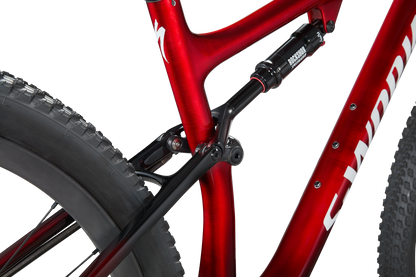

RockShox-Specialized BRAIN, Rx XC Tune, 5 Position Platform Adjust, Rebound Adjust, Integrated Extension, 265x52.5mm
Fork

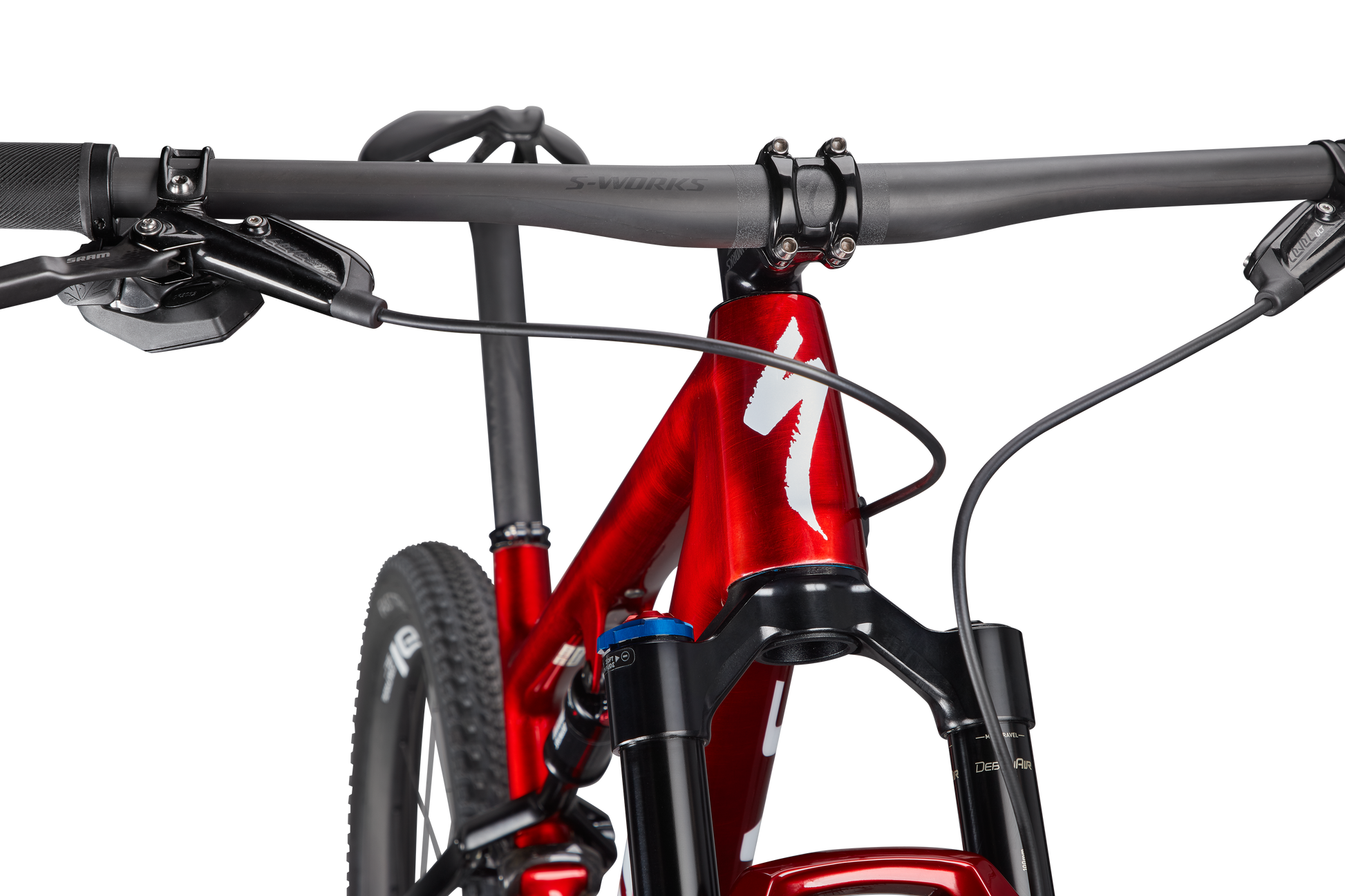

RockShox SID SL ULTIMATE BRAIN, Top-Adjust Brain damper, Debon Air, 15x110mm, 44mm offset, 100mm Travel

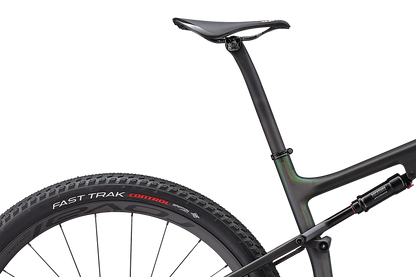

Seat Post

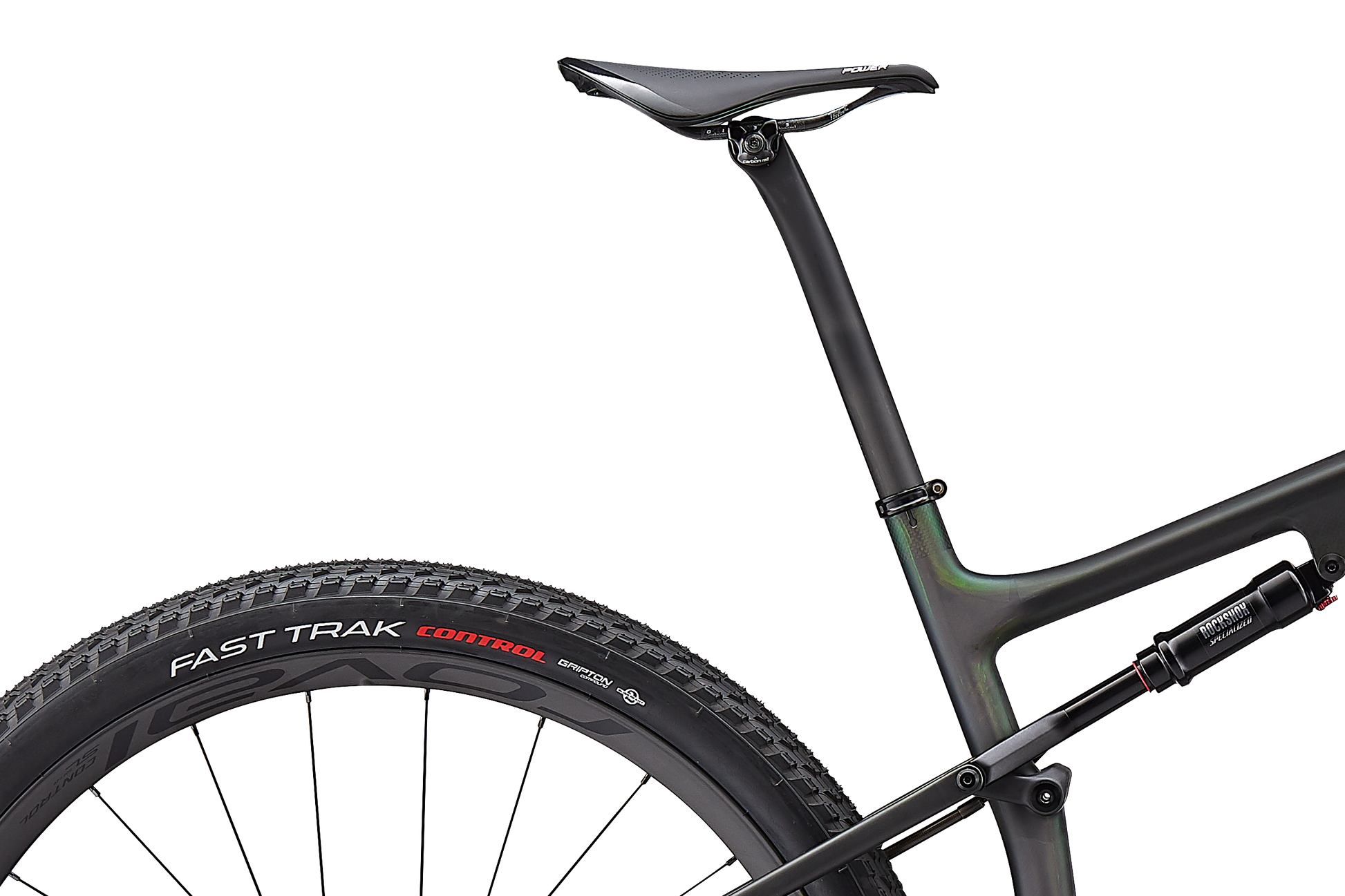

S-Works FACT carbon, 10mm offset, 30.9mm
Saddle
Body Geometry S-Works Power, carbon fiber rails, carbon fiber base
Stem
S-Works SL, alloy, titanium bolts, 6-degree rise
Grips
Specialized Trail Grips

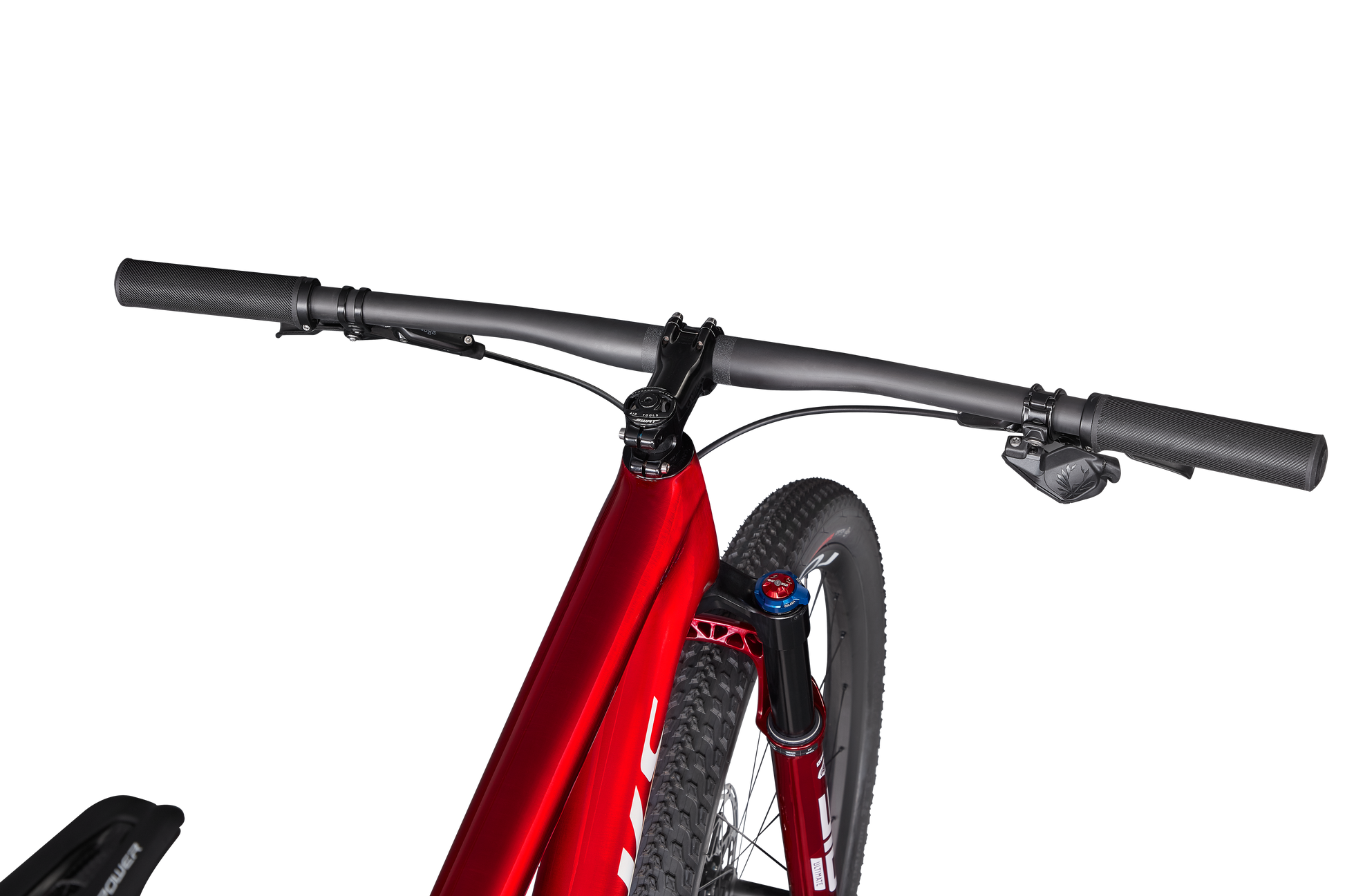

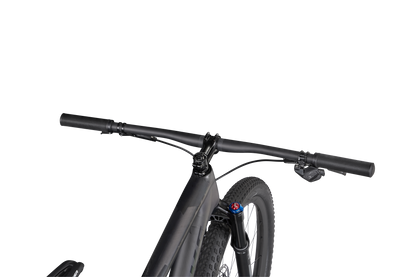

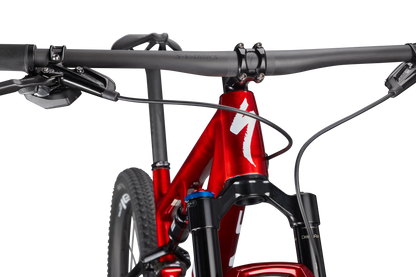

Handlebars

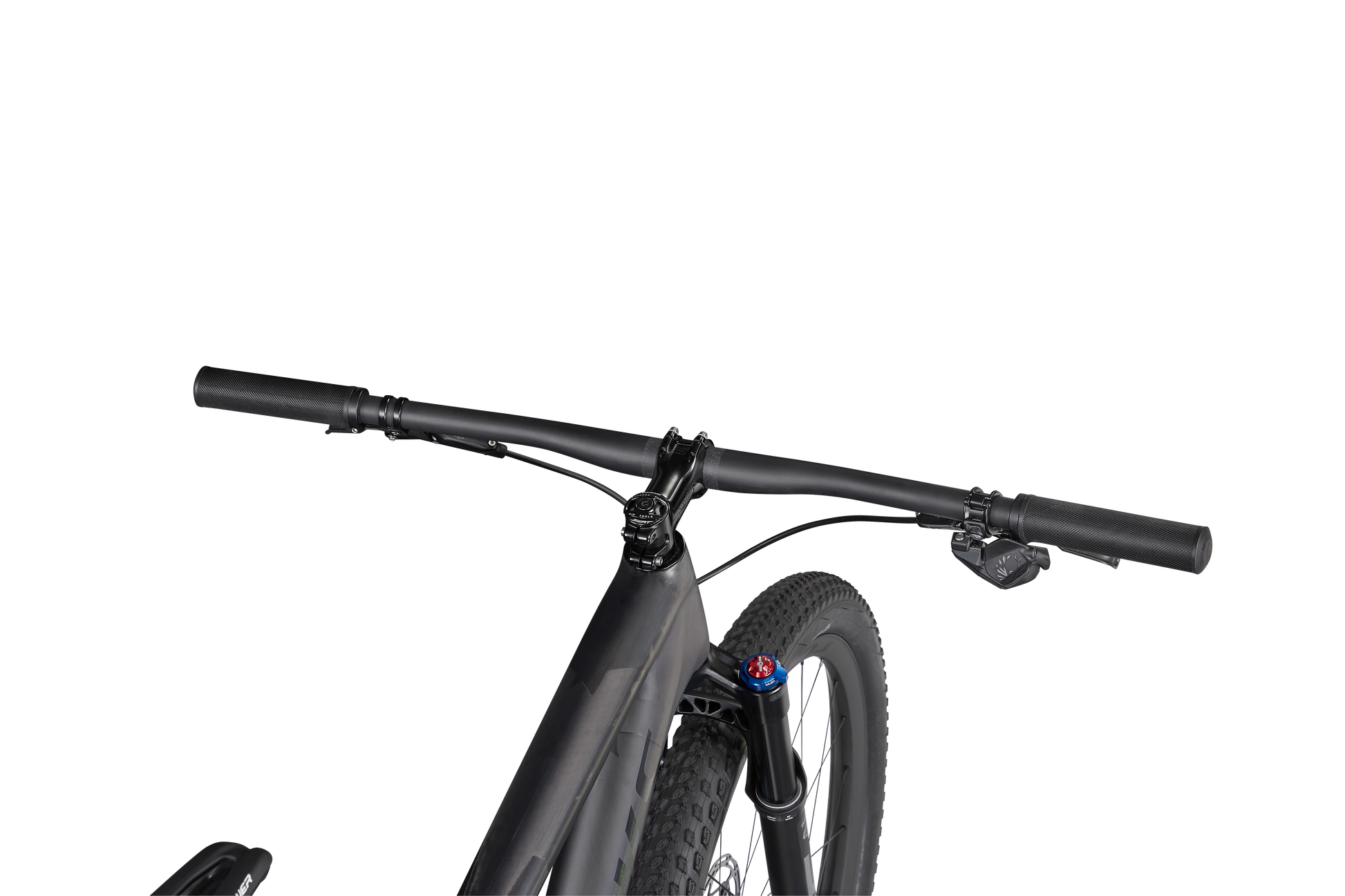

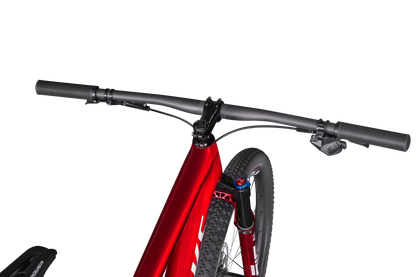

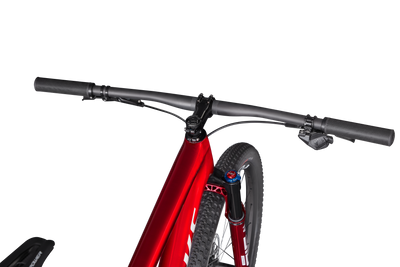

S-Works Carbon XC Mini Rise, 6-degree upsweep, 8-degree backsweep, 10mm rise, 760mm, 31.8mm
Front Brake
SRAM Level Ultimate, 2-piston caliper, hydraulic disc
Rear Brake
SRAM Level Ultimate, 2-piston caliper, hydraulic disc
Shift Levers
SRAM AXS Eagle Controller
Rear Derailleur

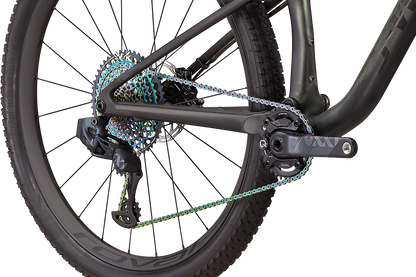

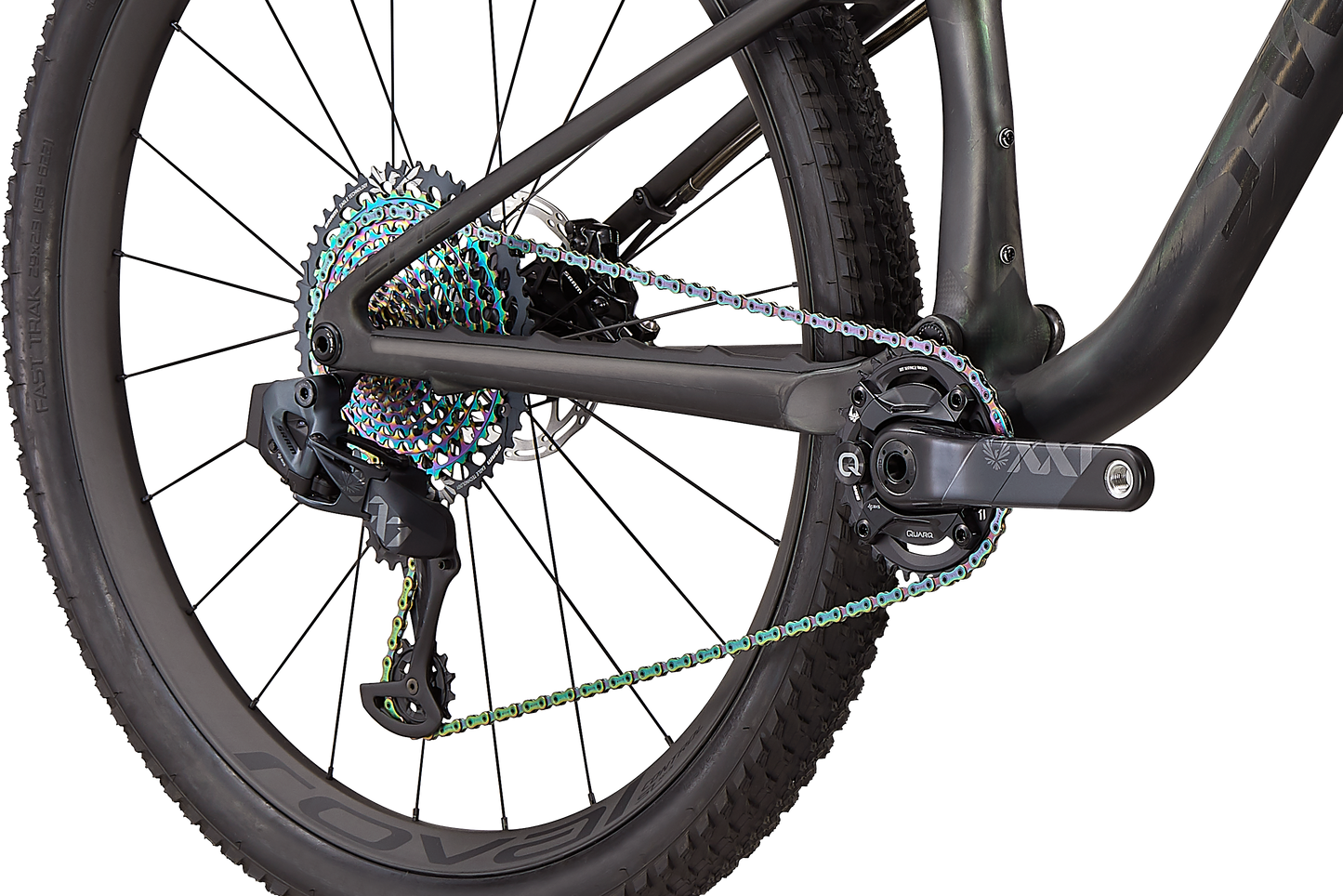

SRAM XX1 Eagle AXS
Cassette
SRAM XG-1299 Eagle, 10-50t
Shift Levers
SRAM AXS Eagle Controller
Crankset
QUARQ XX1 Eagle Power Meter, Boost™ 148, DUB, 170/175mm, 32T
Chain
SRAM XX1 Eagle
Bottom Bracket
SRAM DUB, BSA 73mm, Threaded
Chain Ring
32T
Front Hub
Roval Control SL, DT Swiss Internals, Ceramic Bearings, 6-bolt, 15mm thru-axle, 110mm spacing, Torque caps, 24h straight pull t-head
Rear hub
Roval Control SL, DT Swiss 180 Internals, DT Swiss Ratchet EXP, Ceramic bearings, 12mm thru-axle, 148mm spacing, 24h straight-pull
Rims
Roval Control SL, Carbon offset design, 29mm internal width, 4mm hook width, Tubeless ready, 24h
Fast Trak, Control casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3"
Fast Trak, Control casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3"
Fast Trak, Control casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3"
Fast Trak, Control casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3"
Spokes
DT Swiss Aerolite T-head
Tubes
Presta, 60mm valve
