Diverge Size Guide

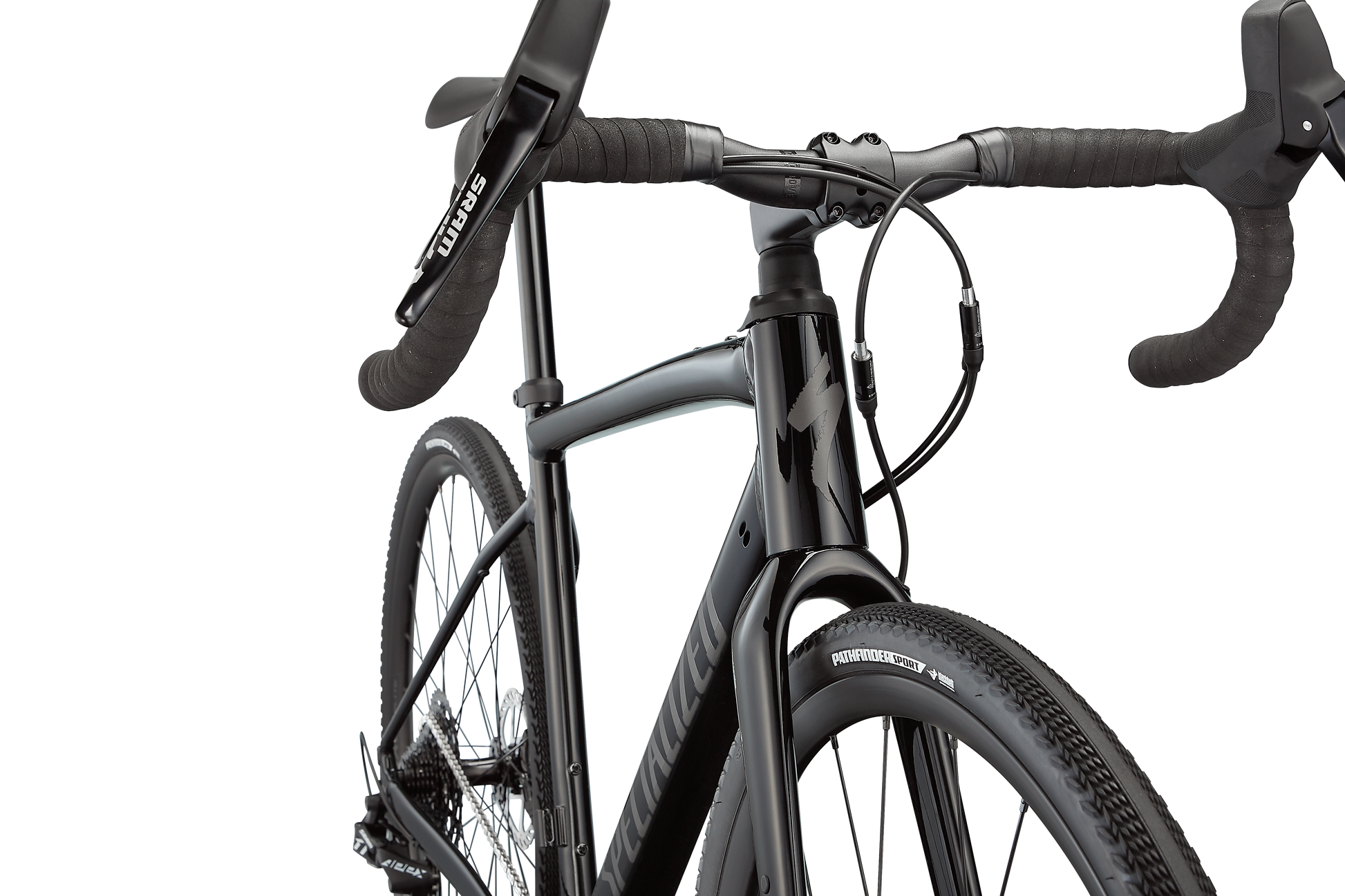

Speed, control and confidence - Future Shock 1.5 is ideal technology for the gravel rider. With 20mm of axial compliance, Future Shock 1.5 is progressively tuned specifically for gravel riding. This keeps you confident and in control, able to keep the power down and stay off the brakes over rough dirt roads and in thick loose gravel, all while keeping your hands, arms and neck fresh.
We tossed gravel geometry āstatus-quoā out the window. The new Diverge has the most progressive geometry weāve ever created for a drop bar bike, giving riders a capable and stable bike in the dirt, that still feels responsive and nimble on the road. Weāve increased the frameās reach, introduced a slacker head tube and a longer offset fork. All this creates incredible confidence with a planted feeling in the dirt, while specāing shorter stems keeps the overall cockpit length the same and the steering lively. Weāve kept the bikeās BB low to increase stability, but high enough to utilize with 650b wheels if thatās your jam.
Weāve given the Diverge plenty of rack mounts, including fork and top tube mounts, to ensure you can take what you need, no matter how far you plan to go, or how long you plan to stay out.
Nothing unlocks a bikeās capability like tire clearance, so we gave the new Diverge a whopping 47mm of tire clearance with a 700c wheel and 2.1ā with a 650b wheel. Thanks to a drive side chain stay utilizing a machined alloy beam behind the chain rings weāve created clearance without using a fragile dropped chain stay design or increasing chain stay length.
Frame
Specialized Diverge E5 Premium Aluminum, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc
Seat Binder
Alloy, 30.8mm
Fork
Future Shock 1.5 w/Smooth Boot, FACT carbon, 12x100 mm thru-axle, flat-mount
Seat Post
Alloy, 2-bolt Clamp, 12mm offset, 27.2mm, anti-corrosion hardware
Saddle
Body Geometry Power Sport, steel rails
Stem
Future Stem, Comp
Bar Tape
Specialized S-Wrap

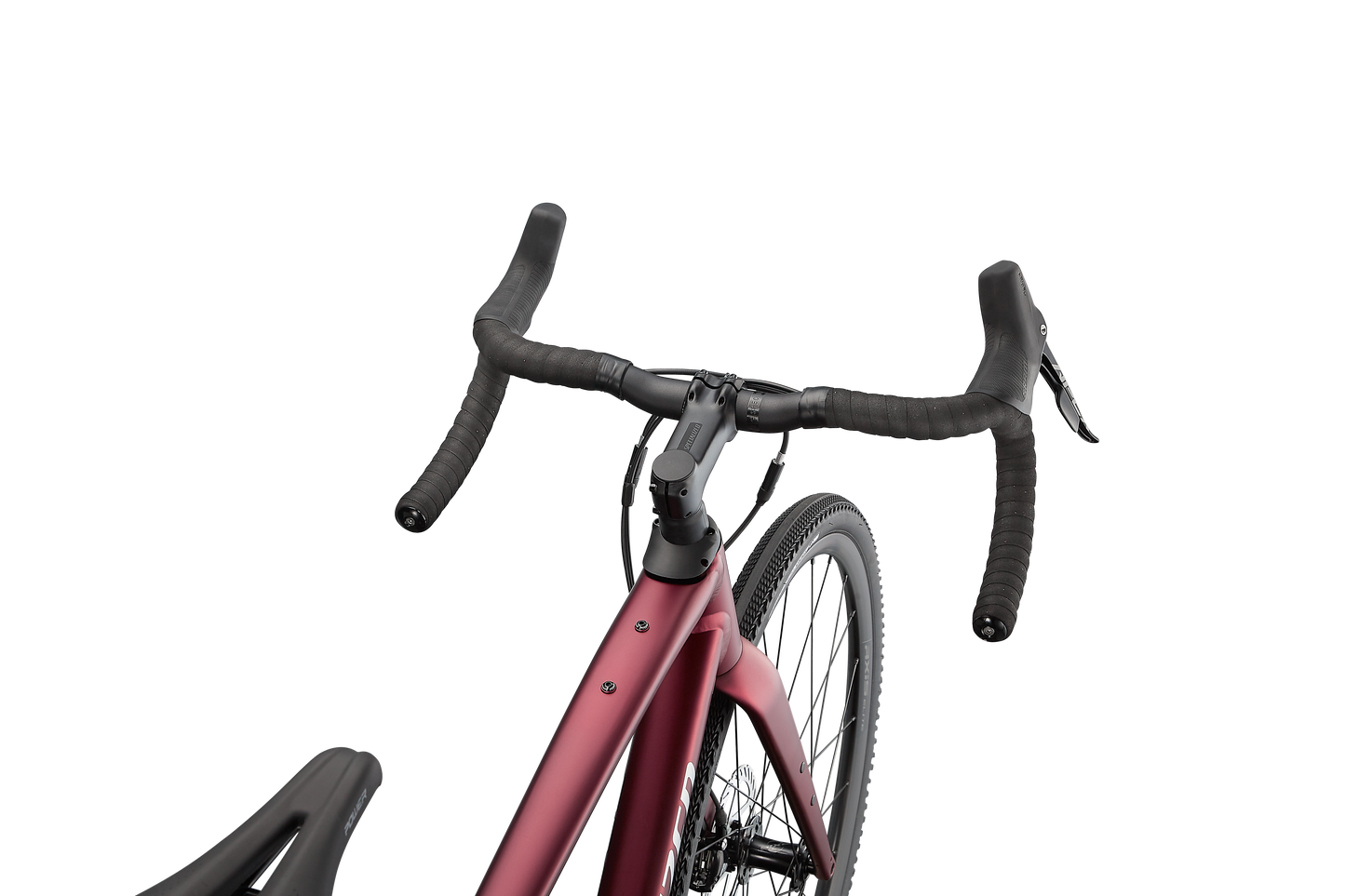

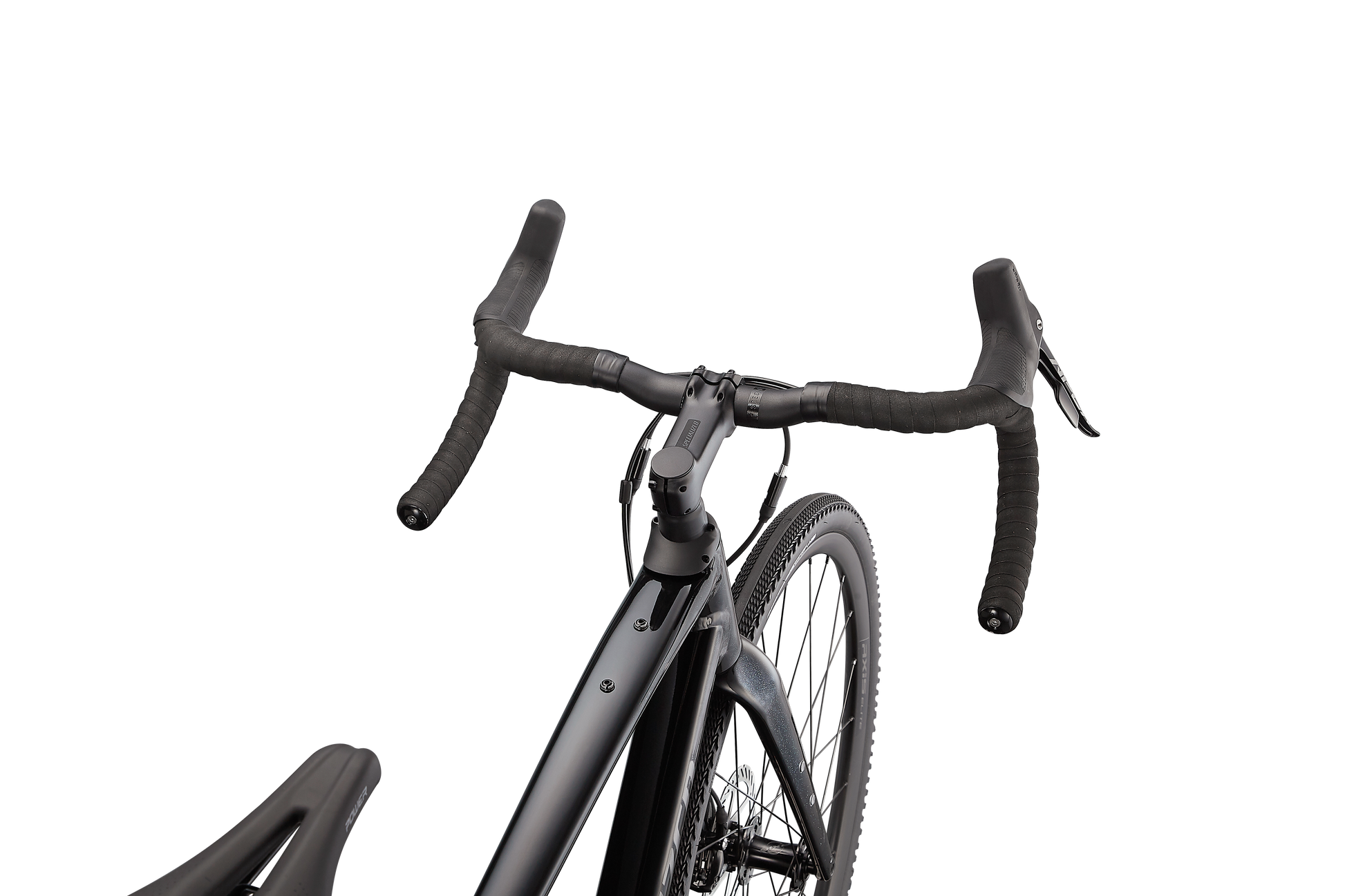

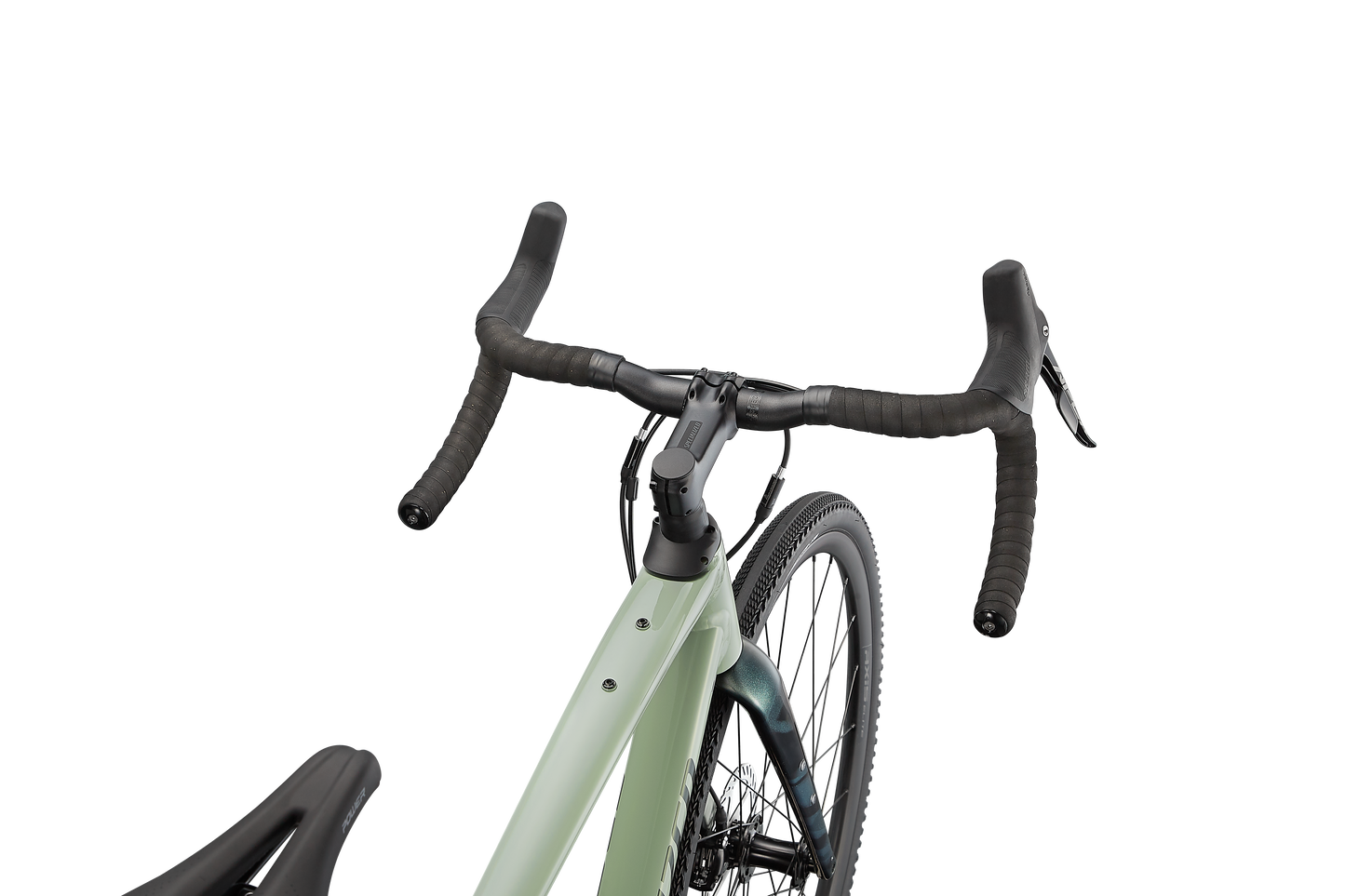

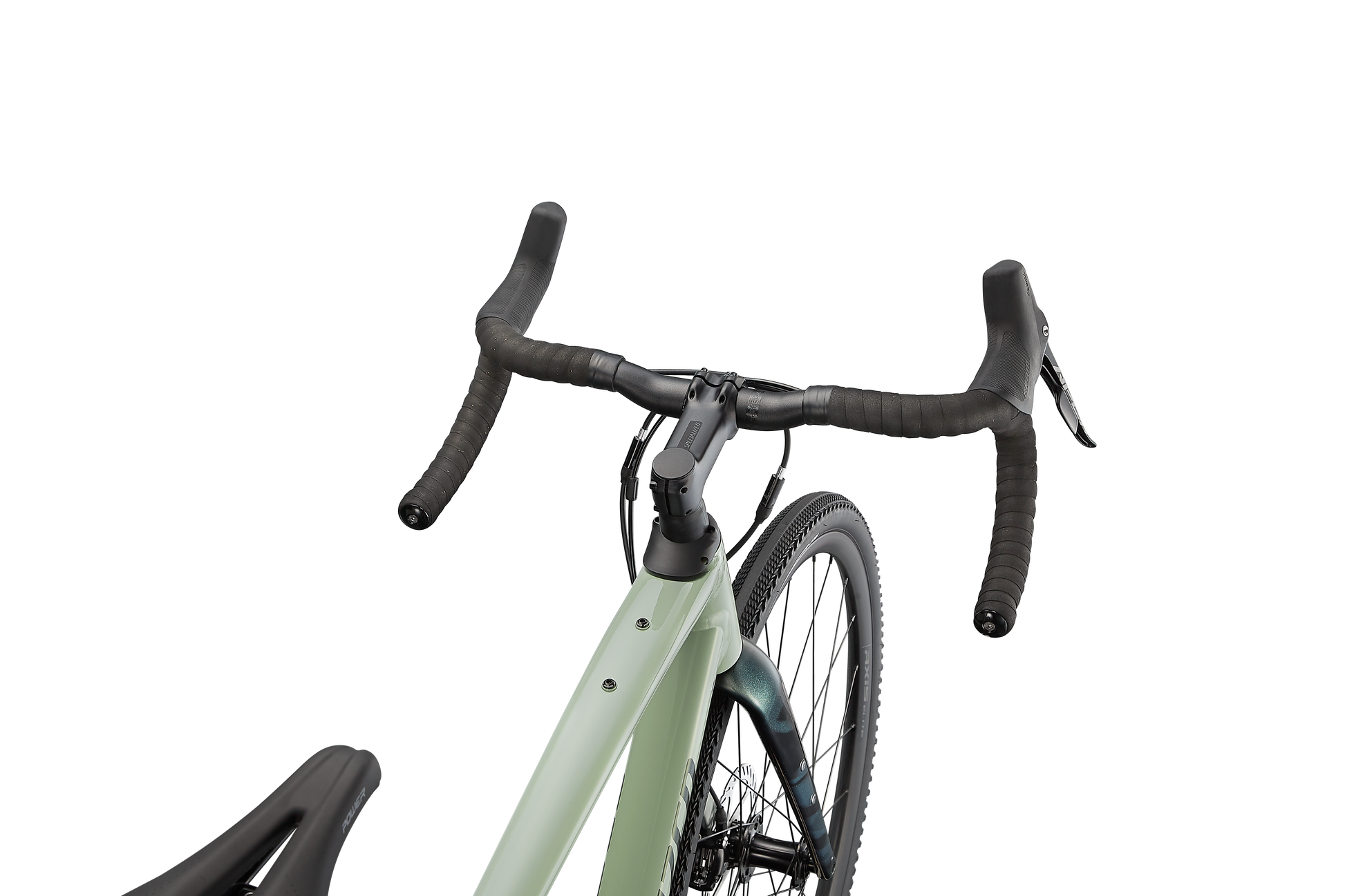

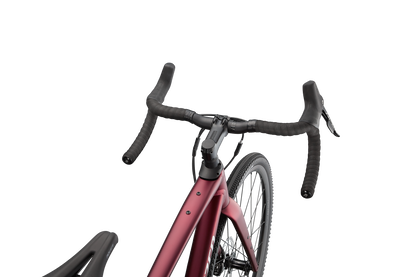

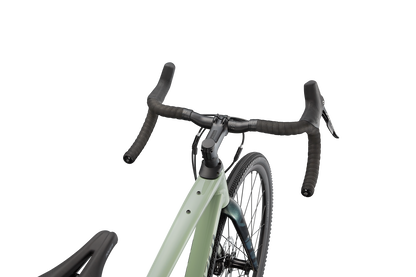

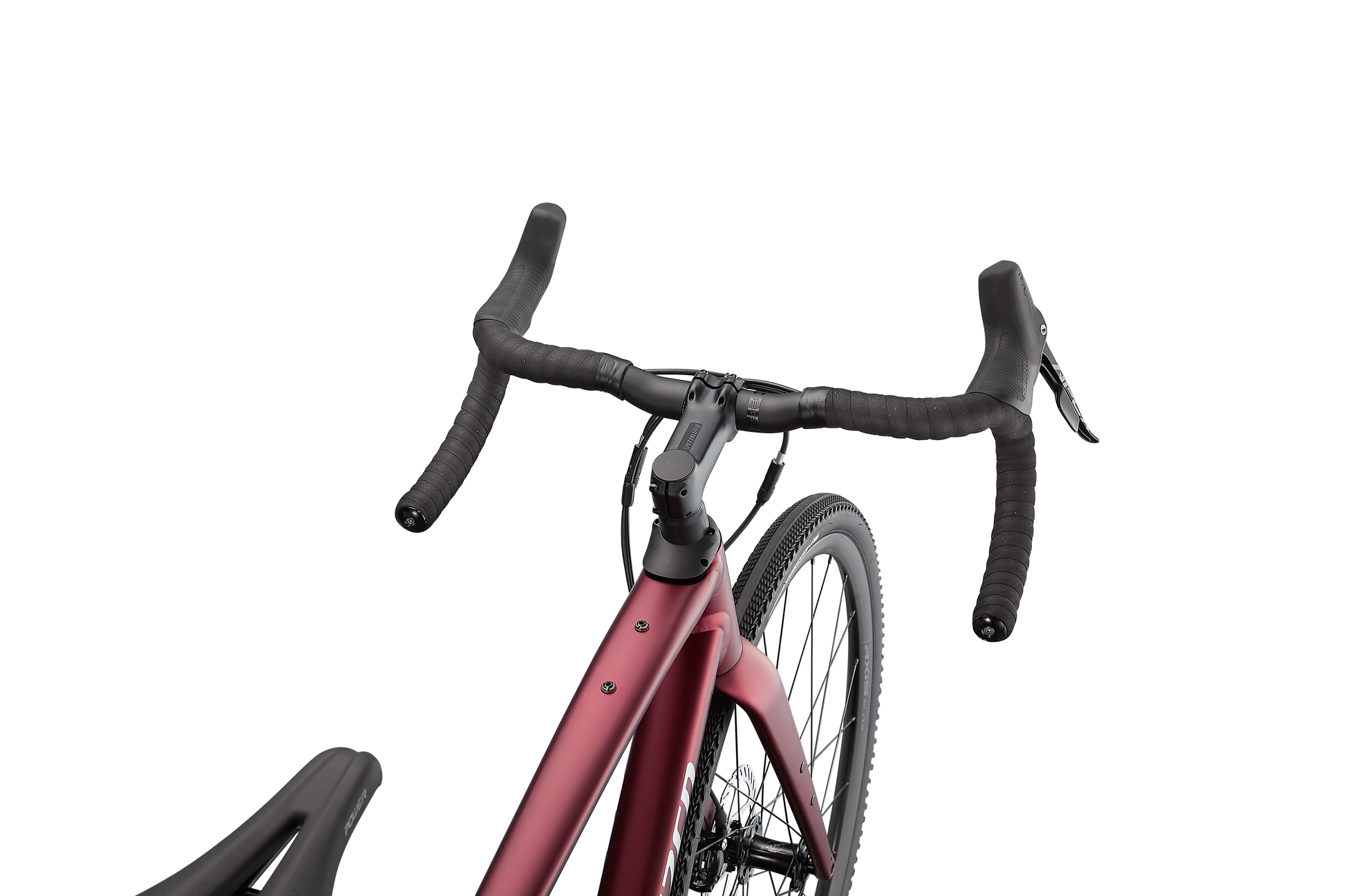

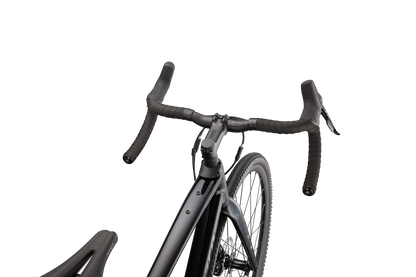

Handlebars
Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12Āŗ flare
Front Brake
SRAM Apex, hydraulic disc, 160mm G2 CenterLine rotor
Rear Brake
SRAM Apex, hydraulic disc, 160mm G2 CenterLine rotor
Shift Levers
SRAM Apex, hydraulic
Rear Derailleur
SRAM Apex 1, long cage, 11-speed
Cassette
Sunrace, 11-speed, alloy spider, 11-42t
Shift Levers
SRAM Apex, hydraulic
Crankset
Praxis Alba
Chain
KMC X11 Extra Lightweight, 11-speed
Bottom Bracket
Praxis 68mm BSA
Chain Ring
40 Teeth with Chain Retention Technology
Front Wheel
AXIS Elite Disc
Rear Wheel
AXIS Elite Disc
Front Tire
Specialized Pathfinder Sport, 700x38c
Rear Tire
Specialized Pathfinder Sport, 700x38c
Tubes
Standard 40mm SV 700x32-50
