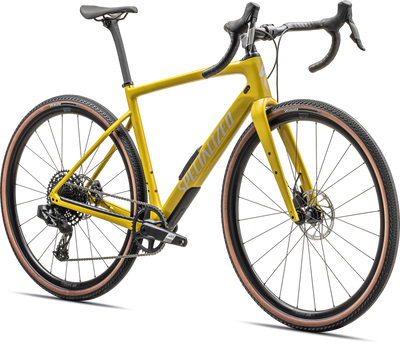

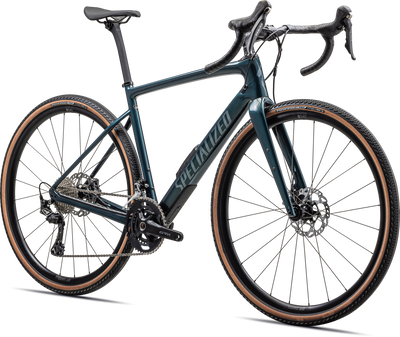

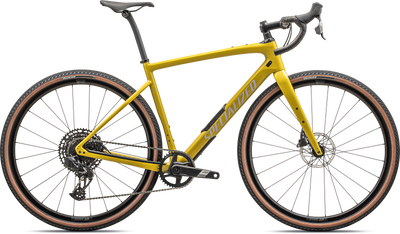

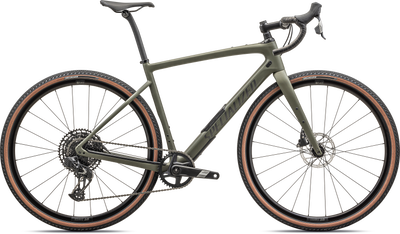

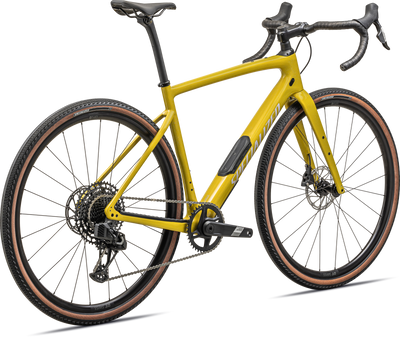

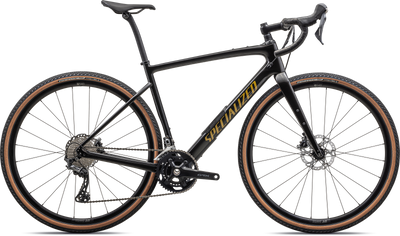

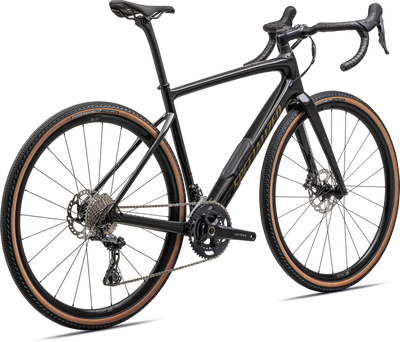

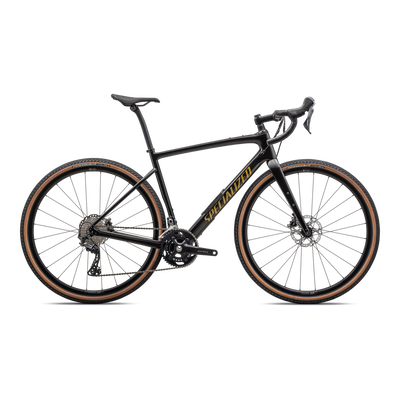

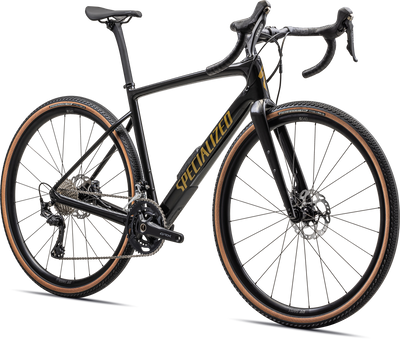

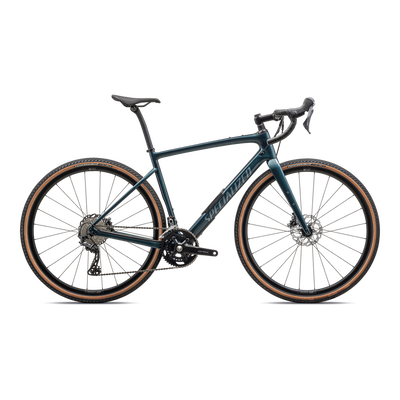

Diverge Comp Carbon
Diverge Comp Carbon
Speed, control and confidence - Future Shock 2.0 is the ultimate technology for the gravel rider. With 20mm of axial compliance and a hydraulic damper, Future Shock 2.0 suspends the rider not the bike. This keeps you confident and in control, able to keep the power down and stay off the brakes over rough dirt roads and in thick loose gravel, all while keeping your hands, arms and neck fresh. Since Future Shock 2.0’s damper is adjustable, you’ll be ready for the rough stuff and efficient on smooth pavement.
We’ve given the Diverge plenty of rack mounts, including fork and top tube mounts, to ensure you can take what you need, no matter how far you plan to go, or how long you plan to stay out. Note: all carbon models will need an aftermarket seatpost clamp with rack mount to install a rear rack. (Part Number: S184700001).
We’ve given the Diverge plenty of rack mounts, including fork and top tube mounts, to ensure you can take what you need, no matter how far you plan to go, or how long you plan to stay out.
Nothing unlocks a bike’s capability like tire clearance, so we gave the new Diverge a whopping 47mm of tire clearance with a 700c wheel and 2.1” with a 650b wheel. Thanks to a drive side chain stay utilizing a solid beam of carbon behind the chain rings we’ve created clearance without using a fragile dropped chain stay design or increasing chain stay length.

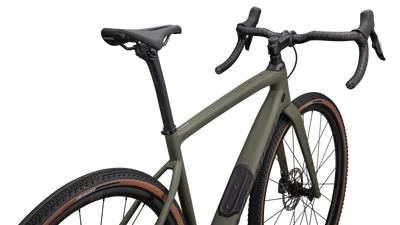

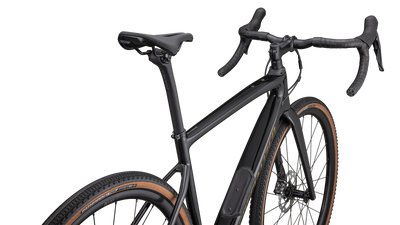

The more capable your bike, the bigger your rides get, so Diverge borrows SWAT internal storage from the legendary Stumpy. The SWAT door lets you utilize space in the down tube to store tools, a flat kit, nutrition and even our SWAT Jacket. It keeps weight off your body, low in the bike for better handling, and makes you more self-sufficient, so get out there. SWAT’s got your back.
Share
Diverge Size Guide
Technical Specifications
Frameset
Frame
Specialized Diverge FACT 9r carbon, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc
Specialized Alloy, 30.8mm
Specialized Alloy, 30.8mm
SWAT
Integrated SWAT door, internal storage system
Suspension
Fork
Future Shock 2.0 w/ Damper, Smooth Boot, FACT carbon, 12x100 mm thru-axle, flat-mount
Cockpit
Seat Post
Roval Terra Carbon Seat Post, 20mm Offset
Saddle
Body Geometry Power Sport, steel rails
Stem
Future Stem, Comp
Bar Tape
Supacaz Super Sticky Kush

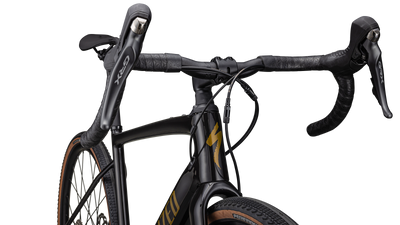

Handlebars
Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare
Brakes
Front Brake
Shimano GRX ST-R810, Hydraulic Disc, 160mm centerlock, SM-RT70
Rear Brake
Shimano GRX ST-R810, Hydraulic Disc, 160mm centerlock, SM-RT70
Drivetrain
Shift Levers
Shimano GRX 2x11 speed, ST-R810, Hydraulic Disc
Front Derailleur
Shimano GRX R810
Rear Derailleur
Shimano GRX R810, 11speed
Cassette
Shimano Ultegra, 11-speed, 11-34t
Shift Levers
Shimano GRX 2x11 speed, ST-R810, Hydraulic Disc
Crankset
Shimano GRX RX600
Chain
Shimano Ultegra, 11-speed
Bottom Bracket
Shimano 68mm threaded
Chain Ring
46/30T
Wheels & Tyres
Front Wheel
DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
Rear Wheel
DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
Front Tire
Pathfinder Pro 2BR, Tan sidewall, 700x42
Rear Tire
Pathfinder Pro 2BR, Tan sidewall, 700x42
Tubes
700x28/38mm, 48mm Presta valve
