Specialized

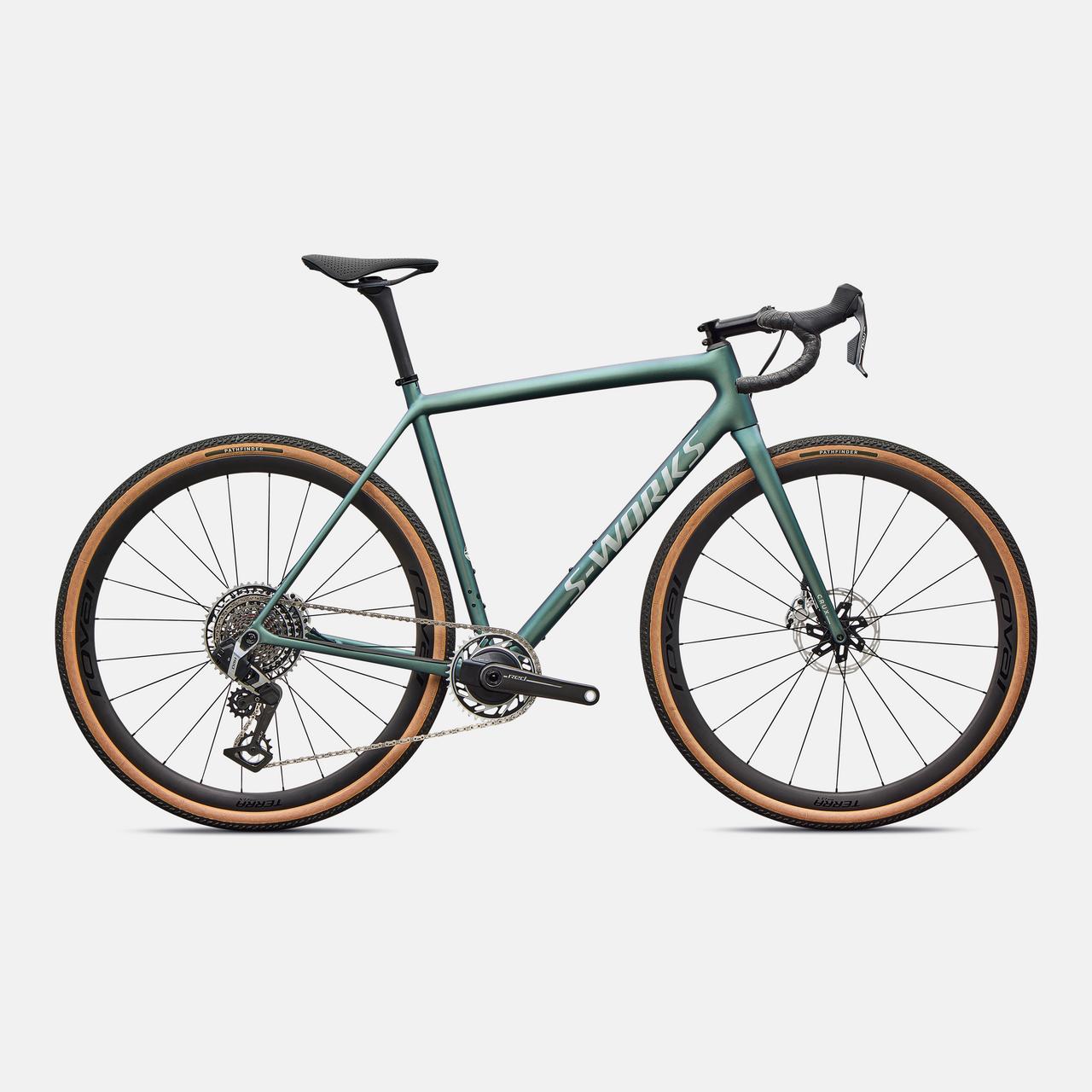

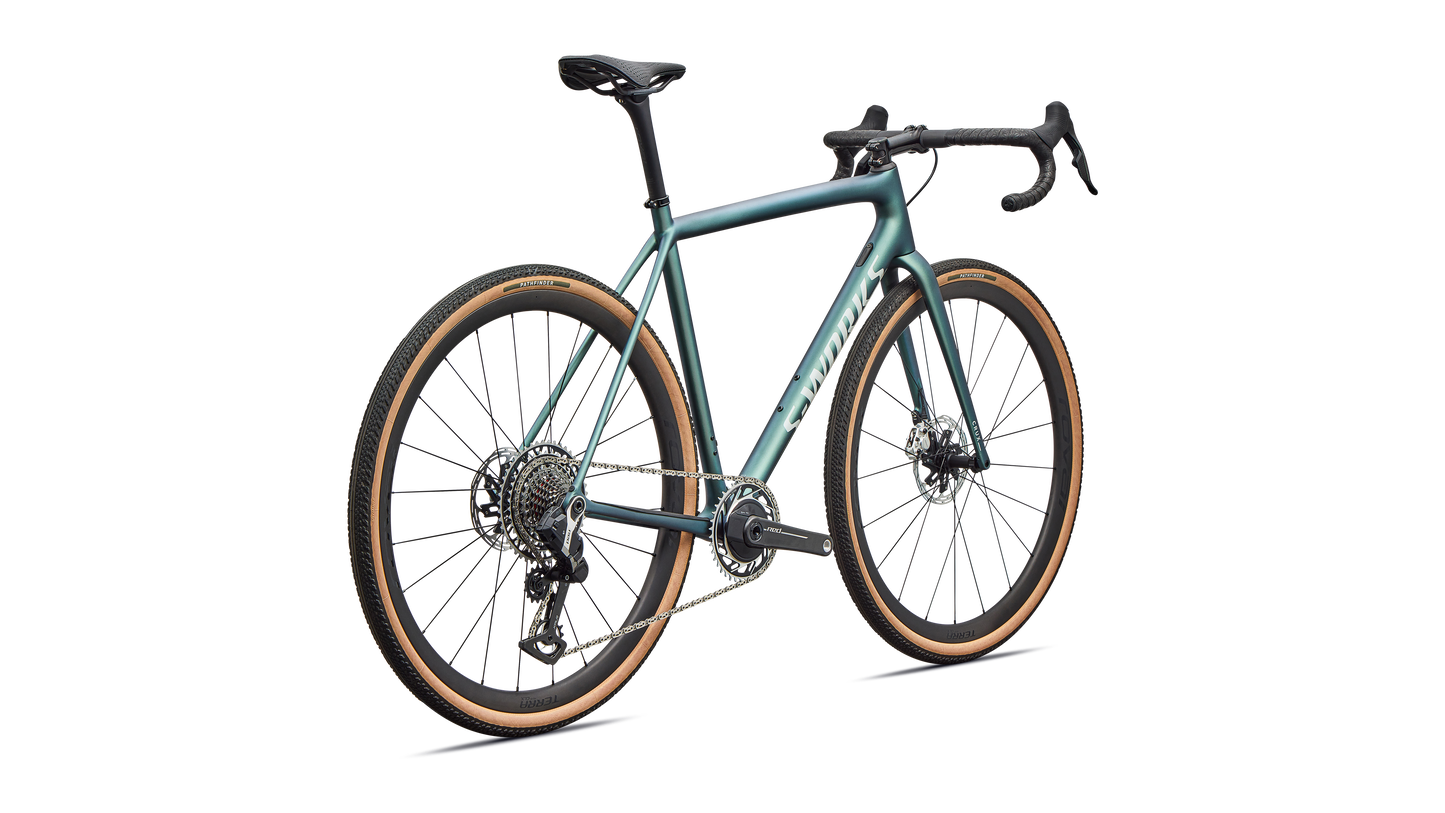

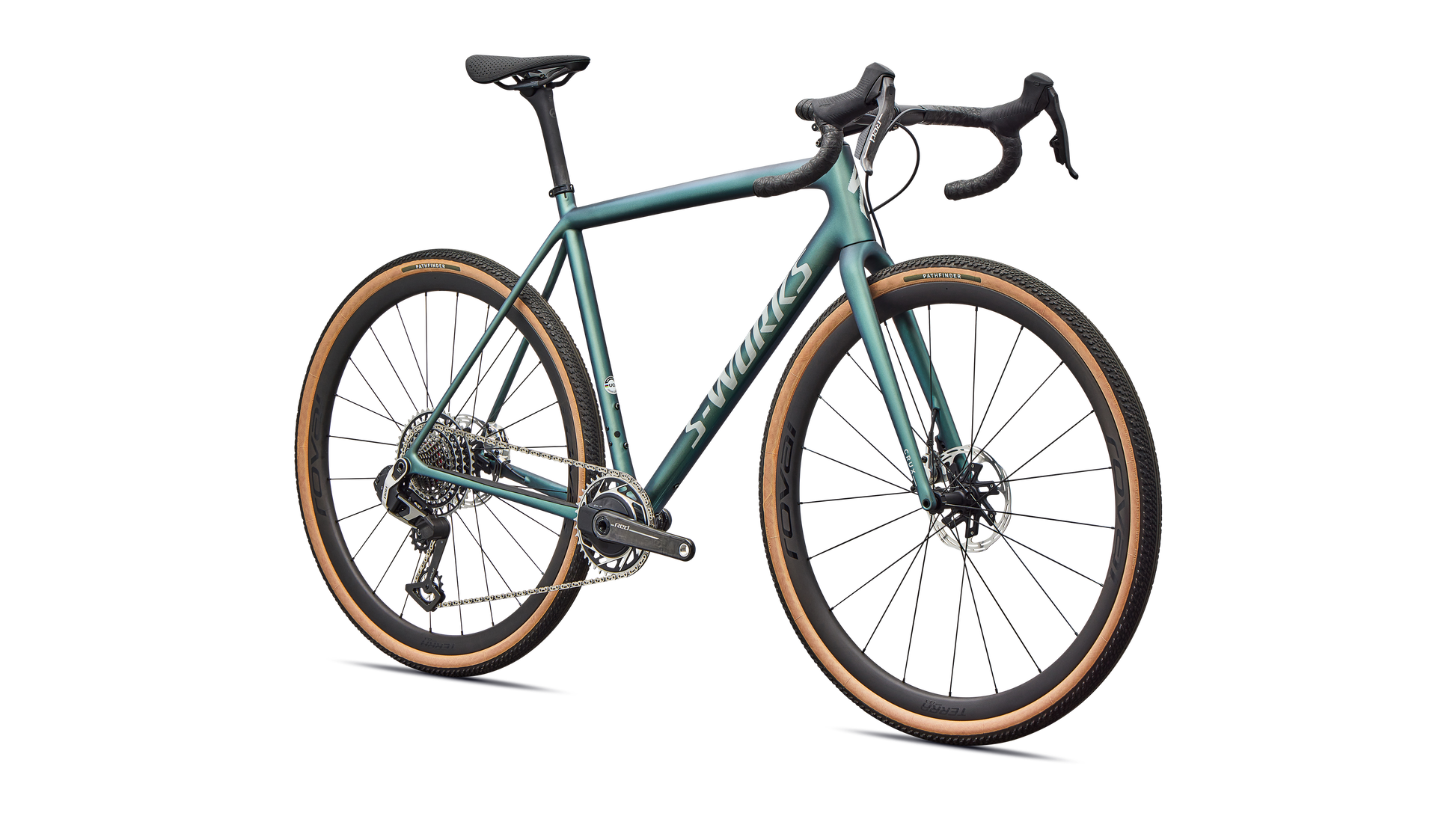

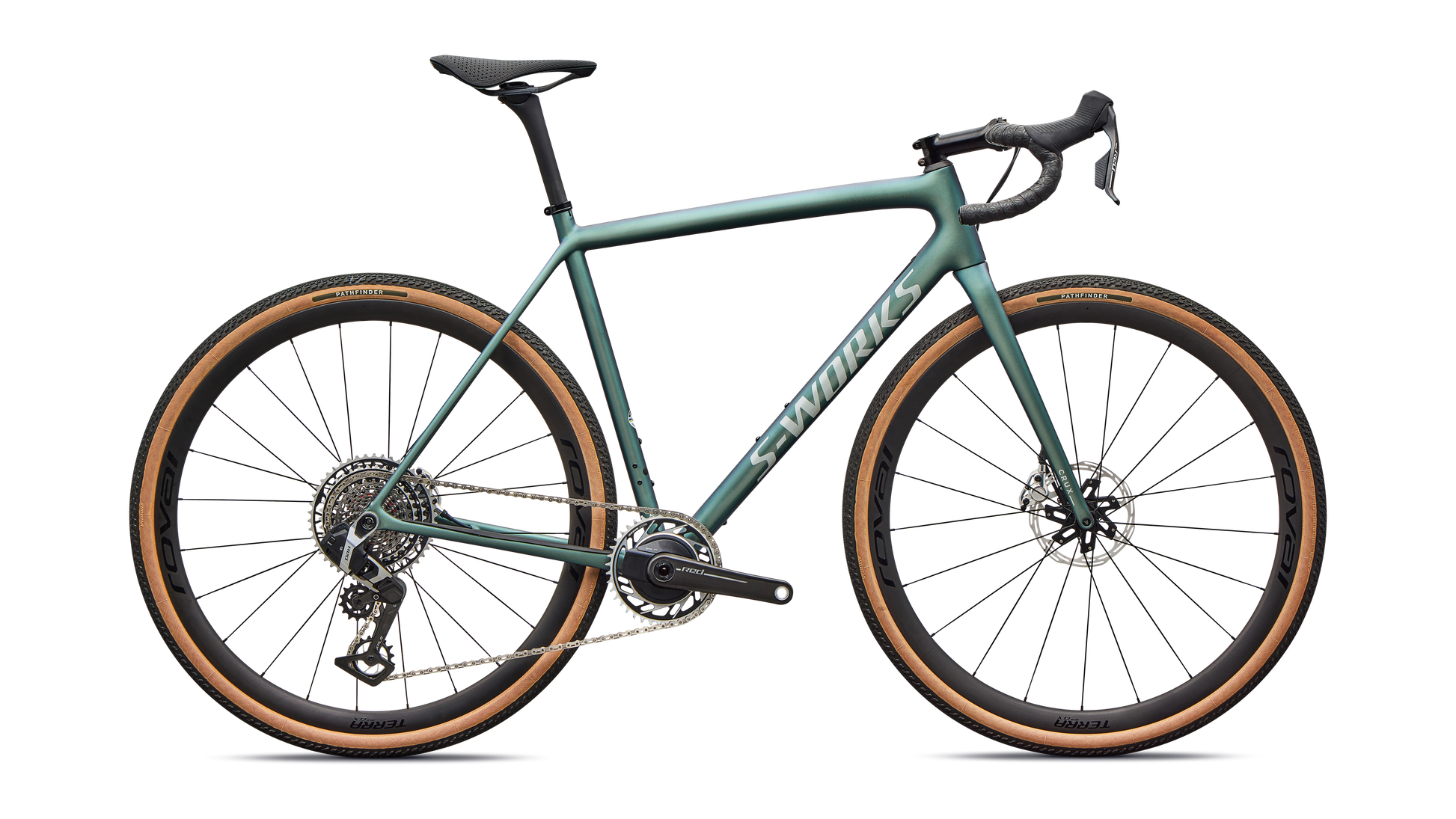

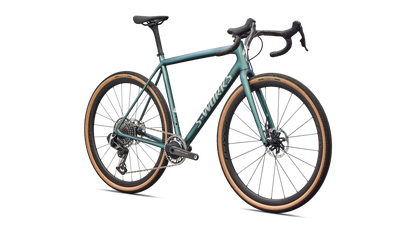

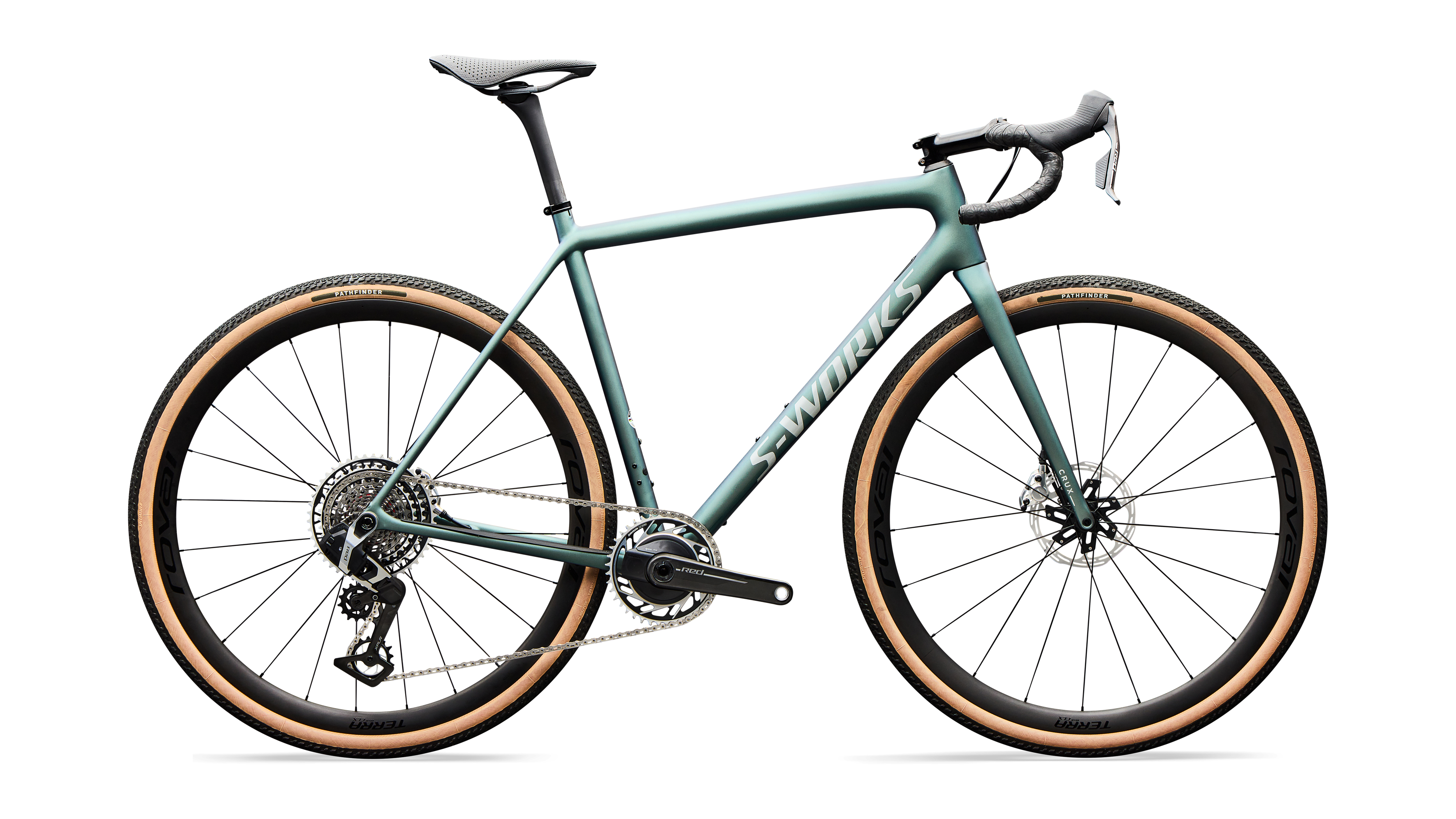

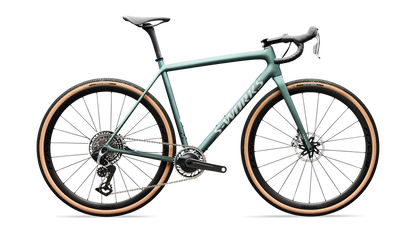

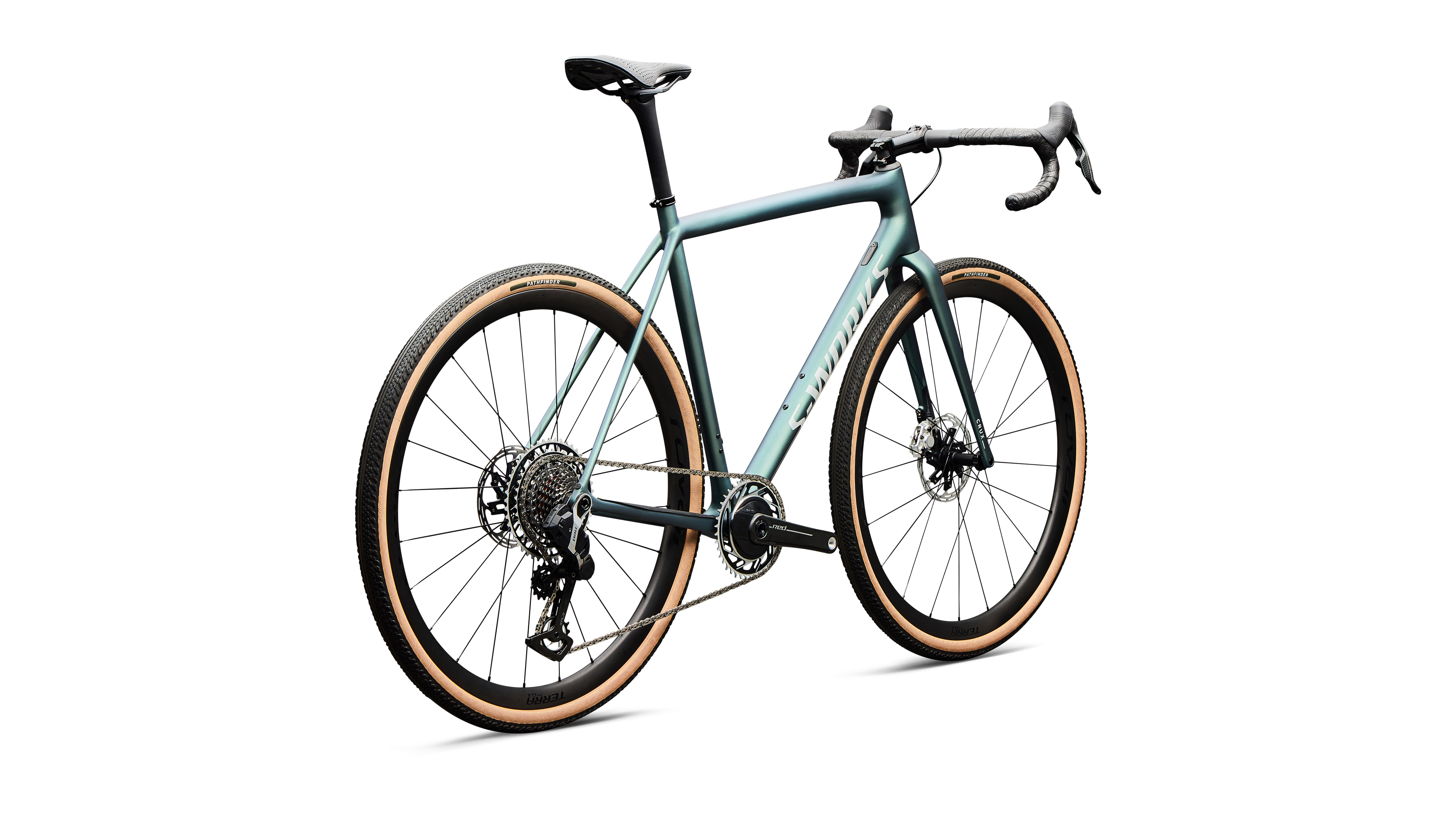

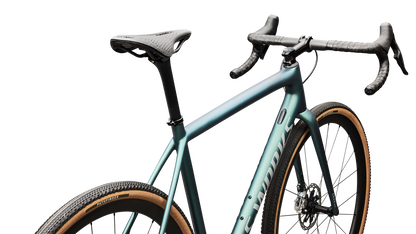

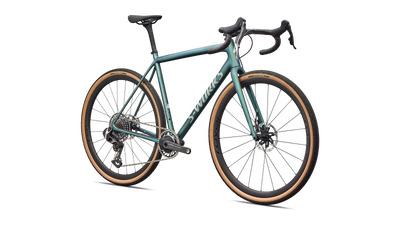

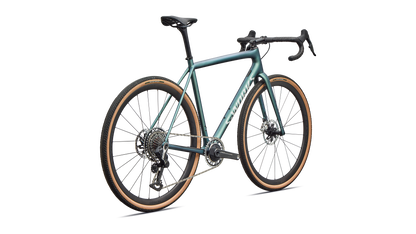

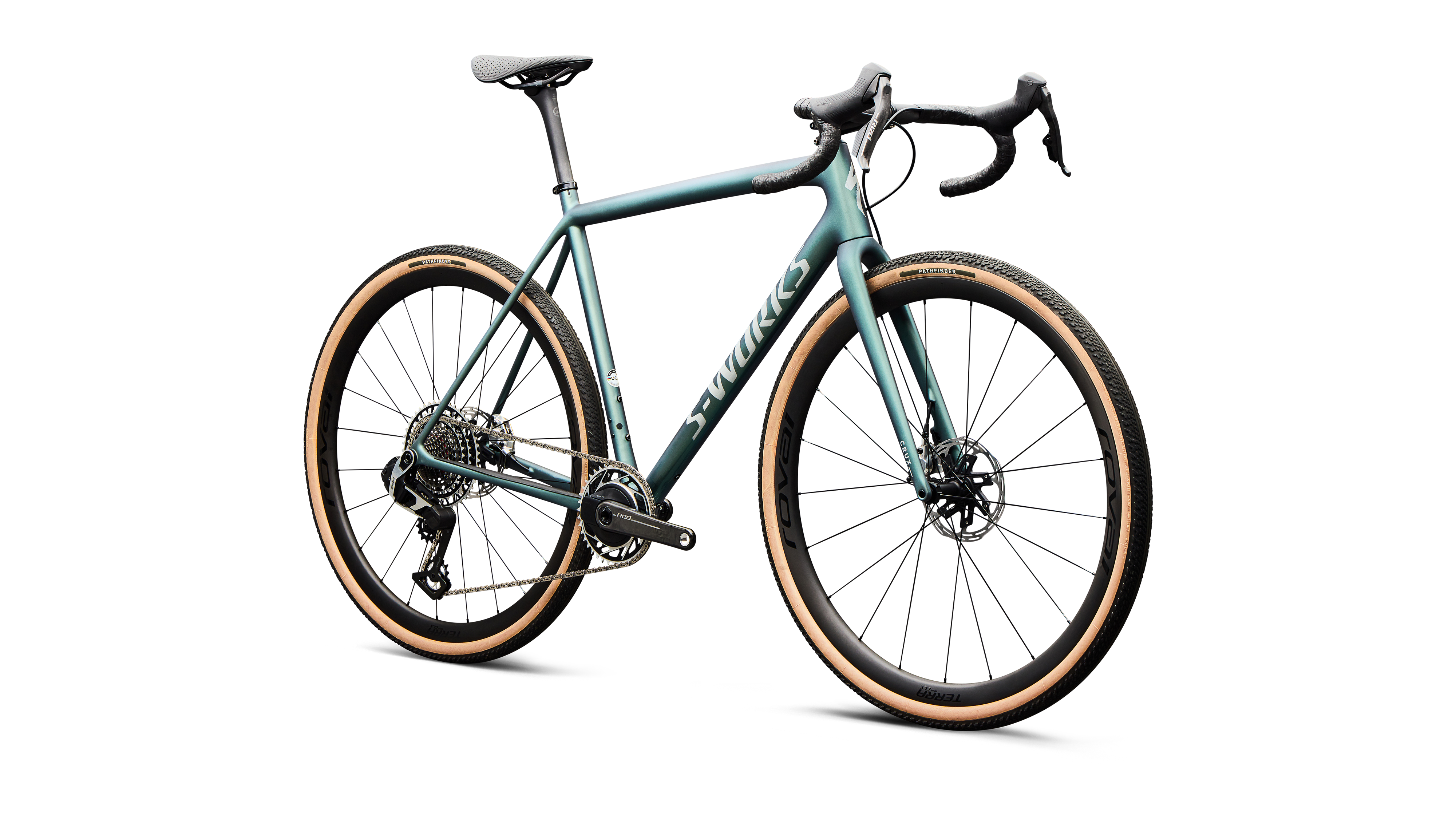

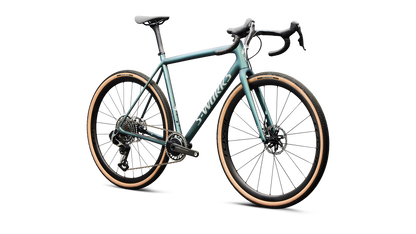

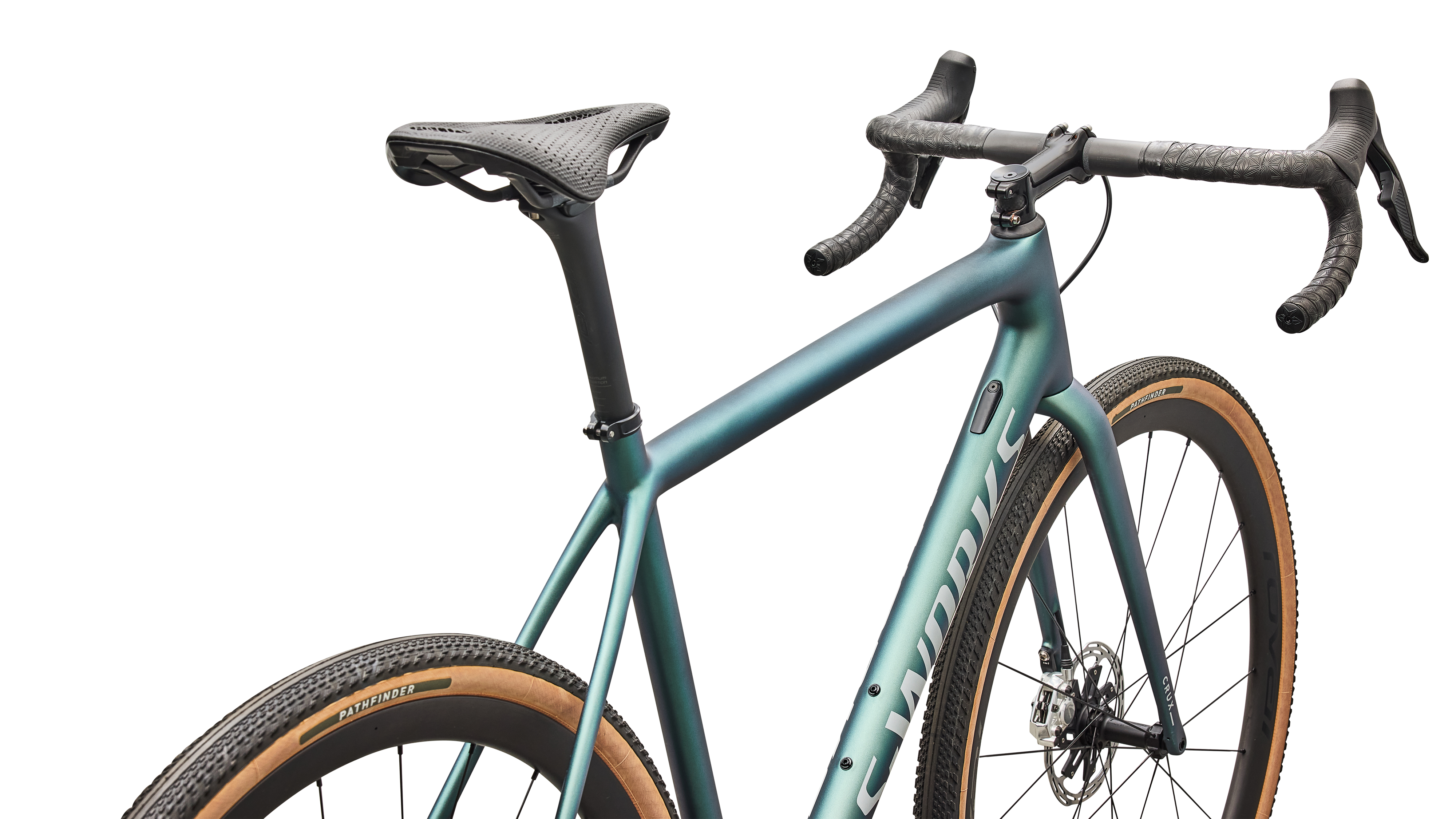

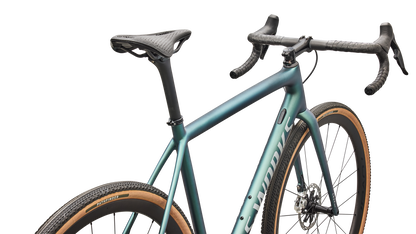

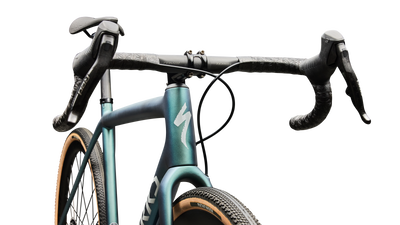

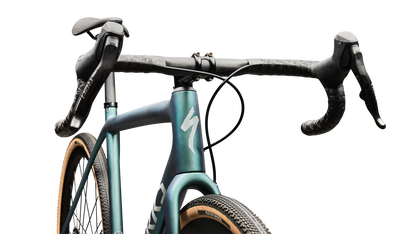

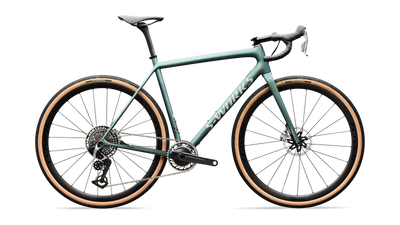

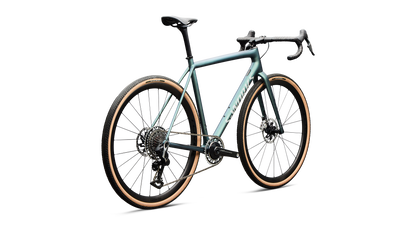

S-Works Crux - SRAM RED XPLR

S-Works Crux - SRAM RED XPLR

SKU:91426-0049

Regular price $18,900.00
Regular price $0.00 Sale price $18,900.00
Sale Contact Us for Availability
Tax included.
Colour
Size
View Size Guide
View full details

Product Details

We made Crux, the lightest gravel bike in the world, even lighter. With the unrivaled capability of massive tire clearance and performance gravel geometry, it’s not just the ultimate expression of gravel performance—it’s your one-way ticket to gravel enlightenment. With UDH and the all-new SRAM RED XPLR, the S-Works Crux drops another 102 grams. Featuring Roval Terra CLX II wheels, Terra Bars, Alpinist seat post, S-Works Power Saddle with Mirror, and Pathfinder Pro tires, the new S-Works Crux with SRAM RED XPLR is our most premium build. Lightest: 725g S-Works 12r frame. We took the breakthroughs that made Aethos the lightest bike ever and applied them to the Crux. The result? A gravel bike that climbs like a dream, floats over nightmarish terrain, and weighs less than a full bottle in your cage.

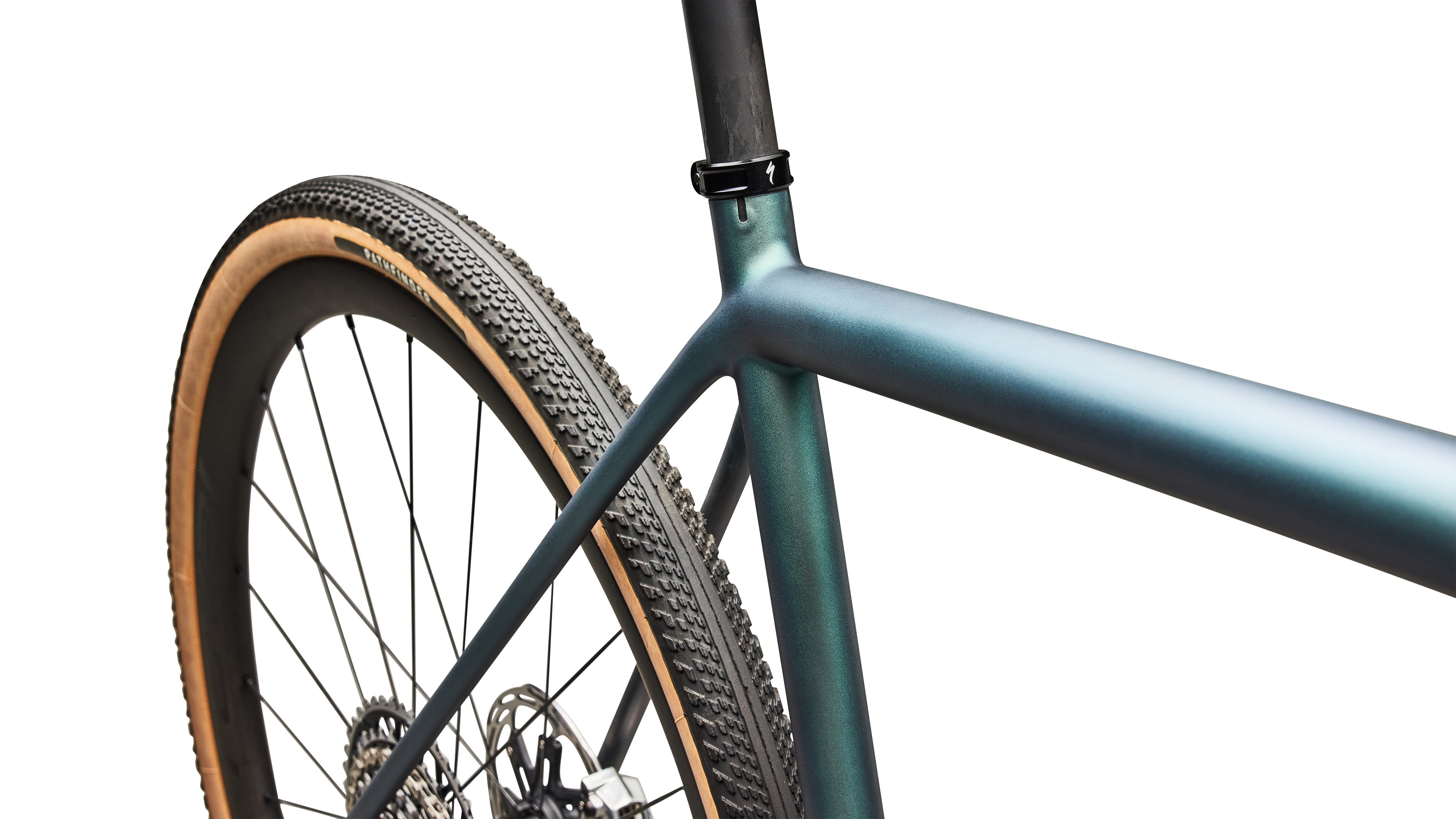

Capable: 47c/650b x 2.1” tire clearance. More clearance means more capability. With Diverge-level tire clearance, Crux takes you anywhere you can imagine at full gas.

Responsive: Nimble, supple, and reactive. Responsive at the pedals. Supple in the saddle. With performance gravel geometry and race-influenced fit inspired by Crux’s iconic history in ‘cross.

Now equipped with UDH - Universal Derailleur Hanger - and built with the new SRAM RED XPLR, it features a 13-speed 10-46 cassette, power meter, updated lever ergonomics, and brake calipers that reduce brake effort by up to 80%.











Technical Specifications

Frameset

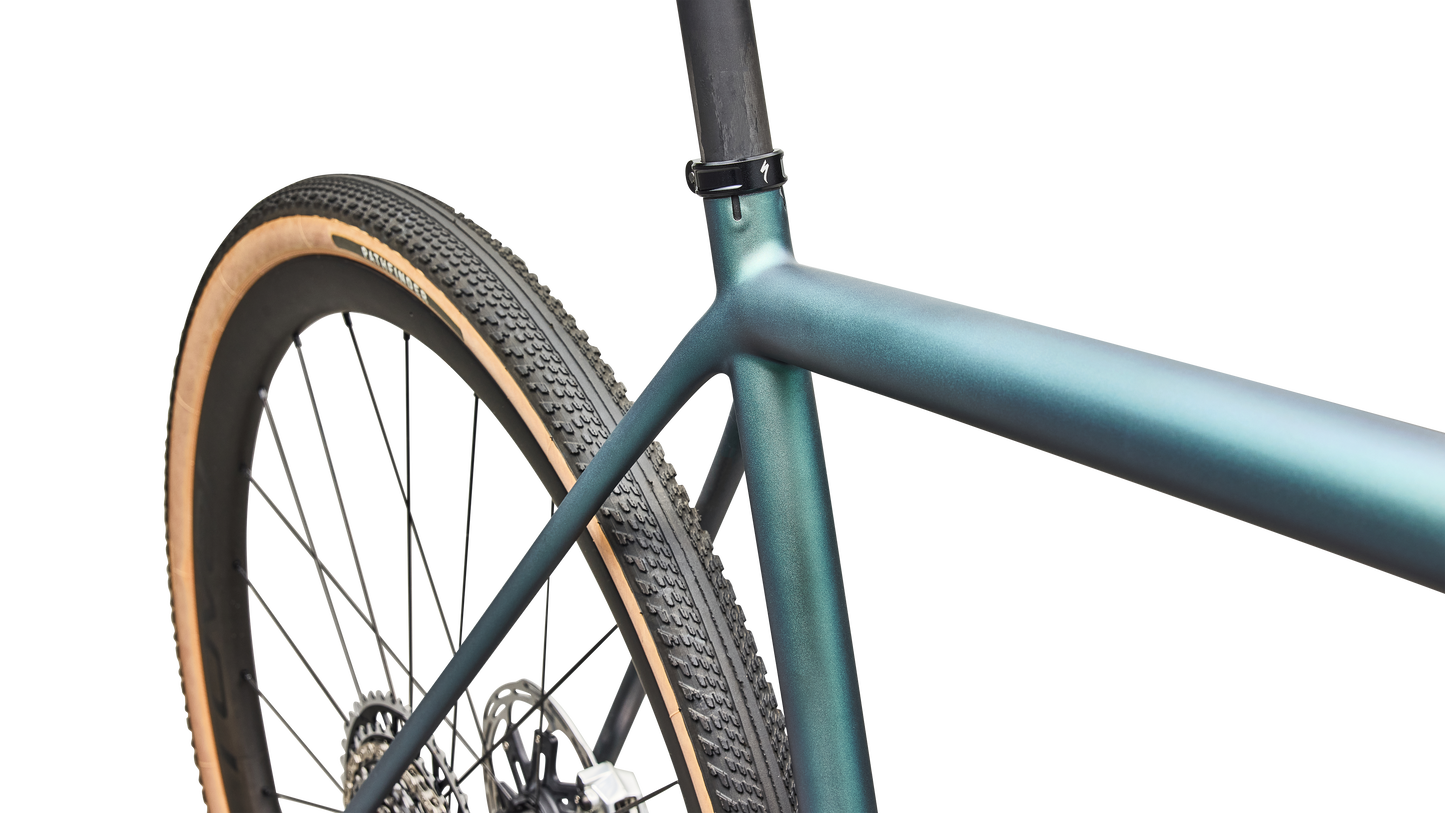

Frame

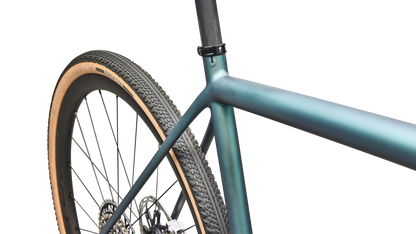

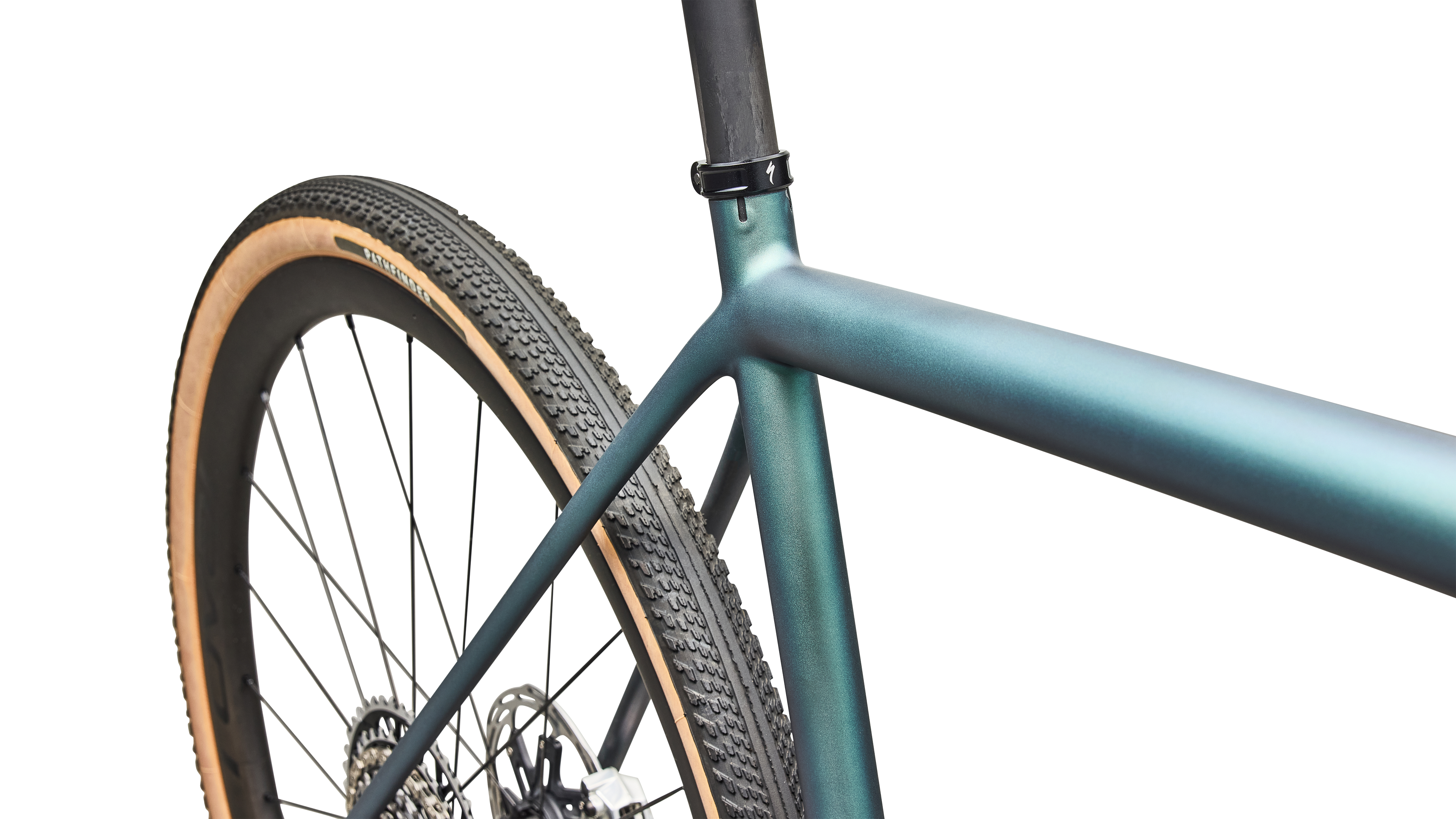

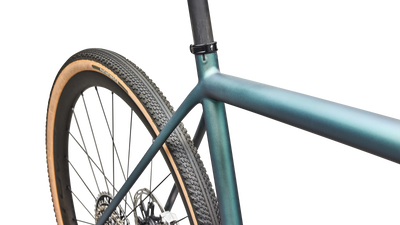

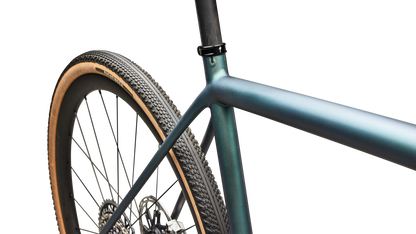

S-Works Crux FACT 12r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout

Seat Binder

Specialized Alloy, 30.0mm, titanium bolt

Suspension

Fork

S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc

Cockpit

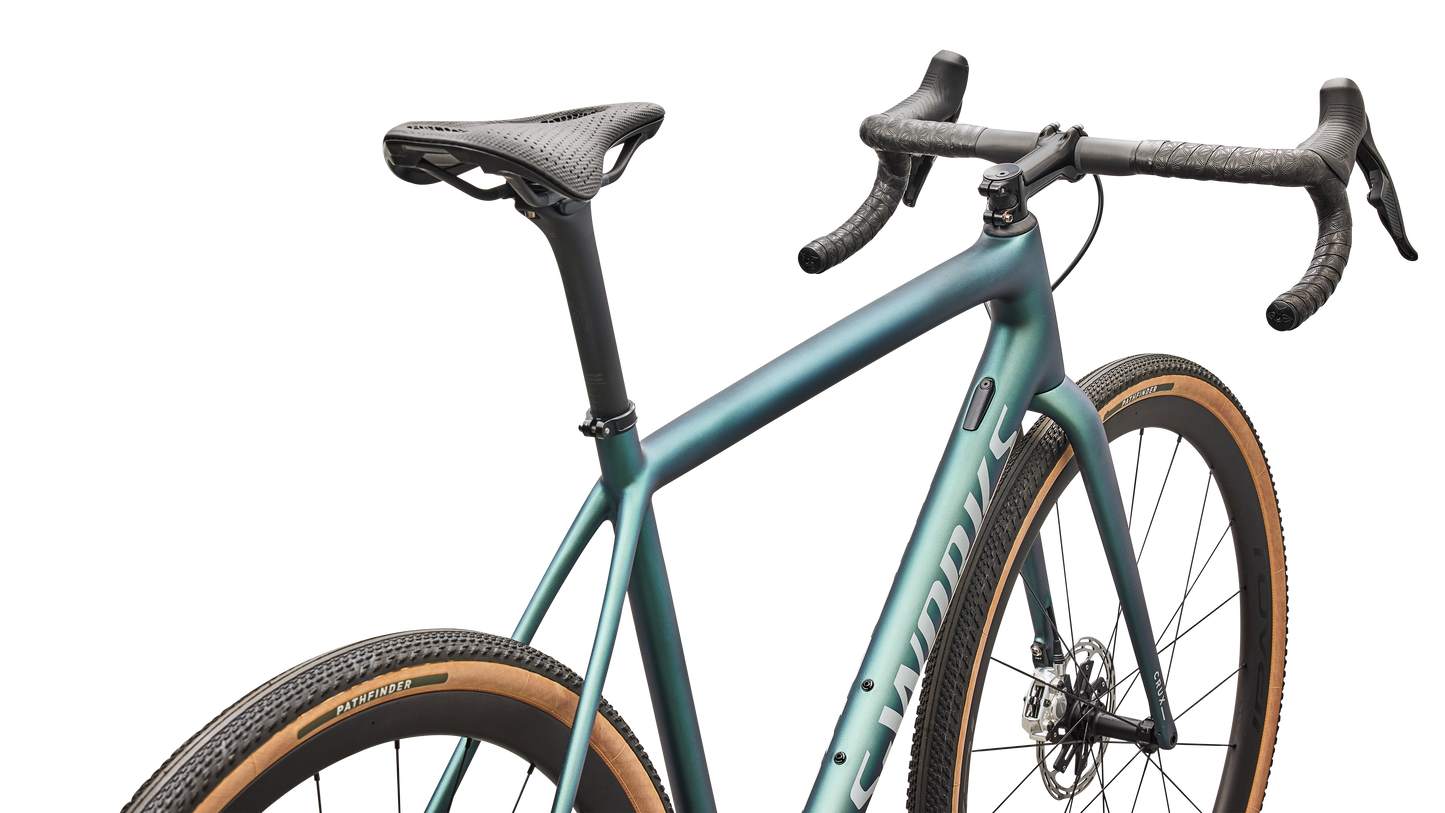

Seat Post

Roval Alpinist Carbon Seatpost

Saddle

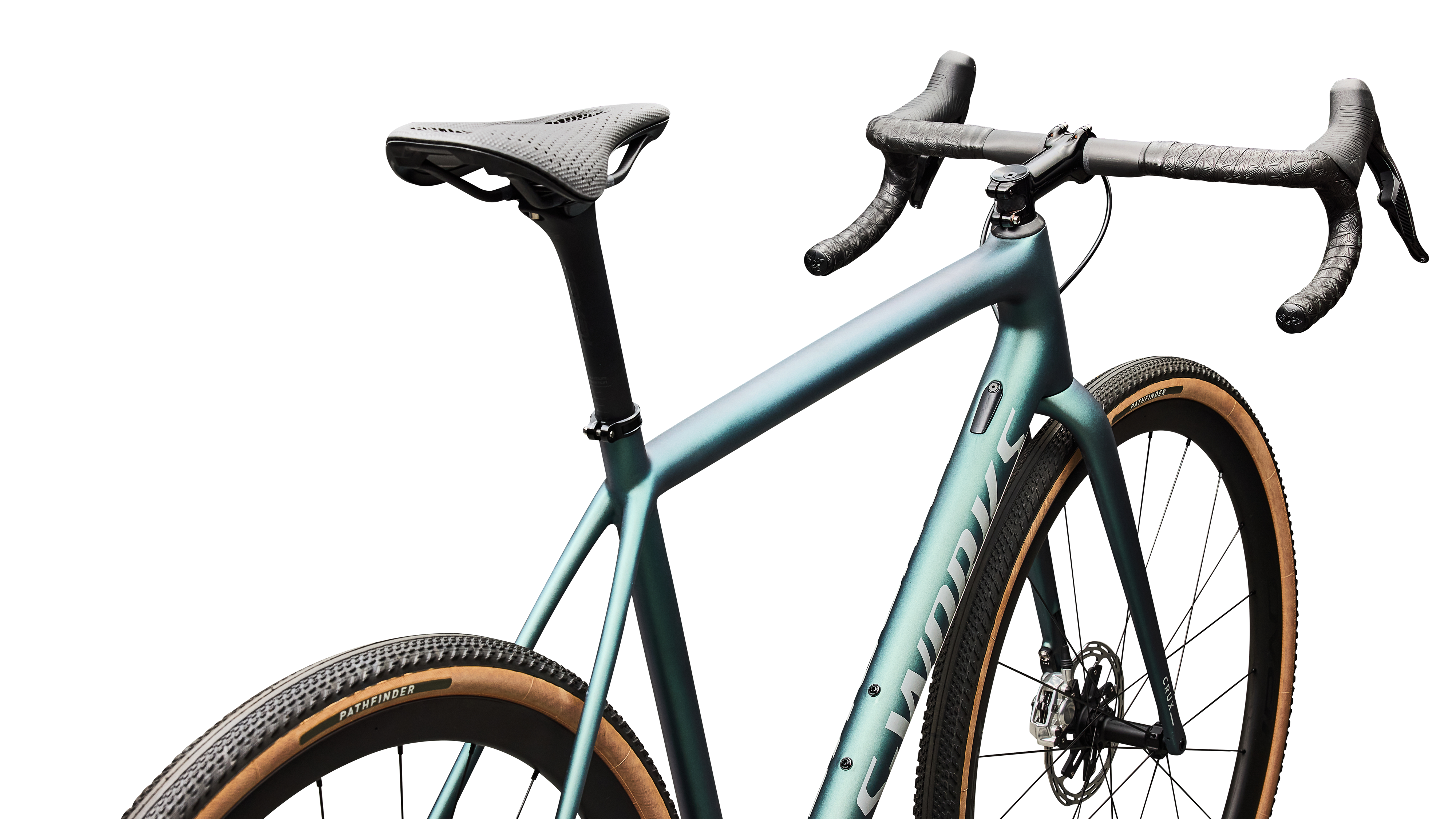

S-Works Power with Mirror

Stem

S-Works SL, alloy, titanium bolts, 6-degree rise

Bar Tape

Supacaz Super Sticky Kush

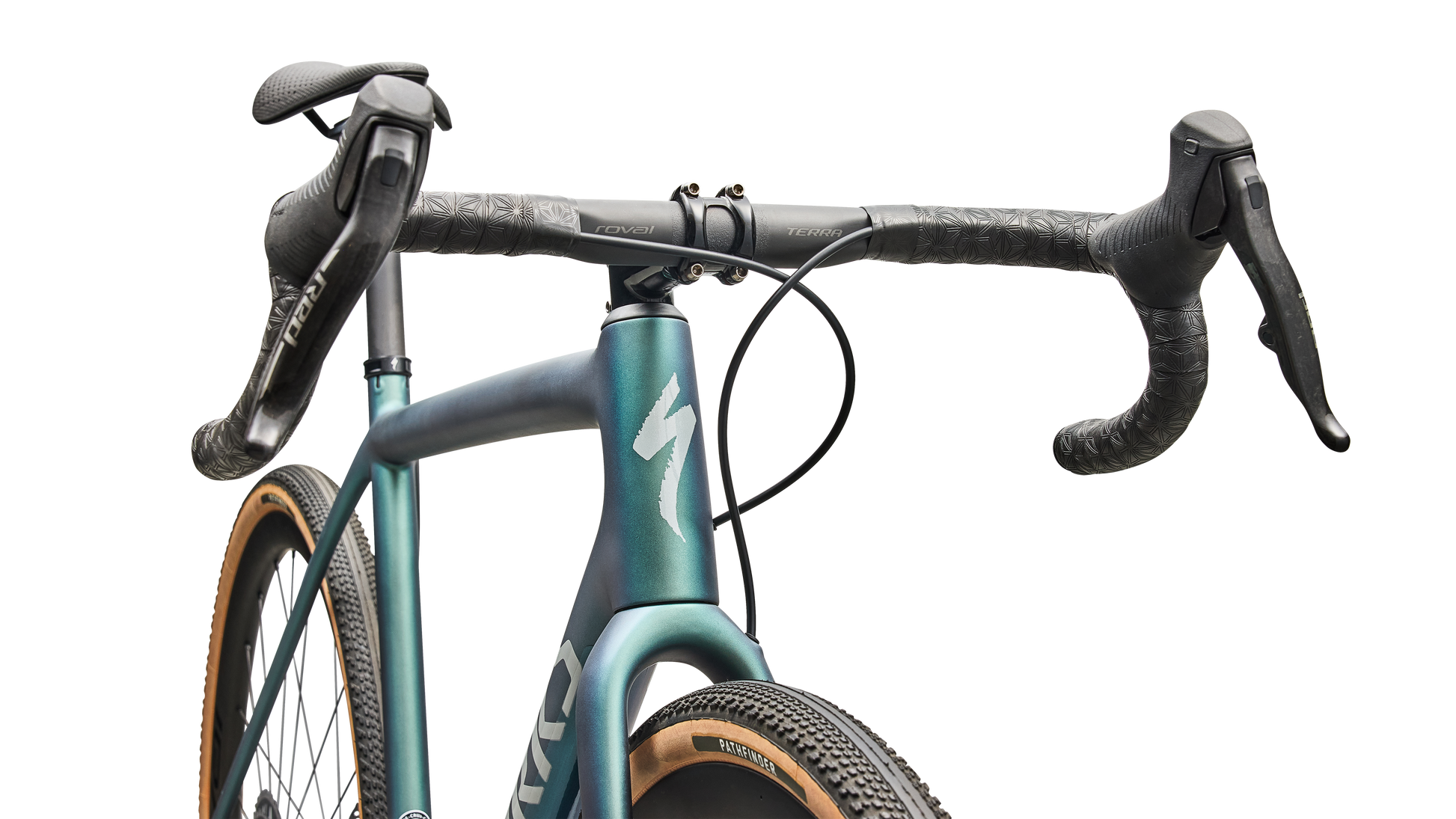

Handlebars

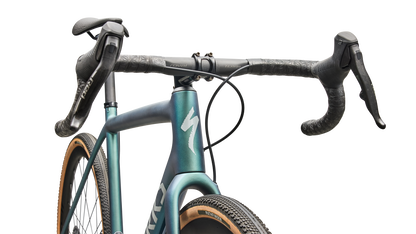

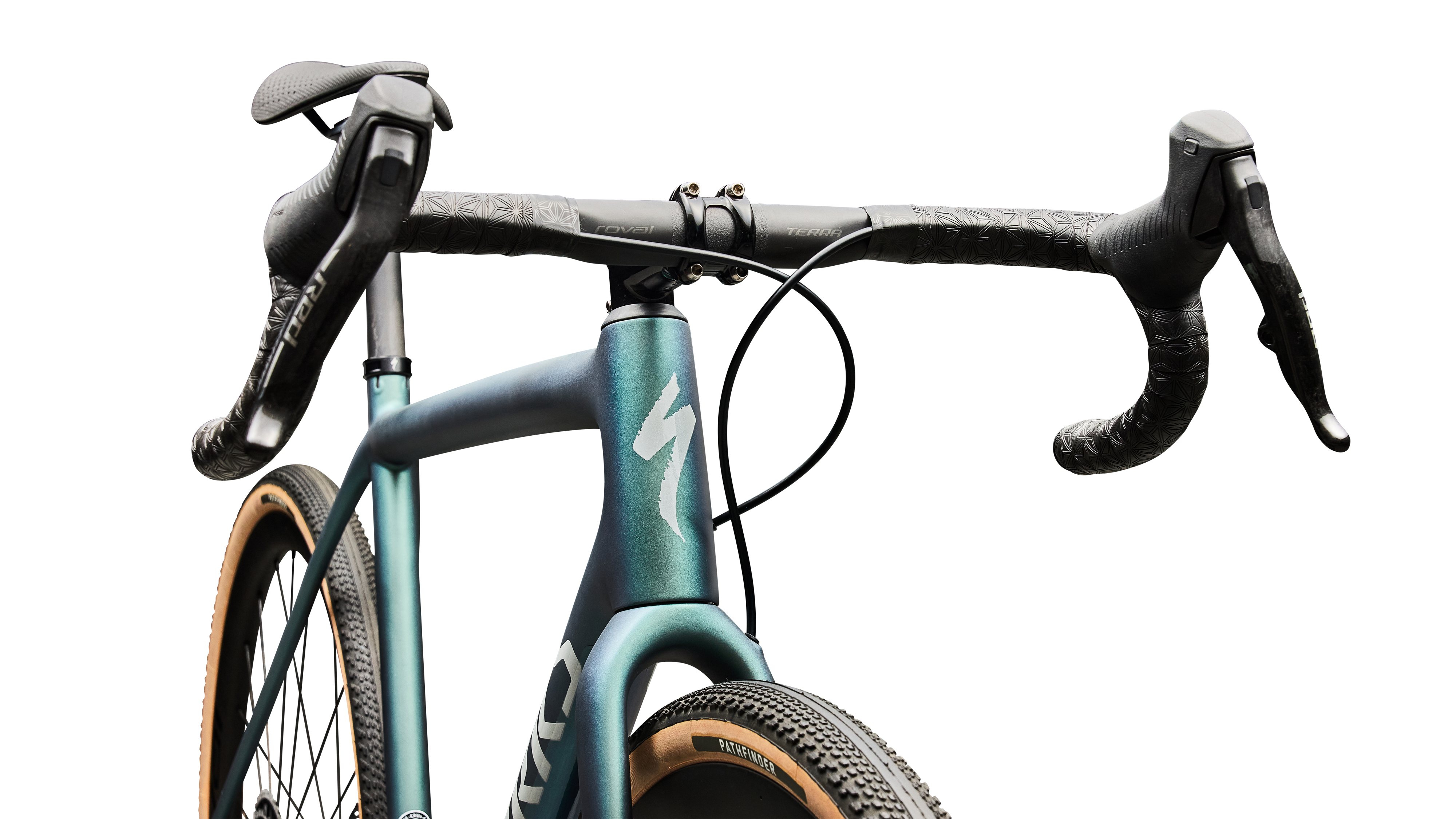

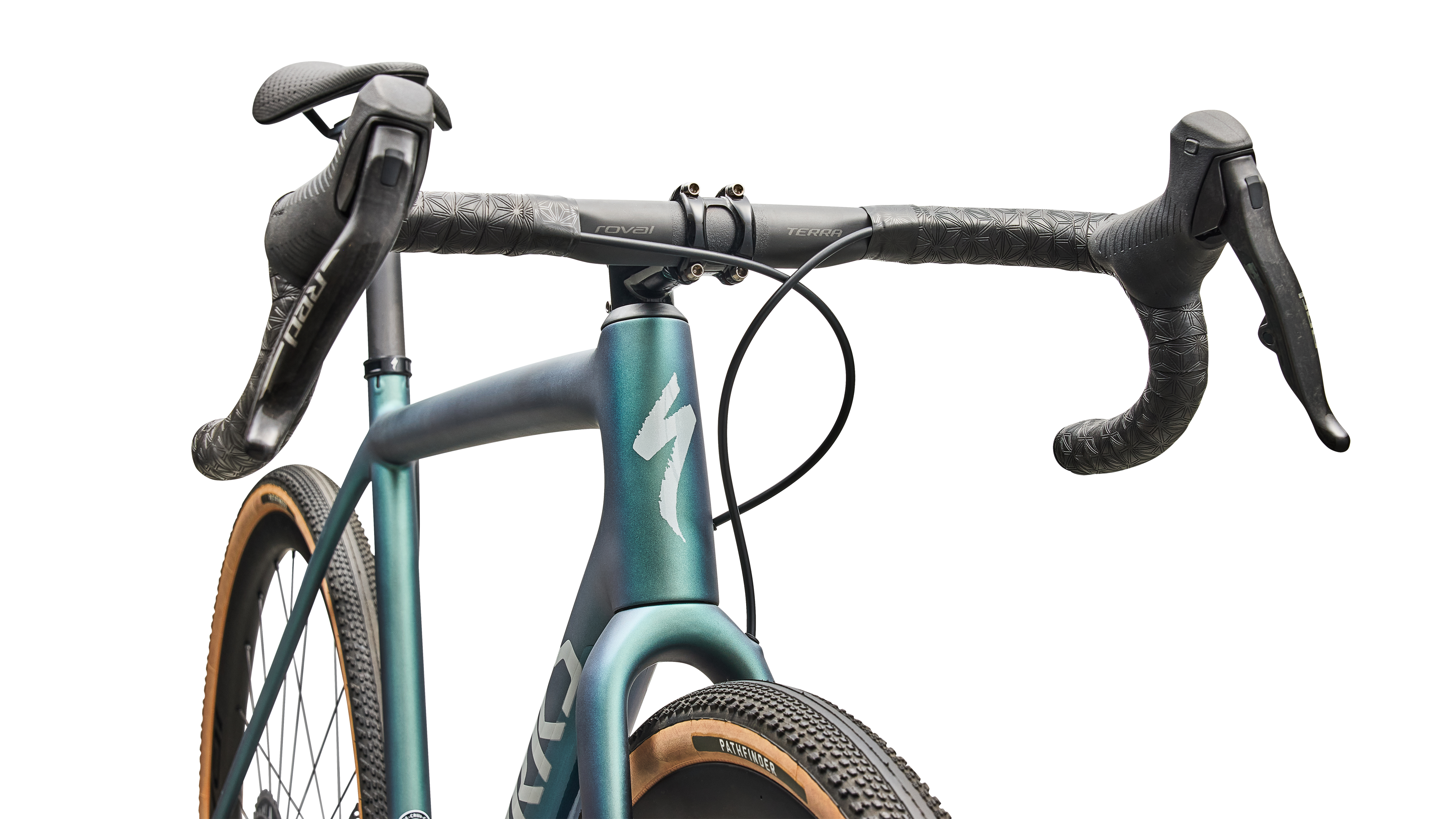

Roval Terra, carbon, 103mm drop x 70mm reach x 12º flare

Brakes

Front Brake

SRAM RED AXS, hydraulic disc

Rear Brake

SRAM RED AXS, hydraulic disc

Drivetrain

Shift Levers

SRAM RED AXS, hydraulic disc

Rear Derailleur

SRAM Red XPLR, 13sp

Cassette

SRAM Red XPLR, 13sp, 10-46t

Shift Levers

SRAM RED AXS, hydraulic disc

Crankset

SRAM Red AXS Power Meter, 40t Chainring

Chain

SRAM Red XPLR, 13sp

Bottom Bracket

SRAM DUB BSA 68 Wide

Wheels & Tyres

Front Wheel

Roval Terra CLX II, 25mm internal width, Tubeless Ready, 32mm depth, 21h, Roval LF13 hub with ceramic SINC bearings, Centerlock disc, DT Swiss Aerolite spokes

Rear Wheel

Roval Terra CLX II, 25mm internal width, Tubeless Ready, 32mm depth, 24h, Roval LF14R2, Centerlock, DT Swiss EXP internals, SRAM XDR, DT Swiss Aerolite spokes

Front Tire

Pathfinder 700x40, Tubeless Ready

Rear Tire

Pathfinder 700x40, Tubeless Ready

Tubes

Presta, 700X32-50mm
