Product Details

Product Description

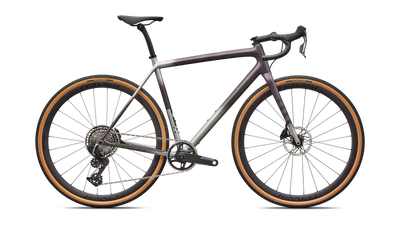

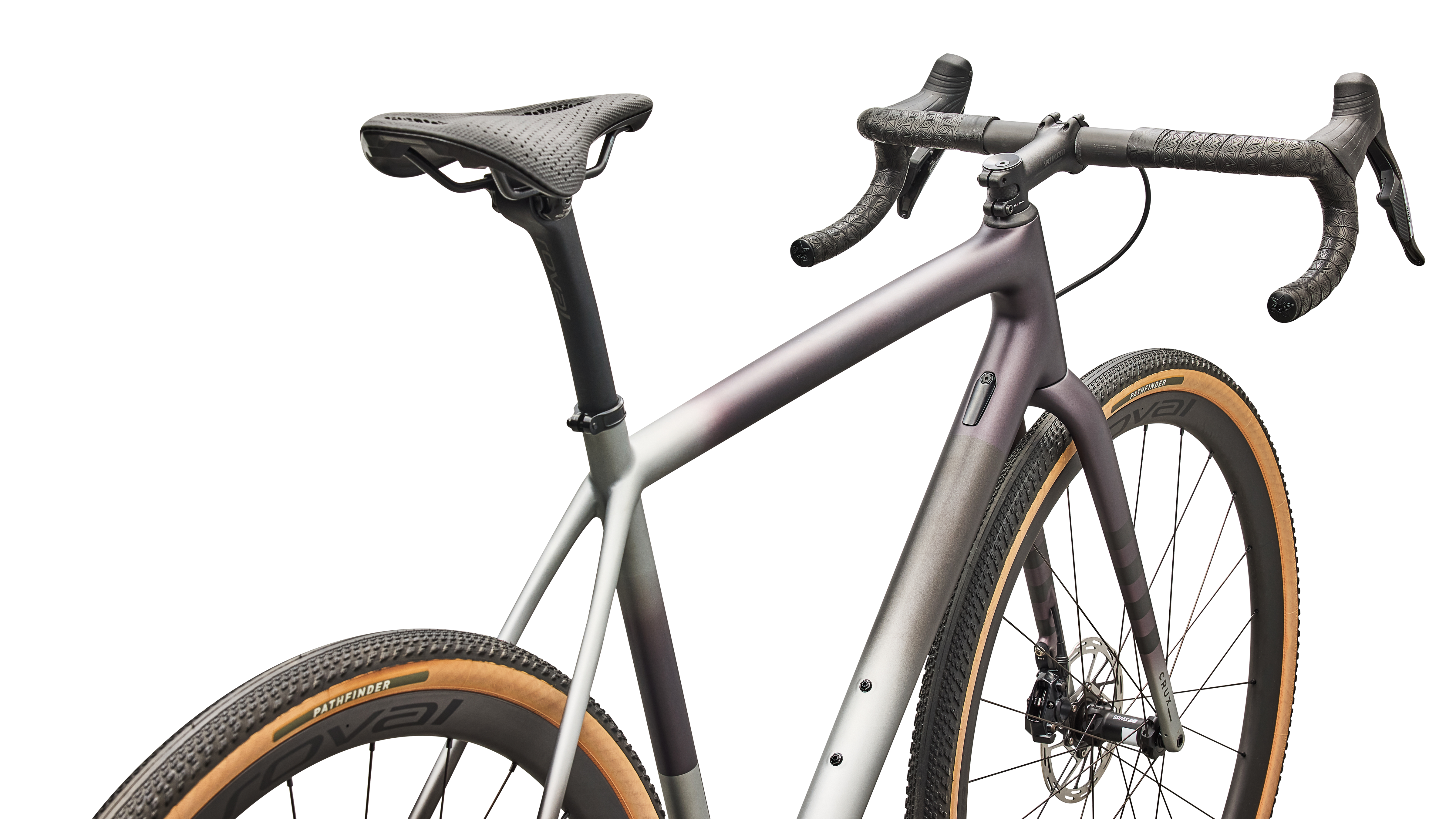

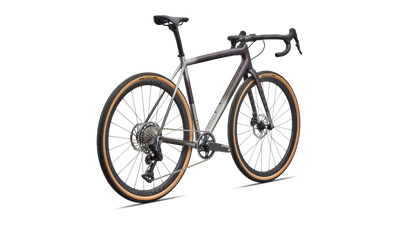

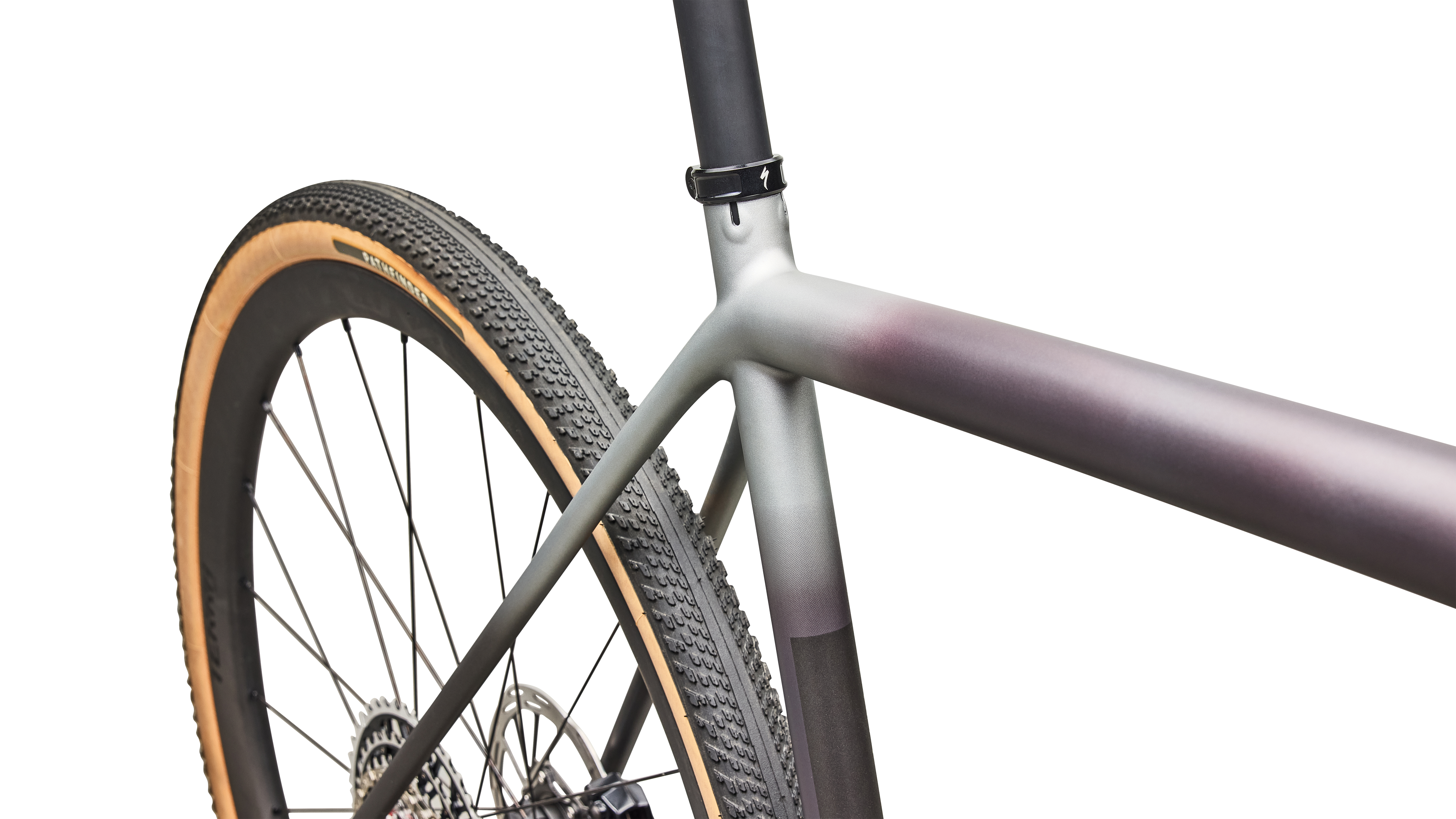

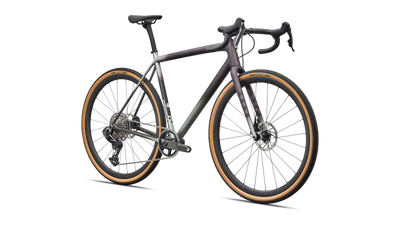

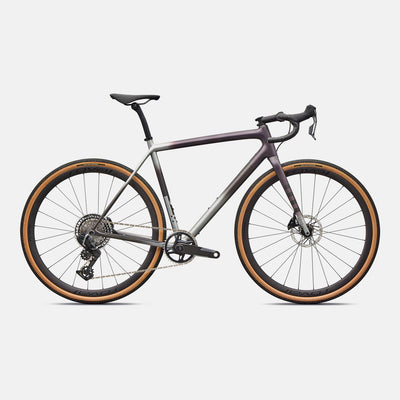

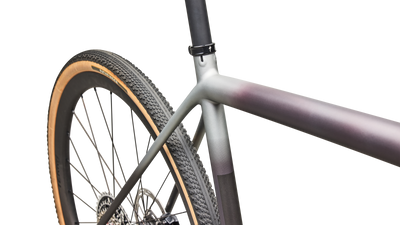

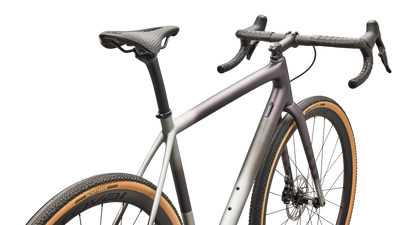

The Crux is the lightest gravel bike in the world, with the exceptional capability of massive tire clearance and performance gravel geometry. It’s not just the ultimate expression of gravel performance, it’s your one-way ticket to gravel enlightenment. This Crux Pro comes spec'd with all-new SRAM Force XPLR AXS for effortless braking, lighter weight, with massive 13 speed gear range, lightweight and durable Roval Terra CL Disc wheels, and 2Bliss Ready, 700x40mm Pathfinder Pro tires that hookup over nasty terrain. Lightest: 725g S-Works 12r and 825g 10r frames. We took the revolutionary breakthroughs that made Aethos the lightest bike ever and applied them to the Crux. The result? A gravel bike that climbs like a dream, floats over nightmarish terrain, and weighs less than a full bottle in your cage.

Capable: 47c/650b x 2.1” tire clearance. More clearance means more capability. With Diverge-level tire clearance, Crux takes you anywhere you can imagine, at full gas.

Responsive: Nimble, supple, and reactive. Responsive at the pedals. Supple in the saddle. With performance gravel geometry and race-influenced fit inspired by Crux’s iconic history in ‘cross.













Frameset

Frame

Crux FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout

Seat Binder

Specialized Alloy, 30mm

Suspension

Fork

S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc

Cockpit

Seat Post

Roval Terra Carbon Seat Post, 20mm Offset

Saddle

Power Pro Mirror, hollow Ti rails

Stem

Specialized Pro SL, alloy, 4-bolt

Bar Tape

Supacaz Super Sticky Kush

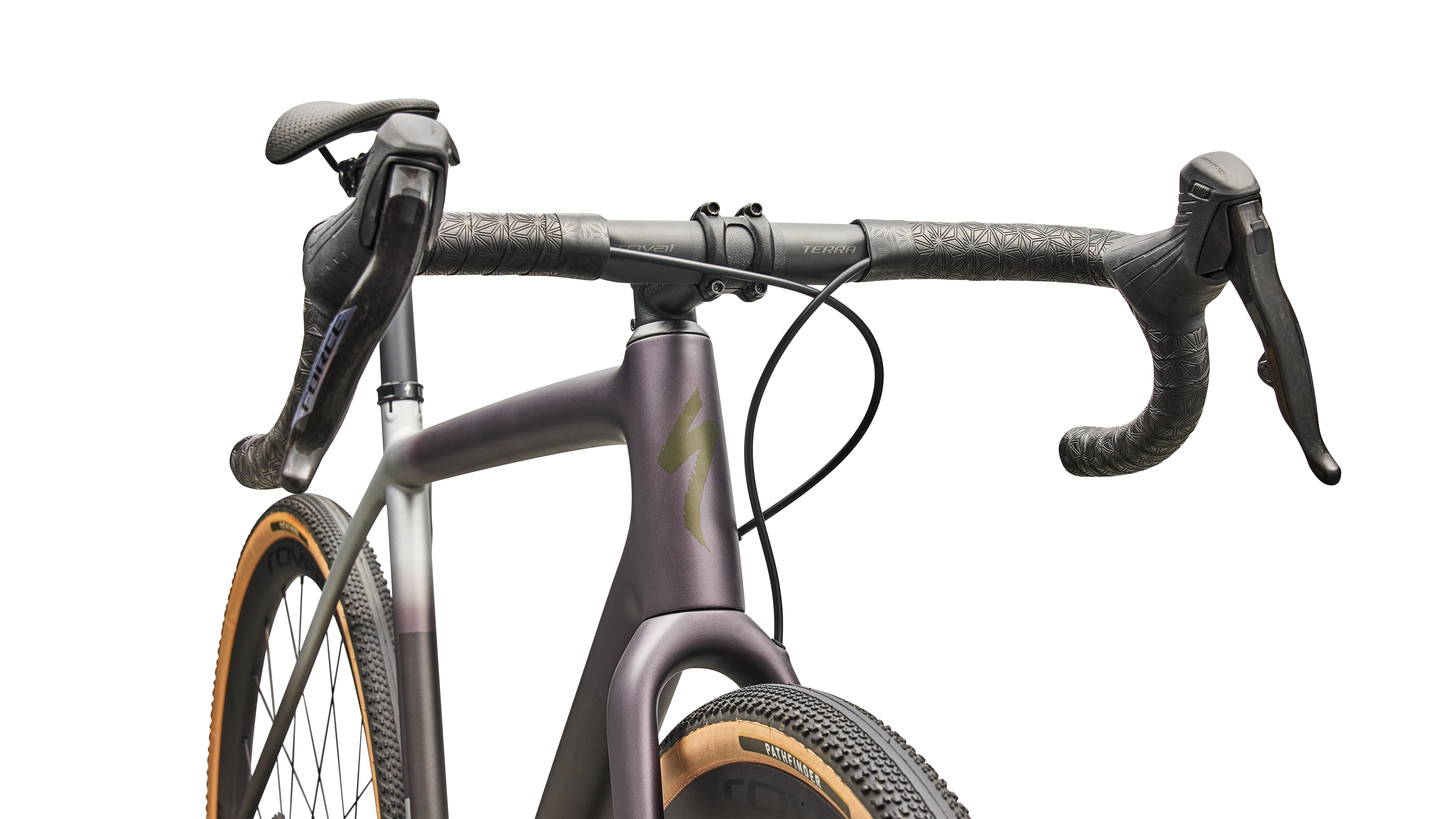

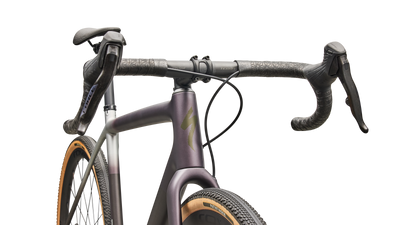

Handlebars

Roval Terra, carbon, 103mm drop x 70mm reach x 12º flare

Brakes

Front Brake

SRAM Force E1, hydraulic disc

Rear Brake

SRAM Force E1, hydraulic disc

Drivetrain

Shift Levers

NEW SRAM Force AXS E1 HRD

Rear Derailleur

NEW SRAM Force XPLR AXS E1

Cassette

NEW SRAM Force XPLR XG-1371, 13sp, 10-46t

Shift Levers

NEW SRAM Force AXS E1 HRD

Crankset

NEW SRAM Force E1 XPLR, DUB WIDE, 40T, Quarq Power Meter

Chain

NEW SRAM Force E1

SRAM DUB BSA

SRAM DUB BSA

Wheels & Tyres

Front Wheel

Roval Terra CL Rim, 25mm internal width, 32mm depth, 24h, Tubeless ready, DT for Roval 350 hub, Centerlock disc, DT Swiss Competition Race spokes

Rear Wheel

Roval Terra CL Rim, 25mm internal width, 32mm depth, 24h, Tubeless ready, DT for Roval 350 hub, Centerlock disc, DT Swiss Competition Race spokes

Front Tire

Pathfinder 700x40, Tubeless Ready

Rear Tire

Pathfinder 700x40, Tubeless Ready

Tubes

700x32-50mm, 40mm Presta valve
