Specialized

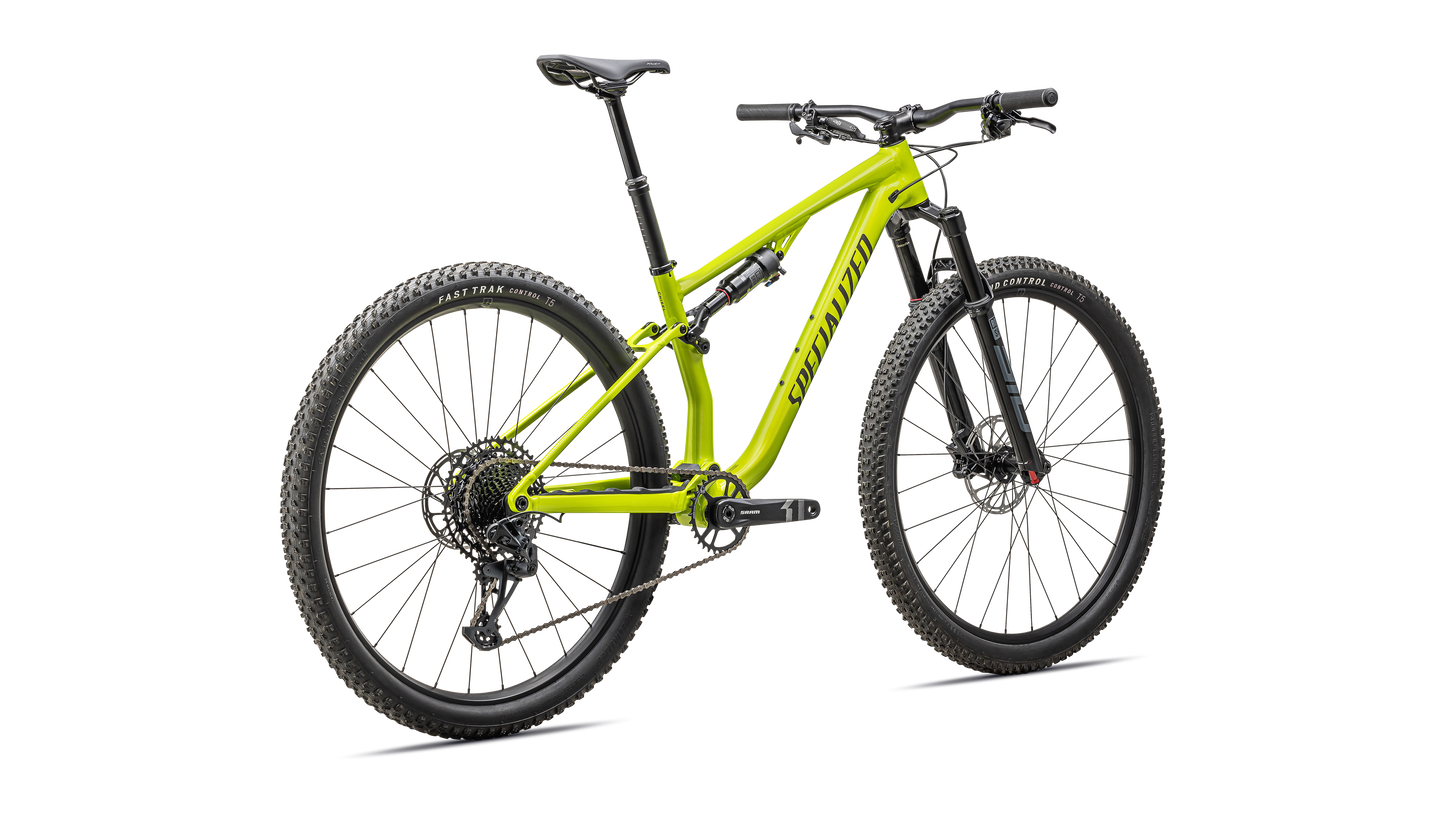

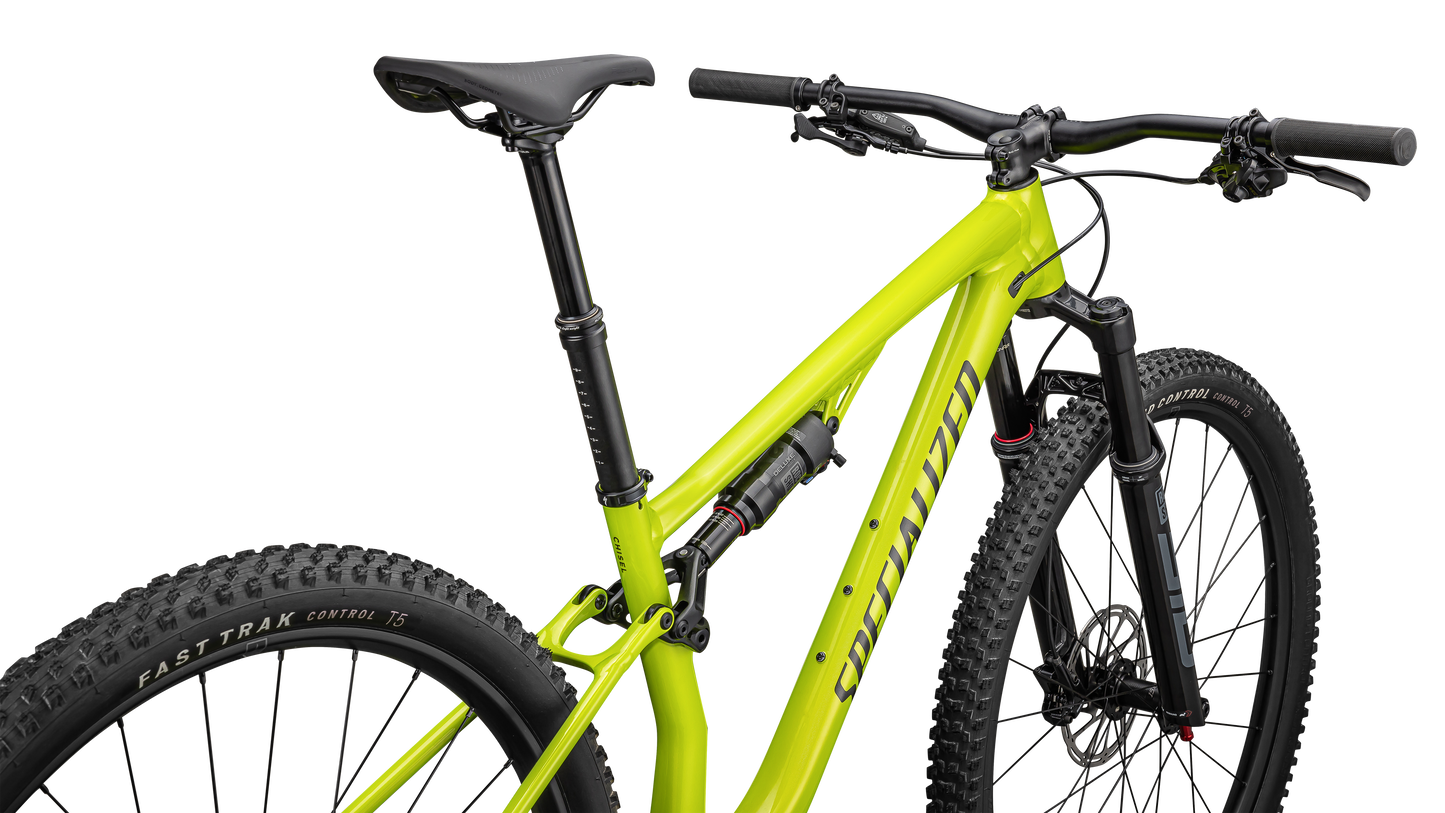

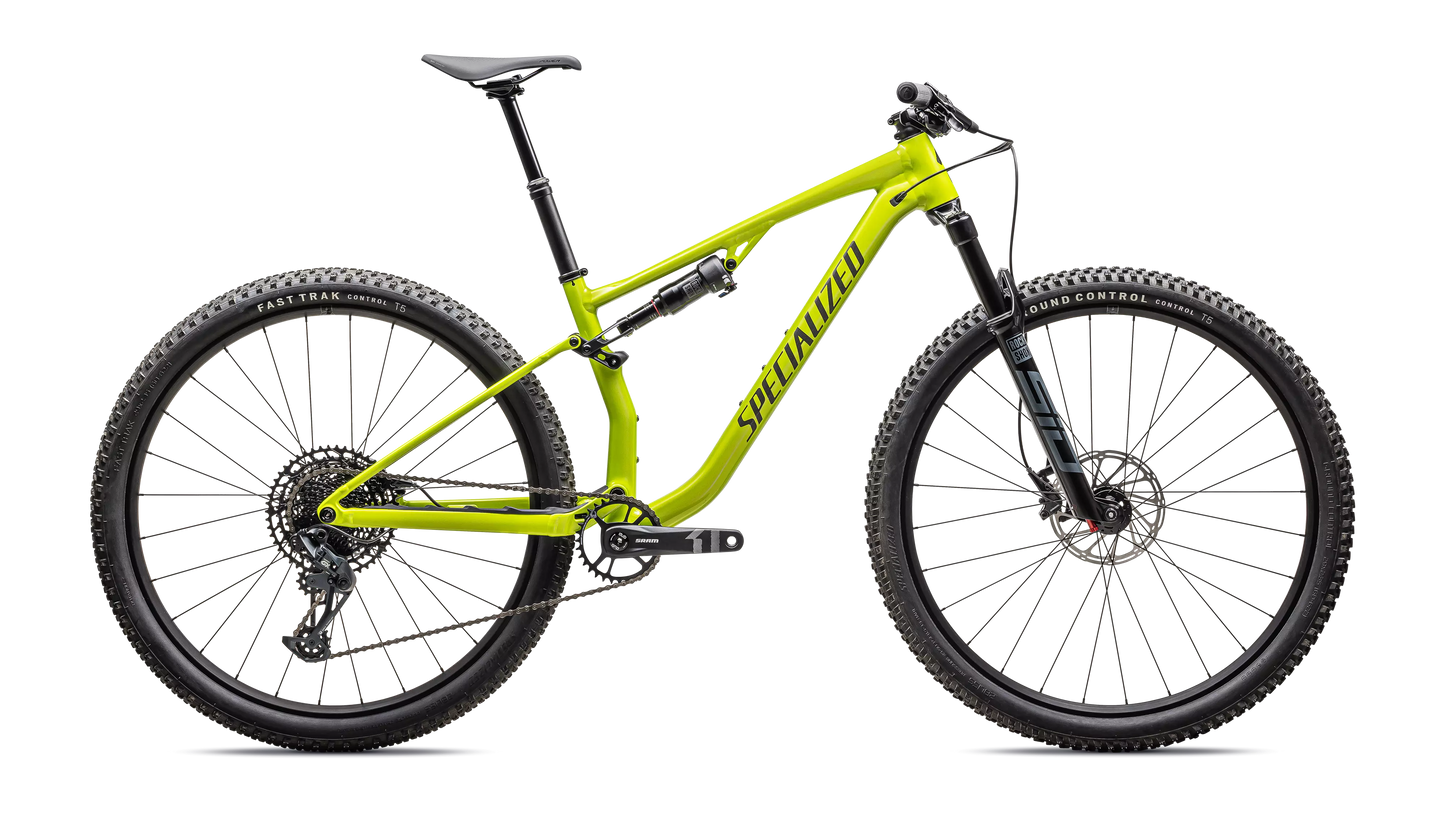

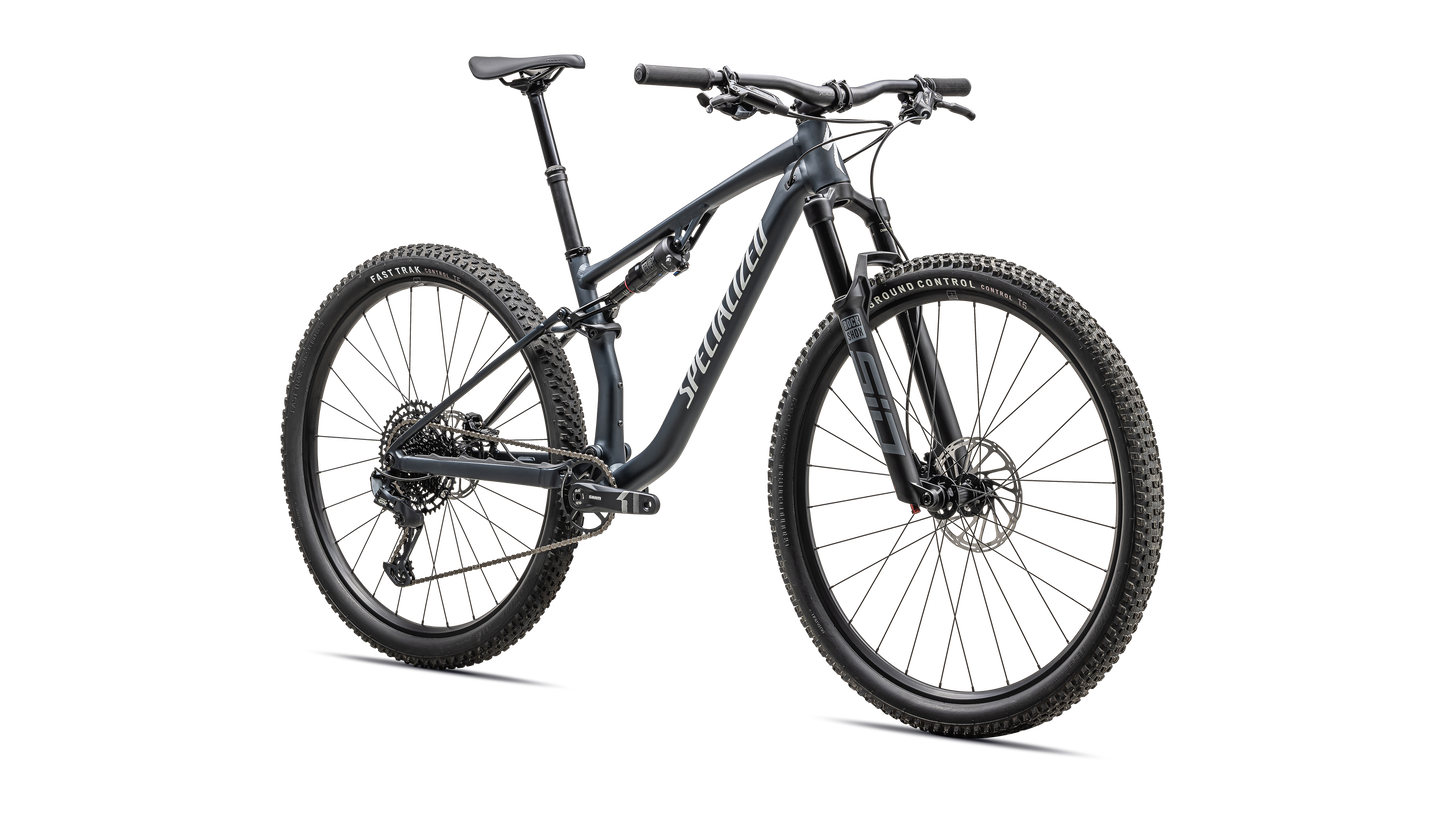

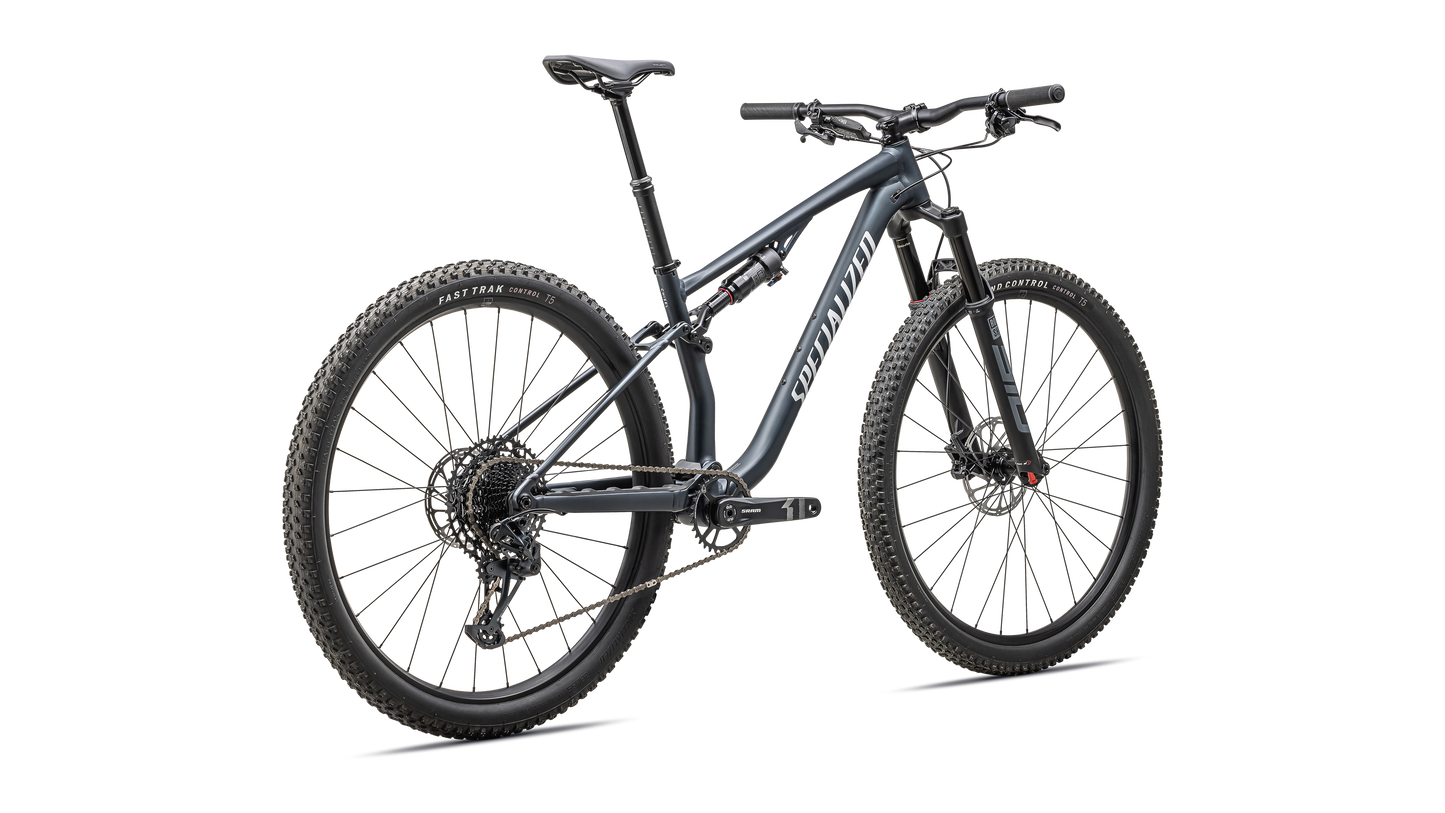

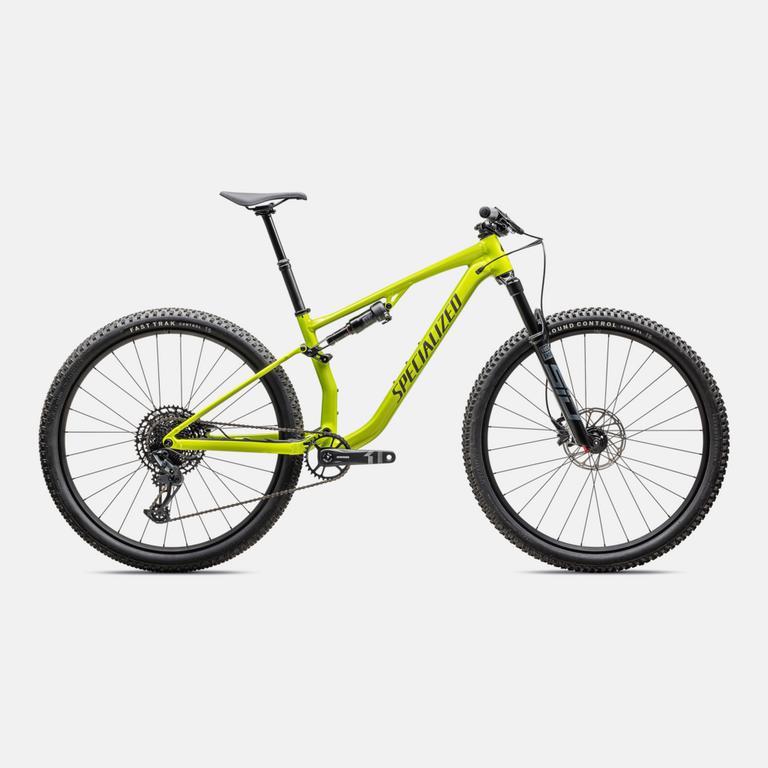

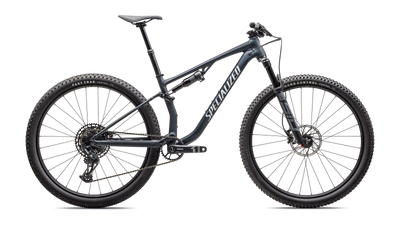

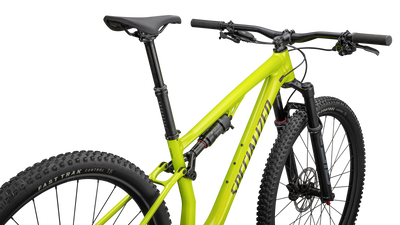

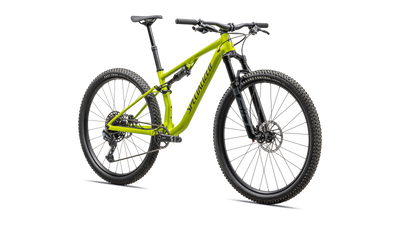

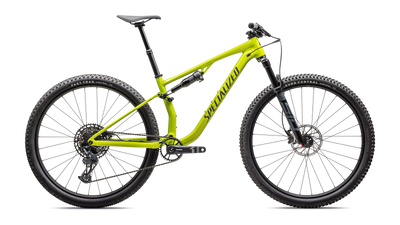

Chisel Comp

Chisel Comp

Regular price $5,300.00
Regular price $0.00 Sale price $5,300.00
Sale Contact Us for Availability
Tax included.
Colour
Size
View Size Guide
The Lightest, Fastest Alloy Full Suspension Bike in the World. 18.4% lighter than the closest competitor and sharing geometry and kinematics from our World Cup ready Epic 8 mountain bike, the all-new Chisel delivers performance you can feel—whether you’re racing “between the tape” or ripping solo hot laps on local trails. SPEED METAL: Thanks to D’Aluisio Smartweld, the Chisel boasts the lightest aluminum XC frameset in its class. Each highly-manipulated frame tube features continuously-varied wall thicknesses and shaping that deliver stiffness where you need it - for efficiency - and ride-smoothing compliance where you want it - for comfort and optimal control. UNMATCHED CAPABILITY: With 110mm of Ride Dynamics tuned suspension, the high performance pedigree of Chisel can be traced directly to the Epic 8, our World Cup race machine. DNA from the Epic 8’s advanced suspension kinematics, Ride Dynamics tuned suspension, and progressive geometry honed on technical World Cup courses can all be found in the Chisel, making it more than capable of handling varied terrain with confidence and speed. INCREDIBLE EFFICIENCY: Chisel is the most efficient pedaling bike in its class, thanks to the utilization of geometry and kinematics that went into our World Cup racing Epic 8 platform. The steep seat tube positions the rider in the optimal pedaling position. Honed anti-squat reduces pedal-bob. Put it together and Chisel translates every watt applied to the pedals into maximum forward motion. SMOOTHER IS FASTER: We engineered a flex stay rear end for class-leading suspension performance, while eliminating the extra weight and maintenance associated with pivots required in a traditional design. More common on carbon bikes, extensive field and lab testing prove that Chisel has achieved the impossible—the efficiency, control, and light-weight of a flex stay design, in advanced alloy. HYDROFORMED ALLOY: Chisel shaves extra material and weight with a one-piece hydroformed seat tube that integrates the seat tube pivot, main pivot, and BB shell. On a more traditional bike, the seat tube is typically just a "tube" with pivots and BB shell welded on. Frame - D’Alusio Smartweld hydroformed tubes and engineered tube junctions, Flip chip geo adjust, 110mm travel

RockShox's SID 120mm fork, featuring their Rush Damper

Ride Dynamics Tuned Rockshox Deluxe Select+ rear shock

TranzX dropper post

Sram GX Eagle Rear derailleur









SKU:93825-5201

View full details

Technical Specifications

Frameset

Frame

Specialized D'Aluisio Smartweld M5 Alloy, Hydroformed tubes, Progressive XC Geometry, 110mm travel, internal cable routing, BSA BB, 12x148mm spacing, 30.9mm Dropper post compatible

Seat Binder

Specialized Alloy, 34.9mm

Suspension

Rear Shock

RockShox Deluxe Select+, Ride Dynamics Tuned, Two Position, Rebound Adjust, 190x40mm

Fork

RockShox SID, Rush damper, 44mm offset, 15x110mm thru-axle, 120mm of travel, Maxle Stealth

Cockpit

Seat Post

TranzX Dropper, 30.9mm, XS-SM: 100mm, M: 125mm, L-XL: 150mm

Saddle

Body Geometry Power Sport, steel rails

Stem

Specialized, 3D-forged alloy, 4-bolt, 7-degree rise

Grips

Specialized Trail Grips

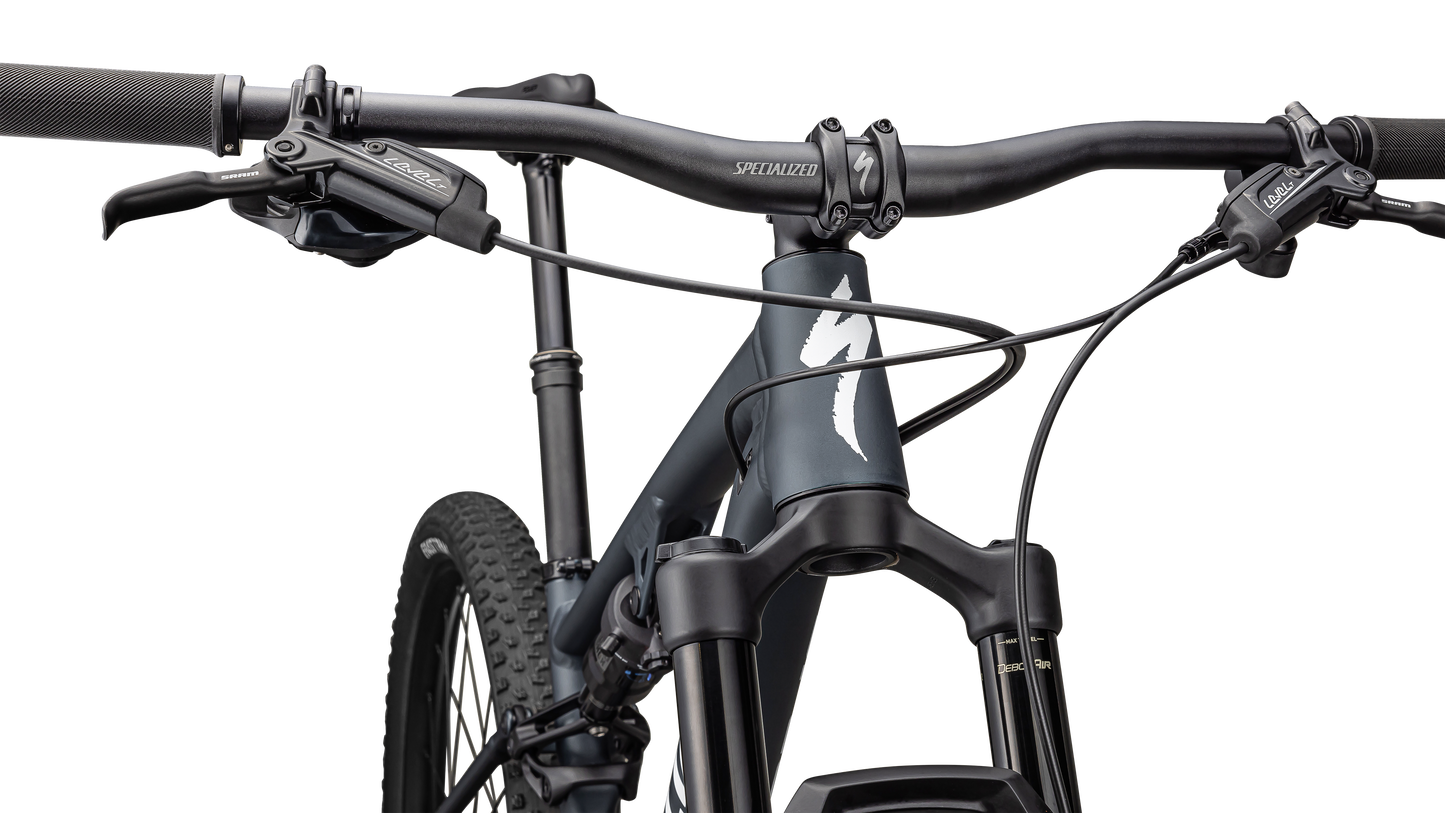

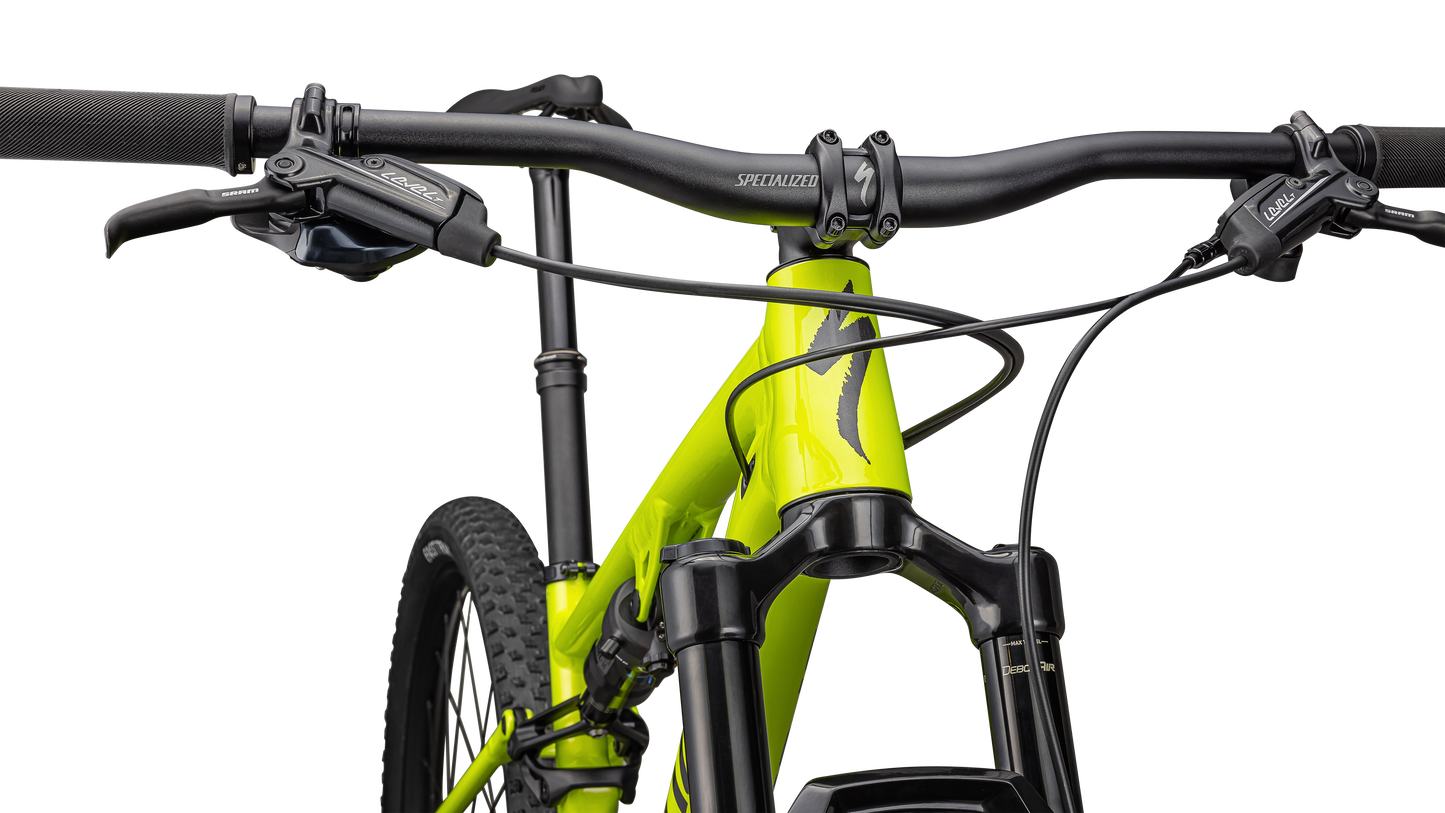

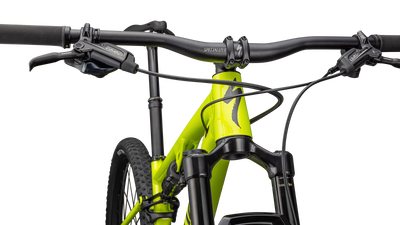

Handlebars

Specialized Alloy, 20mm rise, 31.8mm, 760mm wide

Brakes

Front Brake

SRAM Level T hydraulic disc, 2-Piston Caliper, 180mm rotor

Rear Brake

SRAM Level T hydraulic disc, 2-Piston Caliper, 160mm rotor

Drivetrain

Shift Levers

SRAM GX, trigger, 12-speed

Rear Derailleur

SRAM GX Eagle, 12-speed

Cassette

SRAM PG-1230 EAGLE 11-50t

Shift Levers

SRAM GX, trigger, 12-speed

Crankset

SRAM FC X1 1000 EAGLE B148 DUB 32ST

Chain

SRAM SX Eagle, 12-speed

Bottom Bracket

SRAM DUB, BSA 73mm, Threaded

Chain Ring

Steel, 30T

Wheels & Tyres

Front Hub

Specialized alloy front hub, disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 28h

Rear hub

Specialized alloy, disc, sealed cartridge bearings, 6-bolt, 12x148mm thru-axle, 28h

Rims

Specialized Alloy, Tubeless ready, 27mm inner width, disc, 28h

Front Tire

Specialized Ground Control, Control Casing, T5 Compound, 29x2.35

Rear Tire

Specialized Fast Trak, Control Casing, T5 Compound, 29x2.35

Spokes

Stainless, 14g

Tubes

Standard 40mm PV 29x1.75-2.4
